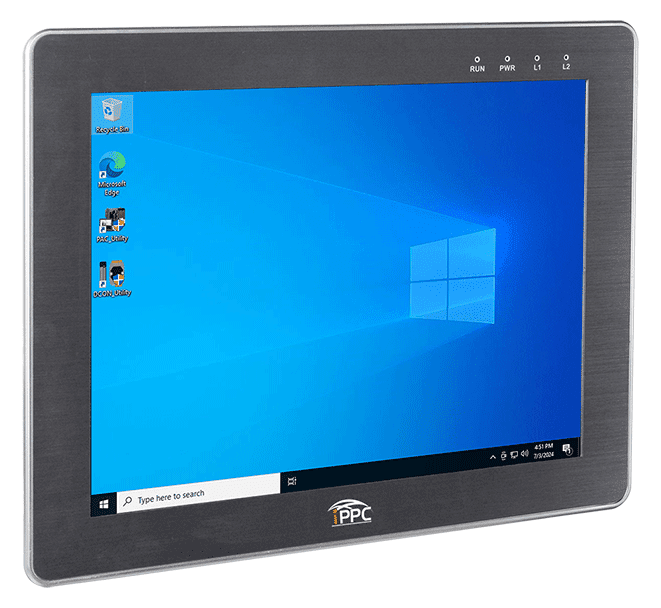

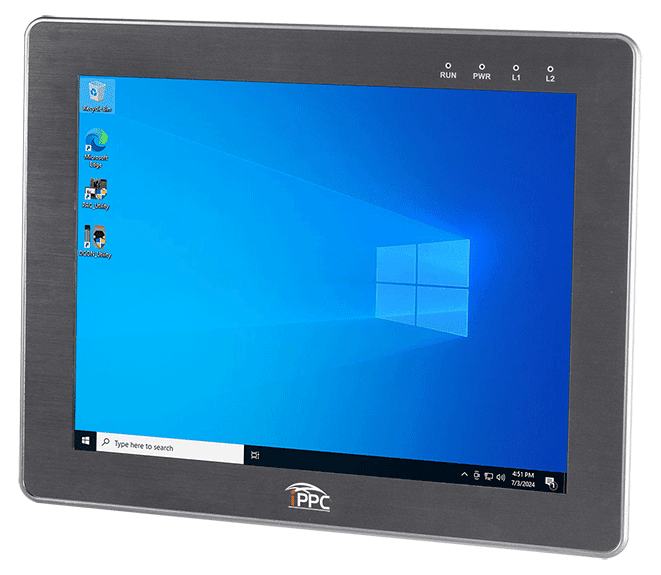

iPPC-6831-IoT 15" Panel PC with Atom E3845 and 3 I/O Slots
15-inch fanless Windows 10 IoT Panel PC combining HMI, computing and I/O in one panel-mount unit, with three slots for I-8K and I-87K I/O modules.
- Windows 10 IoT Enterprise LTSC with Intel Atom E3845 1.91 GHz quad-core CPU
- 15-inch LCD with 5-wire resistive touch panel, 1024 x 768 resolution
- Three I/O expansion slots supporting I-8K and I-87K series modules
- Two 10/100/1000BASE-TX Ethernet ports and three USB 2.0 host ports
- Three serial ports: RS-232, RS-485 and switchable RS-232/RS-485 with 2500 VDC isolation
- Fanless design with NEMA 4/IP65 rated front panel for panel mounting
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
No longer available
Product information "iPPC-6831-IoT 15" Panel PC with Atom E3845 and 3 I/O Slots"
iPPC-6831-IoT CR is a panel-mount industrial PC that brings a 15-inch touch display, an Intel Atom E3845 processor and Windows 10 IoT Enterprise LTSC into a single unit. It suits projects where operator interface, data acquisition and control need to share one enclosure rather than being spread across separate hardware.

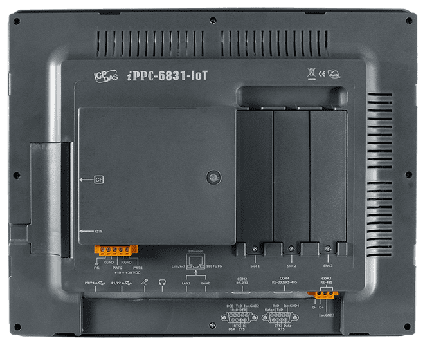

The unit provides 4 GB DDR3 SDRAM and a 128 GB SSD, with a CF card slot for additional storage. Two RJ-45 10/100/1000BASE-TX Ethernet ports, three serial ports (one RS-232, one RS-485 and one switchable RS-232/RS-485, both with 2500 VDC isolation) and three USB 2.0 host ports handle communication. Three slots accept I-8K and I-87K series I/O modules, and the system can also use remote Ethernet and RS-485 I/O modules.
The fanless design has no moving parts, and the front panel is rated NEMA 4/IP65 for protection against sprayed water, humidity and dust. It is specified for an operating temperature range of -20 ~ +60 °C and is intended for panel mounting with a 366 x 290 mm cut-out.
Applications
- HMI and operator control panels
- Data acquisition
- Machine control
- Remote I/O expansion via Ethernet and RS-485 I/O modules
| Product type: | Panel PC |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB 2.0 |
| Ports: | 8 |
| Isolation: | 1 kV (power), 2500 VDC (serial) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -20 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifications
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC |
| Framework Support | .Net Framework 3.5, 4.0, 4.5, 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM |
| Storage | 1 x 128 GB SSD, 1 x CF card slot |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Size | 15" |
| Backlight Life | 50,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 700：1 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC), 1 x RS-232/RS-485 (2500 VDC) |
| USB | |
| Ports | 3 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 25.0 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 381 x 305 x 88 (W x L x H) |
| Panel Cut-out (mm) | 366 x 290, ±1 (W x H) |
| Installation | Panel Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 5.1 kg |
| Environment | |
| Operating Temperature | -20 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
