The iKAN-208 CR is a two-row industrial LED message display that shows text generated by a PLC or other Modbus master. Each row holds 8 ASCII or 4 Unicode characters, and the text height is 16 cm. Messages can be selected from a pool of 128 stored entries, each with a user-defined priority, so the most urgent information can be shown first.Seven text colours (red, blue, yellow, green, light blue, purple and white) let operators separate warnings and alarms from routine information. Configuration is handled through a web-based user interface, and the built-in real-time clock supports date and time display. The unit is powered from 100 ~ 240 VAC and is designed for wall mounting in an aluminium casing.The display offers two RJ-45 10/100 Base-TX switch ports and two RS-485 ports for Modbus RTU master or slave operation. A data pool of 40 coil, 64 float and 64 integer values supports variable-based messages, and the unit can also connect directly to DL-series sensor modules to show live readings.ApplicationsPLC-driven HMI messages and alarm indicationIndoor air quality display using a DL-302 sensor moduleCommercial and public buildings such as schools, museums, retail and healthcare facilities

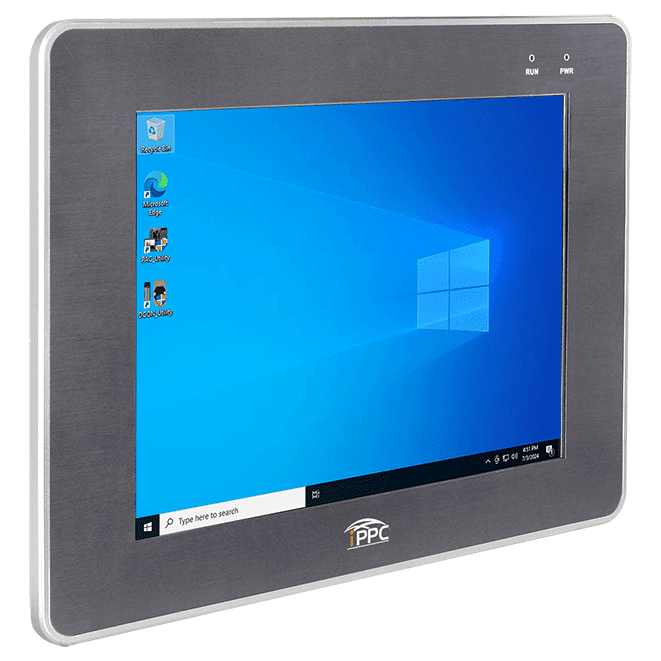

iPPC-4801-IoT CR is a panel-mount Windows 10 IoT Enterprise computer that combines a touch display, processing and serial and Ethernet connectivity in one unit. It suits engineers who need an operator interface and a local data acquisition or control node in the same enclosure, without a separate PC and monitor.The 10.4-inch TFT screen uses a 5-wire resistive touch panel and runs at 800 x 600. Processing is handled by an Intel Atom E3845 quad-core CPU with 4 GB DDR3 SDRAM and a 128 GB SSD, with a CF card slot for additional storage. Non-volatile MRAM and EEPROM are included for data retention, and the unit provides dual watchdog timers and a real-time clock.Connectivity includes one RJ-45 10/100/1000 Base-TX Ethernet port, two RS-232/RS-422/RS-485 serial ports and two USB 2.0 host ports. The power input accepts +10 ~ 30 VDC with 1500 VDC isolation and supports redundant inputs. The fanless metal casing has a front panel rated NEMA 4/IP65 and operates from -20 ~ +60 °C. Remote I/O expansion is supported through Ethernet and RS-485 I/O modules.ApplicationsHMI and operator panelsData acquisitionMachine and process controlRemote I/O expansion via Ethernet and RS-485 I/O modules

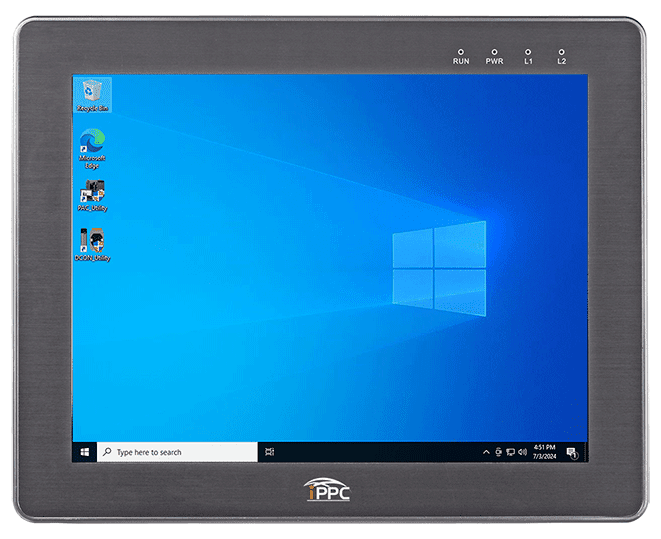

The iPPC-6801-IoT CR combines computing, I/O and a 15-inch TFT touch display in one panel-mounted unit. It suits engineers who need a single device for operator interface, data acquisition and control, running Windows 10 IoT Enterprise LTSC on a 1.91 GHz Intel Atom E3845 quad-core processor.Connectivity covers two RJ-45 10/100/1000 Base-TX Ethernet ports, two RS-232/RS-422/RS-485 serial ports and four USB 2.0 host ports. The unit can be extended with remote Ethernet and RS-485 I/O modules. Storage comprises a 128 GB SSD and a Compact Flash slot, with 4 GB DDR3 SDRAM and non-volatile MRAM and EEPROM for data retention.The fanless, metal-cased front panel is NEMA 4/IP65 rated for panel mounting, and the operating range is -20 ~ +60 °C. Power is +10 ~ 30 VDC with 1500 VDC isolation and a redundant power input option. The unit carries CE, UKCA, RoHS and WEEE marks.ApplicationsOperator interface (HMI) terminalsData acquisition at the machine or panel levelControl functions with remote I/O expansionIndustrial environments requiring IP65 front protection

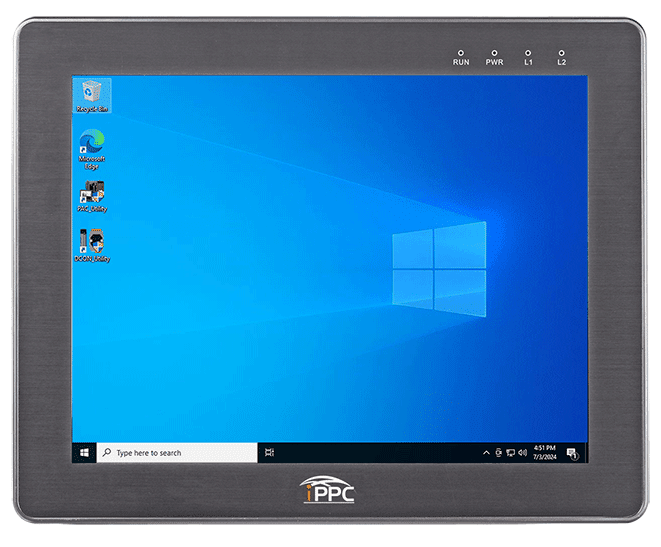

iPPC-6831-IoT CR is a panel-mount industrial PC that brings a 15-inch touch display, an Intel Atom E3845 processor and Windows 10 IoT Enterprise LTSC into a single unit. It suits projects where operator interface, data acquisition and control need to share one enclosure rather than being spread across separate hardware.The unit provides 4 GB DDR3 SDRAM and a 128 GB SSD, with a CF card slot for additional storage. Two RJ-45 10/100/1000BASE-TX Ethernet ports, three serial ports (one RS-232, one RS-485 and one switchable RS-232/RS-485, both with 2500 VDC isolation) and three USB 2.0 host ports handle communication. Three slots accept I-8K and I-87K series I/O modules, and the system can also use remote Ethernet and RS-485 I/O modules.The fanless design has no moving parts, and the front panel is rated NEMA 4/IP65 for protection against sprayed water, humidity and dust. It is specified for an operating temperature range of -20 ~ +60 °C and is intended for panel mounting with a 366 x 290 mm cut-out.ApplicationsHMI and operator control panelsData acquisitionMachine controlRemote I/O expansion via Ethernet and RS-485 I/O modules

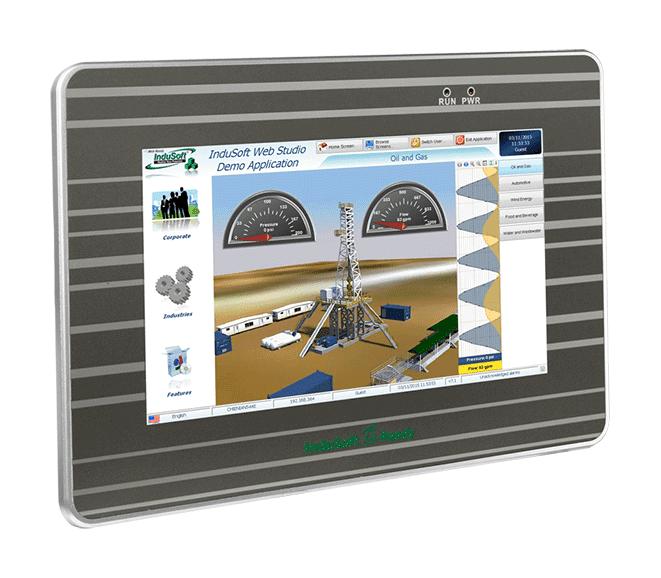

IWS-2201-CE7 CR is a panel-mounted 7-inch controller and HMI terminal that runs Windows Embedded Compact 7 with an InduSoft runtime licensed for 300 tags. It suits operator interfaces where a touch screen, local control logic and network connectivity need to sit in one unit, without a built-in I/O slot.The Cortex-A8 processor, 512 MB DDR3 memory and 256 MB flash give the unit room for application code and data. Two RS-232/RS-485 ports, a Gigabit Ethernet port and two USB connectors cover most field and office connections. Where extra I/O is needed, the source notes support for remote expansion through ICP DAS Ethernet, RS-485, Wi-Fi and ZigBee I/O modules.The front panel is rated NEMA 4/IP65 and the design is fanless. It operates from -10 to +60 °C, and it can be powered from a +12 to +48 VDC supply or from PoE to IEEE 802.3af.ApplicationsPanel-mounted HMI and operator terminalsControl and monitoring applicationsRemote I/O-based automation with Ethernet, RS-485, Wi-Fi or ZigBee I/O modules

The IWS-2201-CE7-1500 combines a Cortex-A8 1.0 GHz controller with a 7-inch 800 x 480 resistive touch display, giving engineers a panel-mounted operator interface that also runs control logic. The InduSoft Runtime is included with a 1500-tag licence, and the Windows CE 7.0 operating system is held in on-board flash memory.Connectivity covers one RJ-45 10/100/1000 Base-TX Ethernet port, two RS-232/RS-485 COM ports with 2500 VDC isolation, and two USB ports. The unit supports Modbus, OPC and TCP/IP client/server communication, and a DCON driver is provided for ICP DAS I/O modules. Remote I/O can be added through Ethernet, RS-485, Wi-Fi and ZigBee I/O modules.This ordering code is the version without an I/O slot, with the 1500-tag InduSoft Runtime. The front panel carries an NEMA 4/IP65 rating, and the fanless design is rated for -10 ~ +60 °C operation, so it suits dusty or humid cabinet and machine-mounted installations.ApplicationsControl and HMI applicationsPanel-mounted machine and process operator interfacesDusty or humid industrial environments

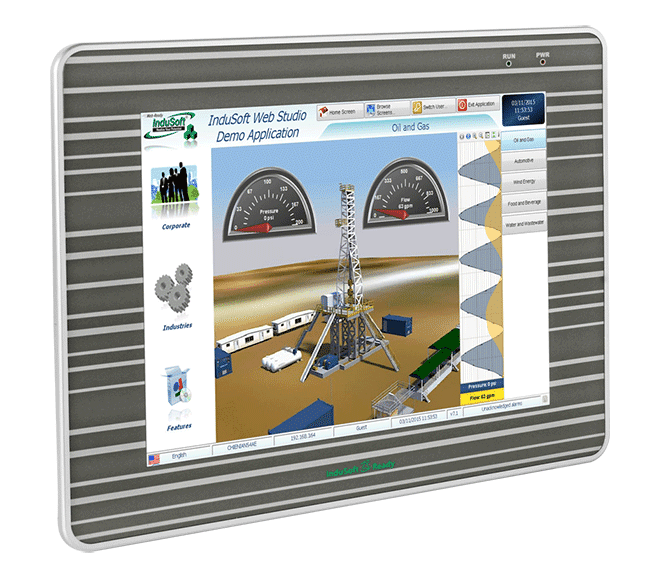

IWS-4201-CE7 CR is the 10.4-inch variant of the IWS-x201-CE7 series, combining an InduSoft runtime licensed for 300 tags with a Cortex-A8 controller and a resistive touch display in one flat panel unit. The CR ordering code denotes the version supplied without an I/O slot, so expansion is handled through external modules.The unit suits operator interface and light control tasks where a sealed, fanless panel computer is needed at the cabinet door. Remote I/O can be added through ICP DAS Ethernet, RS-485, Wi-Fi and ZigBee I/O modules, and a DCON driver for ICP DAS I/O modules is included.Front-panel protection is NEMA 4/IP65, and the unit is rated for operation from -10 ~ +60 °C. Mounting is by panel cut-out or VESA 75 x 75 bracket.ApplicationsPanel-mounted HMI and operator terminalsMachine and process control interfacesRemote I/O supervision with Ethernet, RS-485 and wireless I/O modules

The IWS-4201-CE7-1500 CR is a panel-mount ViewPAC that combines an InduSoft runtime licensed for 1500 tags with a 10.4-inch resistive touch display. It suits engineers who need an operator interface and a programmable controller in one fanless unit, running on Windows Embedded Compact 7.Connectivity covers one RJ-45 10/100/1000Base-TX Ethernet port, two USB ports and three isolated COM ports that can be configured as RS-232 or RS-485. The DCON driver supports ICP DAS I/O modules, and remote I/O expansion is available through Ethernet, RS-485, Wi-Fi and ZigBee I/O modules.The front panel is rated NEMA 4/IP65 and the unit is specified for -10 ~ +60 °C operation. The 10.4-inch model is listed in the 1500-tag variant, so choose it when your application needs that tag capacity; the 10.4-inch 800 x 600 display is the one to specify for this ordering code.ApplicationsPanel-mounted HMI and operator interfacesMachine and process controlControl systems requiring remote I/O expansion

IWS-6201-CE7 CR is a 15-inch flat panel controller that combines a RISC-based CPU board with a TFT touch display, suited to panel-mounted HMI and control work. It runs an InduSoft runtime licensed for 300 tags on Windows Embedded Compact 7, so an engineer can build the operator interface and control logic on one fanless unit without a separate PC.Connectivity covers one Gigabit Ethernet port, two USB ports and three isolated RS-232/RS-485 serial ports. The unit ships without an I/O slot, so remote I/O is added through ICP DAS Ethernet, RS-485, Wi-Fi or ZigBee I/O modules, and a DCON driver is provided for ICP DAS I/O.The front panel is rated NEMA 4/IP65 for sprayed water, humidity and dust, and the fanless design is rated for -10 to +60 °C ambient operation. The panel is intended for panel mounting, with VESA (75 x 75) mounting also listed.ApplicationsPanel-mounted HMI and operator interfacesControl and monitoring applications with touch-screen operationRemote I/O expansion over Ethernet, RS-485, Wi-Fi or ZigBee

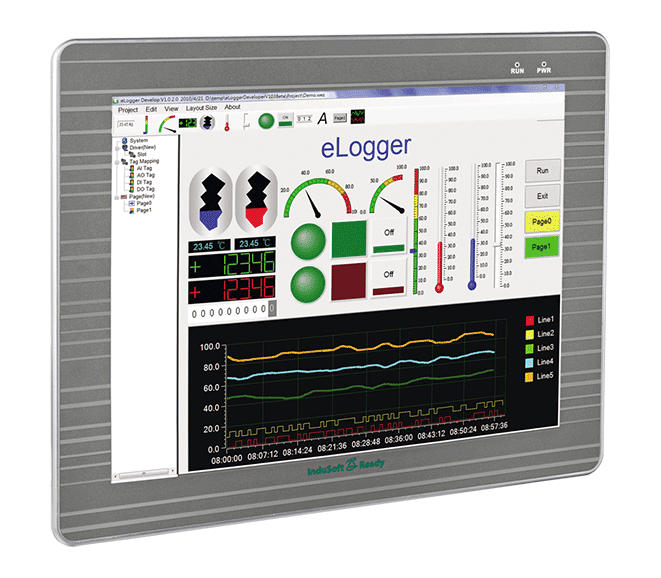

IWS-6201-CE7-1500 is a panel-mounted InduSoft PAC that combines a RISC-based controller with a 15-inch TFT touch display in a ruggedised flat-panel computer. It runs the InduSoft Runtime with a 1500-tag licence on Windows CE 7.0, making it suited to operator interfaces and control tasks where a single front-panel unit must handle both.The unit has no I/O slots, so it is supplied as a standalone controller with communication ports for connecting to external devices. It offers Gigabit-rated Ethernet, two USB ports, and three isolated RS-232/RS-485 serial ports. Remote I/O can be added through ICP DAS Ethernet, RS-485, Wi-Fi and ZigBee I/O modules, and a DCON driver for ICP DAS I/O modules is provided.The fanless design with no moving parts and a NEMA 4/IP65 rated front panel is intended for harsh industrial environments. It operates from -10 ~ +60 °C and can be powered from a +12 VDC ~ +48 VDC supply or from PoE under IEEE 802.3af.ApplicationsPanel-mounted HMI and operator terminalsControl applications with InduSoft PAC softwareRemote I/O expansion over Ethernet, RS-485, Wi-Fi and ZigBee

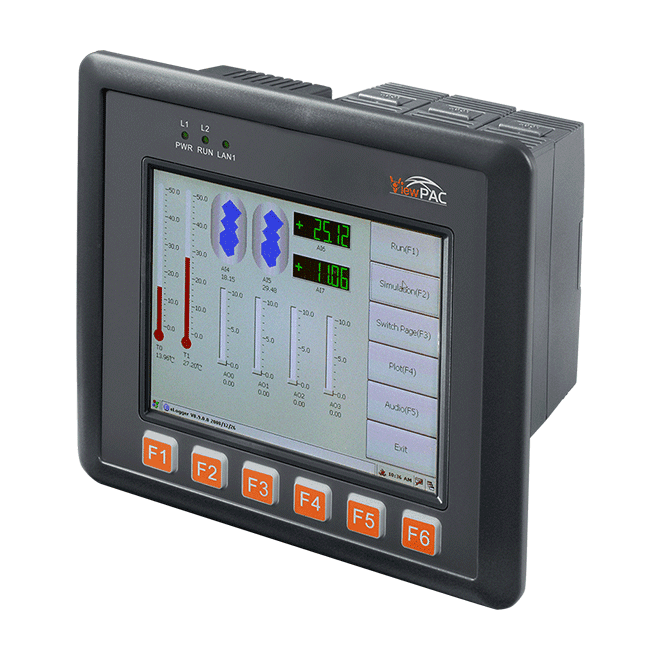

VP-1231-CE7 CR is a ViewPAC that brings computing, I/O and operator interface into one panel-mounted unit. Its 5.7-inch 640 x 480 TFT display with resistive touch panel lets operators work directly on the machine, while the controller handles logic and data acquisition in the same housing.The 1 GHz Cortex-A8 processor runs Windows CE 7.0, which is a componentised, hard real-time operating system. Memory includes 512 MB SDRAM, 256 MB Flash and a microSD slot for storage of up to 32 GB, with 128 KB MRAM and 16 KB EEPROM for retaining data. The unit also provides a built-in real-time clock, a 64-bit hardware serial number for software protection and a dual watchdog timer.Local expansion uses three I/O slots that accept I-8K and I-87K series modules. Connectivity comprises one 10/100/1000BASE-T Ethernet port, one RS-232 and one RS-485 port (2500 VDC isolated) and one USB 2.0 host port. The fanless design has a front panel rated NEMA 4/IP65 and an operating range of -20 ~ +70 °C.ApplicationsHMI and operator interface on machines and panelsData acquisition and local controlIndustrial automation with local and remote I/O expansion

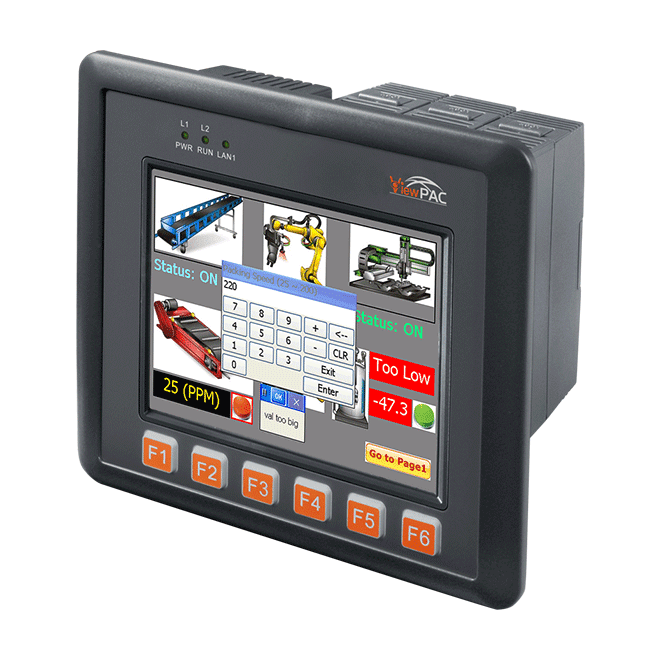

The VP-1238-CE7 combines a 5.7-inch touch display with a programmable automation controller in one panel-mounted unit. Its 1 GHz Cortex-A8 processor runs Windows CE 7.0 and the embedded Win-GRAF SoftLogic environment, so control logic written to IEC 61131-3 can run alongside the operator interface on the same device.Three slots accept high-profile I-8K parallel or I-87K serial I/O modules, allowing the controller to be configured for the signals an installation needs. Communication options include OPC UA, Modbus TCP/IP and Modbus RTU, together with DCON and user-defined protocols. Engineers can build the HMI with the included eLogger tool or with Visual Studio 2008 (VB .NET or C#).The front panel is rated NEMA 4/IP65, and the unit is designed for panel mounting with a 153 x 136 mm cut-out. The CR suffix in the ordering code identifies the RoHS-compliant version of this model.ApplicationsOperator panels combining HMI and PLC-style control on one deviceMachine control with local data logging and file accessPanel-mounted monitoring and control in industrial cabinets

The VP-1239-CE7 is a ViewPAC that brings a programmable controller, graphic display and keypad into a single unit. It suits engineers who want local operator interaction without a separate PC and PLC, combining the functions of a WinPAC, a 5.7-inch touch screen and a six-key rubber keypad.The unit runs a 1 GHz Cortex-A8 CPU under Windows CE .NET 7.0 and comes with InduSoft Web Studio Runtime pre-installed, for HMI, SCADA and embedded control applications. Three slots accept high-profile I/O modules, and the front panel is rated IP65. Connectivity includes one 10/100/1000Base-TX Ethernet port, one non-isolated RS-232 port, one 2500 VDC isolated RS-485 port and two USB connectors.This ordering code is the 300-tag InduSoft variant with the 5.7-inch display and 3 I/O slots. Its operating range of -20 to +70 °C and 10 to +30 VDC supply make it suitable for panel-mounted installations where a compact, all-in-one controller is required.ApplicationsHMI and operator panelsSCADA systemsEmbedded instrumentation and controlReplacing separate IPC and PLC installations in compact systems

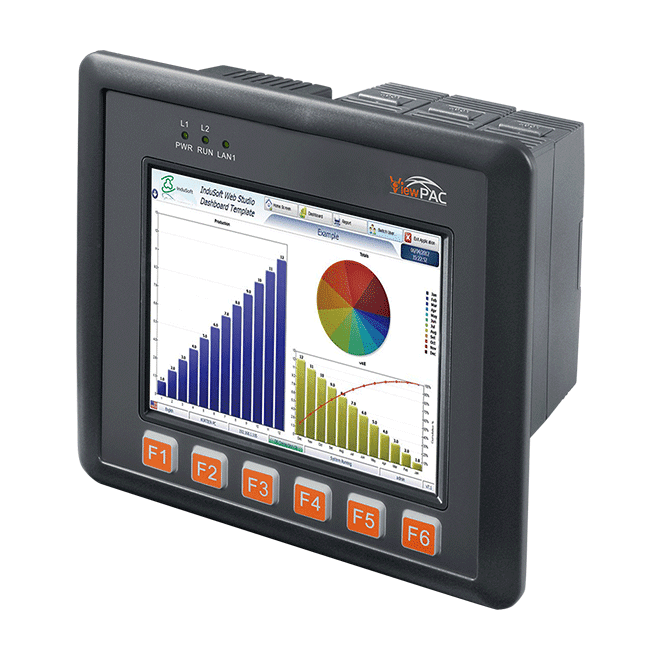

The VP-1239-CE7-1500 combines a Windows CE 7.0 programmable automation controller with a 5.7-inch touch TFT display and a six-key rubber keypad in one unit. A Cortex-A8 CPU running at 1 GHz runs the control and HMI functions on a single platform, so the operator panel and the logic do not need separate hardware. The -1500 suffix denotes the 1500-tag InduSoft Web Studio Runtime, which is pre-installed.Expansion is through three slots for high-profile I/O modules. Communications comprise one 10/100/1000Base-TX Ethernet port, one non-isolated RS-232 port, one RS-485 port with 2500 VDC isolation and two USB connectors. Memory includes 128 MB SDRAM, 256 MB flash, 128 KB MRAM and a microSD socket fitted with a 4 GB card.Web HMI pages can be opened from Internet Explorer over an intranet, the internet or a dial-up modem, and the unit provides FTP, web and embedded SQL servers. A 64-bit hardware serial number supports software protection. The IP65 front panel and -20 ~ +70 °C operating range make it suitable for demanding panel installations, and DLLs are supplied for VC and Visual Studio .NET 2008 development.ApplicationsHMI developmentSCADA systemsEmbedded instrumentation and control applications

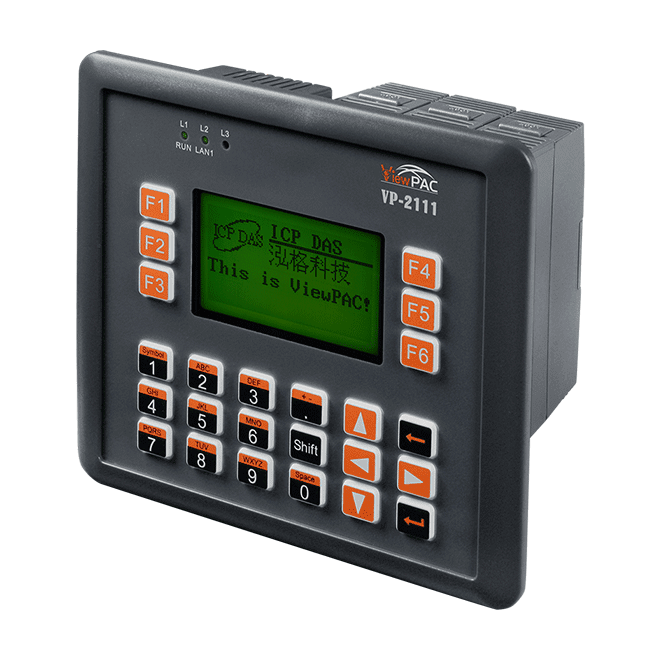

VP-2111 CR is a wall-mounted ViewPAC that brings controller logic, a local operator interface and I/O expansion into a single unit. It is the English and Simplified Chinese version of the standard VP-2111, with an 80186 CPU running at 80 MHz and the MiniOS7 embedded operating system, which the manufacturer states boots in 0.4 to 0.8 seconds.The unit has three slots for high-profile I-8K and I-87K series modules, covering digital, analogue, counter/frequency and motion control functions. Its STN LCD, 24-key rubber keypad and IP65-rated front panel let operators work with the machine locally. An engineer would pick it where a separate HMI and PLC would otherwise be needed, since it reduces system cost and panel space.Software is developed in C, and a Modbus library is provided. Programs can be loaded over RS-232 or Ethernet, and the unit offers built-in hardware diagnostics and a 64 MB NAND flash for data storage.ApplicationsLocal operator panels combining HMI and PLC functionsWall-mounted machine control panels with I-8K or I-87K I/O expansionReplacement of separate HMI and PLC solutions to reduce cost and panel space

VP-2111-TC is a panel-mounted ViewPAC built around an 80186 CPU running at 80 MHz under the DOS-like MiniOS7 operating system. Engineers get local operator interaction and control logic in a single wall-mounted unit, rather than pairing a separate HMI with a PLC.The unit has three slots for high-profile I-8K and I-87K series modules, covering digital, analogue, counter/frequency and motion control functions. Communication is provided by one 10/100M Ethernet port and three serial ports (RS-232, RS-485 and a switchable RS-232/RS-485), and programs can be loaded over RS-232 or Ethernet. Software is developed in C with a provided toolkit and Modbus library.The -TC version ships with an STN LCD that supports both English and Traditional Chinese text. It is rated for an operating range of -15 ~ +55 °C and has an IP65 front panel.Suits cabinet-door and machine-side panels where display, keypad and control are needed together.ApplicationsLocal operator panels combining HMI and control functionsMachine-side and control-cabinet door panels with I/O expansion

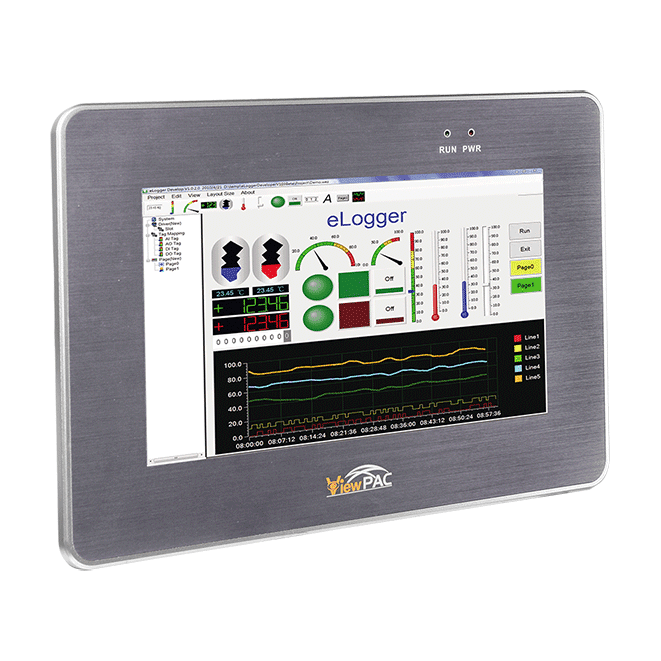

The VP-2201-CE7 CR is a 7-inch ViewPAC that brings operator interface, computing and I/O together in a single panel-mount unit. It suits machine and process applications where a local touch screen, control logic and data acquisition need to share one device rather than separate HMI and PAC hardware.Platform and display: The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB flash, running Windows CE 7.0. The 800 x 480 TFT LCD uses a 4-wire resistive touch panel, and a microSD slot (up to 32 GB) provides additional storage. Non-volatile MRAM and EEPROM support data retention.Connectivity includes one 10/100/1000BASE-T Ethernet port, two RS-232/RS-485 serial ports with 2500 VDC isolation and two USB 2.0 host ports. I/O can be expanded using compatible Ethernet I/O modules and RS-485 I/O modules. The front panel is rated NEMA 4/IP65 and the fanless design is specified for -10 ~ +60 °C operation.ApplicationsIntegrated HMI, data acquisition and control in a single panel-mount PACMachine and equipment operator panelsLocal process monitoring with touch-screen control

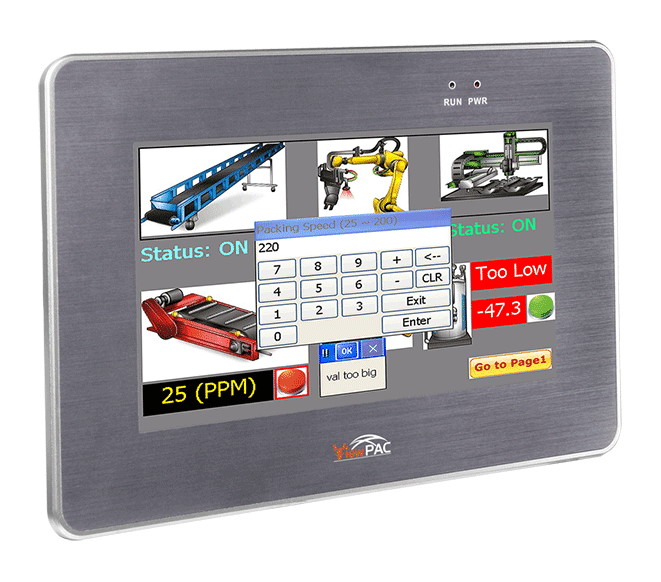

The VP-2208-CE7 CR is a panel-mount controller that brings the operator interface, data acquisition and logic control into a single device. It runs Windows CE 7.0 on a Cortex-A8 1.0 GHz processor and drives a 7-inch 800 x 480 TFT display with a resistive touch panel, so one unit can handle both the control task and the screen that operators use.Logic is developed with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. The HMI can be built with the bundled eLogger tool using drag-and-drop objects, or with Visual Studio 2008 (VB .NET or C#) for more custom HMI and data management applications. Both approaches can exchange data with Win-GRAF applications.Connectivity includes one Gigabit-capable RJ-45 port, two isolated RS-232/RS-485 ports, two USB 2.0 ports and Power over Ethernet support. Modbus RTU/TCP, OPC UA and DCON are supported. The NEMA 4/IP65 front panel and fanless design are rated for operation from -10 to +60 °C.ApplicationsIntegrated HMI, data acquisition and control in a single panel-mount unitOperator stations and local control panelsData logging and file access on a PAC with SQL Compact Edition 3.5

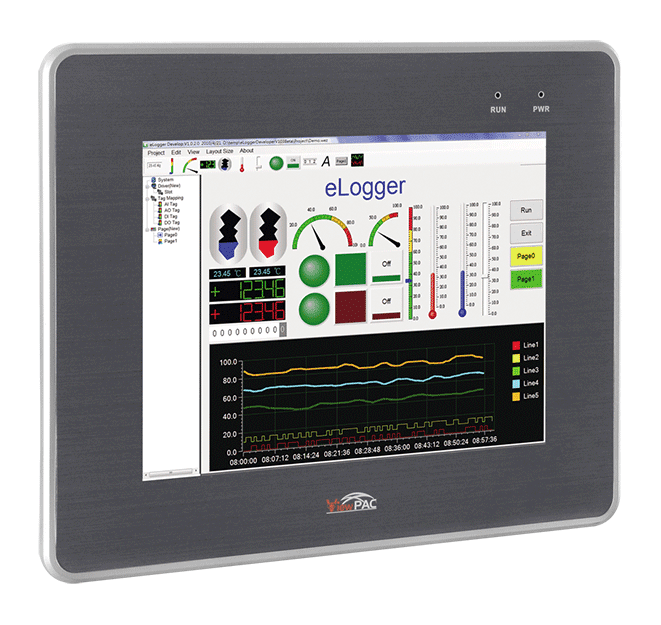

The VP-3201-CE7 CR is a Standard ViewPAC that combines computing, I/O and operator interface in a single unit. It suits applications where HMI, data acquisition and control need to sit together in one panel-mounted PAC, with I/O expansion available through ICP DAS Ethernet and RS-485 I/O modules.At its core is a 1.0 GHz Cortex-A8 CPU with 512 MB DDR3 SDRAM and 256 MB Flash. Retained data is stored in 128 KB MRAM and 16 KB EEPROM. Communication is provided by one 10/100/1000BASE-T Ethernet port, one RS-485 port and one RS-232/RS-485 port, both 2500 VDC isolated, plus two USB 2.0 host ports. The unit can be powered from +12 ~ 48 VDC or from PoE.The 8.4-inch 800 x 600 TFT display has a 5-wire resistive touch panel and runs Windows CE 7.0 with hard real-time capability. The IP65 front panel and fanless design are rated for an operating range of -10 ~ +60 °C, and the unit mounts in a panel cut-out or on a VESA mount.ApplicationsHMI operator panelsData acquisitionMachine control in panel-mounted installations

The VP-4201-CE7 CR is a 10.4-inch ViewPAC that brings control, data acquisition and operator interface into one panel-mounted unit. It runs Windows CE 7.0 on a 1.0 GHz Cortex-A8 processor, with an 800 x 600 TFT LCD and 5-wire resistive touch panel, so an engineer can build the HMI and the control logic on the same device.Connectivity includes one 10/100/1000BASE-T Ethernet port, three RS-232/RS-485 serial ports with 2500 VDC isolation, and two USB 2.0 host ports. The unit can be powered from +12 to 48 VDC or over PoE, and I/O can be expanded using Ethernet and RS-485 I/O modules.The front panel is rated NEMA 4/IP65 and the unit is specified for an operating range of -10 to +60 °C. Memory includes 512 MB DDR3 SDRAM, 256 MB Flash, 128 KB MRAM and 16 KB EEPROM for data retention, plus an SD card slot supporting up to 32 GB. Built-in dual watchdog timers and a real-time clock support reliable unattended operation.ApplicationsIntegrated HMI, data acquisition and control in a single panel-mounted PACOperator panels for machine and process controlSerial and Ethernet I/O expansion with Ethernet and RS-485 I/O modules

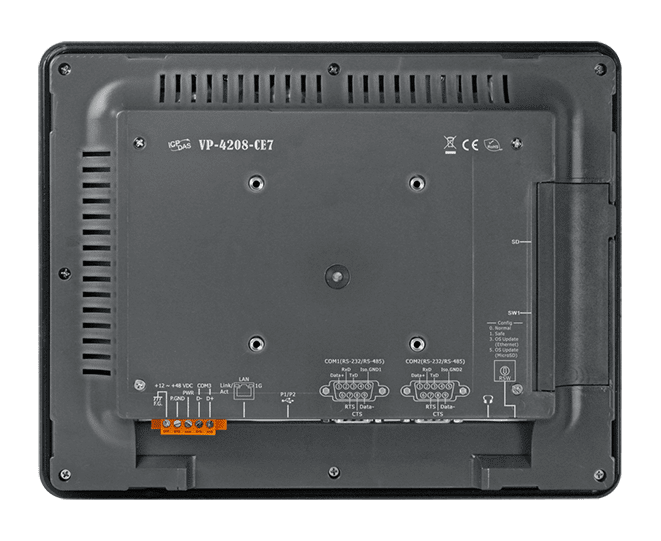

The VP-4208-CE7 CR is a 10.4-inch ViewPAC that runs Win-GRAF SoftLogic control logic and a Windows CE 7 operator interface on one platform. It suits engineers who want the HMI, data acquisition and control handled in a single panel-mounted device rather than separate PC and PLC hardware.The unit is built around a Cortex-A8 1.0 GHz processor with 512 MB DDR3 SDRAM and an 800 x 600 TFT LCD with a 5-wire resistive touch panel. Logic is programmed to IEC 61131-3 using the embedded Win-GRAF environment, and the HMI can be built with the free eLogger editor using drag-and-drop objects, or developed in Visual Studio 2008 (VB .NET or C#) with data exchange to Win-GRAF applications.Connectivity includes a 10/100/1000 Base-TX Ethernet port with PoE power, two USB 2.0 ports, one RS-485 and two RS-232/RS-485 ports, all isolated. Modbus RTU/TCP master and slave, OPC UA server and DCON are supported. The front panel is rated NEMA 4/IP65 and the fanless design operates from -10 to +60 °C.ApplicationsPanel-mounted operator interfaces combining HMI, data acquisition and controlMachine and process control in areas exposed to water spray, humidity and dustData logging and file-based data management at the machine level

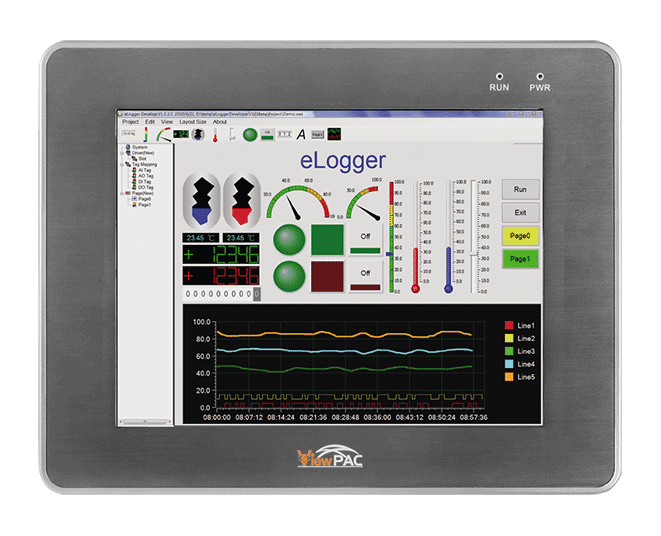

The VP-4231-CE7 brings computing, I/O and operator interface together in one panel-mounted unit. It runs Windows CE 7.0 on a 1.0 GHz Cortex-A8 processor and drives a 10.4" 800 x 600 TFT touch display, making it suited to combined HMI, data acquisition and control tasks.Local expansion uses three slots for I-8K and I-87K series I/O modules, and remote I/O can be added through Ethernet I/O and RS-485 I/O modules. Non-volatile storage includes 128 KB MRAM and 16 KB EEPROM for data retention, and a 64-bit hardware serial number supports software protection.The front panel is rated NEMA 4/IP65 and the unit is designed for panel mounting. It operates from -20 to +70 °C, accepts +10 ~ 30 VDC with redundant power inputs, and carries RoHS and WEEE certifications.ApplicationsOperator interface (HMI) for machine and process controlData acquisition with local and remote I/O expansionIntegrated control in panel-mounted installations

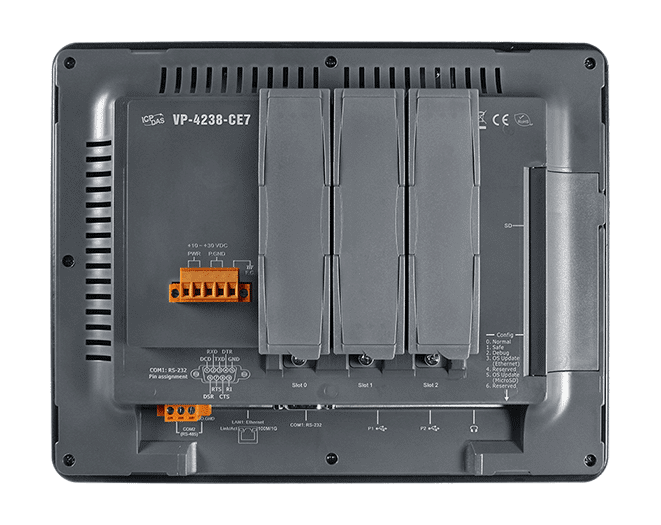

The VP-4238-CE7 CR combines an IEC 61131-3 soft PLC, an HMI and a Windows CE 7.0 runtime in one panel-mounted unit. Its 1 GHz Cortex-A8 processor and 10.4-inch TFT LCD with rubber keypad let an engineer run control logic and operator screens on the same device, without a separate PC or panel terminal.Three slots accept high profile I-8K parallel or I-87K serial I/O modules, so the controller can be sized to the application. Communication is covered by Ethernet, RS-232, RS-485 and two USB 2.0 ports, with Modbus RTU/TCP, Modbus ASCII, OPC UA and DCON support. Win-GRAF applications and the included eLogger HMI editor can be combined with Visual Studio 2008 (VB .NET, C#) for custom HMI and data management work.Embedded Win-GRAF SoftLogic with eLogger HMI and Visual Studio 2008 SDK optionsIP65 / NEMA 4 front panel for panel mounting+10 ~ 30 VDC input with redundant power inputsThis ordering code is listed as RoHS compliant. Operating range is -20 ~ +70°C with a 10 ~ 90% RH non-condensing humidity rating.ApplicationsPanel-mounted operator terminals combining HMI screens with control logicMachine and process control where IEC 61131-3 logic and touch operation are needed in one unitData logging and file access on a Windows CE platform

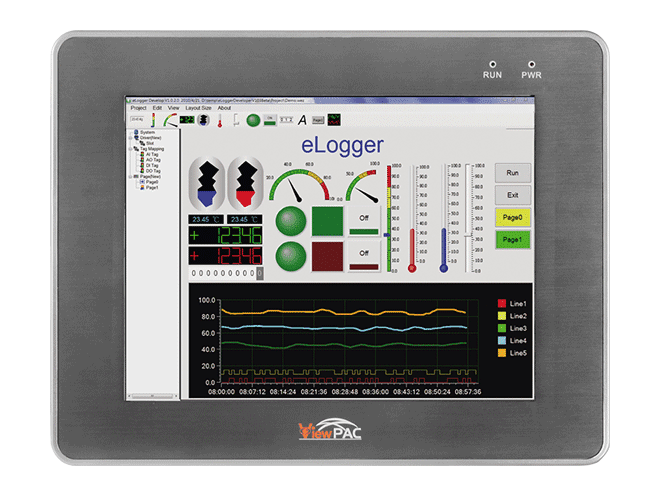

The VP-4239-CE7 CR is a panel-mounted controller that brings PAC logic, an 800 x 600 touch display and a six-key rubber keypad into one unit. It runs Windows CE .NET 7.0 on a Cortex-A8 CPU at 1 GHz, with InduSoft Web Studio Runtime pre-installed, so it suits operator interface and control tasks at the machine or panel.Three high-profile I/O module slots let you add input and output channels as the application grows. The unit provides one RJ-45 Ethernet port, one non-isolated RS-232 port, one 2500 VDC isolated RS-485 port and three USB connectors, giving a range of options for connecting field devices and host systems.The front panel is rated IP65 and the unit operates from -20 to +70 °C. Its 64-bit hardware serial number supports software protection, and the 128 KB MRAM and 16 KB EEPROM provide non-volatile storage. The 10.4-inch model is the 300-tag InduSoft variant in the VP-x239-CE7 series.ApplicationsOperator interface and HMI at machine or panel levelSCADA systemsEmbedded instrumentation and control applications
