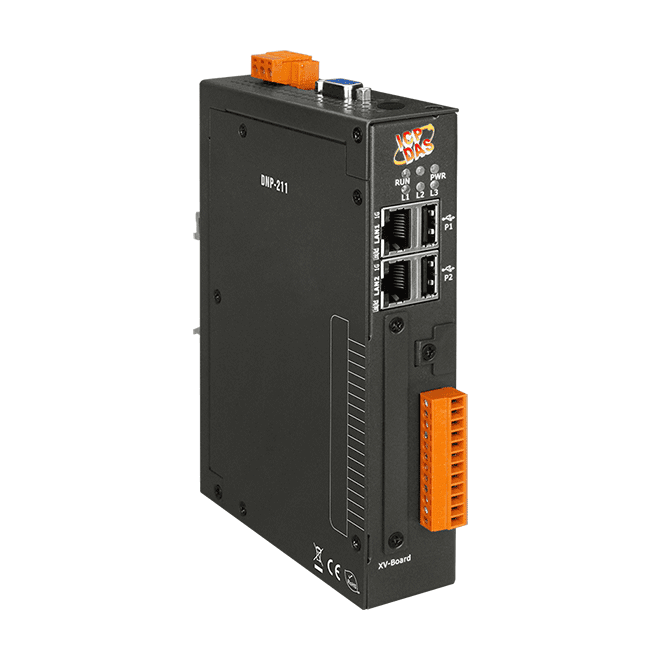

The DNP-211 CR bridges DNP3 field devices and Ethernet-based Modbus TCP masters. On the DNP3 side it acts as the master, reading from and writing to outstations over TCP, UDP or serial. On the Modbus side it is a server that accepts requests from Modbus TCP clients and either answers them directly or forwards the related DNP3 data.Mapping between DNP3 points and Modbus addresses is set up in the DNP-211 utility, so existing DNP3 networks can be exposed to a Modbus TCP host without rewiring the field devices. Outstation connection status is also available at a Modbus address, which helps supervisory logic detect a lost link.Capacity covers up to 32 DNP3 outstations and 16 Modbus TCP client connections, with 8192 digital I/O bits and 2048 channels each for counter and analogue points. It is a suitable choice where an engineer needs a compact DIN-rail gateway with a metal housing and a wide 12 to 48 VDC supply range.ApplicationsIntegrating DNP3 outstations, RTUs and IEDs with Modbus TCP master systemsSCADA communication in utilities such as electric and water companiesConnecting existing DNP3 networks to Ethernet-based Modbus TCP masters

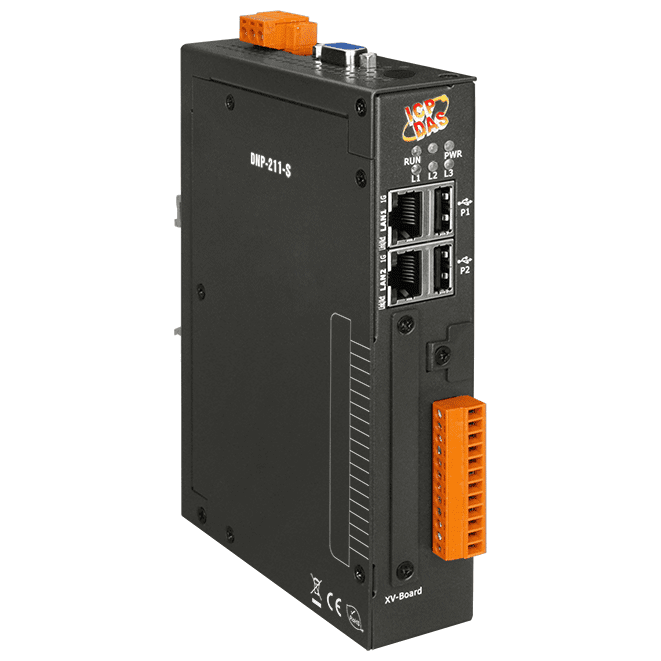

DNP-211-S bridges Modbus TCP field devices and DNP3 master stations. It polls several Modbus TCP servers and exposes their data as one DNP3 outstation, so a master station can read and control the underlying devices without needing a native Modbus driver.The gateway accepts DNP3 over RS-485, TCP/IP or UDP and supports Binary, Binary Output, Analog and Analog Output data. Analog values can be handled as word, int32, float or double. Mapping between Modbus TCP addresses and DNP3 points is set up in the DNP-211-S utility software, and the DNP3 side reports the Modbus TCP connection status.Suited to utility and SCADA installations, the unit uses a metal housing, a 12 to 48 VDC supply and DIN-rail or optional wall mounting. It is rated for operation from -25 to +75 °C.ApplicationsSCADA master station integration with Modbus TCP devicesElectric and water utility communicationsConnecting RTUs and IEDs to a DNP3 master station

The ECAT-2611 CR is a protocol converter gateway that connects EtherCAT and Modbus RTU networks. It operates as a SubDevice on both sides and passes I/O data between them, so an EtherCAT Main Device and a Modbus RTU Main Device can exchange data through its internal data exchange buffer.It suits system integrators who need to bring older serial automation equipment into an EtherCAT architecture. The serial protocol conversion is handled in the module, so no PLC function blocks are required and the connected device needs no hardware or software changes.This CR ordering code includes the CA-0915 DB9 male to DB9 female cable, 1.5 M, for connecting the serial port. Key figures include a 10 ms cycle time, up to 256 WORD input and 256 WORD output data, and serial communication up to 115200 bps.ApplicationsRetrofitting older Modbus RTU automation devices into EtherCAT communication structuresExchanging I/O data between an EtherCAT Main Device and a Modbus RTU Main DeviceIntegrating serial Modbus RTU equipment into EtherCAT-based machine control systems

The GW-7433D-G bridges CANopen networks and Ethernet-based control systems. On the field side it operates as a CANopen master, using PDO and SDO services to communicate with slave devices. On the plant side it appears as a Modbus TCP server and a Modbus RTU slave, so an existing CANopen installation can be monitored and controlled from any Modbus TCP client or Modbus RTU master.Slave devices are predefined using the manufacturer's utility software. At start-up the gateway collects the required information from those slaves. It supports up to 20 CANopen slave devices, and up to five Modbus TCP clients can access the unit at the same time.The listen mode lets engineers monitor CANopen slave data without taking part in the network traffic. Slaves can be added or removed on line, and CANopen status, slave and gateway communication states, and disconnections can be queried through Modbus commands.ApplicationsControl systemsBuilding automationFactory automationDistributed data acquisitionWind turbine monitoring and control, integrating large inverters and PLCs

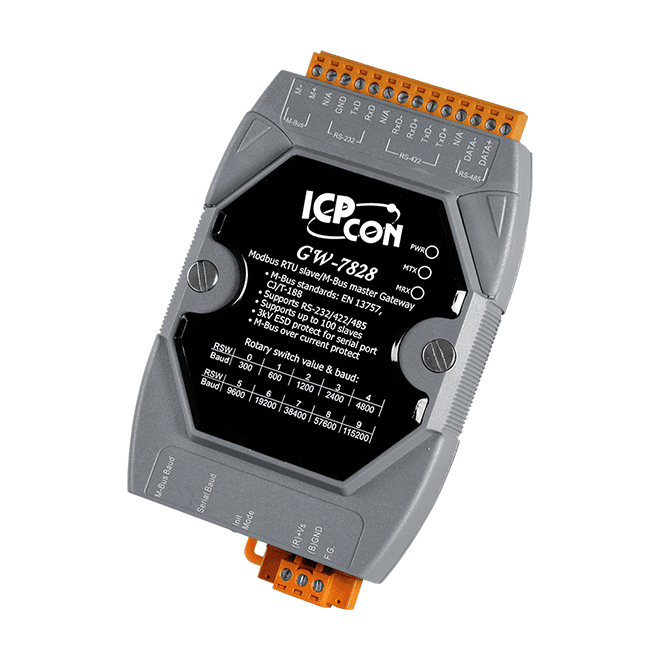

GW-7828 CR is a gateway that lets Modbus RTU masters read data from M-Bus (Meter-Bus) slave devices. It is intended for remote reading of consumption meters, and also for sensors and actuators that use the M-Bus standard. Engineers can integrate M-Bus devices into an existing Modbus RTU system without writing M-Bus drivers.The gateway responds to Modbus RTU function codes 0x03 and 0x04 to read M-Bus meter data, and supports up to 100 M-Bus slave devices. Serial communication is available through RS-232, RS-422 or RS-485, and two rotary switches set the baud rates for the serial port and the M-Bus port.The M-Bus port includes over-current and short-circuit protection, with 3750 Vrms photo-coupler isolation. Firmware can be updated through the serial port. Power consumption is 1.8 W at 24 VDC with one slave device and 11.8 W with 100 slave devices.ApplicationsEnergy countersHot and cold water countersGas metersPressure sensorsM-Bus sensors and actuators

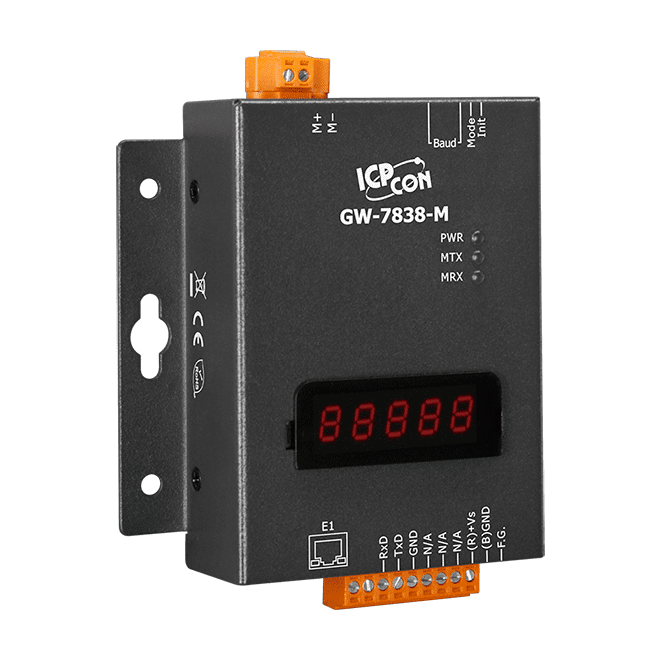

GW-7838-M bridges Modbus TCP/RTU networks and M-Bus metering. It acts as an M-Bus master, reading meter data from up to 100 slave devices, and presents that data as a Modbus TCP server, so a PLC or PC can collect readings without any M-Bus knowledge.The gateway is set up once with the M-Bus configuration utility. After that it reads the meters autonomously. A Modbus client can then access the data over Ethernet (TCP) or the RS-232 serial port, with Modbus function codes 0x03 and 0x04 used to read meter values.Supports EN 13757 and CJ/T 188 M-Bus metersSuited to energy, water, heat and gas meter reading in automation systemsApplicationsReading energy countersHot and cold water metersHeat metersGas and pressure metersSensors and actuators on an M-Bus network

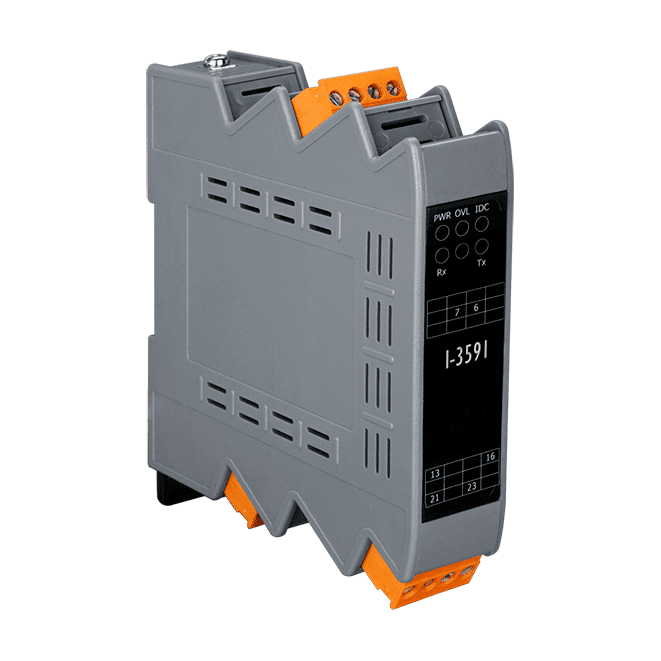

The I-3591 M-Bus repeater strengthens the drive capability of an M-Bus line, extends its cable distance, and reshapes the signal waveform so that the M-Bus master can communicate reliably with a larger number of meters.It suits engineers building metering networks for electricity, water and heat meters, where the two-wire M-Bus carries both power and communication. The unit needs no configuration: it detects the baud rate automatically once it is wired into the line. Its overcurrent, short-circuit and reverse polarity protection help it withstand common wiring faults.The I-3591 CR is the RoHS-labelled version of the repeater. It provides one master port and one slave port, with 3750 Vrms photo-coupler isolation, and mounts on a DIN rail. Power consumption is 1.6 W at 24 VDC with one slave device and 9.7 W with 100 slave devices.ApplicationsElectricity, water and heat meter networksM-Bus metering installations with large numbers of slave devicesLong-distance M-Bus cable runs

The I-7188E1 CR is a programmable Ethernet device server that brings a single RS-232 serial device onto an Ethernet network. Because the serial side is protocol independent, it suits engineers who need to network an existing RS-232 instrument, controller or terminal without changing the device itself.Serial data can be passed to a PC through Virtual COM, letting existing COM-port software communicate over Ethernet, or exchanged through a raw TCP connection. The built-in MiniOS7 and Xserver programming structure allow custom Ethernet applications to be developed on the unit, and a watchdog timer supports operation in demanding environments.The removable on-board terminal block simplifies wiring of the RS-232 signals (TXD, RXD, RTS, CTS, GND) and the +10 ~ +30 VDC non-regulated supply, which includes reverse polarity protection. The compact enclosure measures 123 mm x 72 mm x 33 mm.ApplicationsFactory AutomationBuilding AutomationHome Automation

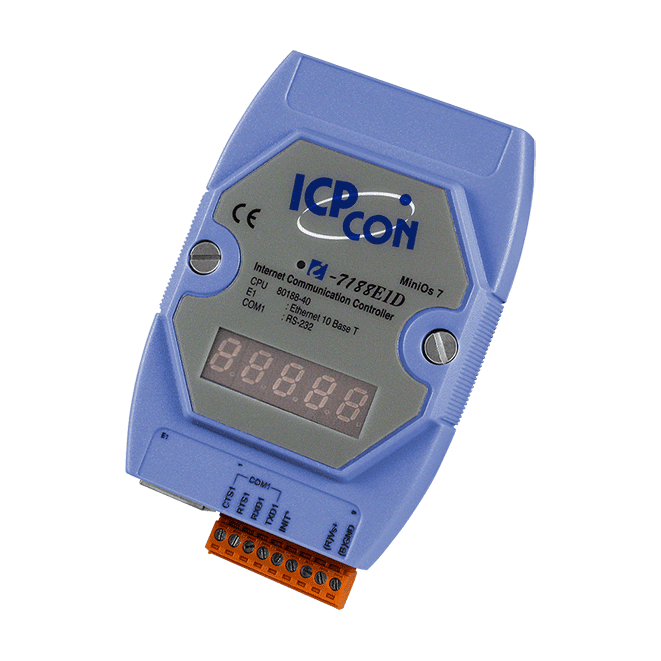

The I-7188E1D brings an RS-232 serial device onto an Ethernet network. Serial data can be passed through to a host using a Virtual COM connection, so existing COM-port software keeps working, or over a raw TCP connection for custom applications. Its protocol independence makes it suited to bridging legacy serial equipment without changes to the device itself.The unit runs the built-in MiniOS7 from ICP DAS, which is supported by the Xserver programming structure for building custom Ethernet logic. A watchdog timer is included for harsh-environment use, and the status LED display gives a quick visual check of operation. Power reverse polarity protection guards the +10 VDC to +30 VDC supply input.Its compact, palm-sized housing measuring 123 mm x 72 mm x 33 mm and removable on-board terminal block make installation straightforward. The VxComm driver supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016 for Virtual COM operation.ApplicationsFactory automationBuilding automationHome automation

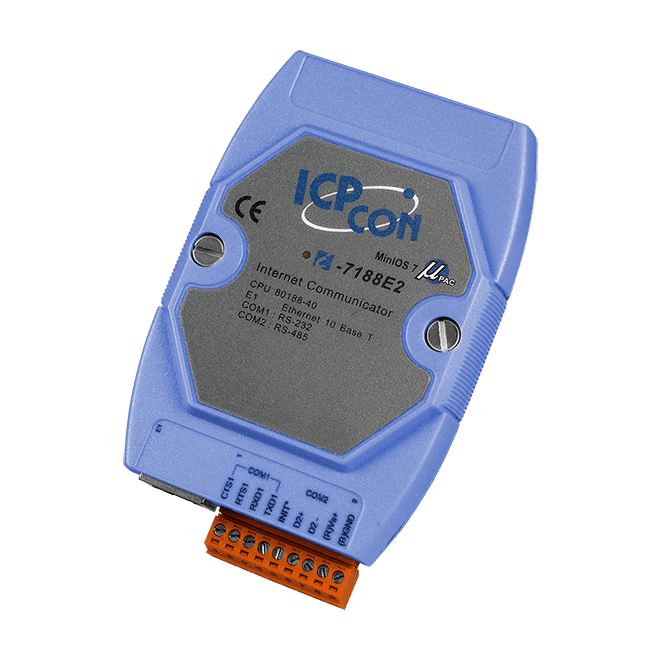

I-7188E2 is a programmable Ethernet device server that brings an RS-232 device and an RS-485 device onto a network. Each serial port can be accessed over Ethernet, so existing serial equipment can be integrated without replacing it.Data can be passed through as Virtual COM ports, which suits software written for standard COM ports, or as raw TCP connections for direct socket communication. A VxComm driver supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.The unit runs the built-in MiniOS7 from ICP DAS and includes a watchdog timer for unattended operation in harsh environments. Its removable on-board terminal block simplifies field wiring, and the compact housing measures 123 mm x 72 mm x 33 mm.ApplicationsFactory automationBuilding automationHome automation

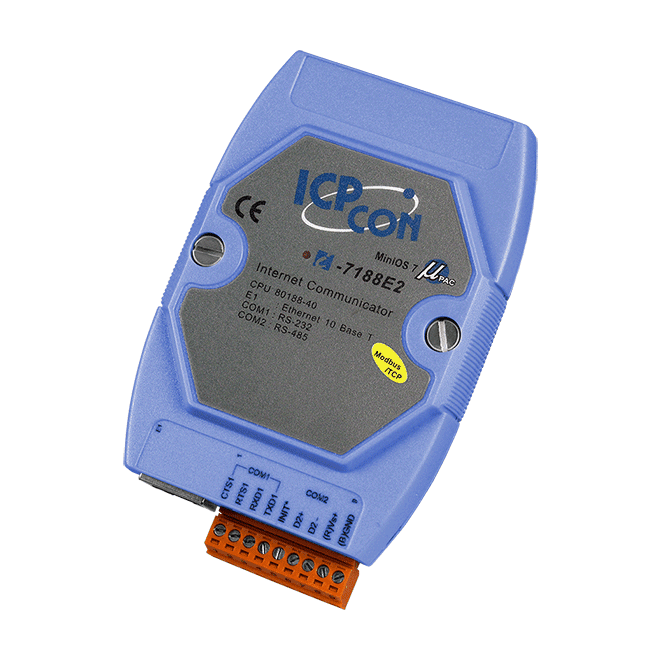

The I-7188E2-MTCP is a palm-sized programmable gateway for bringing serial equipment onto an Ethernet network. It bridges an RS-232 port and an RS-485 port to a 10BASE-T connection, so engineers can expose legacy serial devices to Modbus TCP clients without redesigning the field hardware.Built around an 80188-40 CPU with 384 KB SRAM and 512 KB Flash, the unit runs the built-in MiniOS7 and Modbus firmware. Application code can be written in C using the supplied software development tool kits, including XServer and Modbus libraries.This ordering code is the blue cover version. It mounts on a DIN rail and operates from a +10 ~ 30 VDC supply across an operating temperature range of -25 ~ +75 °C.ApplicationsIntegrating RS-232/RS-485 devices into Ethernet networksModbus TCP to RTU gateway for SCADA and HMI communicationConnecting serial equipment to SCADA packages such as Indusoft, ISaGARF, DasyLab, Trace Mode, Citect and iFix

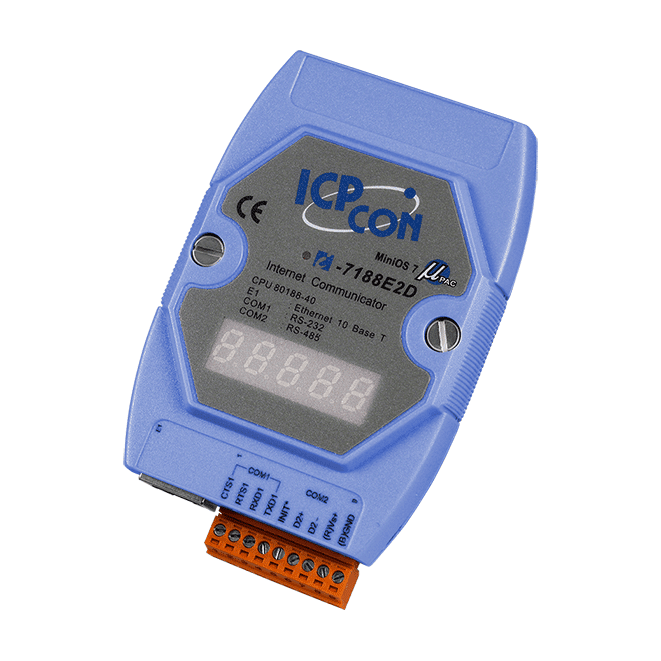

I-7188E2D is a programmable Ethernet device server for bringing a serial device onto a network without rewriting its software. It provides one RS-232 port and one RS-485 port, so a PC application can keep using a standard COM port through the Virtual COM mode, or a host can connect over a raw TCP socket.The unit runs the built-in MiniOS7 from ICP DAS, which is suited to applications where a small, dependable embedded controller is needed at the serial edge of the network. A watchdog timer and reverse polarity protection on the power input support installations where reliability matters. The removable on-board terminal block simplifies field wiring.The I-7188E2D suits factory, building and home automation projects that need serial equipment on Ethernet. The VxComm driver is provided for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.ApplicationsFactory automationBuilding automationHome automation

The I-7188E2D-MTCP CR is a palm-sized programmable device server that brings serial equipment onto Ethernet. It provides one RS-232 and one RS-485 port on the serial side and a 10BASE-T RJ-45 connection on the network side, so existing field devices can be reached over an Ethernet network without replacing them.Beyond simple serial-to-Ethernet bridging, the unit operates as a Modbus TCP to RTU gateway, allowing SCADA and HMI software that speaks Modbus TCP to read and write devices on the serial bus. ICP DAS supplies XServer and Modbus libraries, along with C-language development tools, so the behaviour of the unit can be customised for the application. The built-in MiniOS7 runs the programme.The CR ordering variant is supplied with a blue cover and carries an 80188 40 MHz CPU, 384 KB SRAM, 512 KB flash and 2 KB EEPROM. A five-digit 7-segment LED display, a programmable LED indicator and a watchdog timer support on-site status checking and unattended operation. It mounts on a DIN rail and accepts a +10 to 30 VDC supply.ApplicationsConnecting serial RS-232/RS-485 devices to Ethernet networksProviding Modbus TCP access to Modbus RTU devices for SCADA and HMI systemsIntegrating serial devices with SCADA packages such as Indusoft, DasyLab and iFix

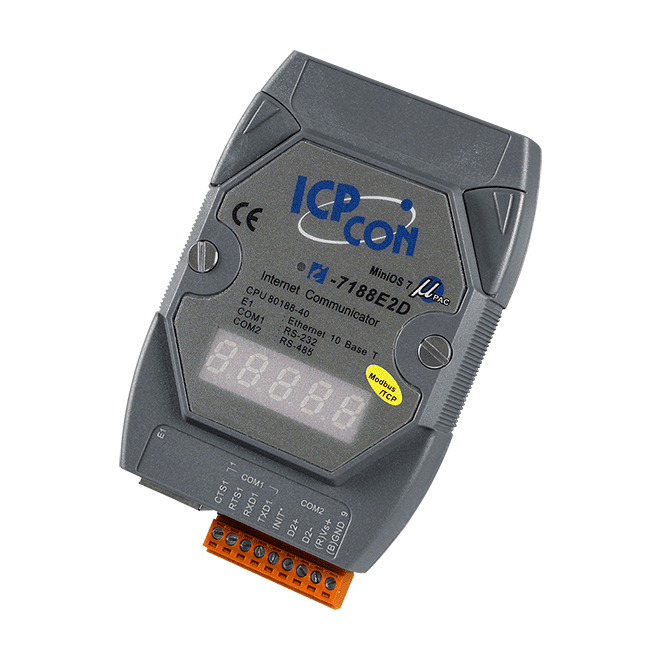

The I-7188E2D-MTCP-G is a programmable gateway that brings serial devices onto Ethernet. It offers one 10BASE-T RJ-45 port alongside RS-232 and RS-485 serial ports, and can act as a Modbus TCP to RTU gateway so that Modbus TCP clients such as SCADA and HMI software can reach RTU-based equipment.Built around an 80188-40 CPU with 512 KB flash and 384 KB SRAM, the unit runs ICP DAS MiniOS7 and is programmed in C using the supplied software development tool kit. XServer and Modbus libraries are provided for building custom serial-to-Ethernet logic, with a 5-digit 7-segment LED display, a programmable LED indicator and a built-in watchdog timer for status and reliability.The -G suffix identifies the gray cover version. The unit is specified for a +10 to 30 VDC supply, -25 to +75 °C operation and DIN-rail mounting in a compact 72 x 112 x 33 mm housing.ApplicationsIntegrating serial devices into Ethernet networksModbus TCP to RTU gateway for SCADA and HMI systemsCommunication with SCADA software such as Indusoft, DasyLab, Trace Mode, Citect and iFix

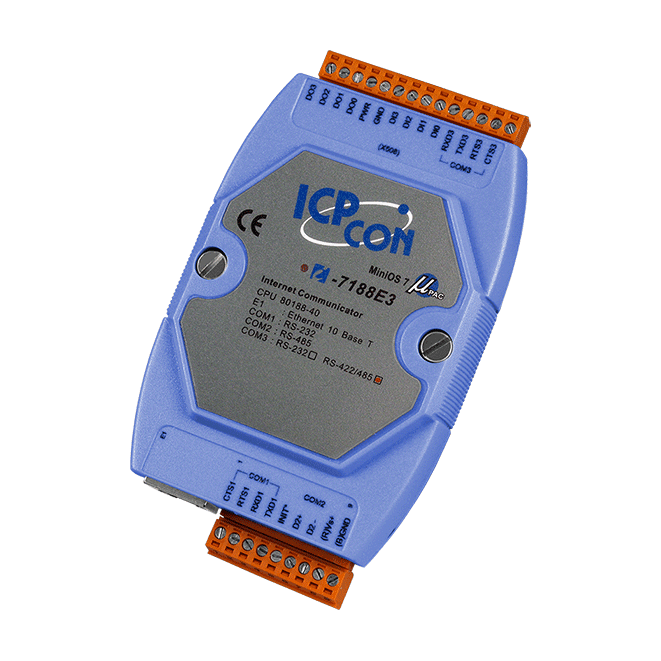

The I-7188E3 CR is a programmable device server that brings an RS-232, RS-422 or RS-485 serial device onto an Ethernet network. Its built-in COM ports can be presented to a Windows host as standard virtual COM ports using the VxComm driver, or accessed directly over raw TCP, so existing serial software can often be connected without rewriting it.Built around an 80188 CPU at 40 MHz and the MiniOS7 operating system, the unit can run custom Xserver-based applications on the device itself. It also includes four digital inputs that accept wet or dry contacts and four open-collector digital outputs, which can handle up to 30 VDC and 100 mA per the source data.The housing is palm-sized and includes a watchdog timer, reverse polarity protection on the 10 to 30 VDC power input, and a removable terminal block for wiring. The rated operating range is -25 °C to +75 °C, making it suitable for factory, building and home automation installations.ApplicationsFactory automationBuilding automationHome automation

I-7188E3-232 CR is a programmable device server that brings RS-232 and RS-485 serial devices onto an Ethernet network. It provides two RS-232 ports and one RS-485 port, so existing serial equipment can be connected to a network without replacing it.Data can be passed through either a Virtual COM connection, using the VxComm driver on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, or a raw TCP connection, which makes the unit suitable for custom host software. The built-in MiniOS7 runs the Xserver programming structure, allowing custom Ethernet logic to be developed on the device.The unit also includes 4 digital inputs (wet or dry contact) and 4 open-collector digital outputs rated at 100 mA. Its palm-sized housing has a watchdog timer for harsh environments, reverse polarity protection on the power input, and an operating range of -25 °C to +75 °C.ApplicationsFactory automationBuilding automationHome automation

The I-7188E3D (ordering code I-7188E3D CR) is a programmable device server for bringing three serial devices onto an Ethernet network. It provides one RS-232, one RS-422 and one RS-485 port, so engineers can connect legacy serial equipment without replacing it. Data can be passed through as a Virtual COM port for existing Windows software, or as a raw TCP connection for custom applications.Built around the MiniOS7 operating system and an Xserver programming structure, the unit suits applications where the serial logic needs to be adapted or extended. It also carries 4 digital inputs and 4 open-collector digital outputs, with a watchdog timer for reliable operation in harsh environments.Key electrical and environmental details:Power input: +10 VDC to +30 VDC (non-regulated), with reverse polarity protectionOperating temperature: -25 °C to +75 °CDimensions: 123 mm x 72 mm x 33 mmApplicationsFactory automationBuilding automationHome automation

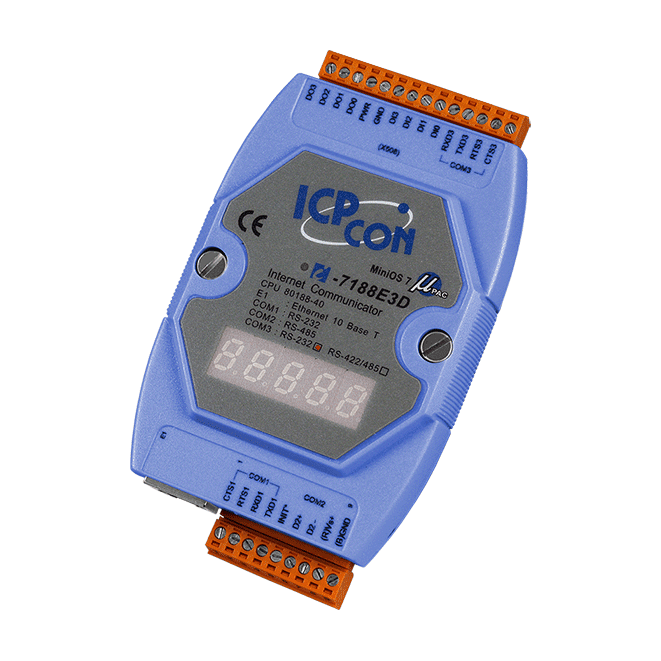

I-7188E3D-232 CR is a programmable device server that links RS-232 and RS-485 serial equipment to an Ethernet network. It provides two RS-232 ports and one RS-485 port, so engineers can connect existing serial devices to a network without redesigning them.Data can be carried either through Virtual COM, where the built-in COM ports appear as standard COM ports on a Windows PC using the VxComm driver, or over a raw TCP connection for direct socket-based communication. The built-in MiniOS7 operating system and Xserver programming structure allow custom Ethernet applications to be developed on the unit.The unit has four wet/dry digital inputs and four open-collector digital outputs, a status LED display, a watchdog timer and reverse polarity protection on its 10 to 30 VDC supply. Its removable terminal block simplifies wiring, and it operates from -25 °C to +75 °C.ApplicationsFactory automationBuilding automationHome automation

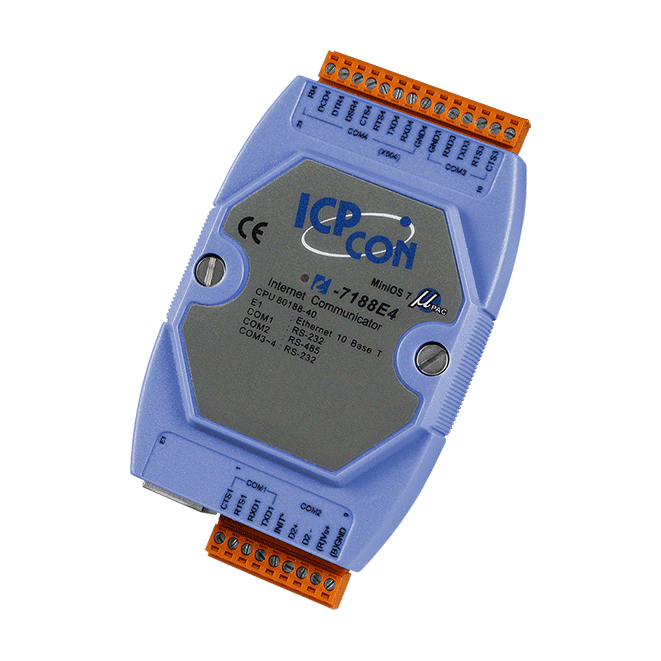

The I-7188E4 CR is a programmable device server that brings RS-232 and RS-485 serial equipment onto an Ethernet network. It provides three RS-232 ports and one RS-485 port, so it suits engineers who need to network several legacy serial devices without redesigning them.Serial data can be passed through as a Virtual COM port on a Windows PC, using the VxComm driver, or over a raw TCP connection for direct socket-based communication. The built-in MiniOS7 runs the programmable logic, and the unit includes a watchdog timer for use in harsh environments. A removable on-board terminal block simplifies wiring.Compact enough to be described as palm-sized, the unit accepts a non-regulated +10 VDC to +30 VDC supply with reverse polarity protection and is rated for -25 °C to +75 °C operation. It carries CE, UKCA, FCC, RoHS and WEEE marking.ApplicationsFactory automationBuilding automationHome automation

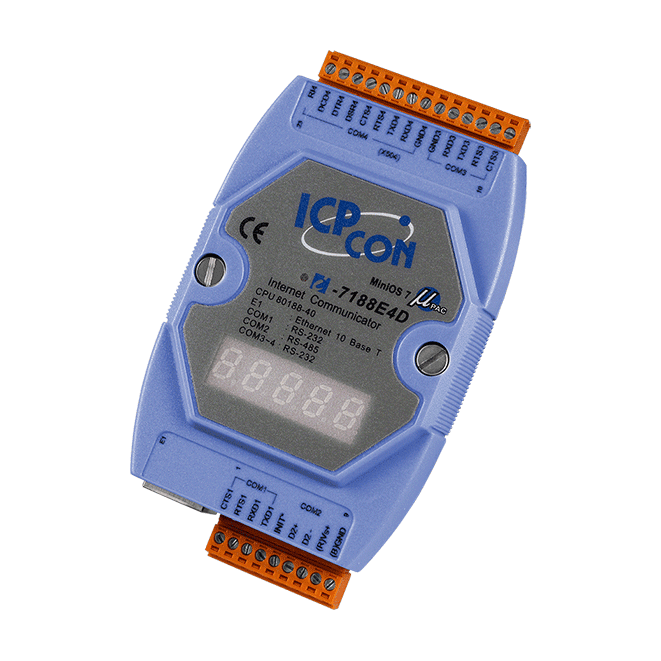

The I-7188E4D connects existing serial equipment to an Ethernet network without changing the device itself. Its four serial ports (three RS-232 and one RS-485) can be presented to a Windows host as standard COM ports through the VxComm driver, or accessed directly over raw TCP sockets, so legacy instruments and controllers can join a networked system with little rework.Because the unit is programmable, it can also run application logic on the device. The built-in MiniOS7 and Xserver programming structure allow engineers to build custom Ethernet applications, while the watchdog timer supports stable operation in demanding industrial environments. The LED display provides at-a-glance status indication.The compact housing measures 123 x 72 x 33 mm and accepts a non-regulated +10 to +30 VDC supply with reverse polarity protection. It is rated for operation from -25 °C to +75 °C, making it suitable for factory, building and home automation installations.ApplicationsFactory automationBuilding automationHome automation

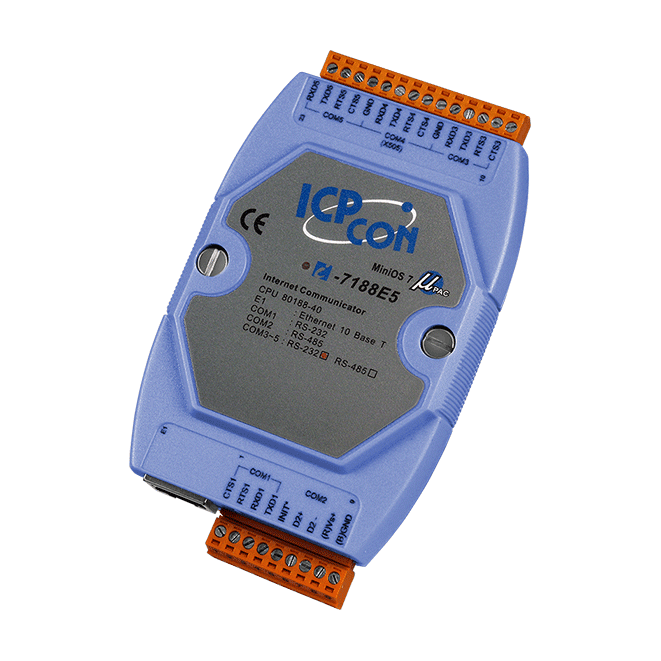

I-7188E5 CR links one RS-232/485 serial device or several at once to an Ethernet network. Serial data can be carried over Virtual COM or raw TCP connections, so existing serial software and devices can be networked without changing their communication protocol.The unit has four RS-232 ports and one RS-485 port on a removable terminal block, which simplifies wiring in industrial cabinets. A built-in MiniOS7 and the Xserver programming structure allow custom Ethernet applications to be developed on the device. A watchdog timer is included for use in harsh environments.Windows users can install the VxComm driver, available for 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, to map the built-in serial ports to standard COM ports on the host computer.ApplicationsFactory automationBuilding automationHome automation

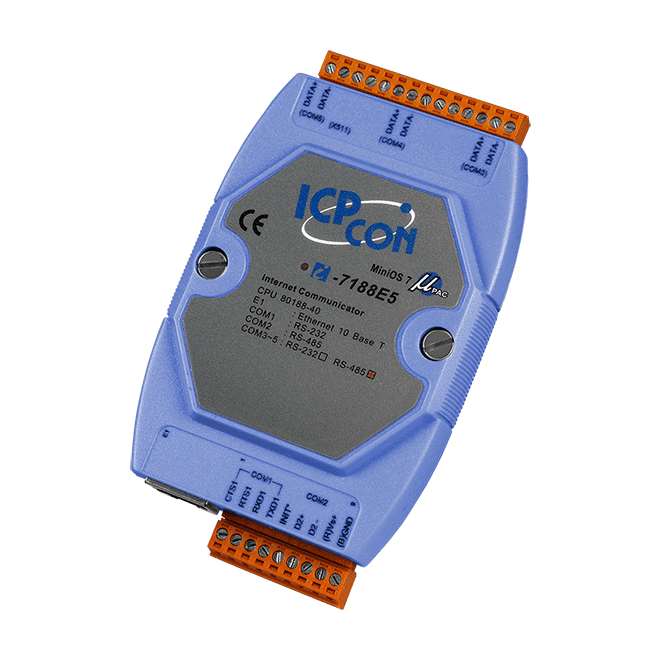

I-7188E5-485 is a programmable Ethernet device server that links a mix of RS-232 and RS-485 serial equipment to a TCP/IP network. Each of its five serial ports, one RS-232 and four RS-485, can be reached over Ethernet, so legacy devices can be integrated without replacing them.Engineers can expose the serial ports to a Windows host as Virtual COM ports using the VxComm driver, or open raw TCP connections from their own software. The built-in Xserver programming structure and the MiniOS7 operating system allow custom Ethernet logic to be developed and deployed on the unit, with the MiniOS7 boot time quoted at about one second.The unit is built for industrial wiring and environments, with a removable on-board terminal block, a watchdog timer, reverse polarity protection on its non-regulated +10 to +30 VDC supply, and an operating range of -25 to +75 °C. Its compact housing measures 123 x 72 x 33 mm.ApplicationsFactory automationBuilding automationHome automation

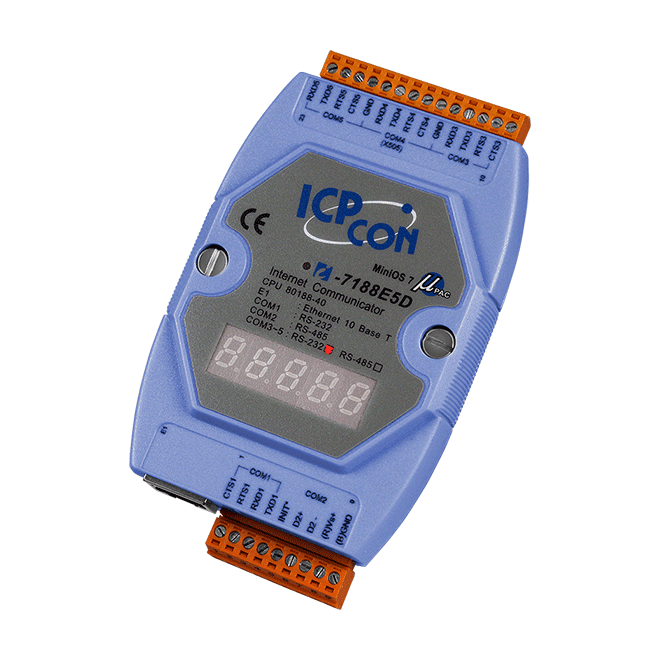

The I-7188E5D is a programmable device server that brings four RS-232 ports and one RS-485 port onto an Ethernet network. Serial devices can be reached either through Virtual COM ports on a Windows host or through raw TCP connections, which suits both legacy PC software and custom network applications.Its built-in MiniOS7 and Xserver programming structure let engineers build their own Ethernet logic on a compact, palm-sized unit. A watchdog timer supports operation in harsh environments, and the status LED display gives a quick visual check of the unit. The power input accepts non-regulated +10 VDC to +30 VDC and includes reverse polarity protection.Typical choices for this unit are cases where several serial devices must be consolidated onto Ethernet within factory, building or home automation installations. The removable terminal block simplifies wiring during installation.ApplicationsFactory automationBuilding automationHome automation

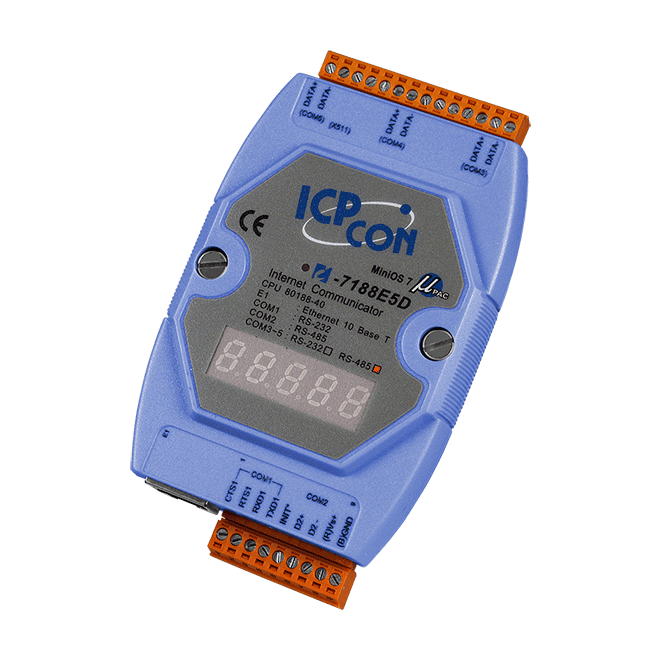

The I-7188E5D-485 is a programmable device server that brings one RS-232 and four RS-485 serial ports onto an Ethernet network. It suits engineers who need to connect existing serial instruments, controllers or field devices to a network without redesigning the equipment behind them.Serial data can be carried over a Virtual COM connection, using the VxComm driver on supported Windows systems, or over a raw TCP connection. The built-in MiniOS7 runs the Xserver programming structure, so custom Ethernet logic can be developed on the unit itself. A watchdog timer is included for unattended operation in harsh environments.The removable on-board terminal block simplifies wiring in industrial installations. The unit is rated for -25 °C to +75 °C operation, accepts +10 VDC to +30 VDC non-regulated input with reverse polarity protection, and carries CE, UKCA, FCC, RoHS and WEEE marks.ApplicationsFactory automationBuilding automationHome automation
