Fieldbus Communication

The DNP-211 CR bridges DNP3 field devices and Ethernet-based Modbus TCP masters. On the DNP3 side it acts as the master, reading from and writing to outstations over TCP, UDP or serial. On the Modbus side it is a server that accepts requests from Modbus TCP clients and either answers them directly or forwards the related DNP3 data.Mapping between DNP3 points and Modbus addresses is set up in the DNP-211 utility, so existing DNP3 networks can be exposed to a Modbus TCP host without rewiring the field devices. Outstation connection status is also available at a Modbus address, which helps supervisory logic detect a lost link.Capacity covers up to 32 DNP3 outstations and 16 Modbus TCP client connections, with 8192 digital I/O bits and 2048 channels each for counter and analogue points. It is a suitable choice where an engineer needs a compact DIN-rail gateway with a metal housing and a wide 12 to 48 VDC supply range.ApplicationsIntegrating DNP3 outstations, RTUs and IEDs with Modbus TCP master systemsSCADA communication in utilities such as electric and water companiesConnecting existing DNP3 networks to Ethernet-based Modbus TCP masters

DNP-211-S bridges Modbus TCP field devices and DNP3 master stations. It polls several Modbus TCP servers and exposes their data as one DNP3 outstation, so a master station can read and control the underlying devices without needing a native Modbus driver.The gateway accepts DNP3 over RS-485, TCP/IP or UDP and supports Binary, Binary Output, Analog and Analog Output data. Analog values can be handled as word, int32, float or double. Mapping between Modbus TCP addresses and DNP3 points is set up in the DNP-211-S utility software, and the DNP3 side reports the Modbus TCP connection status.Suited to utility and SCADA installations, the unit uses a metal housing, a 12 to 48 VDC supply and DIN-rail or optional wall mounting. It is rated for operation from -25 to +75 °C.ApplicationsSCADA master station integration with Modbus TCP devicesElectric and water utility communicationsConnecting RTUs and IEDs to a DNP3 master station

The ECAT-2611 CR is a protocol converter gateway that connects EtherCAT and Modbus RTU networks. It operates as a SubDevice on both sides and passes I/O data between them, so an EtherCAT Main Device and a Modbus RTU Main Device can exchange data through its internal data exchange buffer.It suits system integrators who need to bring older serial automation equipment into an EtherCAT architecture. The serial protocol conversion is handled in the module, so no PLC function blocks are required and the connected device needs no hardware or software changes.This CR ordering code includes the CA-0915 DB9 male to DB9 female cable, 1.5 M, for connecting the serial port. Key figures include a 10 ms cycle time, up to 256 WORD input and 256 WORD output data, and serial communication up to 115200 bps.ApplicationsRetrofitting older Modbus RTU automation devices into EtherCAT communication structuresExchanging I/O data between an EtherCAT Main Device and a Modbus RTU Main DeviceIntegrating serial Modbus RTU equipment into EtherCAT-based machine control systems

The GW-7433D-G bridges CANopen networks and Ethernet-based control systems. On the field side it operates as a CANopen master, using PDO and SDO services to communicate with slave devices. On the plant side it appears as a Modbus TCP server and a Modbus RTU slave, so an existing CANopen installation can be monitored and controlled from any Modbus TCP client or Modbus RTU master.Slave devices are predefined using the manufacturer's utility software. At start-up the gateway collects the required information from those slaves. It supports up to 20 CANopen slave devices, and up to five Modbus TCP clients can access the unit at the same time.The listen mode lets engineers monitor CANopen slave data without taking part in the network traffic. Slaves can be added or removed on line, and CANopen status, slave and gateway communication states, and disconnections can be queried through Modbus commands.ApplicationsControl systemsBuilding automationFactory automationDistributed data acquisitionWind turbine monitoring and control, integrating large inverters and PLCs

GW-7828 CR is a gateway that lets Modbus RTU masters read data from M-Bus (Meter-Bus) slave devices. It is intended for remote reading of consumption meters, and also for sensors and actuators that use the M-Bus standard. Engineers can integrate M-Bus devices into an existing Modbus RTU system without writing M-Bus drivers.The gateway responds to Modbus RTU function codes 0x03 and 0x04 to read M-Bus meter data, and supports up to 100 M-Bus slave devices. Serial communication is available through RS-232, RS-422 or RS-485, and two rotary switches set the baud rates for the serial port and the M-Bus port.The M-Bus port includes over-current and short-circuit protection, with 3750 Vrms photo-coupler isolation. Firmware can be updated through the serial port. Power consumption is 1.8 W at 24 VDC with one slave device and 11.8 W with 100 slave devices.ApplicationsEnergy countersHot and cold water countersGas metersPressure sensorsM-Bus sensors and actuators

GW-7838-M bridges Modbus TCP/RTU networks and M-Bus metering. It acts as an M-Bus master, reading meter data from up to 100 slave devices, and presents that data as a Modbus TCP server, so a PLC or PC can collect readings without any M-Bus knowledge.The gateway is set up once with the M-Bus configuration utility. After that it reads the meters autonomously. A Modbus client can then access the data over Ethernet (TCP) or the RS-232 serial port, with Modbus function codes 0x03 and 0x04 used to read meter values.Supports EN 13757 and CJ/T 188 M-Bus metersSuited to energy, water, heat and gas meter reading in automation systemsApplicationsReading energy countersHot and cold water metersHeat metersGas and pressure metersSensors and actuators on an M-Bus network

The I-3591 M-Bus repeater strengthens the drive capability of an M-Bus line, extends its cable distance, and reshapes the signal waveform so that the M-Bus master can communicate reliably with a larger number of meters.It suits engineers building metering networks for electricity, water and heat meters, where the two-wire M-Bus carries both power and communication. The unit needs no configuration: it detects the baud rate automatically once it is wired into the line. Its overcurrent, short-circuit and reverse polarity protection help it withstand common wiring faults.The I-3591 CR is the RoHS-labelled version of the repeater. It provides one master port and one slave port, with 3750 Vrms photo-coupler isolation, and mounts on a DIN rail. Power consumption is 1.6 W at 24 VDC with one slave device and 9.7 W with 100 slave devices.ApplicationsElectricity, water and heat meter networksM-Bus metering installations with large numbers of slave devicesLong-distance M-Bus cable runs

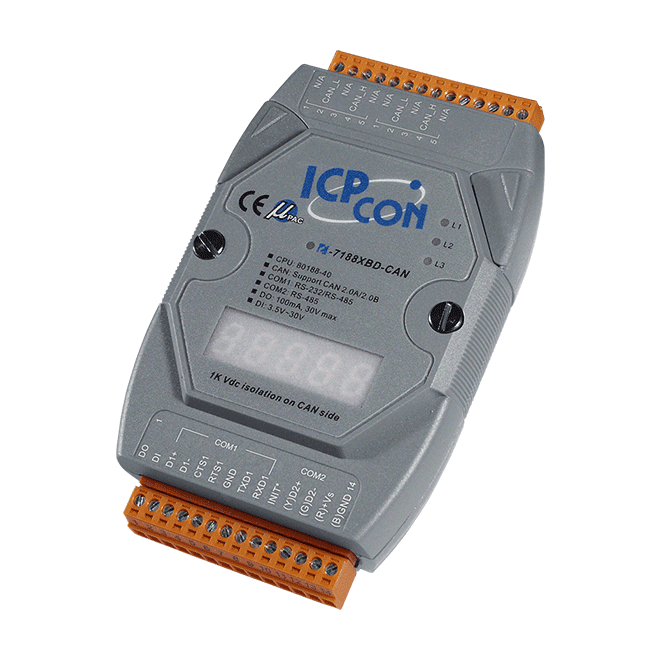

I-7188XBD-CAN-G CR is a programmable automation controller that bridges a CAN bus with serial devices and simple discrete I/O. It is built around an 80188 processor at 40 MHz with 512 KB of SRAM and 512 KB of Flash, and it runs the built-in MiniOS7 operating system, so application code can be written in C or C++.The CAN port follows ISO-11898-2 and CAN 2.0A/2.0B, with a programmable transfer rate up to 1 Mbps and a jumper-selectable 120 Ω terminal resistor. It is photo-isolated at 2500 Vrms. Two COM ports (one RS-485/RS-232 shared port and one RS-485 port with a built-in self-tuner) allow mixed serial equipment to be connected alongside the CAN network.A single digital input and a single open collector output provide basic discrete I/O, while the 7-segment LED display, three programmable status LEDs, real-time clock, NVRAM and EEPROM support local status indication and data retention. The unit is DIN-rail mounted, powered from +10 VDC to +30 VDC, and rated for operation from -25 to +75 °C.ApplicationsCAN bus control and monitoringIntegration of mixed CAN and serial communication devicesSimple discrete command input and outputDiversified CAN-based automation applications

The I-7590 bridges a serial host to M-Bus (Meter-Bus) slave devices. It accepts RS-232, RS-422 or RS-485 on the serial side and passes data through to the M-Bus network, so a standard serial master can poll energy counters, water and gas meters, and other M-Bus instruments without a custom protocol stack.Serial and M-Bus baud rates can be configured separately. Ten default baud rates and six user-defined rates are available, allowing the converter to match a wide range of meter configurations. Transparent communication means the converter does not alter the data stream, and it supports up to 100 M-Bus slaves.For reliability in the field, the M-Bus port has 3750 Vrms photocoupler isolation along with overcurrent and short-circuit protection. The unit also includes a watchdog, reverse polarity protection on the power input, and firmware can be updated through the RS-232 port. It mounts on DIN-rail and is rated for -25 ~ +75 ℃ operation.ApplicationsRemote reading of energy countersHot and cold water meter readingGas meter and gas counter readingPressure sensors and actuators on M-Bus networks

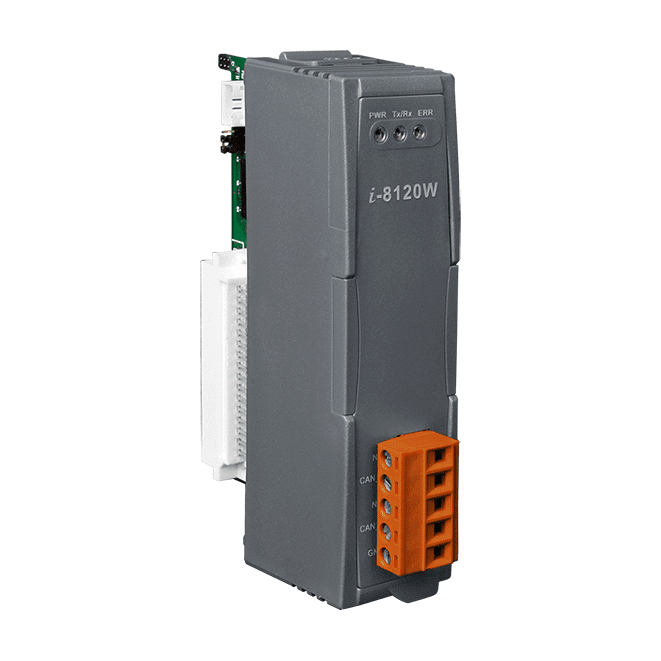

The I-8120W-G adds a CAN 2.0A/2.0B interface to WinPAC-8000, ViewPAC and XPAC-8000 controllers over a parallel bus. Its on-board 80186 CPU runs user-defined firmware, so engineers can handle CAN traffic locally, with the main controller taking care of the higher-level logic. The -G variant is the RoHS-compliant version listed under ordering code I-8120W-G CR.Designed for distributed real-time control, the module supports baud rates from 10 kbps to 1 Mbps by default and allows user-defined rates. A switchable 120 Ω terminal resistor simplifies bus termination, and CAN messages are timestamped with ±1 ms precision. Isolation is rated at 3000 VDC for the DC-to-DC section and 2500 Vrms for the photocoupler.Because the module can be programmed, it can also act as a multi-CAN-port device server that bridges CAN with RS-232, RS-485 or Ethernet ports, letting integrators build applications that span different communication protocols. Firmware and demos are supplied with C/C++ libraries, plus VC6 and VS 2005 demos and libraries.ApplicationsRobust CAN communication in solar shipsMulti-port CAN programmable device serverBridging CAN with RS-232, RS-485 and Ethernet networksDistributed real-time control over CAN bus

The I-8123W-CPS-G adds a single CANopen slave port to supported ICP DAS PACs, so an engineer can connect a WinPAC, ViewPAC or XPAC controller to a CANopen network as a slave device. It is a practical choice where a PAC needs CANopen connectivity without a separate gateway, and it suits distributed real-time control in industrial, building and vehicle applications.The module follows the CiA DS-301 v4.02 specification and supports node IDs from 1 to 127, with a programmable slave node ID. Node Guarding, Heartbeat Consumer, EMCY, and PDO/SYNC behaviour can be configured through event triggers and several PDO transmission modes, while dynamic PDO mapping and single-byte PDO output help keep process data updates efficient.Ordering code I-8123W-CPS-G CR. The CAN interface uses an NXP SJA1000T controller with a built-in 120 Ω terminal resistor, a baud rate range of 10 k to 1 M, and 2500 Vrms photo-isolation on the CAN side. Vendor-supplied eVC++, VB.Net and C# demos are provided to help with application development.ApplicationsIndustrial automationBuilding automationVehicleMaritimeEmbedded control networks

The I-8123W-G CR adds a CANopen master port to compatible ICP DAS WinPAC, ViewPAC and XPAC controllers over the parallel bus. It is intended for engineers who need a CANopen master on an existing PAC without a separate gateway, and it communicates with slave devices using the CiA 301 v4.02 specification.The module uses an NXP SJA1000T CAN controller with an 82C250/251-class transceiver, and provides a single CAN port on a 5-pin screw terminal connector with a built-in 120Ω terminating resistor. Scan, listen and event-monitoring functions help with commissioning and supervising a live network, while dynamic PDO mapping and several SYNC modes allow the process data exchange to be tuned to the application.Electrical isolation is rated at 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupler. The module also supports the CANopen Motion Library, which follows CiA 402 and covers position, velocity, torque and synchronised control. Drivers are provided for WinPAC, ViewPAC, XPAC and XPAC-CE6, with SDK support for eVC++4.0, VC++, VB.net and C#.net.ApplicationsIndustrial machineryLaboratory equipment and researchRestaurant appliancesMaritimeMedicalSpecialty vehicles

The I-8124W-G adds a DeviceNet master port to WinPAC, ViewPAC and XPAC-CE6 controllers over the parallel bus. It runs a CAN controller with an isolated DeviceNet port, so an engineer can run a DeviceNet network from a PAC without a separate fieldbus gateway.The master supports up to 64 nodes, with a programmable master MAC ID and Group 2 and UCMM functions. Poll, Bit-Strobe and Change Of State/Cyclic I/O operation modes are available, and the module can auto-scan slave devices, add or remove devices while the network is online, and reconnect automatically after a broken connection.Suited to valve and sensor integration and to drive communication, the module is supplied as ordering code I-8124W-G CR. Key specifications include a 125k, 250k or 500k baud rate, a switchable 120 Ω terminal resistor, 3000 VDC DC-to-DC isolation and an operating range of -25 ~ +75 ℃.ApplicationsCVD DeviceNet applicationsCommunication with PowerFlex400 drivesSMC valve applicationsIFC-125 valve applicationsMKS FRCA valve applicationsSICK distance sensor applicationsIndustrial automation, building automation, vehicle, marine and embedded control networks

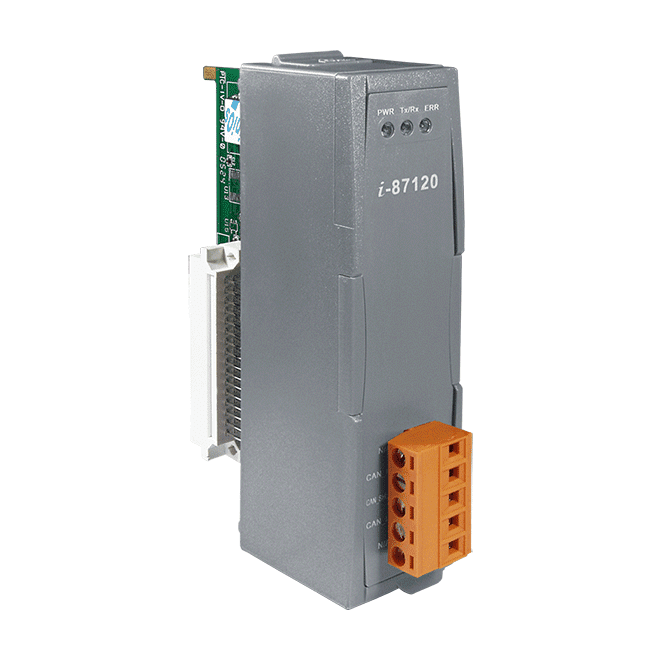

The I-87120-G adds a single CAN port to ICP DAS host units from the I-8000 and iP-8000 families, ViewPAC-2000, WinPAC-8000, LinPAC-8000 and XPAC-8000-CE6. Once fitted, the host can operate as a CAN converter, a CAN slave device or a CAN master device on a CAN network.The module uses an NXP SJA1000T controller and supports CAN 2.0A and CAN 2.0B to ISO-11898-2, with user-defined baud rates from 10 k to 1 M bps. Receive and command buffers of 4096 records each are provided, and C/C++ function libraries, demos and a utility are supplied to help build CAN send and receive applications.The I-87120-G is the ordering code for this single-port version. It offers 2500 Vrms photo-coupler isolation and a jumper-selectable 120 Ω terminal resistor, with an operating temperature range of -25 ~ +75 °C.ApplicationsDeviceNet, CANopen, CAN J1939 and SDS protocol applicationsCAN bus communicationIndustrial automationIndustrial machineryBuilding automationFood and beverageSemiconductor fabricationControl systems

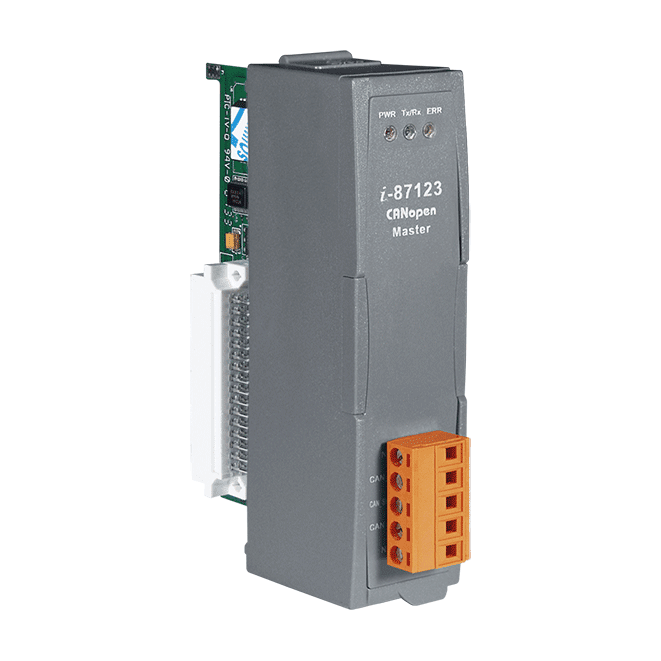

I-87123-G is a single-port CANopen master module for engineers who need a dedicated master controller on a CAN bus network. It follows the DS-301 v4.02 specification and handles network management, scanning of all nodes on the network, and monitoring of EMCY, Node Guarding and Heartbeat events.For process data, the module offers event-triggered, remote-requested, cyclic and acyclic SYNC of PDO modes, along with dynamic PDO mapping. SDO communication supports the segment protocol, and the module can also run in master listen mode. The baud rate range is 10 k ~ 1 M, and a 120Ω terminating resistor is built in.The module is isolated, with 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupled channels. It is rated for an operating temperature of -25 ~ +75 °C and includes PWR, RUN and ERR status LEDs. Driver support is listed for WinPAC, ViewPAC, XPAC and XPAC-CE6, and the SDK covers eVC++4.0, VC++, VB.net and C#.net.ApplicationsIndustrial MachineryLaboratory Equipment & ResearchRestaurant AppliancesMaritimeMedicalSpecialty Vehicles

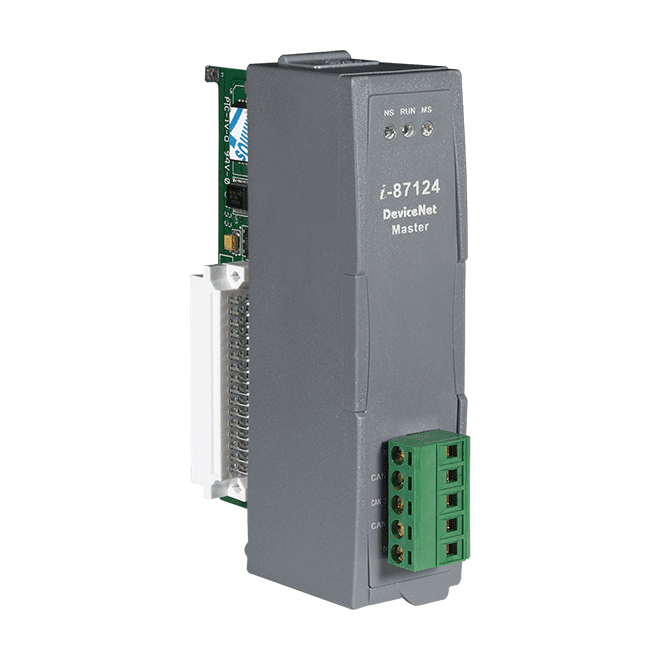

The I-87124-G gives WinPAC and ViewPAC controllers a DeviceNet master port, so a PAC can poll and manage slave devices on a DeviceNet network without a separate fieldbus gateway. The module sits on the CAN bus side as a standalone CAN controller and handles the master role, with support for up to 63 slave nodes.Engineers choosing this module will find a full set of I/O operation modes and network management features. Poll, Bit-Strobe and Change Of State/Cyclic modes are supported, together with Group 2 and UCMM functions, automatic detection of Group 2 and UCMM devices, and automatic scanning of slave devices. Devices can be added to or removed from a running network, and the connection re-establishes automatically if it is broken.For electrical design, the port is isolated, with 3000 VDC for DC-to-DC and 2500 Vrms for photo-coupling, and includes a switchable 120 Ω terminal resistor. Software support covers Windows CE with SDKs for VB.Net 2005, C#.Net 2005 and eVC++ 4.0. The module is rated for an operating temperature of -25 ~ +75 ℃.ApplicationsIndustrial automationIndustrial machineryBuilding automationFood and beverageSemiconductor fabricationVehicle, marine and embedded control networksControl systems

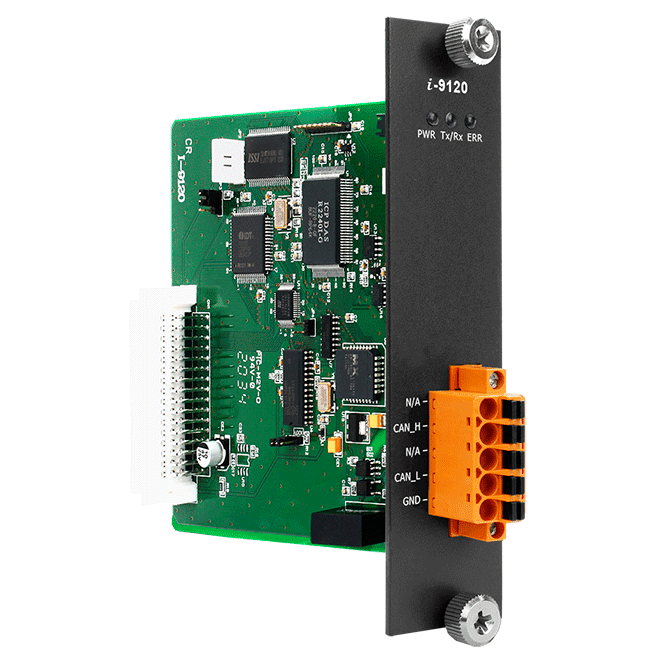

I-9120 CR adds a single isolated CAN port to 9000 series programmable automation controllers. Its NXP SJA1000T controller handles CAN 2.0A and 2.0B frames at baud rates from 10 kbps to 1 Mbps, making it suited to distributed real-time control where engineers need a cost-effective CAN interface.The on-board 80186 CPU runs user-defined firmware, so the module can act as a programmable CAN node or device server. It can also exchange data with RS-232, RS-485 and Ethernet interfaces, allowing applications to bridge different communication protocols.The CAN port uses a 5-pin screw terminal connector and includes a switchable 120 Ω terminal resistor. Isolation is rated at 3000 VDC for DC-to-DC and 2500 Vrms for the photo-coupler, and the module operates from -25 ~ +75 °C.ApplicationsEnergy Storage System

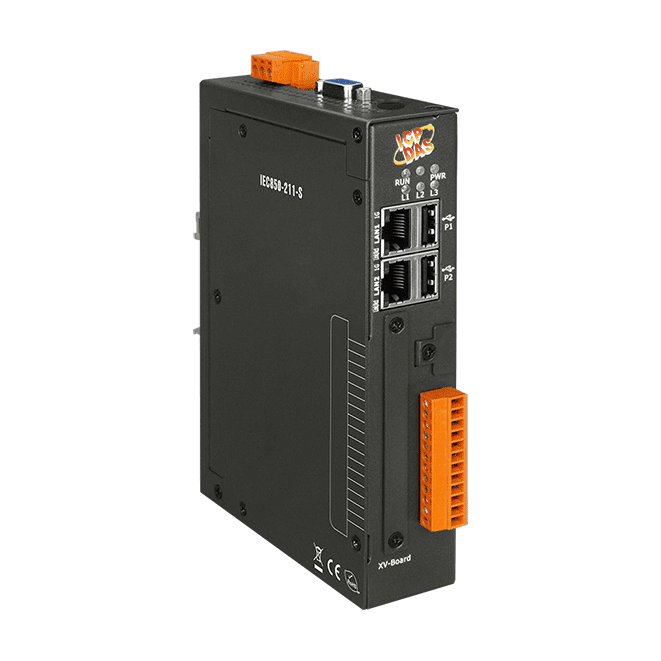

IEC850-211-S CR bridges Modbus TCP field devices and IEC 61850 MMS clients. Modbus registers are presented as IEC 61850 data objects, so a substation client or SCADA system can read values and issue commands without native Modbus support.Modbus registers are mapped to IEC 61850 data objects with the supplied configuration utility, which also generates the ICD file. Supported data objects include Ind, AnIn, SPCSO and AnOut under the GGIO logical node, and control uses Select-Before-Operate for secure remote operations.The gateway handles up to 32 Modbus TCP server connections and 5 IEC 61850 MMS client connections, with a combined limit of 9600 Modbus registers across coils, discrete inputs, input registers and holding registers. It is built for DIN-rail or optional wall mounting in a metal housing, with an operating range of -25 ~ +75 °C.ApplicationsSubstation automationExchanging protection and control data between IEDs and SCADA over IEC 61850Integrating Modbus TCP devices into IEC 61850 substation networks

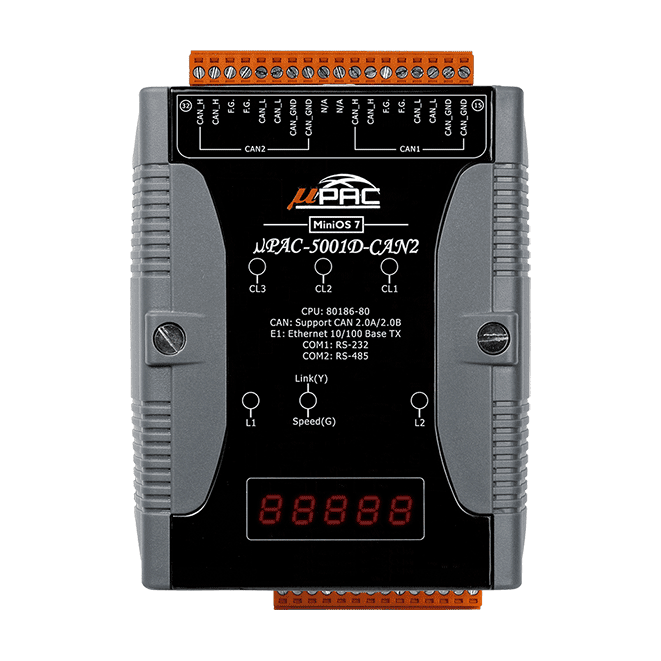

The uPAC-5001D-CAN2 is a palm-size programmable automation controller that brings two CAN bus channels together with Ethernet, RS-232 and RS-485 on one DIN-rail module. It suits engineers who need to gather data from several field networks and process it locally, or who need a gateway or bridge between different protocol networks.The controller runs a DOS-like, single-task real-time operating system and accepts application programs written in C or C++. ICP DAS supplies library and demo code for the communication ports, watchdog, real-time clock, seven-segment display, flash, EEPROM and microSD storage, which shortens development by allowing sample programs to be adapted and combined.Hardware options include a jumper-selectable 120 Ω terminal resistor for the CAN channel, redundant power inputs accepting +12 ~ +48 VDC, and a 64-bit hardware serial number for software copy protection. Its plastic casing and low power consumption of 2.5 W suit compact installations across a -25 ~ +75 °C operating range.ApplicationsData collection from multiple CAN, RS-232, RS-485 and Ethernet devicesCentral data processing point for distributed field equipmentProtocol conversion as a gateway or bridge between different communication networksControl and monitoring in a range of industrial applications

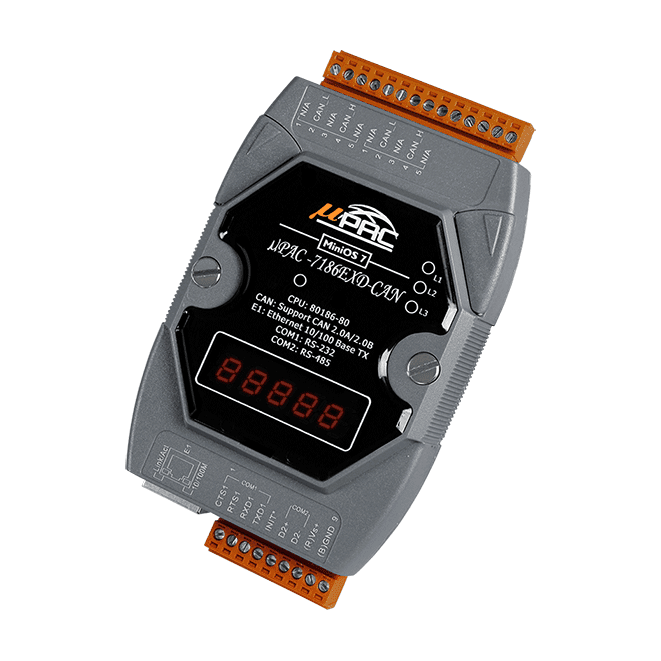

The uPAC-7186EXD-CAN-G CR is a programmable automation controller built around an 80186 processor, with a CAN 2.0A/2.0B port, a 10/100Base-TX Ethernet controller and RS-232 and RS-485 serial ports. It is intended for engineers who need a controller to pass commands between a CAN network and other devices on Ethernet or serial links.Application programs can be written in C/C++ and run under the built-in MiniOS7 operating system. The unit provides 512 KB of SRAM and 512 KB of Flash, along with EEPROM, NVRAM and a real-time clock for storing settings and maintaining time. Three programmable status LEDs and a 7-segment display give local feedback during operation.This variant has no digital or analogue I/O channels, so it suits communication-focused designs where the CAN, serial and Ethernet interfaces carry the workload. The CAN channel includes a jumper-selectable 120Ω terminal resistor, and the unit mounts on DIN-rail in a plastic housing.ApplicationsRelaying commands between CAN networks and Ethernet or serial communication devicesControl and monitoring across a range of industrial sectorsEconomical CAN-based communication solutions
