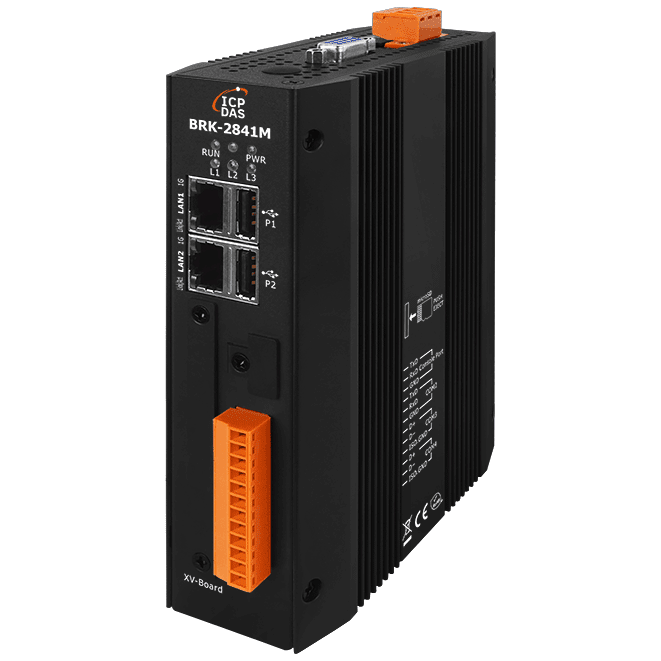

The BRK-2841M CR is a metal-cased MQTT communication server for machine-to-machine and industrial IIoT networks. It acts as a broker for distributing MQTT messages and as a concentrator for field data, supporting MQTT V3.1, V3.1.1 and V5.0 clients.Broker features include QoS message delivery, retained messages, identity authentication, communication encryption, Last Will messages and bridging. Settings are made through the browser-based Web UI, which reduces the effort of setting up and maintaining a broker. For resilience, several units can be grouped into a redundant system using the bridge, cluster, load balancer and high-availability functions, so that a hardware or network failure does not halt field services.Data can be written directly to mainstream databases such as MySQL. During connection outages, data is buffered to a MicroSD card (sold separately) and back-filled once the link is restored.ApplicationsBridge architecture deploymentsRedundancy architecture deploymentsCluster architecture deploymentsPlastic injection molding machine monitoring

The DL-303 CR records carbon monoxide, carbon dioxide, temperature, humidity and dew point together, with date and time stamps on every record. Readings are shown simultaneously on a 2.8-inch touch screen, and a single relay output can drive an alarm device or an indoor air quality (IAQ) control device.Data can be read over RS-485 using DCON or Modbus RTU, or over Ethernet using Modbus TCP or MQTT. The unit can be powered from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, which simplifies installation where a network cable is already present. Configuration is available through the touch screen or the built-in web server.Logged data can be downloaded and exported to CSV for analysis. Free Windows utility software, iOS and Android apps are included, and multilingual on-screen messages can be shown to prompt operators. The device is listed with CE, UKCA, FCC, RoHS and WEEE certification.ApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleries

EZ Data Logger is a small data logger software. It can be applied to a small remote I/O system.

IoTstar Bot Service Package (Used with IoTstar-RC050; Support Bot Service & LINE App).

IoTstar Bot Service Package (Used with IoTstar-RC200; Support Bot Service & LINE App).

IoTstar Bot Service Package (Used with IoTstar-RC500; Support Bot Service & LINE App).

IoTstar Dashboard Service Package (Used with IoTstar-RC050).

IoTstar Dashboard Service Package (Used with IoTstar-RC200).

IoTstar Dashboard Service Package (Used with IoTstar-RC500).

IoTstar Report Service Package (Used with IoTstar-RC050).

IoTstar Report Service Package (Used with IoTstar-RC200).

IoTstar Report Service Package (Used with IoTstar-RC500).

IoTstar - IoT Cloud Management Software (Max. 50 controllers can be connected.).

IoTstar - IoT Cloud Management Software (Max. 200 controllers can be connected.).

IoTstar - IoT Cloud Management Software (Max. 500 controllers can be connected.).

IoTstar Upgrade Package (Upgrade the maximum number of controllers connected to IoTstar from 50 to 200.).

IoTstar Upgrade Package (Upgrade the maximum number of controllers connected to IoTstar from 200 to 500.).

The IoTstar2025-RC050 is a cloud management package for monitoring and maintaining WISE, PMC and PMD controllers from a browser, without writing custom code. It handles remote maintenance, system settings and firmware updates, and imports historical and real-time I/O and power data into a database for review and analysis.The software can run on a public cloud virtual machine, such as Microsoft Azure, IBM Bluemix or Amazon AWS, or on a Windows system to build a private IoT cloud. Collected data is stored in MS SQL, MySQL or Oracle, where it can be reviewed in the built-in web interface or passed to SCADA and analysis tools such as Microsoft Power BI and Google Data Studio.This ordering code licenses connection of up to 50 controllers. Upgrade packages are available to raise the limit to 200 or 500 controllers.ApplicationsCloud monitoring and maintenance of machines, facilities and environments

The IoTstar2025-RC200 is the 200-controller licence of ICP DAS's IoT cloud management software. It lets you maintain WISE, PMC and PMD controllers remotely from a browser, with no programming needed, and import their I/O channel and power data into a database for storage and analysis.IoTstar can run on a virtual machine in a public cloud such as Microsoft Azure, IBM Bluemix or Amazon AWS, or on a Windows system (Windows 7/8/10 or Windows Server) for a private cloud deployment. Data is stored in MS SQL, MySQL or Oracle, and can be reviewed in the built-in web interface or passed to SCADA and analysis tools such as Microsoft Power BI and Google Data Studio.This ordering code covers a maximum of 200 connected controllers. Smaller (50-controller) and larger (500-controller) licences are listed separately, and upgrade packages are available to move an installation from 50 to 200 or from 200 to 500 controllers.ApplicationsCloud monitoring and maintenance of machines, facilities and environments

IoTstar2025-RC500 is the 500-controller licence of ICP DAS's IoTstar 2025 cloud management software, aimed at engineers who need to oversee a large fleet of WISE, PMC and PMD controllers from one place. Remote maintenance is carried out in a web browser, so no custom programming is needed to check status, change system settings or apply firmware updates.The software imports I/O channel and power data from the controllers into a database, where it can be reviewed in the built-in web interface or passed to SCADA and analysis tools such as Microsoft Power BI and Google Data Studio. Supported databases are MS SQL, MySQL and Oracle. Values stored in the database can also be modified with SQL commands to change the state of DO and AO channels on connected devices.Deployment is flexible. IoTstar 2025 can run on a virtual machine in a public cloud platform such as Microsoft Azure, IBM Bluemix or Amazon AWS, or on a Windows system (Windows 7/8/10 or Windows Server) to build a private IoT cloud.ApplicationsCloud monitoring and maintenance of machines, facilities and environments

The IoTstar2025-UC050-200 is an upgrade package for IoTstar 2025 cloud management software. It increases the maximum number of WISE/PMC/PMD controllers that can be connected from 50 to 200, allowing an existing IoTstar deployment to scale without moving to a new licence tier.Once connected, controllers can be maintained remotely through a browser, including status monitoring, system settings and firmware updates. Sensor and power data from the controllers can be collected into a database, where it can be reviewed in the built-in web interface, shown on dashboards, reported on statistically, or queried through the Bot Service on mobile messaging apps.This upgrade suits operators of machines, facilities and environmental monitoring systems who need to manage a larger fleet of controllers from a single cloud or private deployment.ApplicationsCloud monitoring and maintenance of machines, facilities and environments

The IoTstar2025-UC200-500 is an upgrade package that increases the maximum number of WISE, PMC and PMD controllers an IoTstar 2025 cloud management installation can connect, from 200 to 500. It suits organisations whose device estate has outgrown the 200-controller limit and who want to extend the existing platform rather than move to a new one.Once connected, controllers can be maintained from a web browser, covering status monitoring, system settings and firmware updates, with no programming required. Sensor and power data are imported into an MS SQL, MySQL or Oracle database, where they can be reviewed in the built-in web interface, through dashboards and statistical reports, or retrieved by SCADA and data analysis tools.IoTstar 2025 can run on a public cloud virtual machine such as Microsoft Azure, IBM Bluemix or Amazon AWS, or on Windows 7/8/10 and Windows Server for a private deployment.ApplicationsCloud monitoring and maintenance of machines, facilities and environments

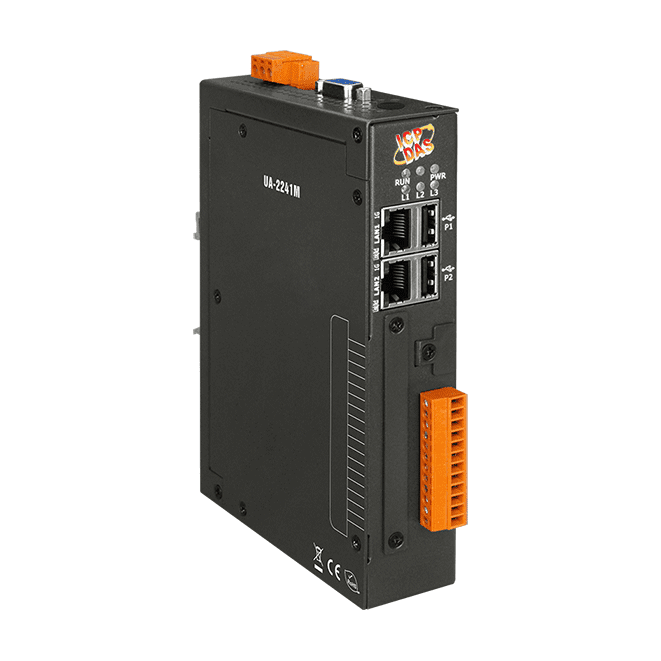

UA-2241M is an IIoT communication server for linking field devices with MES, ERP, SCADA and cloud platforms. It acts as a gateway to remote I/O modules and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, and republishes that data as OPC UA, MQTT and SNMP at the same time.The unit also works as a data logger. I/O data can be written to a remote MS SQL, MySQL or MariaDB database and saved locally in CSV format on a microSD card. An offline data recovery mechanism is provided for the remote database, and data can be forwarded to Microsoft Azure, Amazon Web Services, IBM Cloud or ThingSpeak. IFTTT logic triggers can send event notifications to mobile apps.Hardware includes two RJ-45 Ethernet ports, two RS-485 ports (2500 VDC isolated), two RS-232 ports, a 1.0 GHz ARM CPU and a DIN-rail metal housing. One optional XV-board can add I/O or RS-485 expansion. The product is marked CE, UKCA, FCC, RoHS and WEEE.ApplicationsConnecting remote I/O and controllers to MES, ERP and SCADA systemsIIoT data collection and forwarding to cloud platformsHistorical I/O data logging to remote databases and local storageIT/OT protocol integration and interoperability

UA-2241MX-4GC CR is a metal IIoT communication server for engineers who need to connect field I/O and controllers to MES, ERP, SCADA or cloud services without writing custom middleware. It polls remote I/O and controllers over Modbus TCP, Modbus RTU/ASCII, MQTT and EtherNet/IP, then republishes the data as OPC UA, MQTT and SNMP at the same time.Data logging is handled in two places. I/O values can be written directly to a remote MS SQL, MySQL or MariaDB database, with offline data recovery for the remote database, and kept as CSV files on a 32 GB microSD card. Cloud links cover Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeak, and IFTTT can trigger mobile app notifications when an event occurs.The CR variant carries the 4G LTE radio configured for the China frequency bands, with FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41. Security options include HTTPS, an OpenVPN client, SNMP V3, communication encryption and a dynamic blocklist with whitelist support.ApplicationsIIoT integration between operational technology devices and IT systemsConnecting remote I/O and controllers to MES, ERP and SCADA systemsCloud data upload to Microsoft Azure, Amazon Web Services, IBM Cloud and ThingSpeakRemote data logging to MS SQL, MySQL and MariaDB databasesEvent notifications to mobile apps via IFTTT
