Ethernet I/O Modules (Regular)

The ET-2242 CR is an Ethernet I/O module offering 16 open-collector digital outputs in sink configuration, with each channel rated for a 650 mA load. It suits engineers who need to switch a group of loads over Ethernet without a separate network device, as the built-in 2-port switch lets modules be daisy-chained along a line.Beyond switching, the module can be configured to hold a programmable power-on value and safe value for its outputs. Its I/O pair connection function links local DO channels to DI channels on a remote module over Ethernet, with remote DI data written to local outputs in Pull mode via Modbus TCP. Dual-watchdog support, a built-in web server and password and IP filter access control add to its configuration and operational options.For electrically demanding sites, the ET-2242 CR provides 3000 VDC I/O isolation and EMS (EFT/ESD/Surge) protection. Its MQTT publisher and subscriber capability and SNMP V2c support allow I/O status to be reported to brokers and network management software.ApplicationsFactory AutomationMachine AutomationBuilding AutomationRemote Diagnosis & MaintenanceTesting Equipment

The ET-7060 CR combines six wet contact digital inputs with six form A power relays in a single Ethernet-connected DIN-rail module. Each input can also operate as a 32-bit counter, which suits pulse counting and status monitoring in automation and remote supervision tasks. Relay power-on and safe values are programmable, so outputs can be set to a defined state when the module starts or communication is lost.Communication is handled over a 10/100 Base-TX RJ-45 port using Modbus TCP or Modbus UDP. A built-in web server and web HMI allow configuration and monitoring through a browser, while dual watchdogs (module and communication, both programmable) help maintain system reliability. Access can be restricted with ID, password and IP filter controls.Isolation is rated at 3000 VDC for the I/O and 1500 VDC for Ethernet, with no channel-to-channel isolation. When switching inductive loads, fit a flyback diode for DC loads or a metal oxide varistor for AC loads to protect the relay contacts and extend relay life.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

The ET-87P4 extends I-87K series I/O modules over Ethernet, giving engineers remote analogue, digital, counter and frequency I/O without running individual field wiring back to a controller. Four slots accept I-87K modules, and two RJ-45 switch ports allow units to be chained in series with each other or with other Ethernet devices, reducing cabling and installation space.Designed for harsh and electrically noisy sites, the unit has an isolated +10 ~ 30 VDC power input with redundant power inputs, and an operating range of -25 ~ +75 °C. Maintenance is simplified by hot swapping, automatic configuration, LED fault indication, push buttons for setting the IP address and a 4-digit 7-segment display. Dual watchdog, programmable power-on and safe values support continuous and safe operation.Software integration is supported through several SDKs and demos, including DLL, LabVIEW driver, InduSoft driver, Linux driver and OPC server. The unit also provides a RS-232 console port and Modbus RTU/ASCII slave protocol on its COM port.ApplicationsRemote industrial monitoring and controlDistributed I/O expansion over EthernetHarsh or electrically noisy industrial environments

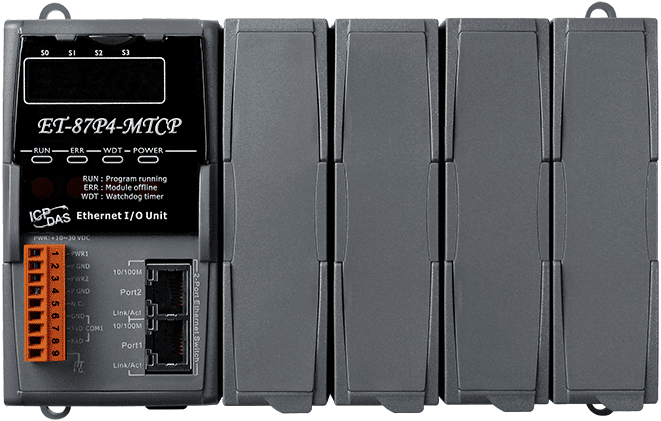

The ET-87P4-MTCP CR extends I-87K series I/O modules over Ethernet, acting as a Modbus TCP slave for supervisory systems. Four slots accept analogue, digital and DI counter modules, and the I/O can be hot swapped without taking the whole unit out of service.Two RJ-45 switch ports allow units to be daisy-chained in series or connected to other Ethernet devices, reducing cabling and panel space. An RS-232 console port supports Modbus RTU/ASCII slave operation, and the unit can also act as a Modbus TCP to RTU gateway.Designed for harsh, electrically noisy sites, the unit has a wide 10 ~ 30 VDC input with 1 kV isolation and an operating range of -25 ~ +75 °C. Auto configuration, status LEDs and watchdog functions help with commissioning, fault detection and safe-state handling.ApplicationsIndustrial monitoring and controlEnvironmental monitoringRemote I/O expansion for SCADA, HMI and PLC systems using Modbus

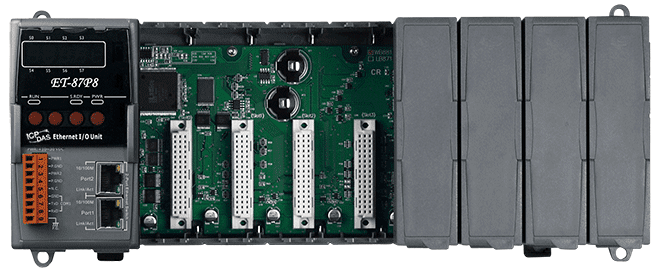

The ET-87P8 CR is a remote intelligent I/O expansion unit that takes up to eight I-87K series I/O modules and makes them available over Ethernet. It suits industrial monitoring and control installations where I/O needs to sit close to the process while the control system stays elsewhere on the network.Two built-in Ethernet switch ports let you daisy-chain units or connect other Ethernet devices in series, which reduces cabling and saves panel space. Hot swap, automatic configuration and LED fault indication keep installation and maintenance simple. The unit accepts a wide 10 ~ 30 VDC isolated supply and operates from -25 ~ +75 °C, so it is suited to harsh, electrically noisy environments.The ET-87P8 CR can be addressed over Modbus TCP as a slave, or used as a Modbus TCP to RTU gateway. DCON (ASCII format) is available on the RS-232 console port. The ordering code is listed as RoHS compliant.ApplicationsIndustrial monitoring and controlRemote I/O expansion over EthernetDistributed I/O in harsh or electrically noisy environments

ET-87P8-MTCP is a Modbus TCP expansion unit that extends an Ethernet network with up to eight I-87K series I/O modules. It suits industrial monitoring and control installations where I/O needs to sit remote from the controller, and it supports the I/O hot swap function so modules can be replaced with the unit in service.Two switched RJ-45 ports (10/100 Base-TX) allow units to be daisy-chained, which reduces cabling and saves panel space. The unit also serves as a Modbus TCP to RTU gateway and provides a Modbus RTU/ASCII slave interface on its RS-232 console port, so serial and Ethernet masters can both be used.The unit accepts a 10 to 30 VDC supply with 1 kV isolation and redundant power inputs, and is rated for an operating range of -25 to +75 °C. Its status LEDs and 5-digit display aid fault finding, while the CPU and software watchdogs and safe-value settings help keep outputs in a defined state if communication is lost. SDKs are provided for Windows XP, Windows CE 5.0/6.0, Linux and MiniOS7.ApplicationsRemote I/O expansion for industrial monitoring and controlDistributed data acquisition over EthernetModbus TCP integration with SCADA, HMI and PLC systemsEnvironments with harsh conditions and electrical noise

The ET-8KP4-MTCP CR extends I-8K and I-87K series I/O modules over Ethernet, giving Modbus TCP masters remote access to four I/O slots. It suits industrial monitoring and control installations where remote I/O needs to be added to an existing Modbus TCP network without a dedicated controller at the I/O location.Two Ethernet switch ports allow units to be daisy-chained, reducing cabling and saving installation space. The unit accepts a wide 10 ~ 30 VDC input with isolated power and is rated for an operating temperature of -25 ~ +75 °C, making it suitable for harsh and electrically noisy environments.Installation and maintenance are simplified by auto configuration and LED indicators for fault detection. Watchdog and safe-value features help protect the process if communication is lost. The unit also supports Modbus RTU/ASCII on its RS-232 console port and can act as a Modbus TCP to RTU gateway.ApplicationsIndustrial monitoring and controlRemote I/O expansion over EthernetEnvironmental monitoringHarsh or electrically noisy installation environments

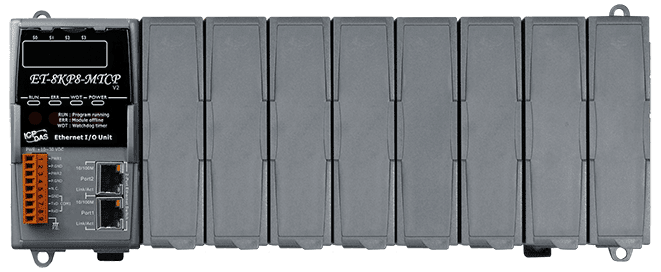

The ET-8KP8-MTCP CR extends up to eight I-8K and I-87K series I/O modules over Modbus TCP, so a PLC, SCADA system or HMI can reach remote analog, digital and DI counter channels across an Ethernet network. The unit supports more than 90 I/O modules in total.Two Ethernet switch ports (2 x RJ-45, 10/100 Base-TX) allow units to be daisy-chained, reducing cabling and panel space. The RS-232 console port supports Modbus RTU/ASCII slave operation, and the unit can also act as a Modbus TCP to RTU gateway.Designed for harsh, noisy environments, it has an isolated 10 ~ 30 VDC power input with redundant inputs and an operating range of -25 ~ +75 °C. Auto configuration, LED fault indication, CPU and software watchdogs, and programmable power-on and safe values simplify commissioning and maintenance.ApplicationsIndustrial monitoring and controlEnvironmental monitoringHarsh, noisy industrial environments

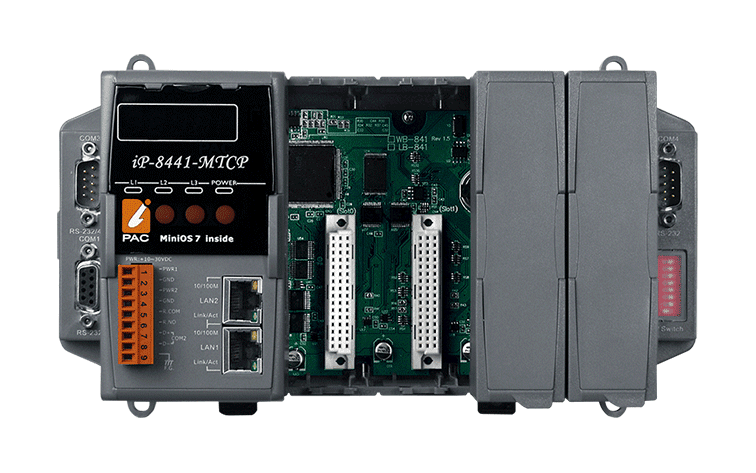

The iP-8441-MTCP extends I-8K and I-87K series I/O modules over Ethernet, so analog, digital, counter and frequency channels can be read and controlled from a Modbus TCP host. Each unit provides four slots, and the range of supported modules covers more than 50 types, which makes it a practical choice when a distributed I/O layout must be built around an existing module set.The unit is aimed at electrically noisy, harsh sites. It accepts a wide 10 ~ 30 VDC supply with isolated power input, carries a redundant power input option and operates between -25 and +75 °C. Installation and maintenance are simplified by auto configuration, LED fault indication, a dual watchdog, programmable power-on values and programmable safe values.For integration, the Modbus TCP slave function is complemented by Modbus TCP to RTU gateway capability and Modbus RTU/ASCII slave operation on the serial ports. An SDK is available for Windows XP, Windows CE 5.0/6.0, Linux and MiniOS7, and the built-in MiniOS7 platform can be customised in C for 16-bit executables.ApplicationsIndustrial monitoring and controlRemote I/O expansion for SCADA, HMI and PLC systemsHarsh or electrically noisy industrial environmentsEnvironmental monitoring over Modbus

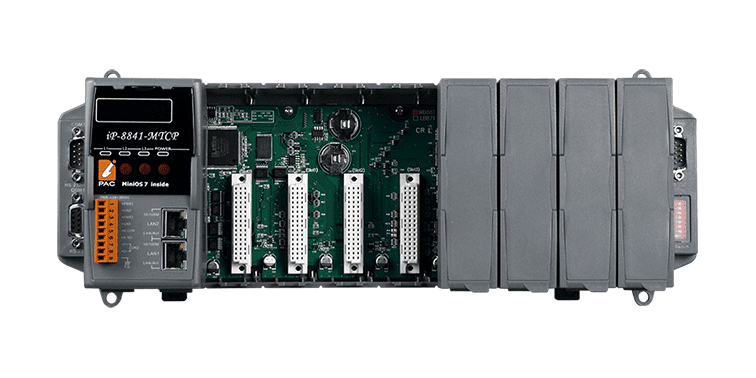

The iP-8841-MTCP extends I-8K and I-87K series I/O modules over Ethernet, giving Modbus TCP masters remote access to analogue input and output, digital input and output, counter and frequency modules. More than 50 compatible I/O modules are supported across its eight slots, which makes it a practical choice for remote monitoring and control in industrial plants.It suits electrically noisy, temperature-variable cabinets. The power input accepts 10 ~ 30 VDC and is isolated, and the unit operates from -25 ~ +75 °C. Auto configuration, LED fault indication, dual watchdog protection, programmable power-on values and safe values help simplify installation, maintenance and fault handling.For integration, the unit supports Modbus TCP and Modbus RTU/ASCII, and includes a Modbus TCP to RTU gateway function. The MiniOS7 platform can be programmed in C, with SDK support for Windows XP, Windows CE 5.0/6.0 and Linux, so engineers can adapt the preinstalled Modbus firmware to their own applications.ApplicationsRemote industrial monitoring and controlSCADA, HMI and PLC systems using Modbus driversEnvironmental monitoringDistributed I/O in harsh or electrically noisy installations

The PET-7017-10 is a PoE-powered Ethernet analog input module for engineers who need voltage or current measurement on a networked I/O node. Its inputs can be set as 10 differential or 20 single-ended channels in software, and each channel can be given its own range, so one module can serve mixed sensor types on the same network.Each channel offers a choice of voltage ranges from ±150 mV to ±10 V and current ranges of ±20 mA, 0 ~ 20 mA and 4 ~ 20 mA, selected with jumpers. Resolution is 16-bit, and the module has two sampling modes: normal mode at 10 Hz total and fast mode at 50 Hz total. Open wire detection is available for 4 ~ 20 mA inputs, and differential channels are rated for 240 Vrms overvoltage protection.Configuration and monitoring are handled through a built-in web server with Web HMI, and the module supports Modbus TCP and Modbus UDP. Access is controlled by ID, password and IP filter. The unit is powered either from PoE (IEEE 802.3af, Class 1) or from a +12 ~ +48 VDC terminal block, and it mounts on a DIN rail.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

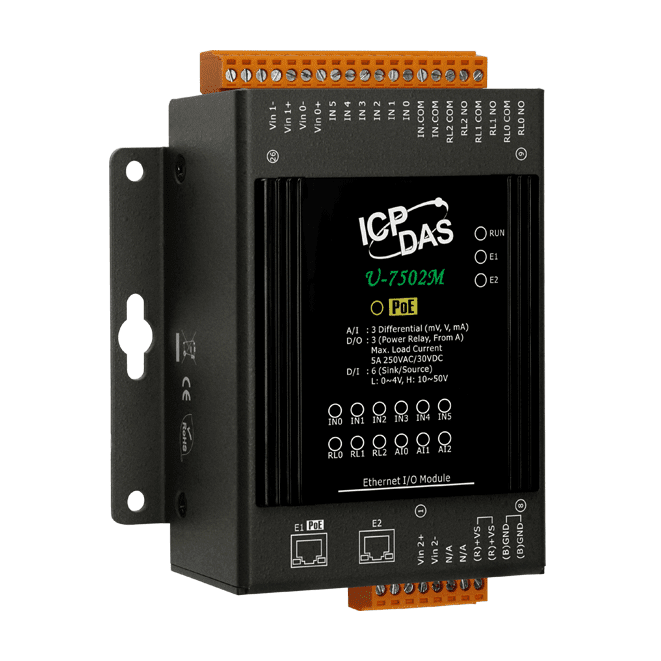

U-7502M CR is a remote I/O unit that brings analogue, digital and relay channels onto an Ethernet network and makes them available to OPC UA, MQTT and RESTful API clients. It suits engineers who need to feed field I/O values into a cloud platform or a higher-level control system without adding a separate gateway.The module can run OPC UA Server or Client, MQTT Client and RESTful API communication at the same time, so the networking approach can be chosen to suit each installation. Local logic is handled by IF, THEN, ELSE rules that can act on physical and virtual points, and a schedule function executes rules at set times. Analogue inputs can be scaled into more readable engineering values, and I/O trigger messages can be written to CSV files or a line for device tracking.Power can be taken from a PoE network under IEEE 802.3af Class 3 or from a +12 to +48 VDC terminal block. A dual-port Ethernet switch supports daisy-chain topology to reduce cabling and switch requirements. Configuration, control and monitoring are done through the built-in web interface in a standard browser, with no additional app required.ApplicationsTransmitting I/O values to cloud systems for display, analysis or strategyFeeding field I/O data into a control system over OPC UA or MQTTRemote monitoring and control of I/O via a web browser or RESTful APILocal rule-based automation of I/O and virtual points on a scheduleInstallations where PoE power and daisy-chained Ethernet reduce cabling

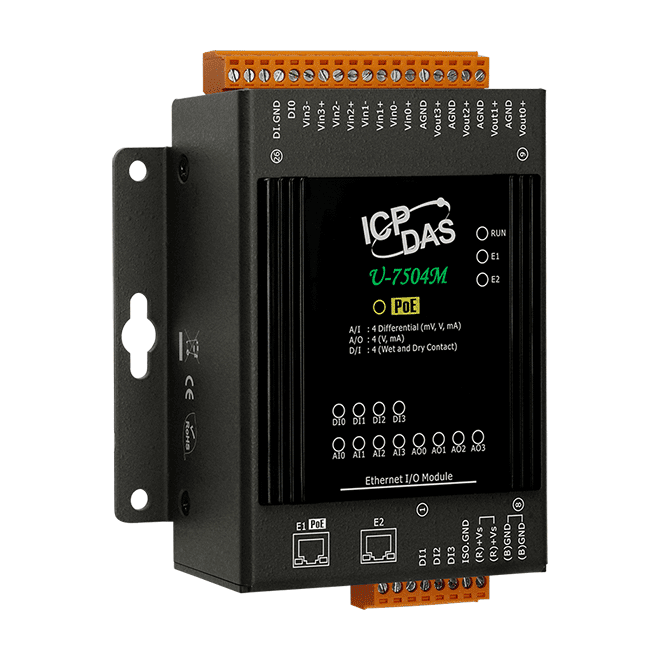

U-7504M CR is a networked I/O module for engineers who need to bring local digital and analogue signals onto OPC UA, MQTT or RESTful API systems without a separate gateway. It combines 4 digital inputs, 4 analogue inputs and 4 analogue outputs in one unit, with the communication and rule processing handled on the module itself.The built-in two-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cable runs and the number of switch ports needed. The module can be powered from an IEEE 802.3af (Class 3) PoE network or from a +12 ~ +48 VDC terminal block, which helps simplify wiring and power distribution in cabinets.Configuration, control and I/O monitoring are carried out through the built-in web user interface in a browser. Scaling converts raw analogue readings into more meaningful values, while IF, THEN, ELSE rules and scheduled actions allow logic to run on the module for I/O and virtual points.ApplicationsSending I/O values to cloud systems for display, analysis or control strategyFeeding field control systems with local digital and analogue I/O dataDistributed I/O in cabinets where PoE reduces wiring and power sockets

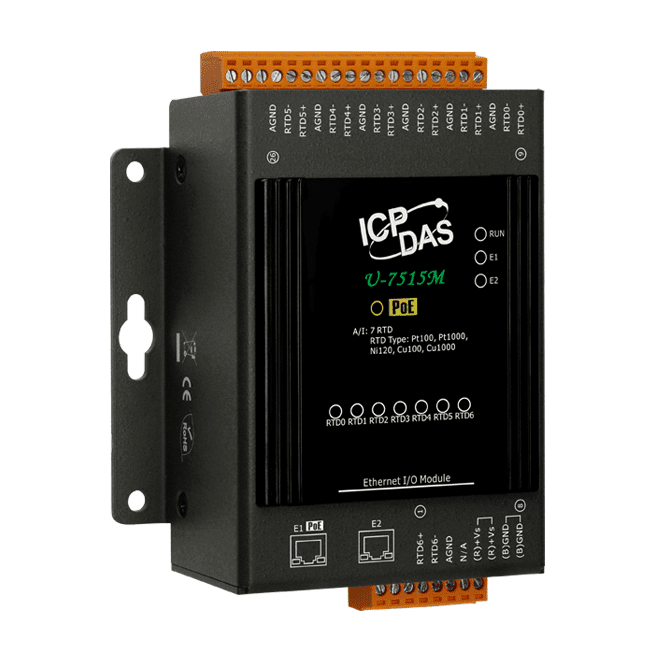

The U-7515M CR is an OPC UA I/O module that reads seven differential RTD inputs and passes the values to OPC UA, MQTT or RESTful API clients. It suits engineers who want temperature measurement to feed a cloud platform or a field control system without a separate gateway.A built-in dual-port Ethernet switch allows the modules to be daisy-chained, reducing cabling and switch count. The unit accepts power from a PoE-enabled network under IEEE 802.3af (Class 3), or from a +12 ~ +48 VDC terminal block, which simplifies installation where power sockets are limited.Configuration, control and I/O monitoring are handled through the built-in web user interface in a standard browser, with no additional software required. Scaling, rule logic (IF, THEN, ELSE), scheduled actions and I/O trigger messages add local processing to the data stream.ApplicationsTemperature monitoring with RTD sensors feeding cloud or field control systemsRemote data acquisition for analysis and control strategyDistributed I/O on Ethernet with daisy-chained wiringPoE-powered sensing points where power and data share one cable

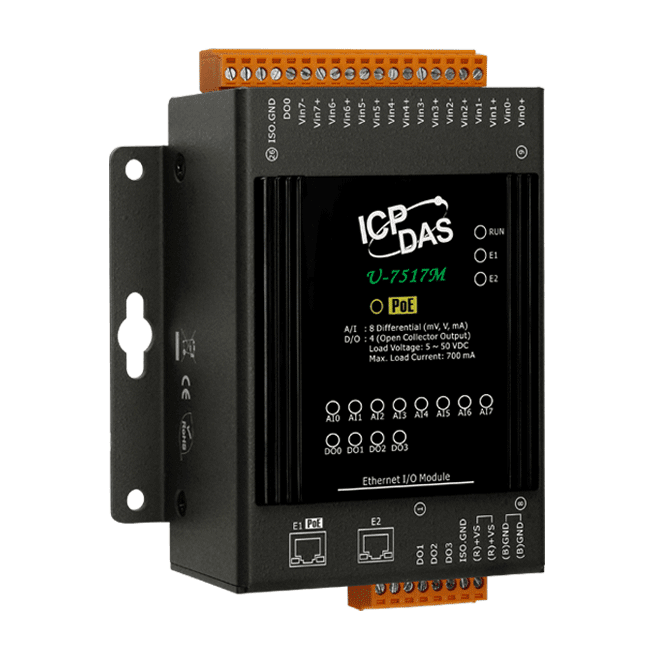

The U-7517M CR is an OPC UA I/O module that combines eight analogue inputs and four digital outputs with a built-in dual-port Ethernet switch. The switch allows devices to be daisy-chained, which reduces cabling and the number of external switches needed in a network.Powering is handled through Power over Ethernet to IEEE 802.3af, Class 3, so the module can be supplied from a PoE network or from a +12 ~ +48 VDC terminal block. Analogue inputs support voltage and current ranges selectable by jumper, with scaling to convert raw signals into more readable values. Data can be published over OPC UA Server/Client, MQTT Client and RESTful API, which can run simultaneously.On-board logic rules (IF, THEN, ELSE), scheduled actions and I/O trigger messages help with local automation and device tracking. Configuration, control and monitoring are done through the built-in web interface, with no additional app required.Suitable for DIN-rail installation in control cabinetsApplicationsTransmitting I/O values to cloud or field control systems for display, analysis or control strategyDistributed analogue sensing and digital switching over EthernetOPC UA-based data acquisition and integration

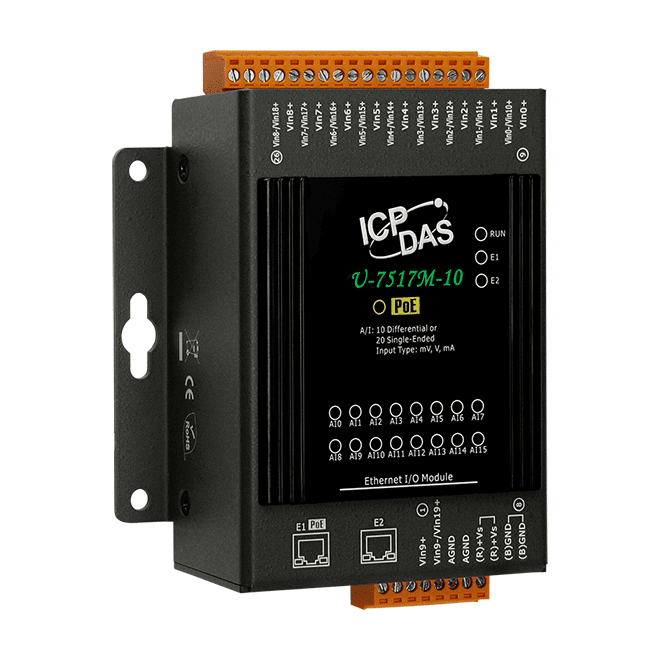

U-7517M-10 CR is an OPC UA I/O module for collecting voltage and current signals and passing them to cloud platforms or field control systems. Its 16-bit analog inputs can be set in software to 10 differential or 20 single-ended channels, with ranges selected by jumper from ±150 mV up to 4 to 20 mA.The built-in dual-port switch lets modules be daisy-chained, which reduces cabling and the number of switch ports needed. Power can be taken from a PoE network under IEEE 802.3af (Class 3), or from a +12 ~ +48 VDC terminal block, so one cable can carry both data and power.Communication runs over OPC UA Server/Client, MQTT Client and RESTful API, and these can operate at the same time. Scaling, IF/THEN/ELSE rules, scheduled actions and I/O trigger messages are configured through the built-in web interface, with no additional app needed.ApplicationsSending analogue measurements to cloud systems for display, analysis or strategyFeeding analogue readings into field control systems over OPC UA or MQTTLocal rule-based control of I/O and virtual pointsScheduled execution of control rules at set times

OPC UA I/O Module with 10-channels Thermocouple Inputs, 3-channels DO and 2-port Ethernet Switch. Includes DB-1820 Daughter Board.

OPC UA I/O Module with 10-channels Thermocouple Inputs, 3-channels DO and 2-port Ethernet Switch. Includes DN-1822 Daughter Board and a 1.8 m Cable.

OPC UA I/O Module with 10-channels AI, 3-channels DO, and 2-port Ethernet Switch. Includes DB-1820 Daughter Board.

OPC UA I/O Module with 10-channels AI, 3-channels DO, and 2-port Ethernet Switch. Includes DN-1822 Daughter Board and a 1.8 m Cable.

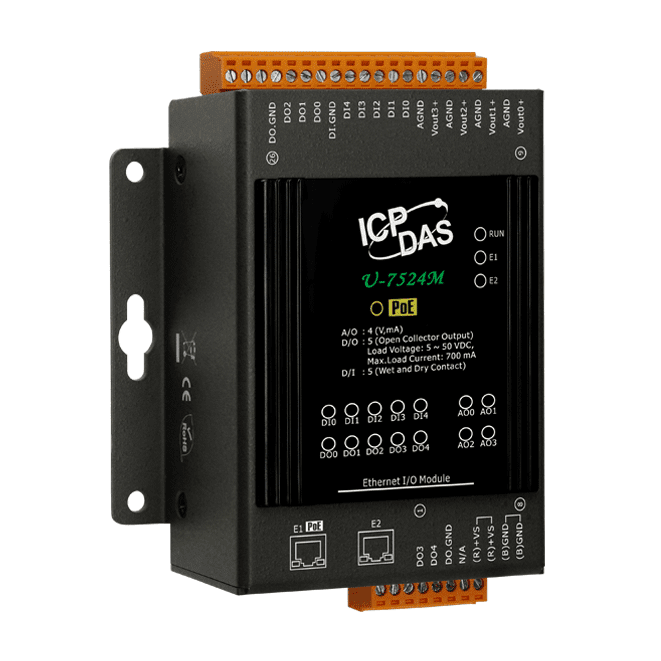

U-7524M is a networked I/O module that brings 4 analogue output, 5 digital input and 5 digital output channels onto an Ethernet network, with OPC UA Server and Client, MQTT Client and RESTful API protocols available. The three protocols can run at the same time, so values can be sent to a cloud platform for display and analysis while a field control system reads the same I/O.The built-in dual-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cabling and the number of switch ports needed. The unit is powered either from an IEEE 802.3af Class 3 PoE network or from a +12 ~ +48 VDC terminal block. Configuration, control and I/O status monitoring are handled through the built-in web user interface, with no additional app required.On-board logic lets engineers set IF, THEN, ELSE rules for I/O and virtual points, and schedule rules to run at specific times. Scaling converts analogue signals into more readable values. Trigger messages can be written to a CSV file or a line for device tracking, and the module is supported by IoTstar cloud management software.ApplicationsTransmitting I/O values to cloud systems for display, analysis or strategyFeeding I/O data to field control systems over OPC UA, MQTT or RESTful APIRemote monitoring and control of analogue outputs and digital I/O on Ethernet networksDaisy-chained Ethernet I/O installations where reduced cabling is required

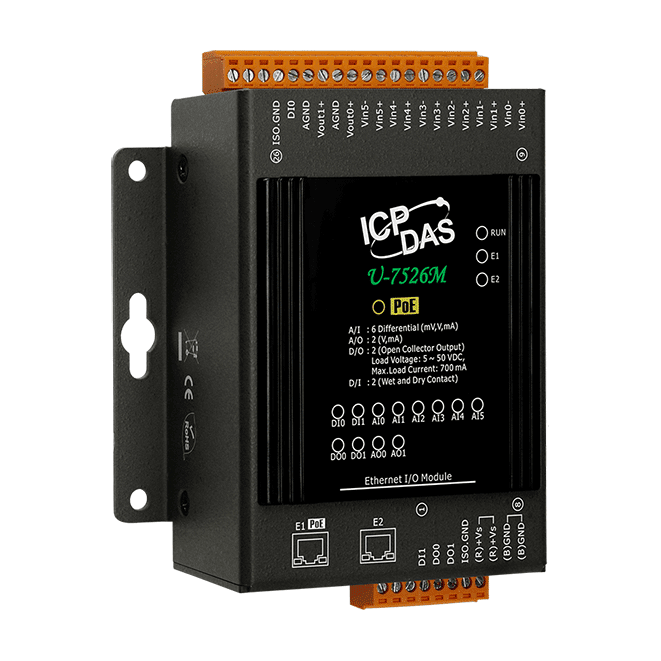

The U-7526M is an OPC UA I/O module that combines 2 digital inputs, 2 digital outputs, 6 differential analog inputs and 2 analog outputs in a single DIN-rail unit. It communicates through OPC UA Server or Client, MQTT Client and RESTful API, and can run all three at the same time, so engineers can choose the networking mode that suits each installation.A built-in two-port 10/100 Base-TX switch allows modules to be daisy-chained, reducing cabling and the number of switches required. The unit also accepts IEEE 802.3af (Class 3) Power over Ethernet, or can be powered from a +12 ~ +48 VDC terminal block. Analog inputs support scaling, so raw signals can be presented as more readable values, and rule logic (IF, THEN, ELSE) and scheduled actions can be set for I/O and virtual points.Configuration, control and monitoring are handled through the built-in web user interface, with no additional application required. I/O values can be sent to cloud or field control systems, and I/O trigger messages can be logged to a CSV file or line for device tracking. This is the ordering code U-7526M CR.ApplicationsTransmitting built-in I/O values to cloud systems for display, analysis or control strategySupplying I/O values to field control systems over OPC UA, MQTT or RESTful APILocal logic and scheduled control of digital and analog I/ODevice tracking through I/O trigger messages logged to CSV file or line

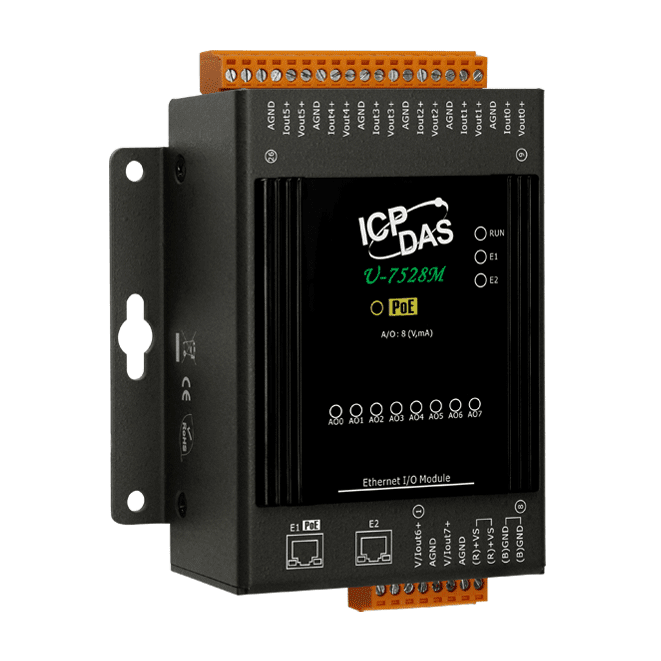

U-7528M CR is an OPC UA I/O module that gives control and monitoring systems eight analogue output channels over Ethernet. Output values can be published through OPC UA Server or Client, MQTT Client or RESTful API, and these can run at the same time. Each channel can be set to a voltage or current range by jumper, so the module suits a range of field devices.A built-in dual-port 10/100 Base-TX switch lets units be daisy-chained, which reduces cabling and the number of external switches needed. The module accepts power from an IEEE 802.3af (Class 3) PoE network or from a +12 ~ +48 VDC terminal block, which helps simplify installation where power sockets are limited.Configuration, control and I/O status monitoring are handled through a built-in web user interface, with no additional app required. Scaling converts analogue values into more readable units, while IF, THEN, ELSE rules and scheduled actions allow logic to run on I/O and virtual points. IoTstar cloud management software is supported.ApplicationsTransmitting analogue output values to cloud systemsFeeding field control systems for display, analysis or control strategyDistributed I/O on daisy-chained Ethernet networks

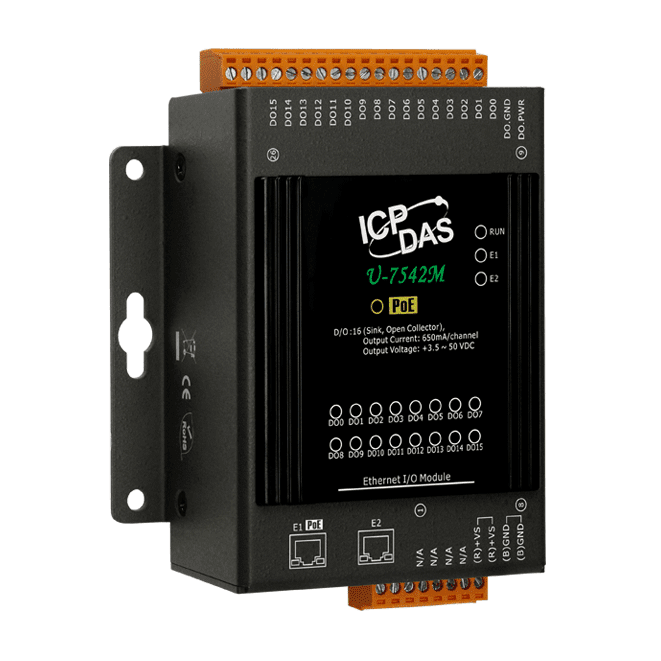

U-7542M is an Ethernet I/O module that drives 16 isolated open-collector digital outputs and passes data to cloud or field control systems over OPC UA, MQTT or RESTful API. It suits engineers who need networked switching of loads without a separate PLC or gateway layer.A built-in dual-port 10/100 Base-TX switch allows modules to be daisy-chained along a cable run, reducing the number of switches and cable drops required. The unit accepts IEEE 802.3af (Class 3) Power over Ethernet or a +12 ~ +48 VDC terminal block supply, and its Web UI lets you configure, control and monitor channels and connections from a standard browser.Local logic is handled by IF, THEN, ELSE rules, which can act on outputs and virtual points, while the schedule function runs rules at set times. Configuration covers programmable power-on and safe values, and a 3750 VDC I/O isolation rating.16 isolated open-collector digital outputs, sink type, 650 mA per channel at 25 °COPC UA Server/Client, MQTT Client and RESTful API over HTTP or HTTPS, runnable simultaneouslyDual-port 10/100 Base-TX switch for daisy-chain topologyIEEE 802.3af (Class 3) PoE or +12 ~ +48 VDC terminal block powerIF, THEN, ELSE rule logic and schedule-based rule executionBuilt-in web server for configuration, control and monitoringProgrammable power-on and safe values with short-circuit protectionApplicationsTransmitting digital output status to cloud or field control systems for display, analysis or control strategyDevice tracking through I/O trigger messages written to CSV file or LineLocal rule-based and scheduled switching of digital outputs over Ethernet
