The DN-8237UB CR is a 2-axis daughter board that gives ICP DAS 2-axis motion controllers, such as the I-8092F and PISO-PS200, a practical screw-terminal interface for pulse-command stepper or servo drives. It is designed for the universal snap-on wiring configuration, so field signals can be connected without modifying the controller.Each axis has its own signal group, covering pulse output command lines, encoder feedback, home, near-home and limit-switch inputs, and a servo-enable output. Onboard high-speed photo-coupling isolation helps protect the controller, and status LEDs for power, home and limit switches make commissioning and fault finding easier. Terminal connectors can be swapped to reassign each axis definition without rewiring.The board includes an onboard power module that accepts 20 ~ 26 VDC and supplies the voltages needed by the on-board circuitry. It suits general purpose motor drivers as well as Mitsubishi and Panasonic motor amplifiers, and offers an FRnet terminal for high-speed serial I/O expansion where the controller supports FRnet.ApplicationsTwo-axis stepper motor motion control with pulse command driversTwo-axis servo motor motion control with pulse command driversConnecting general purpose, Mitsubishi and Panasonic motor amplifiers to ICP DAS 2-axis motion controllersMulti-axis machine positioning with home and limit-switch sensing

The GST25A24-DA1-DIN CR converts a universal 85~264 VAC input into a 24 VDC output rated at 25 W and 1.04 A. It is designed for DIN-rail mounting, so it can be fitted directly into a control cabinet alongside other automation equipment.Short circuit, overload and over voltage protection are built in, with the over voltage function implemented as a Zener diode clamp. The fully enclosed plastic case and an operating range of -30 °C to +70 °C allow the unit to be used across a wide ambient temperature range.The unit carries CE, UKCA, FCC, RoHS and WEEE markings. The specification table lists the safety, EMC and input and output details for the ordering code GST25A24-DA1-DIN CR.ApplicationsSupplying 24 VDC to DIN-rail mounted automation and control equipment in cabinets

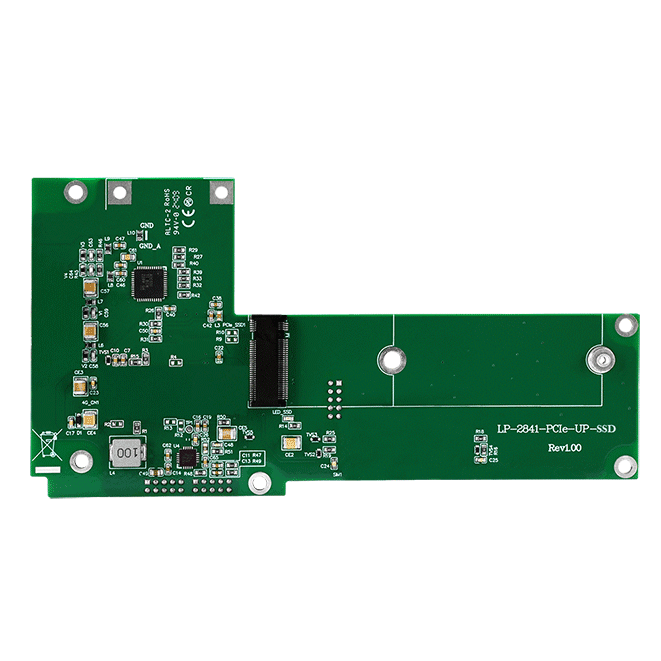

The LP-2841-PCIe-UP-SSD is a storage expansion board for the BRK-2841M series. It gives the BRK-2841M a way to take an M.2-2280 SSD alongside the hardware it already has, so storage can be increased without changing the base unit.The board provides a single M.2-2280 SSD slot on a PCIe Gen3 x1 interface. It is intended specifically for the BRK-2841M series, so check compatibility with your controller before ordering.Ordering code LP-2841-PCIe-UP-SSD CR. The board is CE, UKCA, RoHS and WEEE certified according to the source data.ApplicationsStorage expansion for BRK-2841M series systems
