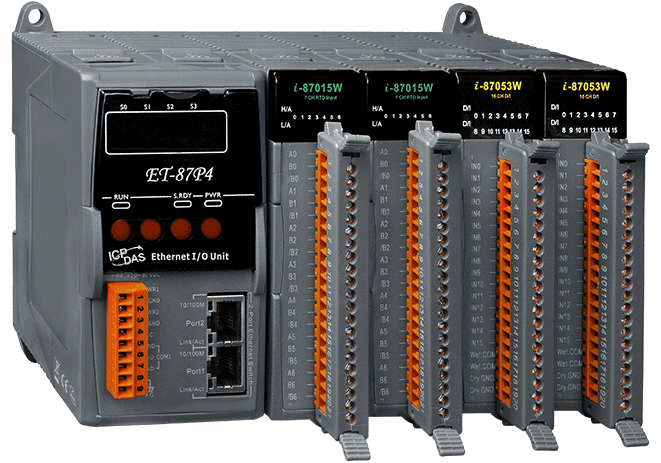

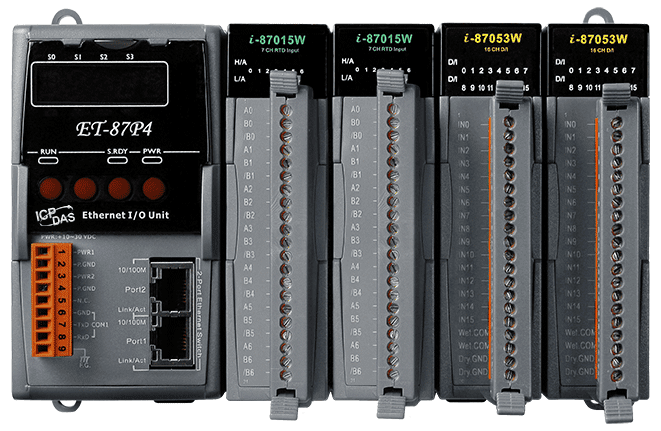

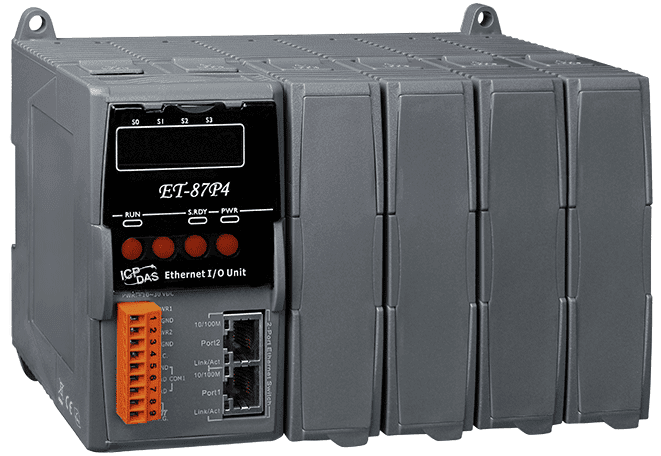

ET-87P4 4-Slot Intelligent Ethernet I/O Expansion Unit, DCON Protocol
Ethernet expansion unit with four slots for I-87K series I/O modules, using DCON over two daisy-chainable 10/100 Base-TX ports for remote monitoring and control.
- Four slots for I-87K series I/O modules, with support for more than 30 module types
- Two 10/100 Base-TX RJ-45 ports for daisy-chain topology and simplified cabling
- Hot swap allowed, with automatic configuration to ease module replacement
- LED indicators for fault detection and push buttons for IP address configuration
- DCON (ASCII format) protocol over Ethernet, plus Modbus RTU/ASCII slave on the COM port
- Isolated +10 ~ 30 VDC power input with redundant power inputs, 6.0 W consumption
€462.00 per piece
| 1–9 pcs | €462.00 | |
|---|---|---|
| 10–30 pcs | €448.00 | −3 % |
| 31+ pcs | €439.00 | −5 % |
Product information "ET-87P4 4-Slot Intelligent Ethernet I/O Expansion Unit, DCON Protocol"
The ET-87P4 extends I-87K series I/O modules over Ethernet, giving engineers remote analogue, digital, counter and frequency I/O without running individual field wiring back to a controller. Four slots accept I-87K modules, and two RJ-45 switch ports allow units to be chained in series with each other or with other Ethernet devices, reducing cabling and installation space.
Designed for harsh and electrically noisy sites, the unit has an isolated +10 ~ 30 VDC power input with redundant power inputs, and an operating range of -25 ~ +75 °C. Maintenance is simplified by hot swapping, automatic configuration, LED fault indication, push buttons for setting the IP address and a 4-digit 7-segment display. Dual watchdog, programmable power-on and safe values support continuous and safe operation.
Software integration is supported through several SDKs and demos, including DLL, LabVIEW driver, InduSoft driver, Linux driver and OPC server. The unit also provides a RS-232 console port and Modbus RTU/ASCII slave protocol on its COM port.
Applications
- Remote industrial monitoring and control
- Distributed I/O expansion over Ethernet
- Harsh or electrically noisy industrial environments
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | Ethernet |
| Protocol: | DCON |
| Ports: | 2 |
| Isolation: | 1 kV |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 4 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 4 |
| HMI | |
| Push Button | 4 |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX |
| Protocol | DCON (ASCII Format) |
| COM Ports | |
| Ports | 1 x RS-232 (Console) |
| Protocol | Modbus RTU/ASCII Slave |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 6.0 W |
| Mechanical | |
| Dimensions (mm) | 188 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
