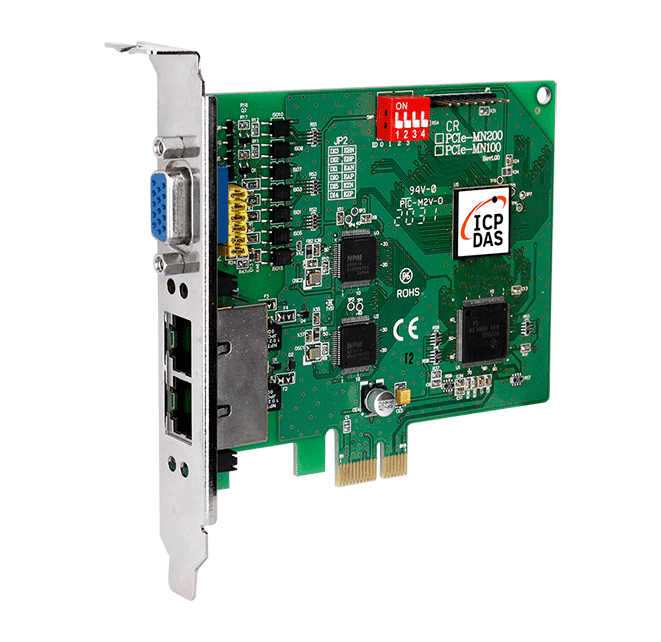

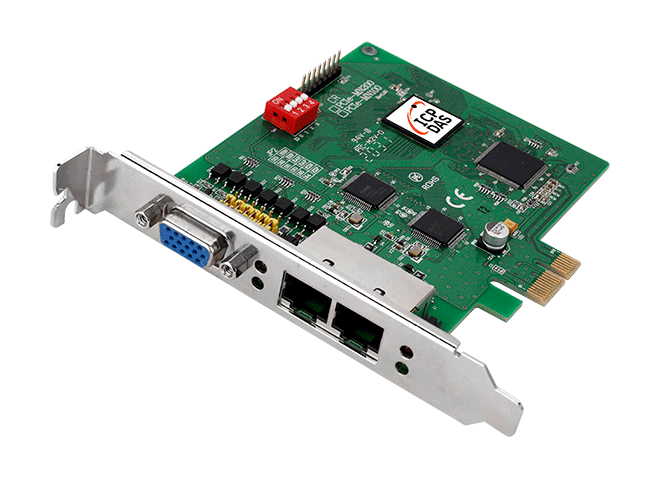

PCIe-MN200 PCI Express Motionnet Motion Control Module, Dual-line, RJ-45
PCI Express x1 Motionnet master card with two RJ-45 lines for distributed motion control of up to 128 axes, plus 8 input and 4 output parallel I/O channels.
- Two Motionnet RS-485 lines on RJ-45 connectors, with software-selectable transfer speeds of 2.5, 5, 10 and 20 Mbps
- Distributed motion control of up to 128 axes and distributed I/O of up to 4096 points
- 8 parallel digital inputs (12-24 V, NPN or PNP) and 4 parallel digital outputs, both isolated to 3000 Vrms
- Optional quadrature encoder input for linear scale or manual pulse generator use
- Interrupts on input change of state and on communication error
- Cable length up to 100 m at 20 Mbps with 32 slave modules, or up to 50 m at 20 Mbps with 64 slave modules
€308.00 per piece
| 1–9 pcs | €308.00 | |
|---|---|---|
| 10–30 pcs | €299.00 | −3 % |
| 31+ pcs | €293.00 | −5 % |
Product information "PCIe-MN200 PCI Express Motionnet Motion Control Module, Dual-line, RJ-45"
PCIe-MN200 is a PCI Express x1 motion control card for engineers who need to run distributed motion and I/O over Motionnet from a PC. Two independent Motionnet lines on RJ-45 connectors let one card drive a network of slave modules for coordinated axis control and remote signal handling in machine automation.
Beyond the serial network, the card provides parallel I/O on its own connector, with 8 digital inputs and 4 digital outputs for direct, low-latency switching. The digital inputs accept 12-24 V signals in either NPN or PNP wiring, and both input and output channels are isolated to 3000 Vrms. An optional quadrature encoder input adds support for a linear scale or manual pulse generator.
Software support covers Windows 11, Windows 7 and 10 in 32 and 64-bit editions, and Windows XP and 2000 in 32-bit. Development is possible with VC, VB and BCB, and the EzGo Utility is supplied for configuration.
Applications
- Machine automation
- Distributed motion control of multi-axis equipment
- Positioning, zero return and multi-axis interpolation
- Distributed remote I/O for PC-based control systems
| Product type: | Motion control module |
|---|---|
| Interface: | PCI Express x1 |
| Protocol: | Motionnet |
| Digital inputs: | 8 |
| Digital outputs: | 4 |
| Ports: | 2 |
| Isolation: | 3000 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| OS Support | Windows 11 64-bit Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| Development | VC/VB/BCB |
| Utility | EzGo Utility |
| Hardware | |
| Connector | HD D-Sub 15-pin x 1 |
| LED Indicators | |
| Status | Connection (green) Communication Error (red) |
| General | |
| Interrupts | Input Change of State, Communication Error |
| Digital Input | |
| Channels | 8 |
| Type | 12-24 V, NPN or PNP |
| Isolation | 3000 Vrms |
| Input Impedance | 4.7 KΩ |
| Digital Output | |
| Channels | 4 |
| Type | NPN or PNP |
| Isolation | 3000 Vrms |
| PC Bus | |
| Type | PCI Express x1 |
| Motionnet | |
| Communication Connectors | RJ-45 x 2 |
| Transfer Speed | 2.5, 5, 10, 20 Mbps (Software controlled) |
| Length | Max. 100 M (20 Mbps; 32 Slave modules) Max. 50 M (20 Mbps; 64 Slave modules) Max. 100 M (10 Mbps; 64 Slave modules) |
| Protocol | Motionnet (Half-duplex RS-485) |
| Power | |
| Consumption | +3.3 V @ 600 mA |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
