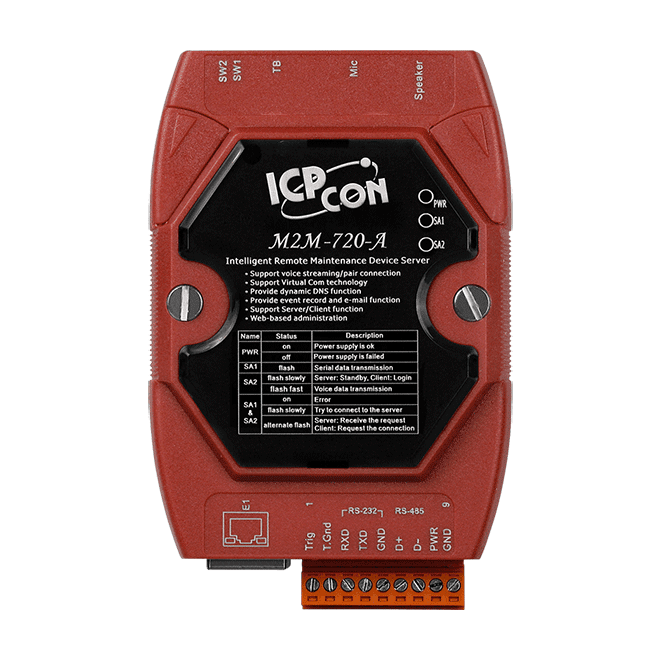

M2M-720-A Remote Maintenance Device Server, RS-232/RS-485 to Ethernet
Remote maintenance device server that bridges one RS-232 and one RS-485 port to Ethernet, with voice streaming, Virtual COM and web-based administration for DIN-rail or wall mounting.
- Pair connection of one RS-232 and one RS-485 port over Ethernet TCP/IP, operated like a local COM port
- Voice streaming alongside serial access, with voice broadcast in server mode
- Server and client functions, with server mode managing up to 64 clients
- Virtual COM technology to add COM port capacity on a PC
- Static IP, DHCP and PPPoE support, plus dynamic DNS without a fixed real IP
- Web-based administration, built-in web and FTP servers, event record and e-mail function
€443.00 per piece
| 1–9 pcs | €443.00 | |
|---|---|---|
| 10–30 pcs | €430.00 | −3 % |
| 31+ pcs | €421.00 | −5 % |
Product information "M2M-720-A Remote Maintenance Device Server, RS-232/RS-485 to Ethernet"
M2M-720-A is a remote maintenance device server for engineers who need to reach serial equipment over an IP network. Its pair connection function carries an RS-232 or RS-485 port across Ethernet TCP/IP, so a remote operator works with the attached device as if it were on a local COM port.
Voice streaming runs alongside the serial session, letting an operator speak with someone at the equipment while adjusting or monitoring it. In server mode the unit can also broadcast voice and manage up to 64 clients, which include other M-4132 and M2M-710D devices. Virtual COM technology adds COM port capacity on a PC, which helps where real serial ports are scarce.
The unit runs on a Linux platform with a built-in web server, FTP server, real-time clock, event recording and e-mail alerts. It supports static IP, DHCP and PPPoE addressing, along with dynamic DNS for sites without a fixed public IP. The fanless, robust housing is rated for an operating temperature of -20 ~ +60 ℃.
Applications
- Remote maintenance of equipment sold in various locations
- Remote maintenance and monitoring using Virtual COM technology (not supported in Wi-Fi mode)
- Upgrading existing serial applications to network applications
| Product type: | Remote maintenance device server |
|---|---|
| Interface: | 10/100Base-TX Ethernet, RS-232, RS-485 |
| Protocol: | TCP/IP |
| Ports: | 1 x RS-232, 1 x RS-485, 1 x Ethernet |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -20 ~ +60 ℃ |
| Mounting: | DIN-rail, Wall |
Specifications
| CPU Module | |
|---|---|
| CPU | Cortex A8 processor |
| Flash | 512 MB |
| Real Time Clock | Yes |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller RJ-45 with LED indicator |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 (Self-turner inside) |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Input Range | +10 ~ +30 VDC |
| Consumption | 4.6 W |
| Mechanical | |
| Dimensions (mm) | 72 x 110 x 33 (W x L x H) |
| Installation | Installation DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -20 ~ +60 ℃ |
| Storage Temperature | -25 ~ +85 ℃ |
Specifications as published by the manufacturer. Subject to change.
