M2M-711D Remote Maintenance Terminal Unit, Wi-Fi, RS-232 and RS-485
Remote maintenance terminal unit that bridges RS-232 and RS-485 serial devices to Ethernet or IEEE 802.11 b/g Wi-Fi, with VxServer virtual COM and pair-connection modes.
- Serial-to-network bridge with one RS-232 and one RS-485 port, RS-485 with built-in self-tuner ASIC chip
- Ethernet (10/100Base-TX) and IEEE 802.11 b/g Wi-Fi connectivity with WEP, WPA-TKIP and WPA2-AES encryption options
- VxServer virtual COM mode and TCP pair-connection mode, with server and client communication modes
- Web-based administration, dynamic DNS, and static IP or DHCP addressing (DHCP not available in Ad Hoc mode)
- Built-in MiniOS7 operating system and 5-digit 7-segment LED display with system and Wi-Fi indicators
- Serial baud rates from 1200 to 115200 bps with none, even or odd parity
€314.00 per piece
| 1–9 pcs | €314.00 | |
|---|---|---|
| 10–30 pcs | €304.00 | −3 % |
| 31+ pcs | €298.00 | −5 % |
Product information "M2M-711D Remote Maintenance Terminal Unit, Wi-Fi, RS-232 and RS-485"
M2M-711D is a serial-to-network device for remote maintenance and for upgrading existing serial installations to network connectivity. It gives maintenance engineers access to serial devices and PLCs over Ethernet or Wi-Fi, so faults can be diagnosed remotely with much of the detail of an on-site visit.
The unit offers two networking approaches. In VxServer mode, the companion virtual COM middleware on a Windows host maps the device's serial port to a virtual COM port, so existing RS-232 client programs can reach remote equipment without being rewritten. In pair-connection mode, two serial devices are linked by a TCP data tunnel, with the M2M-711D operating as server or client.

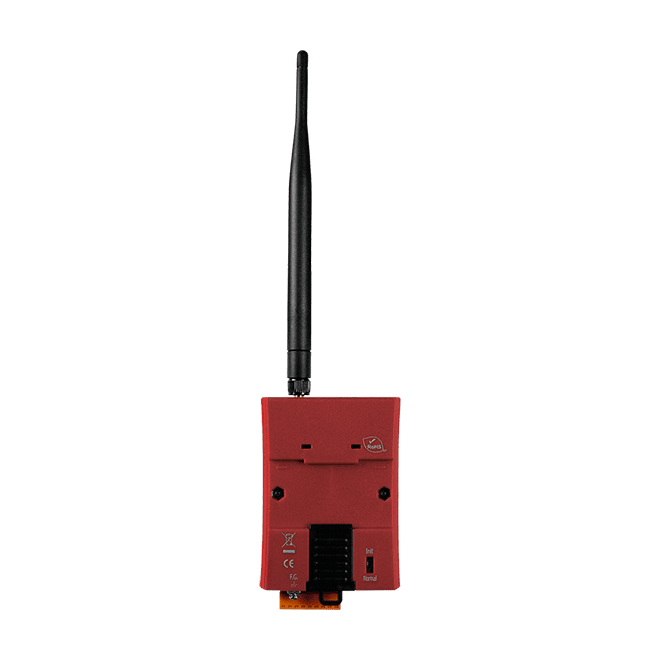

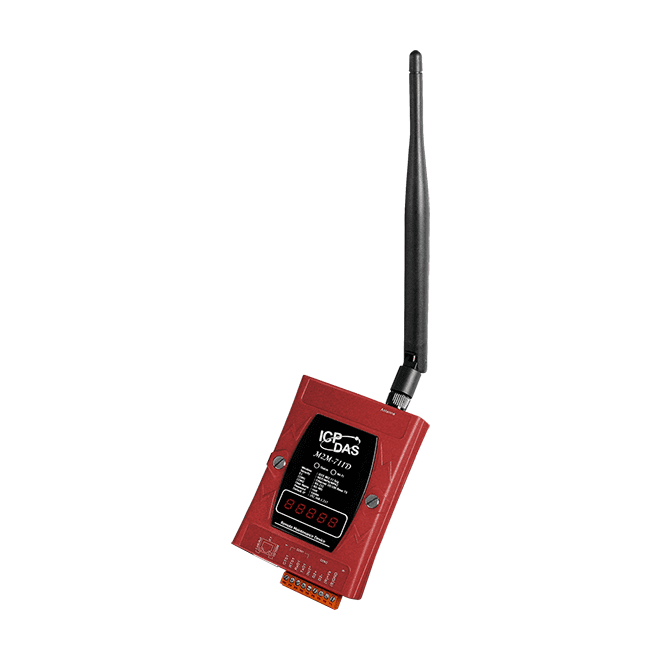

The ordering code M2M-711D CR is the RoHS-compliant variant listed in the source as Asia only.
Applications
- Upgrading existing serial applications to network communication
- Remote maintenance and diagnostics of equipment and PLCs
- Virtual COM access to remote serial devices from Windows RS-232 client programs (not supported in Wi-Fi mode)
| Product type: | Remote maintenance terminal unit |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, Wi-Fi |
| Protocol: | ARP, ICMP, IP, RARP, TCP, UDP |
| Ports: | 1 x RS-232, 1 x RS-485 |
| Operating temperature: | -25 ~ +75 °C |
Specifications
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Display | |
| Type | 5-Digit 7 Segment LED Display System LED Indicator Wi-Fi LED Indicator |
| RF | |
| Antenna | 2.4GHz - 2dBi Omni-Directional antenna |
| Channels | 1~13; AP mode supports auto control channel |
| RX Sensitivity | 87 dBm(IEEE 802.11b) / -72 dBm (IEEE 802.11g) |
| Transmission Power | 12 dBm(IEEE 802.11b) / 14 dBm(IEEE 802.11g) |
| Transmission Distance (LoS) | 100M |
| Ethernet | |
| Ports | 10/100Base-TX Ethernet Controller RJ-45 with LED indicator |
| COM Ports | |
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity | None, Even, Odd |
| Data Bit | 7, 8 |
| Stop Bit | 2 (data bit must be 7 bit) or 1 |
| Power | |
| Consumption | 3.6 W for M2M-711D |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x L x H) |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
Specifications as published by the manufacturer. Subject to change.
