IWS-4201-CE7-1500 10.4" InduSoft ViewPAC HMI, WinCE 7.0, 1500-Tag Runtime
10.4-inch touch-screen InduSoft ViewPAC with 1500-tag runtime, Cortex-A8 1 GHz CPU and Windows Embedded Compact 7, for panel-mounted HMI and control.
- InduSoft runtime with 1500-tag capacity running on Windows Embedded Compact 7

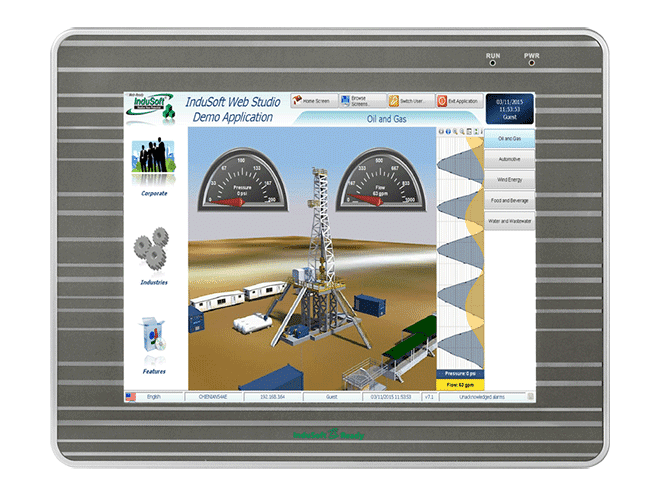

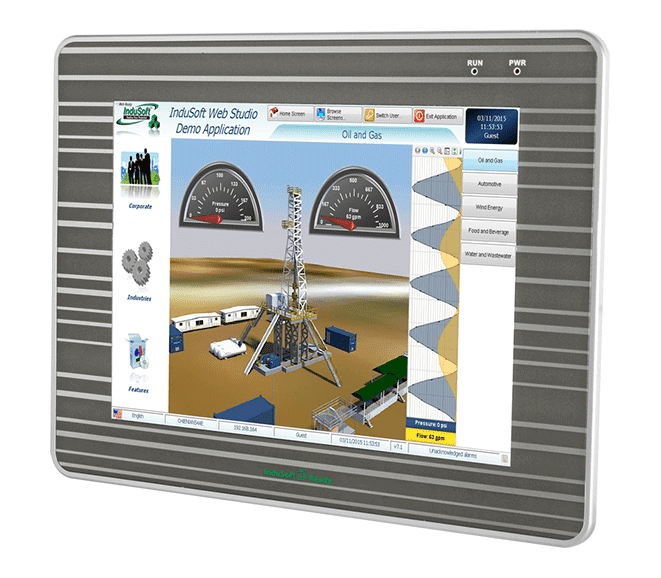

- 10.4-inch 800 x 600 TFT LCD with 5-wire resistive touch panel
- Cortex-A8 1 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash storage
- Gigabit Ethernet, two USB ports and three isolated 2500 VDC COM ports (RS-232/RS-485)
- Modbus, OPC and TCP/IP client/server support, with DCON driver for ICP DAS I/O modules
- Fanless design with NEMA 4/IP65 rated front panel
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
No longer available
Product information "IWS-4201-CE7-1500 10.4" InduSoft ViewPAC HMI, WinCE 7.0, 1500-Tag Runtime"
The IWS-4201-CE7-1500 CR is a panel-mount ViewPAC that combines an InduSoft runtime licensed for 1500 tags with a 10.4-inch resistive touch display. It suits engineers who need an operator interface and a programmable controller in one fanless unit, running on Windows Embedded Compact 7.

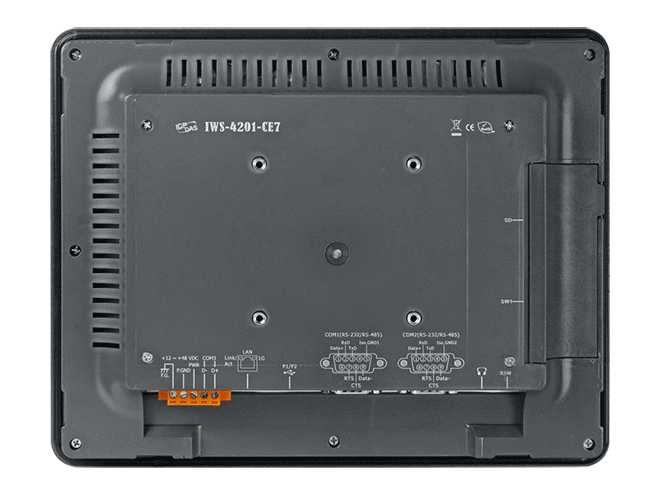

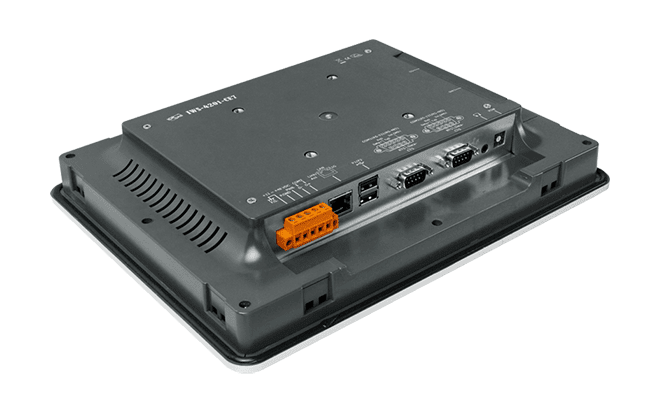

Connectivity covers one RJ-45 10/100/1000Base-TX Ethernet port, two USB ports and three isolated COM ports that can be configured as RS-232 or RS-485. The DCON driver supports ICP DAS I/O modules, and remote I/O expansion is available through Ethernet, RS-485, Wi-Fi and ZigBee I/O modules.
The front panel is rated NEMA 4/IP65 and the unit is specified for -10 ~ +60 °C operation. The 10.4-inch model is listed in the 1500-tag variant, so choose it when your application needs that tag capacity; the 10.4-inch 800 x 600 display is the one to specify for this ordering code.
Applications
- Panel-mounted HMI and operator interfaces
- Machine and process control
- Control systems requiring remote I/O expansion
| Product type: | ViewPAC HMI |
|---|---|
| Interface: | Ethernet, RS-232/RS-485, USB |
| Protocol: | Modbus, OPC |
| Ports: | 1 Ethernet, 3 COM, 2 USB |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | +12 VDC ~ +48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel mount, VESA 75 x 75 |
| Housing: | NEMA 4/IP65 front panel |
Specifications
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
| Size | 10.4” (4:3) |
| Backlight Life | 50000 |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 2 x Power and Run |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 13 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 291 x 229 x 54 |
| Panel Cut-out (mm) | 277 x 215 ± 1 |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
