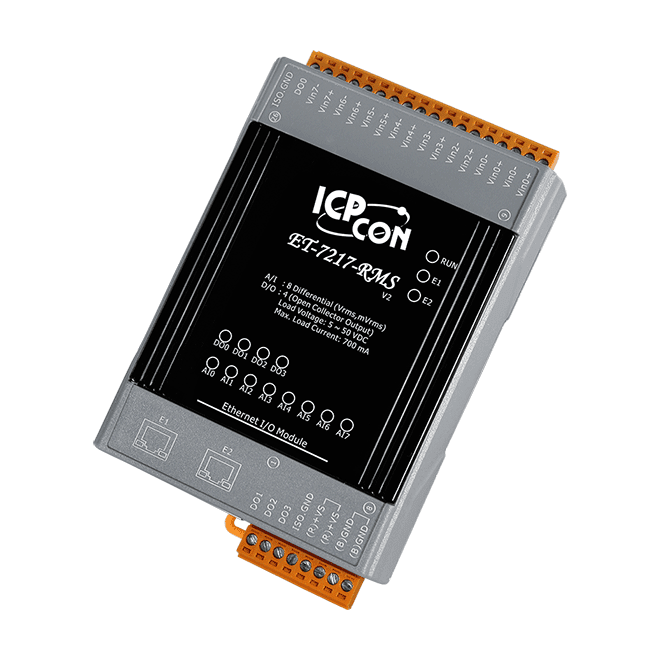

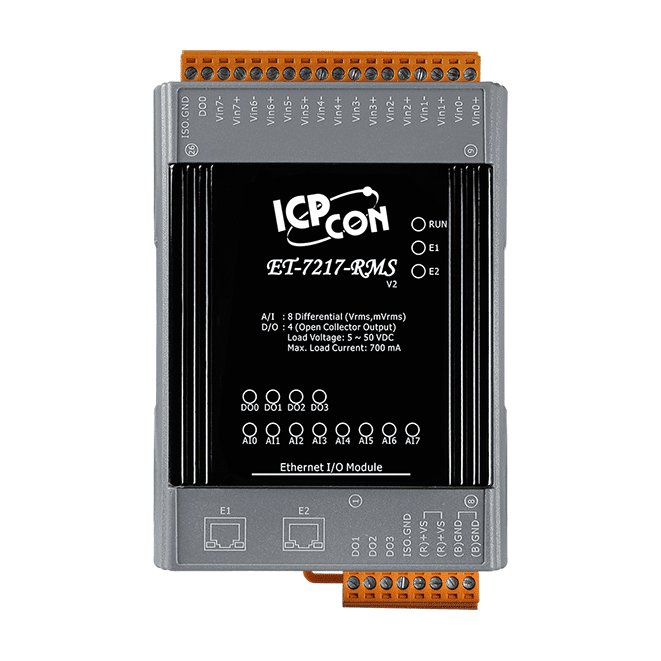

ET-7217RMS Ethernet I/O Module, 8-ch True RMS AI, 4-ch DO, 2-port Switch
Ethernet I/O module with 8 differential True RMS analogue inputs, 4 isolated open-collector outputs and a 2-port switch for daisy-chain wiring.
- True RMS conversion on 8 differential analogue input channels, configurable per channel
- Input range from +150 mVrms to +10 Vrms with 16-bit resolution
- 4 isolated open-collector digital outputs, sink type, programmable power-on and safe values
- 2-port 10/100 Base-TX Ethernet switch with LAN bypass for daisy-chain topologies
- Modbus TCP and Modbus UDP support
- Built-in web server, web HMI and ID, password and IP filter access control
€329.00 per piece
| 1–9 pcs | €329.00 | |
|---|---|---|
| 10–30 pcs | €319.00 | −3 % |
| 31+ pcs | €312.00 | −5 % |
Product information "ET-7217RMS Ethernet I/O Module, 8-ch True RMS AI, 4-ch DO, 2-port Switch"
The ET-7217RMS converts AC input signals into their True RMS DC equivalents, so engineers can read the RMS value of complex waveforms over Ethernet. Each of its 8 differential analogue channels can be configured individually, with an input range from +150 mVrms to +10 Vrms.
Four isolated open-collector digital outputs are built in, with programmable power-on and safe values. The 2-port 10/100 Base-TX switch with LAN bypass supports daisy-chain topologies, and the module communicates via Modbus TCP and Modbus UDP.
The module includes a built-in web server with web HMI, access control by ID, password and IP filter, and dual watchdog protection. It is DIN-rail mounted and specified for an operating temperature of -25 ~ +75 °C.
Applications
- Monitoring AC signal levels as True RMS DC values
- Daisy-chained Ethernet I/O networks with Modbus TCP or Modbus UDP host systems
- Remote acquisition and switching in DIN-rail control cabinets
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 4 |
| Analog inputs: | 8 |
| Ports: | 2 |
| Isolation: | 2500 VDC (I/O) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 8 (Differential) |
| Type | True RMS |
| Resolution | 16-bit |
| Accuracy | Sinusoid: 50/60 Hz: ±0.15% of FSR 45 Hz ~ 10 kHz: ±0.5% of FSR Non-Sinusoid: Crest Factor = 1 ~ 2: ±0.2% of FSR Crest Factor = 2 ~ 3: ±0.35% of FSR DC: 0 ~ 10 Vrms / 0 ~ 5 Vrms / 0 ~ 1 Vrms: ±0.3% of FSR 0 ~ 500 mVrms / 0 ~ 150 mVrms: ±0.7% of FSR |
| Sampling Rate | 10 Hz (total channels) |
| Input Impedance | >2 MΩ |
| Overvoltage Protection | ±35 Vrms/±28 VDC |
| Individual Channel Configuration | Yes |
| Digital Output | |
| Channels | 4 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.2 W (max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 42 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
