BNET-2310M BACnet/IP I/O Module, 4-ch AI, 2-ch AO, 4-ch DI, 4-ch DO
BACnet/IP remote I/O module that lets a BMS or BACnet/IP client read field sensors and drive analogue or digital outputs over Ethernet. Supports Foreign Device registration with a BBMD.
- Read and write 4 AI, 2 AO, 4 BI and 4 BO points via BACnet/IP
- Operates as a BACnet/IP Server with Foreign Device support
- Registers with a BBMD for cross-subnet BACnet/IP communication
- Web-based configuration and management, no additional software required
- Configuration file import and export for backup and deployment
- Analogue inputs with ±1 V to ±10 V ranges and 16-bit resolution
€271.00 per piece
| 1–9 pcs | €271.00 | |
|---|---|---|
| 10–30 pcs | €263.00 | −3 % |
| 31+ pcs | €257.00 | −5 % |
Product information "BNET-2310M BACnet/IP I/O Module, 4-ch AI, 2-ch AO, 4-ch DI, 4-ch DO"
The BNET-2310M CR is a remote I/O module that brings 4 analogue inputs, 2 analogue outputs, 4 digital inputs and 4 digital outputs onto a BACnet/IP network. A BMS or BACnet/IP client can read field sensor signals directly over Ethernet and command connected analogue or digital output devices, without a separate gateway.
The module operates as a BACnet/IP Server and also supports Foreign Device functionality. It can register with a specified BBMD to receive BACnet/IP messages forwarded across different IP subnets, which suits multi-floor buildings, multi-building facilities, industrial sites and larger BEMS installations.
Configuration is handled through a built-in web server, so the module can be set up from a standard web browser. Configuration files can be imported and exported for backup and repeat deployments. The CR ordering code is the RoHS-marked variant.
Applications
- HVAC control and monitoring in building automation
- Lighting and energy management
- BMS and BEMS integration via BACnet/IP
- Multi-floor buildings and multi-building facilities
- Industrial sites with BACnet/IP field I/O
| Product type: | Remote I/O module |
|---|---|
| Interface: | Ethernet RJ-45 |
| Protocol: | BACnet/IP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Analog inputs: | 4 |
| Analog outputs: | 2 |
| Ports: | 1 |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |

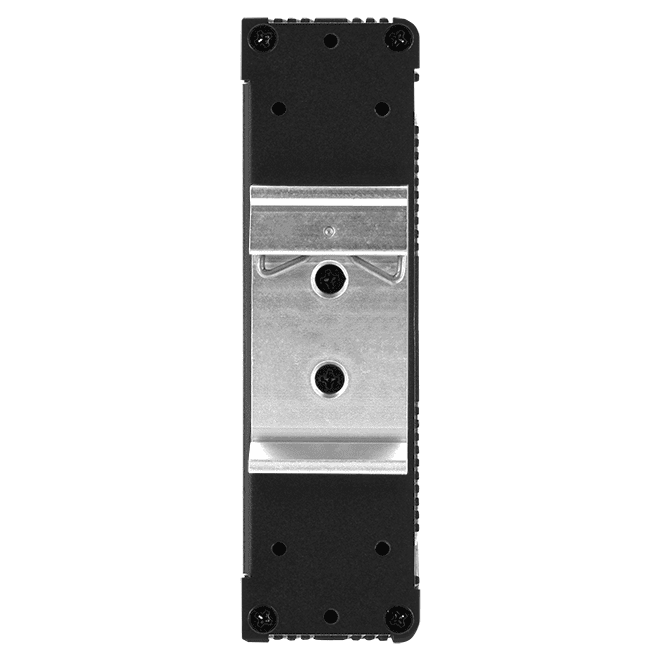

| Mounting: | DIN-rail |
| Housing: | Metal |
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes |
| System | |
| Security | ID and Password |
| LED Indicators | |

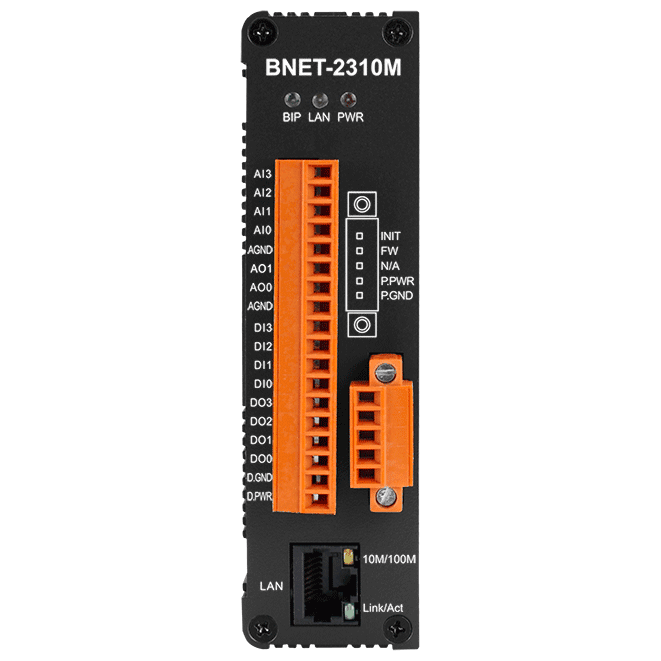

| Status | Power, Ethernet and BIP status |
| Analog Input | |
| Channels | 4 Single-ended |
| Range | ±1 V , ±2.5 V, ±5 V, ±10 V |
| Resolution | 16-bit |
| Sampling Rate | 10Hz(Total channels) |
| Overvoltage Protection | +120 VDC |
| Individual Channel Configuration | Yes |
| Analog Output | |
| Channels | 2 |
| Range | 0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V |
| Resolution | 12-bit |
| Individual Channel Configuration | Yes |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source(PNP) |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Overvoltage Protection | +60 VDC |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Source(PNP) |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 650 mA/channel |
| Overvoltage Protection | 47 VDC |
| Overload Protection | Yes |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| BACnet/IP | |
| Protocol | BACnet/IP Server |
| Objects | 1 Device, 4 AI, 2 AO, 4 BI, 4 BO |
| BIBBs | DS-RP-B, DS-RPM-B, DS-WP-B, DS-WPM-B, DS-COV-B, DM-DDB-B, DM-DOB-B, DM-DCC-B, DM-TS-B, DM-UTC-B, DM-RD-B |
| Power | |
| Input Range | +10VDC to +30VDC |
| Consumption | 3.6W (0.15A @24VDC) |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 33 x 120 x 106 (W x L x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
