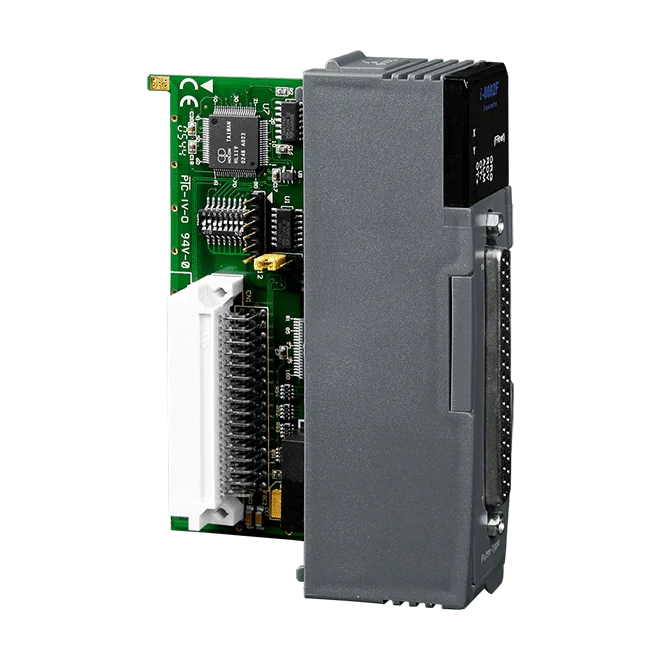

I-8092F-G 2-axis Motion Control Module with FRnet Master, 4 Mpps Pulse Output
2-axis high-speed motion control module for ICP DAS I-8000 and PAC controllers, with 4 Mpps pulse output per axis and a two-wire FRnet master for remote I/O expansion.
- 2-axis independent motion control with linear and circular interpolation for two axes
- Maximum pulse output rate of 4 Mpps per axis, CW/CCW or PULSE/DIR types
- 32-bit encoder counter per axis with A/B phase or up/down input modes
- Programmable T/S-curve acceleration and deceleration, plus continuous interpolation
- Programmable automatic homing and software limits for each axis
- FRnet master for remote I/O expansion up to 128 DI and 128 DO over two wires
€405.00 per piece
| 1-9 pcs | €405.00 | |
|---|---|---|
| 10-30 pcs | €385.00 | −5 % |
| 31+ pcs | €365.00 | −10 % |
Product information "I-8092F-G 2-axis Motion Control Module with FRnet Master, 4 Mpps Pulse Output"
I-8092F-G is a 2-axis stepping and pulse-type servo motor control module for ICP DAS I-8000 and PAC controllers. It suits general-purpose motion control work where each axis needs fast pulse output, encoder feedback and programmable motion profiles.
Each axis offers a maximum pulse output rate of 4 Mpps, with CW/CCW or PULSE/DIR output types, and a 32-bit encoder counter that accepts A/B phase or up/down inputs. Linear and circular interpolation are available for two axes, along with continuous interpolation and programmable T/S-curve acceleration and deceleration. Automatic homing and software limits can be set per axis, and hand wheel and jog functions are supported.
The module includes one FRnet master, which expands remote I/O over a two-wire interface to 128 DI and 128 DO channels. Digital inputs and outputs are isolated to 2500 Vrms. The module draws +5 V at 500 mA, has a 37-pin D-sub connector, and is rated for -20 ~ +75°C operation. Software support includes Visual C++, C#, VB.Net and Visual Basic 6.0 DLLs, plus the EzGo Utility.
Applications
- General-purpose 2-axis motion control
- Stepping and pulse-type servo motor control
- Multi-axis motion on I-8000 and PAC controllers
| Product type: | Motion control module |
|---|---|
| Interface: | 37-pin D-sub |
| Protocol: | FRnet |
| Digital inputs: | 128 (expandable) |
| Digital outputs: | 128 (expandable) |
| Isolation: | 2500 Vrms |
| Power input: | +5 V |
| Operating temperature: | -20 ~ +75 °C |
Specifications
| Software | |
|---|---|
| Development | Visual C++ lib/DLL C#, VB.Net DLL Visual Basic 6.0 |
| Utility | EzGo Utility |
| Hardware | |
| Connector | 37-pin D-sub |
| General | |
| No. of Axes | 2 |
| Operation Mode | Semi-closed Loop |
| Synchronous Action | - |
| Speed Profile | T/S curve |
| Position Control Mode | Incremental mode |
| Command Type | Pulse command |
| Axis I/O | |
| Servo Interface Output | SVON |
| Mechanical Switch Input | Home, LMT+/-, NHOME, EMG |
| Servo Interface Input | INP, ALM |
| Encoder Input | |
| Mode | A/B Phase, Up/Down |
| Ring Counter Mode | 32-bit |
| Counting Rate | 4 MHz (Max.) |
| Counter Width | 32-bit |
| Pulse Output | |
| Mode | CW/CCW, PULSE/DIR |
| Counter Width | 32-bit |
| Rate | 4 MHz (Max.) |
| Interpolation | |
| Circular | 2 axes |
| Linear | 2 axes |
| Digital Input | |
| Channels | Expandable: 128 DI |
| Isolation | 2500 Vrms optical isolation |
| Digital Output | |
| Channels | Expandable: 128 DO |
| Isolation | 2500 Vrms optical isolation |
| Power | |
| Consumption | +5 V @ 500 mA |
| Environment | |
| Operating Temperature | -20 ~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
