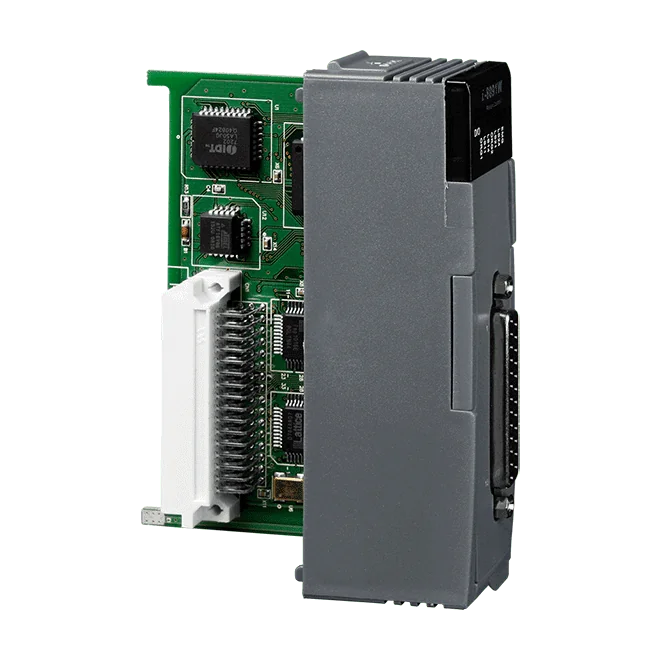

I-8091W-G 2-axis Stepping/Servo Motor Control Module, 1 Mpps Pulse Output

The I-8090W-G CR adds three independent encoder counter channels to an iPAC-8000 or ISaGRAF PAC system. Each axis can be set to Quadrant, CW/CCW or Pulse/Direction counting, so one module can suit a range of encoder and pulse-train signal types.Each channel uses differential inputs (A+/A-, B+/B-, C+/C-) and counts at up to 1 MHz. The counters are 16-bit in hardware and can be extended to 32-bit in software. Inputs are optically isolated at 2500 VDC.This ordering code includes the CA-PC25M DB25 male connector with plastic cover. The module is only suitable for iPAC-8000 and ISaGRAF PAC controllers.ApplicationsPosition and distance measurementVelocity measurementFeedback for motor controlHandwheel input

I-8092F-G is a 2-axis stepping and pulse-type servo motor control module for ICP DAS I-8000 and PAC controllers. It suits general-purpose motion control work where each axis needs fast pulse output, encoder feedback and programmable motion profiles.Each axis offers a maximum pulse output rate of 4 Mpps, with CW/CCW or PULSE/DIR output types, and a 32-bit encoder counter that accepts A/B phase or up/down inputs. Linear and circular interpolation are available for two axes, along with continuous interpolation and programmable T/S-curve acceleration and deceleration. Automatic homing and software limits can be set per axis, and hand wheel and jog functions are supported.The module includes one FRnet master, which expands remote I/O over a two-wire interface to 128 DI and 128 DO channels. Digital inputs and outputs are isolated to 2500 Vrms. The module draws +5 V at 500 mA, has a 37-pin D-sub connector, and is rated for -20 ~ +75°C operation. Software support includes Visual C++, C#, VB.Net and Visual Basic 6.0 DLLs, plus the EzGo Utility.ApplicationsGeneral-purpose 2-axis motion controlStepping and pulse-type servo motor controlMulti-axis motion on I-8000 and PAC controllers

The I-8093W-G is a high-speed encoder input module for position measurement on motion systems. Each of its three axes can be set independently to Quadrant, Pulse/Direction or CW/CCW input mode, so one module can serve axes with different encoder signal formats.Counting is available up to 1 MHz in Quadrant mode and up to 4 MHz in Pulse/Direction and CW/CCW modes, with a 32-bit count range. Intra-module isolation of 2500 VDC and ESD protection of ±4 kV contact on each terminal support use in demanding industrial and laboratory environments.This RoHS variant is intended for engineers building position feedback into I-8K/I-87K series high-profile PAC I/O systems, with its power draw kept to 2 W maximum.ApplicationsPosition measurement of motion systemsIndustrial automation environmentsLaboratory environments

The I-8094-G adds four independent motion axes to ICP DAS XP-8000 and WP-8000 programmable automation controllers. It drives stepping or pulse-type servo motors, with pulse output of up to 4 Mpps per axis, and reads a 32-bit encoder counter on each axis. It suits engineers who need general-purpose multi-axis positioning, interpolated moves and automatic homing without building the motion logic from scratch.Most of the motion work, including interpolation, acceleration profiling and homing, runs in the module's dedicated motion ASIC, so the PAC processor carries little load. Motion status and the other I/O channels on the controller can still be monitored while the motors are running, and several motion modules can share one PAC. A set of synchronous actions allows event-triggered responses to be configured on the module.The ordering code I-8094-G CR is the high-speed variant of the I-8094 series. The module is certified to CE, UKCA, FCC, RoHS and WEEE, and uses a 68-pin SCSI-II connector with an operating range of -20 ~ +75°C.ApplicationsGeneral-purpose multi-axis motion controlStepping and pulse-type servo motor controlMotion add-on for XP-8000 and WP-8000 PAC systems
