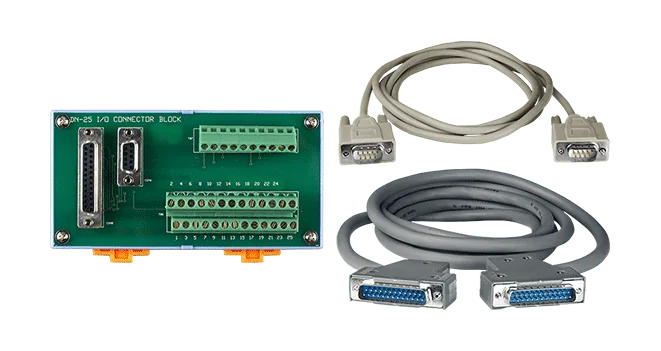

DN-25 D-sub I/O Connector Block, 9-pin and 25-pin with DIN-rail Mounting
DIN-rail I/O connector block with one 9-pin and one 25-pin D-sub connector, pin-to-pin screw terminals at 5.08 mm pitch, supplied with two pre-made D-sub cables.
- One 9-pin and one 25-pin D-sub connector on a single DIN-rail block
- Pin-to-pin screw terminal connection for I/O wiring
- 5.08 mm terminal pitch
- Supplied with CA-0920 DB9 to DB9 RS-232 cable, 2M
- Supplied with CA-2520 DB25 male to male cable, 45º, 2M
- DIN-rail mounting, 48 mm x 76 mm
€65.00 per piece
| 1-9 pcs | €65.00 | |
|---|---|---|
| 10-30 pcs | €62.00 | −5 % |
| 31+ pcs | €59.00 | −9 % |
Product information "DN-25 D-sub I/O Connector Block, 9-pin and 25-pin with DIN-rail Mounting"
The DN-25 CR is a DIN-rail I/O connector block that breaks out signals from 9-pin and 25-pin D-sub connectors to screw terminals, giving engineers an accessible wiring point for field connections. It is listed in the DAQ daughter board accessories category.
Each pin of the D-sub connectors is wired pin-to-pin to a screw terminal with 5.08 mm pitch, which keeps field wiring straightforward. The block measures 48 mm x 76 mm and mounts on a DIN rail.
The package includes two cables: a CA-0920 DB9 (male) to DB9 (male) cable wired RS-232 Pin1-Pin9, 2M long, and a CA-2520 DB25 male to male cable, 45º, 2M long. The unit is rated for 0 ~ 60°C operation and -20 ~ 70°C storage, with 5% ~ 90% RH non-condensing humidity, and carries CE, UKCA, FCC, RoHS and WEEE certifications.
Applications
- Wiring field I/O signals to D-sub connected data acquisition hardware
- DIN-rail installation in control cabinets
| Product type: | I/O connector block |
|---|---|
| Interface: | D-sub 9-pin, D-sub 25-pin |
| Operating temperature: | 0 ~ 60 °C |
| Mounting: | DIN-rail |
Specifications
| Mechanical | |
|---|---|
| Dimensions (mm) | 48 mm x 76 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
