IO/Sensor

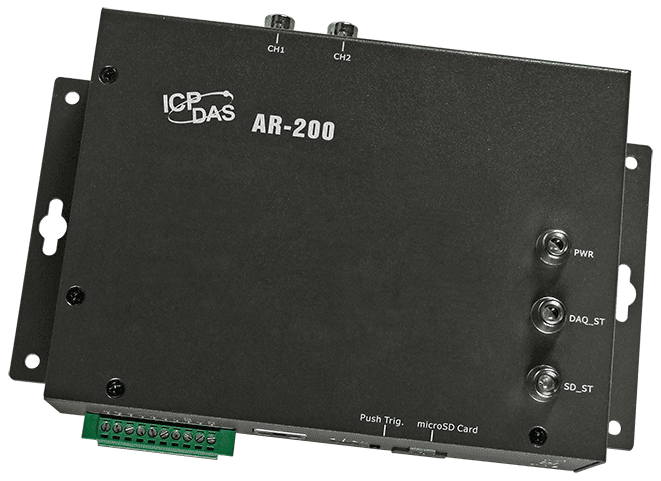

AR-200 CR is a dynamic signal acquisition module for vibration monitoring and analysis. It accepts two IEPE accelerometers, each supplied with a built-in 3 mA excitation current, and digitises the signals with a 16-bit converter. Sampling of both channels runs simultaneously, at rates up to 200 kHz per channel.Recordings are written to a Micro SD card, so data can be taken away and analysed offline. Capture can be started by a push button, a schedule, an analog threshold, a digital input or a remote command from the supplied utility on a host PC, which also lets you set the sampling rate and scheduling for each application. A single relay output and one digital input add basic event handling to the unit.The logger suits panel or machine installations that need to run unattended. It works from a wide +10 to +30 VDC supply, operates from -25 to +75 °C, and provides 4 kV contact ESD protection on all terminals. Mounting is by wall or DIN-rail.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

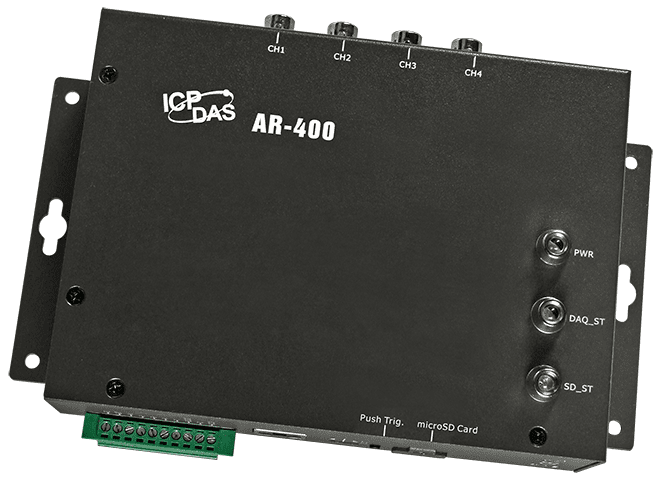

The AR-400 is a dynamic signal acquisition module for vibration monitoring and analysis. It samples four channels simultaneously with 16-bit resolution and supplies a built-in 3 mA excitation current for IEPE accelerometers, so compatible sensors can be connected directly without an external supply.Acquired data is written to a micro SDHC card (4 to 32 GB), allowing offline analysis after capture. Recording can be started by push button, schedule, analog threshold, digital input or remote trigger from the utility software installed on a host PC, which also handles sample rate and sampling schedule settings.Suited to condition monitoring setups where vibration data must be captured at defined times or on defined events.Includes a relay output (Form A, 5A@250 VAC) and a digital input for use within trigger or control logic.ApplicationsVibration monitoring and analysisIndustrial automationFactory automationProcess automation

180° Hold-Down Clip (include 50 pcs).

90° Hold-Down Clip (include 50 pcs).

CA-LLD-DC100-L010 is a 1 m liquid leak detection cable for monitoring large areas where leaks may travel along an unpredictable route. Its sensing wires make it a practical choice for open floors and surfaces with several possible leak points, rather than a single fixed sensing spot.The cable has a 6 mm fluoropolymer carrier. Its sensing wires are 2 × 30 AWG, enclosed in a conductive fluoropolymer jacket. It can be fixed directly to water supply and return lines, so it can cover pipework as well as the surrounding floor area. The maximum continuous operating temperature is 70 °C.This ordering code is the without position variant, supplied in a 1 m length. It is RoHS and WEEE certified.ApplicationsLeak detection in open areasMonitoring water supply and return linesCovering larger surface areas with multiple potential leak points

CA-LLD-DC100-L030 is a 3M liquid sensing cable for detecting leaks across a wide area when the likely leak path cannot be predicted in advance. It suits open floor areas and larger surfaces where several leak points may appear.The cable can be run directly along water supply and return lines, so it can cover pipework without a dedicated sensor installation at each joint. Its 6 mm fluoropolymer carrier houses two 30 AWG sensing wires with a conductive fluoropolymer jacket.Designed for continuous operating temperatures up to 70°CSupplied in 3M length, identified by the -L030 suffixRoHS and WEEE certifiedApplicationsLeak detection along water supply and return linesOpen areas and larger surfaces with multiple potential leak pointsWide-area water leak monitoring where the leak path is not predetermined

CA-LLD-DC100-L100 is a 10M liquid leak detection cable for monitoring larger surface areas where the route a leak will take is hard to predict. Its length and flexible layout suit open areas and installations with several possible leak points.The cable can be fixed directly to water supply and return lines, so it can be routed along pipework to cover the areas where leaks are most likely to occur. It is supplied in the 'w/o Position' variant listed by the manufacturer.Construction is a 6 mm fluoropolymer carrier with two 30 AWG sensing wires enclosed in a conductive fluoropolymer jacket. The maximum continuous operating temperature is 70°C. The product is listed as RoHS and WEEE compliant.ApplicationsOpen areas with a wide surface to monitorWater supply and return linesLarger surface areas with multiple potential leak points

The CA-LLD-DC100-L300 is a 30 m liquid leak detection cable designed to cover larger areas where the path a leak might take is hard to predict. It suits open spaces with several possible leak points and can be fixed directly to water supply and return lines.Built with a 6 mm fluoropolymer carrier and two 30 AWG sensing wires enclosed in a conductive fluoropolymer jacket, the cable is rated for a maximum continuous operating temperature of 70 °C. This ordering code is the version without position detection.The cable is RoHS and WEEE compliant.ApplicationsWater leak detection over open or large surface areasMonitoring multiple potential leak pointsFixing to water supply and return lines

The CA-LLD-DC100-L500 is a liquid leak detection cable designed to monitor a wide area where the path a leak might take cannot easily be predicted. It suits open areas and larger surfaces with several possible leak points.The cable can be fixed directly to water supply and return lines, so it can follow the pipework rather than relying on a fixed sensor position. This version is supplied without position detection, as indicated by the 'w/o Position' designation in its description.The 6 mm cable uses a fluoropolymer carrier and two 30 AWG sensing wires with a conductive fluoropolymer jacket. It is rated for a maximum continuous operating temperature of 70 °C and is RoHS and WEEE listed.ApplicationsWater supply and return line leak monitoringOpen areas and large surfaces with multiple potential leak points

The CA-LLD-DC100X-L010 is a 1 m liquid leak detection cable for covering wide, open areas where the likely leak path cannot be predicted in advance. It can be run alongside liquid supply and return lines, and it suits larger surfaces with several potential leak points.Compared with the standard CA-LLD-DC100-Lxxx cable for iSN-101/104, this variant adds two functions when used with the CA-LLD-DC100X-TR terminal resistor. Cable-break detection reports a broken signal leader cable or detection cable immediately and passes the alarm to the iSN-101/104 buzzer. Snap-in connectors at both ends allow several detection cables to be connected in series.The signal leader cable plus all detection cables can reach a maximum of 500 m. The 6 mm fluoropolymer-jacketed cable carries two 30 AWG sensing wires and is rated for a maximum continuous operating temperature of 70 °C.ApplicationsLiquid leak detection over wide or open areasMonitoring liquid supply and return linesLarger surface areas with multiple potential leak points

The CA-LLD-DC100X-L030 is a 3 m liquid leak detection cable suited to monitoring large or open areas where the likely leak path cannot be predicted in advance. Its snap-in connectors allow the cable to be joined in series, so coverage can be extended without a fixed layout.Compared with the original CA-LLD-DC100-Lxxx cable, this variant adds cable-break detection and series connection. The source positions it alongside the iSN-101/104 detectors and the CA-LLD-DC100X-TR terminal resistor. Cable-break detection reports a broken signal leader cable or detection cable, and the cable can be connected directly to liquid supply and return lines.The 6 mm fluoropolymer-carried cable uses 2*30 AWG sensing wires with a conductive fluoropolymer jacket and has a maximum continuous operating temperature of 70°C. The signal leader cable plus all detection cables can reach up to 500 metres in total.ApplicationsLiquid leak monitoring over wide or open areasSurfaces with multiple potential leak pointsLiquid supply and return lines

CA-LLD-DC100X-L050 is a 5M liquid leak detection cable for monitoring wide, open areas where the path a leak will take is hard to predict. It can be run to the liquid supply and return lines directly, which suits larger surfaces with several possible leak points.Compared with the original CA-LLD-DC100-Lxxx cable for iSN-101/104, this variant adds cable-break detection and can be connected in series. Any break in the signal leader cable or the detection cable is reported immediately to the alarm buzzer of the iSN-101/104. Snap-in connectors at both ends let several detection cables be chained together.Cable-break detection alerts the iSN-101/104 alarm buzzerSnap-in connectors allow multiple detection cables to be linked in seriesSignal leader cable plus all detection cables can reach up to 500 metresMaximum continuous operating temperature of 70°CApplicationsLiquid leak detection over wide or open areasMonitoring along liquid supply and return linesLarger surfaces with multiple potential leak points

The CA-LLD-DC100X-L100 is a 10 m liquid leak detection cable for monitoring wide areas where the likely leak path is hard to predict. It suits open sites and larger surfaces with multiple possible leak points, and it can be connected directly to liquid supply and return lines.Compared with the original CA-LLD-DC100-Lxxx detection cable, this version can be joined in series and reports cable breaks. When used with the CA-LLD-DC100X-TR terminal resistor, a break in the signal leader cable or a detection cable is reported immediately to the iSN-101/104, which sounds its alarm buzzer.Snap-in connectors at both ends let several detection cables be chained together. The signal leader cable and all detection cables together can cover up to 500 m.ApplicationsLiquid leak detection over open areasMonitoring larger surface areas with multiple potential leak pointsLeak monitoring at liquid supply and return lines

The CA-LLD-DC100X-L300 is a 30 m liquid leak detection cable for monitoring wide areas where the likely leak path cannot be predicted in advance. Its layout suits open sites with several potential leak points.Unlike the standard DC100 cable, this variant adds cable-break detection and snap-in connectors at both ends, so several detection lines can be joined in series. The signal leader cable and all detection cables together can cover up to 500 m. Cable breaks in the signal leader or the detection cable are reported to the iSN-101/104 alarm buzzer.The cable can be connected directly to liquid supply and return lines. Its fluoropolymer carrier and conductive fluoropolymer sensing jacket are rated for a maximum continuous operating temperature of 70 °C.ApplicationsLiquid leak monitoring over large or open surface areasDetection along liquid supply and return linesSites with multiple potential leak points

The CA-LLD-DC100X-L500 is a 50 m liquid leak detection cable for covering wide, open areas where the path a leak will take is hard to predict. It can be run alongside liquid supply and return lines and suits surfaces with several potential leak points.Compared with the original CA-LLD-DC100-Lxxx cable, this variant adds cable-break detection and can be chained with other detection cables. A break in the signal leader cable or the detection cable is reported immediately to the alarm buzzer of the iSN-101/104 unit.The cable has snap-in connectors at both ends, so several detection cables can be joined in series to extend coverage. The signal leader cable and all detection cables together can reach up to 500 m.Fluoropolymer carrier, 6 mm cable diameterSensing wires: 2 x 30 AWG with conductive fluoropolymer jacketMaximum continuous operating temperature 70 °CRoHS and WEEE certifiedApplicationsLiquid leak detection over larger surface areas with multiple potential leak pointsOpen areas where the path of a leak cannot be predictedMonitoring around liquid supply and return lines

CA-LLD-DC100X-TR is a 2MΩ terminal resistor that fits the end of a liquid leakage detection cable run. The original CA-LLD-DC100-Lxxx detection cable on iSN-101/104 units cannot report a cable break and cannot be wired in series, so this resistor is used to add both capabilities.With the terminal resistor fitted, a break in the signal leader cable or the detection cable is recognised immediately, and the iSN-101/104 raises the alarm buzzer at the same time. Detection cables use snap-in connectors at both ends, so several lines can be joined in series to extend coverage.The signal leader cable and all connected detection cables can cover a maximum distance of 500 metres, which suits longer or more irregular layouts where a single fixed-length cable is impractical.ApplicationsLiquid leakage detection along extended or segmented cable runsMonitoring with iSN-101/104 units where cable-break alarms are required

CA-LLD-DP100 CR is a liquid leakage probe for detecting leaks at a specific location and at a defined water level. Its base carries two probes, and an alarm is raised only when liquid touches both of them at the same moment, closing the circuit between them.Because detection depends on that two-point contact, the probe suits areas where a leak must be picked up at a known height rather than anywhere on a floor. It is intended for drains, water storage tanks, containers and other restricted areas where an early warning of liquid is needed.The unit is RoHS and WEEE certified. Check the installation point against the water level you need to monitor before fitting it.ApplicationsDrainsWater storage tanksContainersOther restricted areas where liquid leakage must be detected

CA-LLD-EC-L030 is a 3 m leader cable for ICP DAS liquid leakage detection installations. It forms the first section of the sensing run and is designed to be extended in the field where the layout requires more reach.The leader cable accepts extension with shielded twisted pair cable in AWG 18~14. The total cable length, counting the leader cable and the sense cables together, must not exceed 500 m.The cable is listed as RoHS and WEEE compliant, which helps with documentation for European projects.ApplicationsLiquid leakage detectionDistributed leak sensing runs with extended sense cabling

RJ45 Cable Male to Female, 30cm.

CL-201-E CR is a CO, temperature, humidity and dew point data logger module for monitoring indoor air quality and environmental conditions. Each reading is time-stamped and stored on the module, which holds up to 450,000 records for later download.The module reports over RS-485 and Ethernet with PoE, and supports DCON, Modbus RTU, Modbus TCP and MQTT. This makes it straightforward to pass readings into an existing HMI, SCADA or IoT platform in distributed control systems. A single Form A relay output can be used for alarm signalling or for controlling IAQ equipment.Logged data can be exported to CSV from the iAir Utility, which also allows the modules to be configured, grouped and monitored in real time. The unit is specified for 0 ~ 50°C operation and is intended for ceiling or wall mounting.ApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesIndoor or underground car park air quality monitoring

The CL-201-WF CR is a data logger module for monitoring carbon monoxide alongside temperature, humidity and dew point. It records each measurement with date and time stamps, so engineers can review trends or export logs for analysis. A relay output can be used for alarm signalling or to control external IAQ equipment.Communication is available over RS-485, Ethernet and Wi-Fi, which makes the module straightforward to add to an existing HMI, SCADA or distributed control system. Supported protocols are DCON and Modbus RTU on RS-485, Modbus TCP on Ethernet and Wi-Fi, and MQTT on Ethernet. The module supports infrastructure and limited AP modes for wireless networks.Records CO, temperature, humidity and dew point with date and time stampsHolds up to 450,000 records for downloadRedundant power inputs: PoE (IEEE 802.3af, Class 1) and +12 ~ +48 VDCCeiling or wall mountingApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesIndoor or underground parking lot air quality monitoring

CL-202-E CR is a data logger module for monitoring indoor air quality and climate conditions. It measures CO2 with a non-dispersive infrared (NDIR) sensor, alongside temperature, relative humidity and dew point, and records the results with date and time stamps for later analysis.The module offers an RS-485 port and an Ethernet port with PoE support, so it can be integrated into existing HMI or SCADA systems over DCON, Modbus RTU, Modbus TCP or MQTT. Real-time readings can be viewed from the iAir Utility, the iOS or Android apps, or a web browser, provided the logger is on the same local network. Logged data can be exported to CSV for analysis in standard spreadsheet or industry software.Relay output for alarm signalling or control of IAQ equipmentCeiling or wall mounting, IP20 housing, Ø 150 x 53 mmOperating temperature 0 ~ 50°C, non-condensing humidity range 10 ~ 90% RHApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesIndoor or underground parking lot air quality monitoring

The CL-202-WF CR is an indoor air quality monitoring data logger that records CO2, temperature, humidity and dew point readings with date and time stamps. Its NDIR CO2 sensor covers 0 to 9999 ppm, and the module stores up to 450,000 downloadable records for later analysis.Engineers can connect the module over RS-485, Ethernet or Wi-Fi and integrate it into existing HMI or SCADA systems using DCON, Modbus RTU or Modbus TCP. On the Ethernet interface, MQTT is also supported. A relay output can be used for alarm signalling or to control IAQ equipment, and the module can be powered from PoE (IEEE 802.3af, Class 1) or a +12 ~ +48 VDC terminal block input.Configuration, real-time monitoring and log export are handled by the iAir Utility, with iOS and Android apps also included. The module can be ceiling or wall mounted.Monitors CO2, temperature, humidity and dew point, with alarm functions for CO2, RH and temperatureNDIR CO2 sensor with 0 to 9999 ppm range and 1 ppm resolutionUp to 450,000 time-stamped records stored on boardRS-485, Ethernet and IEEE 802.11 b/g/n Wi-Fi interfaces, with Infrastructure and Limited AP modesDCON, Modbus RTU, Modbus TCP and MQTT (Ethernet) protocol supportRelay output (1 x Form A) for alarm or IAQ device controlRedundant PoE and DC power inputsApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesHCHO/VOC detectionIndoor or underground parking lot air quality monitoring

The CL-203-E CR is a wall or ceiling mounted data logger that measures CO, CO2, temperature, humidity and dew point. Each reading is stored with date and time stamps, with capacity for up to 450,000 records that can be downloaded for later analysis.Measurements are taken with a non-dispersive infrared (NDIR) CO2 sensor and an electrochemical CO sensor. A single relay output (1 x Form A, SPST) can be used to drive an alarm or control an indoor air quality device when the monitored values reach a set condition, which suits building management and monitoring tasks.For integration, the module offers one RS-485 port and one Ethernet port with PoE support. It speaks DCON, Modbus RTU, Modbus TCP and MQTT, so it can feed existing HMI or SCADA systems or IoT platforms. Real-time data can be viewed with the iAir Utility, the iOS or Android app, or a web browser on the same local network, and logged data can be exported to CSV.ApplicationsTransportation of food or pharmaceuticalsFood and beverage industry (HACCP)Blood stations and pharmaciesBuilding and energy managementWarehouse managementMuseums, archives and galleriesIndoor or underground parking lot air quality monitoring
