PMD Series

The PMD-2201-EN is a panel-mounted power meter concentrator that gathers readings from ICP DAS Modbus power meters over RS-485 or Ethernet and stores them locally. Its built-in web server lets engineers view live and historical power data and set up the system from any browser, so no additional software tool or programming is needed.A 7-inch TFT display with a resistive touch panel provides on-site viewing and parameter setting. Connected Modbus I/O modules can be controlled from the power status, and an IF-THEN-ELSE logic engine supports power demand management, including load shedding where required. Alarms can be sent by LINE, Telegram or Email.For system integration, the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure and IBM Bluemix IoT platforms. Power data is logged to a microSD card and sent back automatically once a disconnected network is restored. It can be powered from 12 ~ 48 VDC or from PoE (IEEE 802.3af).ApplicationsEnergy measurement, monitoring and managementPower demand management and load sheddingPower data logging and statistical reporting

PMD-2201-SC is a browser-configured power meter concentrator for engineers building energy monitoring and management systems. It polls ICP DAS Modbus power meters over RS-485 or Ethernet, records the readings and makes them available locally on its 7" touch panel and remotely through its built-in web server, so most setup can be done without writing code.Control logic is handled on the device itself. A built-in IF-THEN-ELSE engine, timers and schedules can switch Modbus I/O modules according to power status, supporting power demand management and load shedding where required. Alarms can be sent via LINE, Telegram or Email, and power data can be logged to a microSD card and sent back automatically once a disconnected network is restored.For integration, the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure and IBM Bluemix IoT platforms as well as the ICP DAS IoTstar cloud software. This Simplified Chinese version is designed for panel mounting and is powered from 12 ~ 48 VDC or PoE (IEEE 802.3af).ApplicationsEnergy measurement, monitoring and managementPower demand management and load sheddingPower data logging and historical power reportingRemote alarm notification for power systems

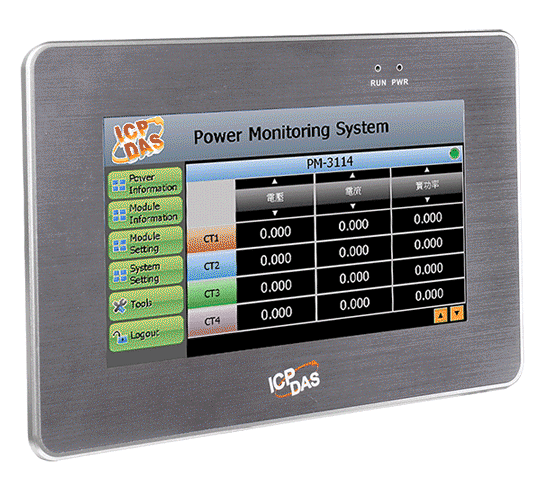

The PMD-2201-TC CR is a panel-mount power meter concentrator for engineers who need to collect, log and act on energy data without writing control software. Configuration is done in a browser or on the local 7" touch display, so logic, schedules and reports are set up through web pages rather than programmed. The -TC suffix identifies the Traditional Chinese variant.The unit reads ICP DAS Modbus power meter modules and Modbus I/O modules over two RS-485 ports and one RJ-45 Ethernet port. Up to 24 power meter modules plus 8 I/O modules can be connected, subject to a maximum of 16 Modbus TCP modules in total. A built-in IF-THEN-ELSE logic engine supports power demand management, and I/O modules can be switched according to power status, for example to shed loads.Measured values are logged to a microSD card, with data log files sent back automatically once a disconnected network is restored. Alarm messages can be sent via LINE, Telegram or Email, and the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT for integration with SCADA, MES and IoT platforms, including Microsoft Azure and IBM Bluemix.ApplicationsEnergy measurement, monitoring and managementPower demand management and load sheddingPower usage efficiency (PUE) monitoring

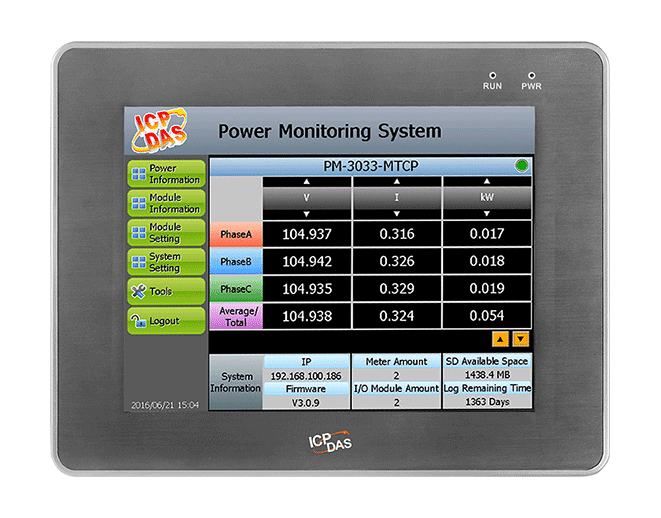

PMD-4201-EN CR is a browser-configured power meter concentrator for energy measurement, monitoring and management. It polls ICP DAS power meters over RS-485 or Ethernet, records readings to a microSD card, and gives local and remote access to the data without a separate configuration tool.Power demand management is handled on the device itself. A built-in IF-THEN-ELSE logic engine works with Modbus I/O modules to adjust equipment according to power status, and alarms can be sent by LINE, Telegram or Email. Connected devices can be shed when required, which suits sites that need to limit consumption in real time.Integration with supervisory and IT systems uses Modbus TCP/RTU, SNMP, FTP and MQTT, along with connection to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar Cloud. The 10.4" touch panel supports local viewing and parameter setting, and PoE is supported for power.ApplicationsEnergy measurement, monitoring and managementPower demand management with load shedding of connected devices

PMD-4201-SC is a Simplified Chinese edition of ICP DAS's power meter concentrator, built for panel mounting. It reads power data from ICP DAS Modbus power meters over RS-485 or Ethernet, logs the readings and makes them available locally on its 10.4" touch panel or remotely through a built-in web server. Configuration is done in a browser, so no separate software tool or programming is needed.Beyond monitoring, the unit runs an IF-THEN-ELSE logic engine that can act on power status by switching Modbus I/O modules. This supports power demand management and load shedding, with schedules and timers for equipment control. Alarm messages can be sent via LINE, Telegram or Email, and the -SC suffix identifies the Simplified Chinese language version, distinct from the -EN and -TC editions.Data can be stored on a microSD card and is sent back automatically when a dropped network connection is restored. Integration with SCADA, MES, IT and IoT back-end systems is handled through Modbus TCP/RTU, SNMP, FTP and MQTT, with connection options for Microsoft Azure, IBM Bluemix and ICP DAS IoTstar Cloud.ApplicationsEnergy measurement, monitoring and managementPower demand management and load sheddingPower data logging and reporting for SCADA, MES and IoT systems

The PMD-4201-TC is a web-based power meter concentrator for engineers building energy monitoring and power management systems. It collects power data from ICP DAS Modbus power meters over RS-485 or Ethernet, records readings to a microSD card and presents them on a built-in 10.4-inch touch panel or through a browser, with no extra software tool needed for setup.Control logic is configured through web pages rather than programming. A built-in IF-THEN-ELSE logic engine, timers, schedules and alarm notifications via LINE, Telegram or Email allow the unit to adjust connected I/O modules according to power status, supporting power demand management and load shedding where required.For integration, the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure, IBM Bluemix and ICP DAS IoTstar cloud services. The Traditional Chinese (TC) variant is the version ordered under this code.ApplicationsEnergy measurement, monitoring and managementPower demand management and load sheddingPower usage effectiveness (PUE) setting and displayLocal power data display and reporting for building or plant power systems
