PISO-CM100U-T Programmable 1-Port CAN Universal PCI Card, 5-Pin Terminal
1-port programmable CAN 2.0A/2.0B universal PCI card with an 80186 onboard microcontroller that filters, preprocesses and timestamps CAN traffic to offload the host PC.
- Single CAN port with NXP SJA1000T controller and 82C250 transceiver
- Supports CAN 2.0A and CAN 2.0B, 10 k to 1 M bps
- Onboard 80186 microcontroller at 80 MHz for filtering, preprocessing and timestamped storage
- Dual port RAM and memory mapping for host data exchange
- Isolation of 3000 VDC (DC-to-DC) and 2500 Vrms (photo-couple)
- Onboard RTC, timestamp precision of at least ±1 ms
€434.00 per piece
| 1-9 pcs | €434.00 | |
|---|---|---|
| 10-30 pcs | €412.00 | −5 % |
| 31+ pcs | €391.00 | −10 % |
Product information "PISO-CM100U-T Programmable 1-Port CAN Universal PCI Card, 5-Pin Terminal"

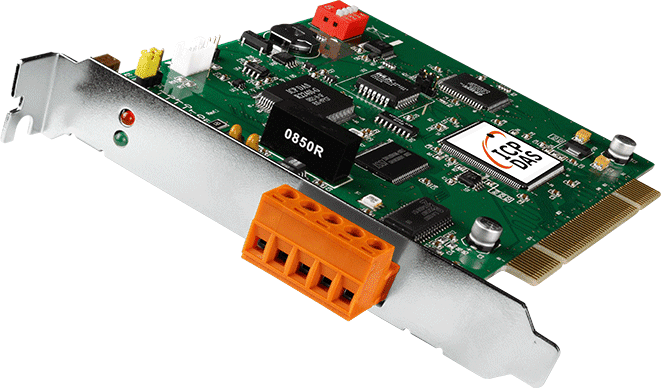

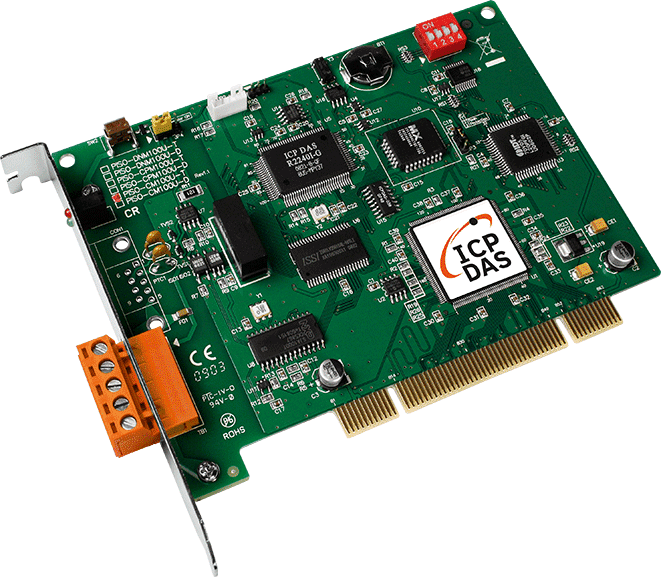

PISO-CM100U-T is a single-channel CAN interface card for Universal PCI slots. It combines an NXP SJA1000T CAN controller with a Philips 82C250 transceiver and an 80186 microcontroller running at 80 MHz, so message handling runs on the card rather than on the host PC.
The onboard processor can filter, preprocess and store CAN messages with timestamps, and transmit them in real time. This reduces the processing load on the host and eases real-time demands on PC applications, even on a busy bus. Data is exchanged with the host through dual port RAM and memory mapping, and a library is supplied for writing custom CAN applications.
The card supports CAN 2.0A and CAN 2.0B, with baud rates from 10 k to 1 M bps and a jumper-selectable 120 Ω terminal resistor. Board numbering is set by DIP switch, and the card is plug and play. Drivers cover Windows XP, 7, 8 and 10, with SDK support for VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0 and C# 2008.
Applications
- Control and monitoring of CAN-networked intelligent devices, sensors and actuators
- Monitoring and control systems that integrate diverse communication devices
| Product type: | CAN interface card |
|---|---|
| Interface: | PCI |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 |
| Isolation: | 2500 Vrms |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | PCI slot |
Specifications
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C# 2008 |
| CPU Module | |
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 bytes (battery backup, data valid for up to 10 years) |
| SRAM | 512 KB |
| Real Time Clock | Yes |
| LED Indicators | |
| Status | 1 x CAN status 1 x Operating mode |
| PC Bus | |
| Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| Board No. | By DIP switch |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 1 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Consumption | 300 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 138 x 22 x 105 (W x L x H) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
