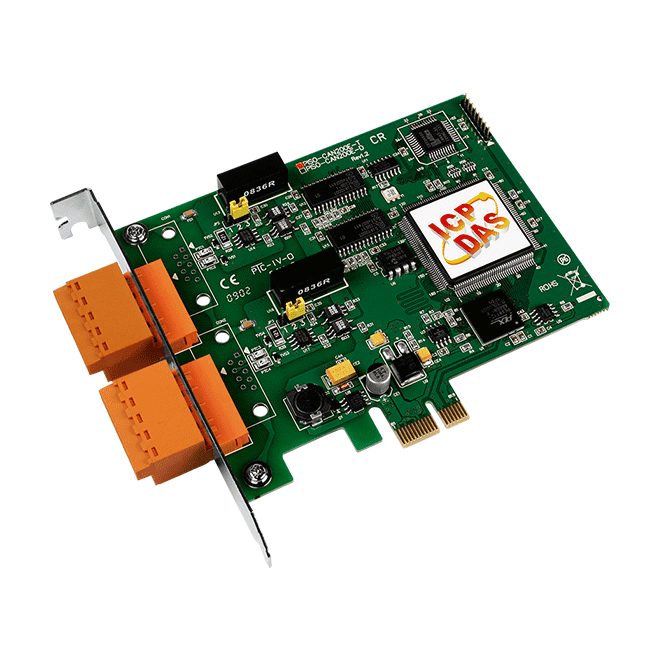

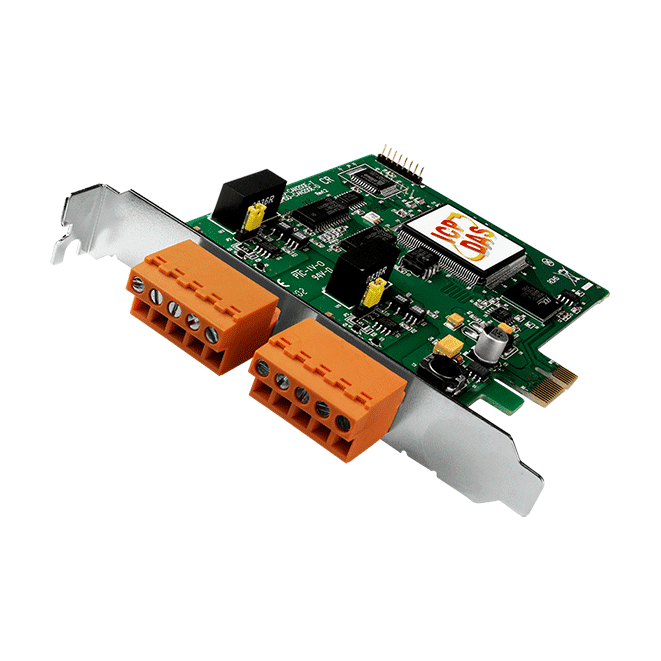

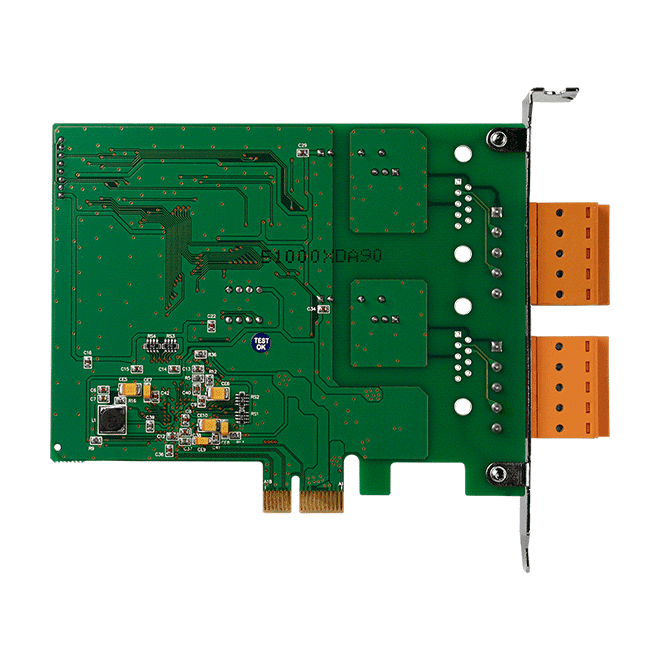

PEX-CAN200i-T 2-Port Isolated CAN Bus PCI Express Card, 5-pin Screw Terminal
Two-port isolated CAN 2.0 interface card for PCI Express slots, with 5-pin screw terminals, 10 kbps to 1 Mbps baud rate and 2500 Vrms photocoupler isolation on the CAN bus.
- Two independent CAN 2.0 (parts A and B) channels on a PCI Express card
- 2500 Vrms photocoupler isolation on the CAN bus and 3000 VDC DC-to-DC isolation
- Fully compatible with ISO 11898-2, with baud rates from 10 kbps to 1 Mbps
- NXP SJA1000T controller with 16 MHz clock and direct memory mapping
- Built-in jumper for a 120 ohm terminal resistor
- 5-pin screw terminal connector on each port
€434.00 per piece
| 1-9 pcs | €434.00 | |
|---|---|---|
| 10-30 pcs | €412.00 | −5 % |
| 31+ pcs | €391.00 | −10 % |
Product information "PEX-CAN200i-T 2-Port Isolated CAN Bus PCI Express Card, 5-pin Screw Terminal"
The PEX-CAN200i-T CR is an economical two-port active CAN board for PCI Express slots, suited to engineers who need isolated CAN bus channels in a PC-based system. Each of the two independent CAN channels uses a 5-pin screw terminal connector, and the card can be fitted in PCI Express x1, x4, x8 or x16 slots.
The card is built around an NXP SJA1000T CAN controller with a 16 MHz clock and an 82C250 transceiver. It supports CAN 2.0 parts A and B and is fully compatible with ISO 11898-2, with baud rates from 10 kbps to 1 Mbps. The controller handles bus arbitration, error detection with automatic correction and retransmission, and a built-in jumper selects a 120 ohm terminal resistor.
Driver support covers Windows XP, 7, 8 and 10 (32-bit and 64-bit) and Linux 2.6.x to 5.4.0, together with LabView, DASYLab and InduSoft. SDK options include VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net and VB.Net, and demos are provided for VB, VC++, Delphi and BC++. The operating temperature range is 0 to +60 °C.
Applications
- Control and monitoring of CAN-connected devices across a range of industries
- Integrating diverse communication devices into PC-based control systems
| Product type: | PCI Express CAN card |
|---|---|
| Interface: | PCI Express |
| Protocol: | CAN 2.0 |
| Ports: | 2 |
| Isolation: | 2500 Vrms (photocoupler) |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
| PC Bus | |
| Type | 33 MHz, 32 bit, X1 PCI Express bus |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 2 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Consumption | 100 mA @ 12 V, 100 mA @ 3.3 V |
| Mechanical | |
| Dimensions (mm) | 120 x 85 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
