NS-208PSE-IP67 IP67 Unmanaged PoE PSE Ethernet Switch, 8 x 10/100M Ports
Unmanaged 8-port IP67 Ethernet switch with eight IEEE 802.3af PoE PSE ports for harsh industrial sites, supplying up to 15.4 W per port.
- IP67 ingress protection for operating temperatures from -10 °C to +60 °C; IP66 from -40 °C to +75 °C
- Eight IEEE 802.3af compliant PoE PSE ports, up to 15.4 W per channel
- Rugged RJ-45 connectors designed for high vibration and shock
- Unmanaged 8-port switch with store-and-forward, wire-speed switching and 1024-entry MAC table
- Auto-negotiating 10/100 Mbps ports with IEEE 802.3x flow control and auto MDI/MDI-X
- Input range +46 ~ +53 VDC with reverse polarity protection
€467.00 per piece
| 1-9 pcs | €467.00 | |
|---|---|---|
| 10-30 pcs | €444.00 | −5 % |
| 31+ pcs | €420.00 | −10 % |
Product information "NS-208PSE-IP67 IP67 Unmanaged PoE PSE Ethernet Switch, 8 x 10/100M Ports"

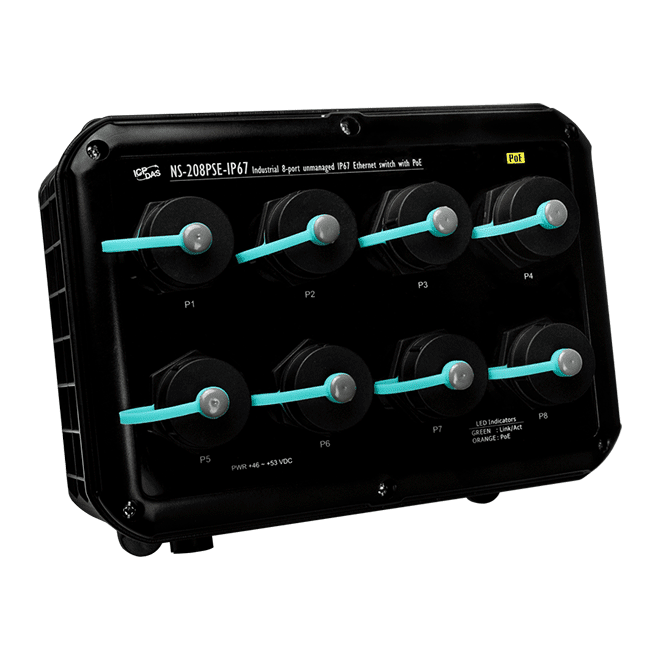

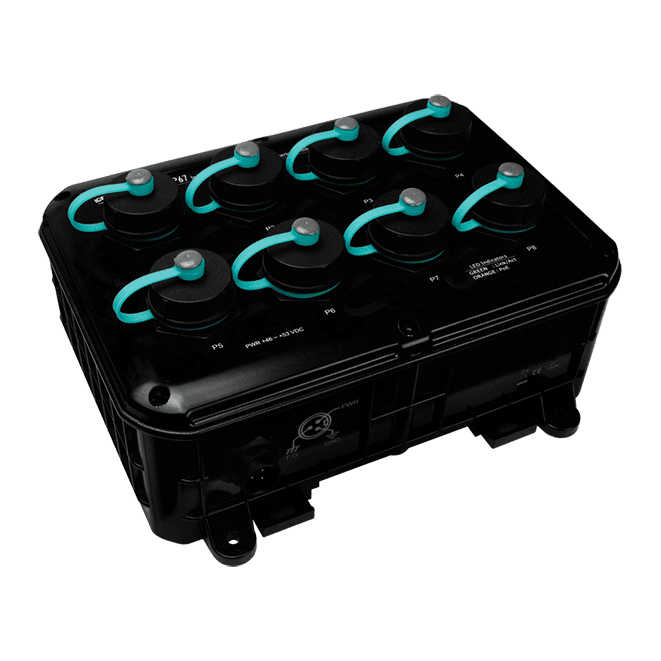

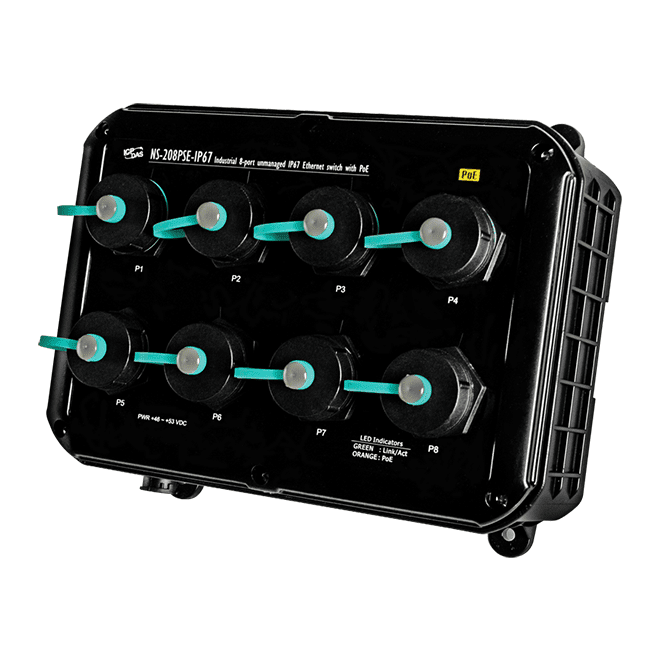

The NS-208PSE-IP67 CR is an unmanaged Ethernet switch for industrial networks in harsh environments. Each of its eight 10/100 Mbps RJ-45 ports can power a connected device over Ethernet, so cameras, access points and other powered endpoints can be installed without a separate supply cable at each location.
The switch acts as a power sourcing equipment (PSE) unit and is fully compliant with IEEE 802.3af. Each port delivers up to 15.4 W, with automatic detection and power management. It uses store-and-forward switching with wire-speed forwarding, and supports auto-negotiation, full and half duplex, and auto MDI/MDI-X. The housing is rated IP67 between -10 °C and +60 °C, and IP66 between -40 °C and +75 °C.

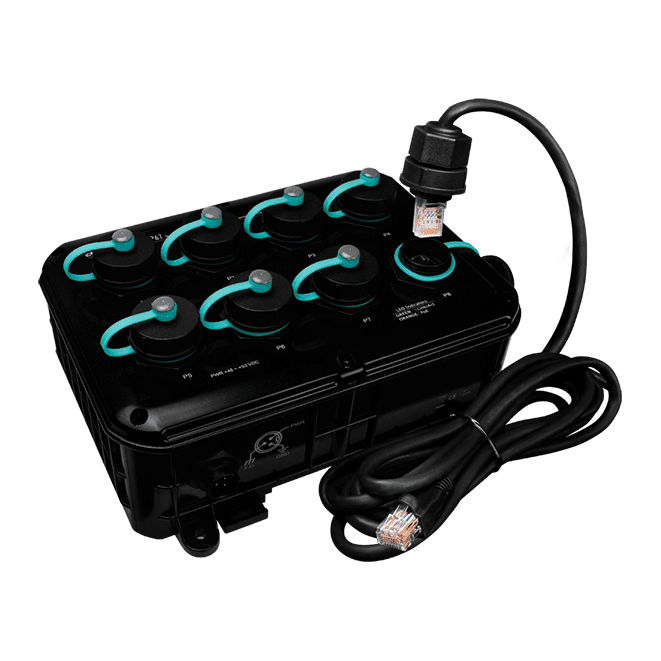

This ordering code ships with the IP67 RJ-45 plugs (4SASO-0001, x 8), caps with tether (4SASO-0004, x 8) and an IP67 power plug (4SIO1K0000016, x 1). It mounts on a DIN rail or a wall, and the 1500 Vrms isolation rating supports installation in demanding cabinets and outdoor enclosures.
Applications
- Industrial Ethernet networks in harsh environments
- Powering PoE devices in locations subject to high vibration and shock
- Outdoor or IP67-rated enclosures and installations
| Product type: | Ethernet switch |
|---|---|
| Interface: | 10/100Base-TX RJ-45 |
| Ports: | 8 |
| PoE: | IEEE 802.3af PSE |
| Isolation: | 1500 Vrms |
| Power input: | +46 ~ +53 VDC |
| Operating temperature: | -10 ~ +60 °C (IP67) |
| Mounting: | DIN-rail / wall |
| Housing: | Plastic |
Specifications
| LED Indicators | |
|---|---|
| Status | PWR, Link/Act , Power Device is detected |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +46 ~ +48 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +53 VDC for PoE output |
| Consumption | 0.05 A @ 48 VDC without PD loading; 1.45 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | DIN-rail mounting: 190 x 133 x 104 (W x L x H) Wall mounting: 190 x 155 x 104 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C |
| Environment | |
| Operating Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Storage Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Humidity | 100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C |
Specifications as published by the manufacturer. Subject to change.
Login
Similar products
The NS-208-IP67 is an unmanaged Ethernet switch for industrial networks where equipment is exposed to dust, moisture, vibration and shock. Its eight RJ-45 ports use locking-style IP67 connectors, so cabling can be installed without a separate enclosure around the switch.Each port auto-negotiates 10/100 Mbps and selects full or half duplex automatically, with MDI/MDI-X crossover handled in the switch itself. The store-and-forward architecture, 1024-entry MAC table and 512 Kbit frame buffer memory support wire-speed switching for typical plug-and-play device networks.The ordering code includes the IP67 RJ-45 plugs, caps with tether and an IP67 power plug. Protection is rated IP67 from -10 to +60 °C and IP66 from -40 to +75 °C, so check the operating range against your installation before specifying the unit.ApplicationsIndustrial Ethernet networks in harsh environmentsInstallations subject to high vibration and shockConnecting remote devices on machines and production lines in exposed locations
The NS-208PSE-4 is an unmanaged industrial Ethernet switch with eight 10/100Base-TX RJ-45 ports, four of which act as Power Sourcing Equipment (PSE). It lets one cabinet supply both data and power to compatible endpoints, so separate power cabling to each device can be avoided.Each PoE port delivers up to 15.4 W and detects connected powered devices automatically, managing power allocation as devices are connected or removed. The switch is 100% IEEE 802.3af compliant and monitors for over-temperature, over-current and over/under-voltage conditions to protect the installation.Store-and-forward, wire-speed switching with a 1024-entry MAC table and 1500 Vrms isolation suits DIN-rail installations in plastic housings across a -40 ~ +75 °C operating range. The NS-208PSE-4 CR is the ordering code offered here.ApplicationsCentralised power supply to IEEE 802.3af powered devices over Ethernet cableRemoving the need for additional power wiring to Ethernet-connected devicesIndustrial Ethernet networking in DIN-rail mounted control cabinets

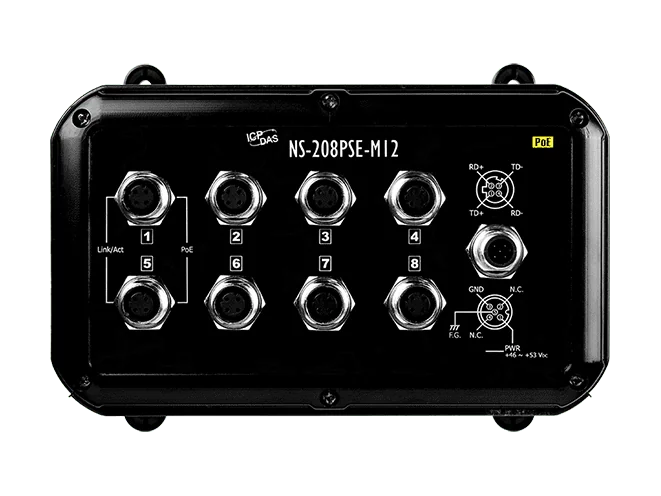

The NS-208PSE-M12-IP67 is an unmanaged Ethernet switch built for harsh industrial environments. Its eight M12 ports are designed for tight, robust connections that hold up under high vibration and shock, and the IP67 rating suits installations exposed to dust and water.Each of the eight ports operates as a Power Sourcing Equipment (PSE) port, supplying up to 15.4 W per port to IEEE 802.3af compliant powered devices. Ports auto-negotiate 10/100 Mbps and support auto MDI/MDI-X, providing a cost-effective way to build a PoE-enabled industrial Ethernet network.The ordering code includes eight M12D-4P-IP68 connectors, eight A-CAP-M12M caps, one M12A-5P-IP68 connector and one A-CAP-M12F cap, so the unit is ready to connect on installation. Ordering code NS-208PSE-M12-IP67 CR.ApplicationsIndustrial Ethernet networks in harsh environmentsPowering IEEE 802.3af PoE devices such as cameras and sensorsInstallations subject to high vibration and shock

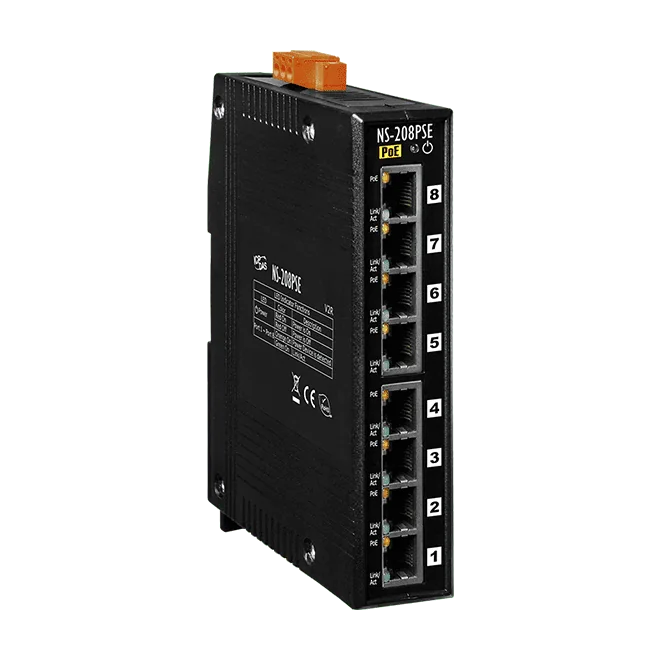

NS-208PSE with Conformal coating protection.
