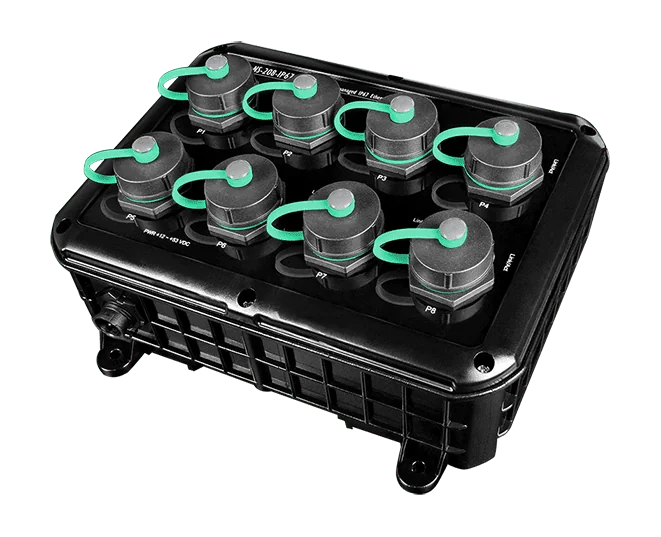

NS-208-IP67 Unmanaged IP67 Ethernet Switch, 8-Port 10/100Base-TX
Rugged 8-port unmanaged 10/100 Mbps Ethernet switch with IP67 RJ-45 ports for harsh industrial sites, supplied with IP67 plugs, caps and a power plug.
- Eight 10/100Base-TX RJ-45 ports with automatic MDI/MDI-X crossover
- Store-and-forward switching at wire speed with 1024-entry MAC table
- IEEE 802.3x flow control and half-duplex back pressure
- IP67 RJ-45 connectors designed for vibration and shock
- IP67 rating from -10 to +60 °C; IP66 rating from -40 to +75 °C
- Power input +12 ~ +53 VDC with reverse polarity protection
€364.00 per piece
| 1-9 pcs | €364.00 | |
|---|---|---|
| 10-30 pcs | €346.00 | −5 % |
| 31+ pcs | €327.00 | −10 % |
Product information "NS-208-IP67 Unmanaged IP67 Ethernet Switch, 8-Port 10/100Base-TX"
The NS-208-IP67 is an unmanaged Ethernet switch for industrial networks where equipment is exposed to dust, moisture, vibration and shock. Its eight RJ-45 ports use locking-style IP67 connectors, so cabling can be installed without a separate enclosure around the switch.
Each port auto-negotiates 10/100 Mbps and selects full or half duplex automatically, with MDI/MDI-X crossover handled in the switch itself. The store-and-forward architecture, 1024-entry MAC table and 512 Kbit frame buffer memory support wire-speed switching for typical plug-and-play device networks.

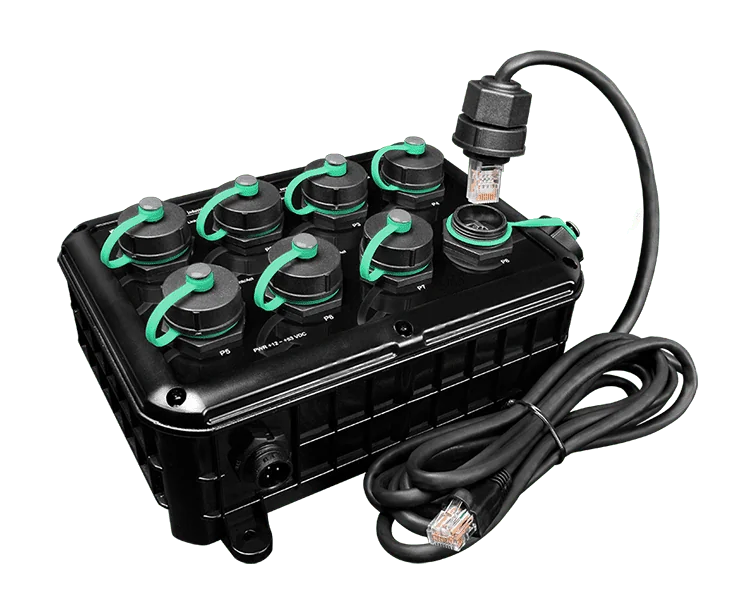

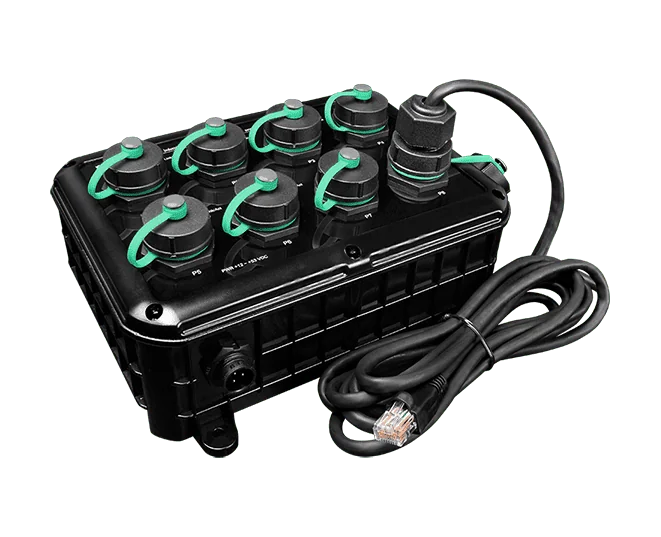

The ordering code includes the IP67 RJ-45 plugs, caps with tether and an IP67 power plug. Protection is rated IP67 from -10 to +60 °C and IP66 from -40 to +75 °C, so check the operating range against your installation before specifying the unit.
Applications
- Industrial Ethernet networks in harsh environments
- Installations subject to high vibration and shock
- Connecting remote devices on machines and production lines in exposed locations
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 8 |
| Isolation: | 1500 Vrms |
| Power input: | +12 ~ +53 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifications
| LED Indicators | |
|---|---|
| Status | PWR, Link/Act |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +12 ~ +53 VDC |
| Consumption | 0.12 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | DIN-rail mounting: 190 x 133 x 104 (W x L x H) Wall mounting: 190 x 155 x 104 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting |
| Ingress Protection Rating | IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C |
| Environment | |
| Operating Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Storage Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Humidity | 100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C |
Specifications as published by the manufacturer. Subject to change.
