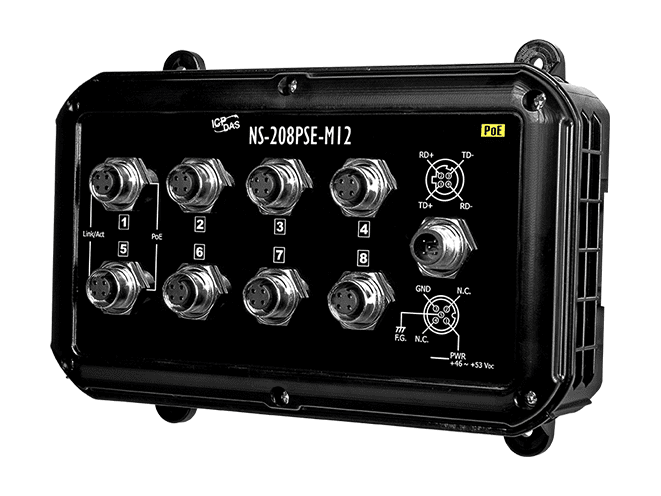

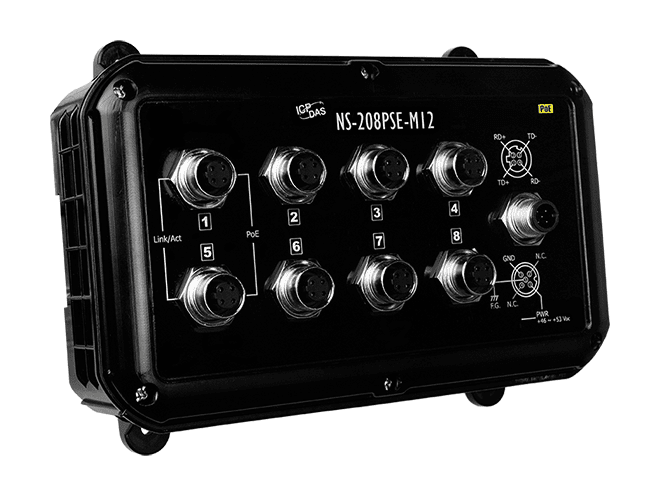

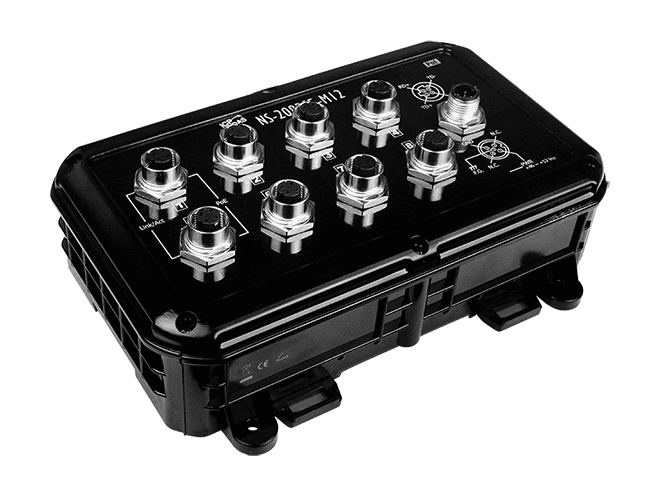

NS-208PSE-M12-IP67 8-Port M12 Unmanaged PoE Ethernet Switch, IP67

NS-208-M12-IP67 is an unmanaged 8-port 10/100 Mbps Ethernet switch built for industrial networks where connectors must stay sealed and secure. Each port uses a female 4-pin shielded M12 D-coded connector rated IP67, and the M12 locking design suits installations exposed to high vibration and shock.The switch operates in store-and-forward mode and auto-negotiates speed on every port. It supports IEEE 802.3, 802.3u and 802.3x, with full-duplex operation, half-duplex backpressure flow control and automatic MDI/MDI-X crossover, so cabling does not need to be matched to the port type. Its 1500 Vrms isolation rating and reverse polarity protection add margin for demanding installations.The wide +12 VDC to +53 VDC input covers the common power standards used in industrial automation, removing the need for an external power converter. The unit is supplied with eight M12D-4P-IP68 connectors, eight A-CAP-M12M caps, one M12A-5P-IP68 connector and one A-CAP-M12F cap. Operating temperature is -10 °C to +60 °C with IP67 protection, or -40 °C to +75 °C with IP66 protection.ApplicationsIndustrial Ethernet networks in harsh environmentsInstallations subject to high vibration and shockIndustrial automation systems with 12 to 53 VDC supplies

The NS-208PSE-4 is an unmanaged industrial Ethernet switch with eight 10/100Base-TX RJ-45 ports, four of which act as Power Sourcing Equipment (PSE). It lets one cabinet supply both data and power to compatible endpoints, so separate power cabling to each device can be avoided.Each PoE port delivers up to 15.4 W and detects connected powered devices automatically, managing power allocation as devices are connected or removed. The switch is 100% IEEE 802.3af compliant and monitors for over-temperature, over-current and over/under-voltage conditions to protect the installation.Store-and-forward, wire-speed switching with a 1024-entry MAC table and 1500 Vrms isolation suits DIN-rail installations in plastic housings across a -40 ~ +75 °C operating range. The NS-208PSE-4 CR is the ordering code offered here.ApplicationsCentralised power supply to IEEE 802.3af powered devices over Ethernet cableRemoving the need for additional power wiring to Ethernet-connected devicesIndustrial Ethernet networking in DIN-rail mounted control cabinets

The NS-208PSE-IP67 CR is an unmanaged Ethernet switch for industrial networks in harsh environments. Each of its eight 10/100 Mbps RJ-45 ports can power a connected device over Ethernet, so cameras, access points and other powered endpoints can be installed without a separate supply cable at each location.The switch acts as a power sourcing equipment (PSE) unit and is fully compliant with IEEE 802.3af. Each port delivers up to 15.4 W, with automatic detection and power management. It uses store-and-forward switching with wire-speed forwarding, and supports auto-negotiation, full and half duplex, and auto MDI/MDI-X. The housing is rated IP67 between -10 °C and +60 °C, and IP66 between -40 °C and +75 °C.This ordering code ships with the IP67 RJ-45 plugs (4SASO-0001, x 8), caps with tether (4SASO-0004, x 8) and an IP67 power plug (4SIO1K0000016, x 1). It mounts on a DIN rail or a wall, and the 1500 Vrms isolation rating supports installation in demanding cabinets and outdoor enclosures.ApplicationsIndustrial Ethernet networks in harsh environmentsPowering PoE devices in locations subject to high vibration and shockOutdoor or IP67-rated enclosures and installations

NS-208PSE with Conformal coating protection.
