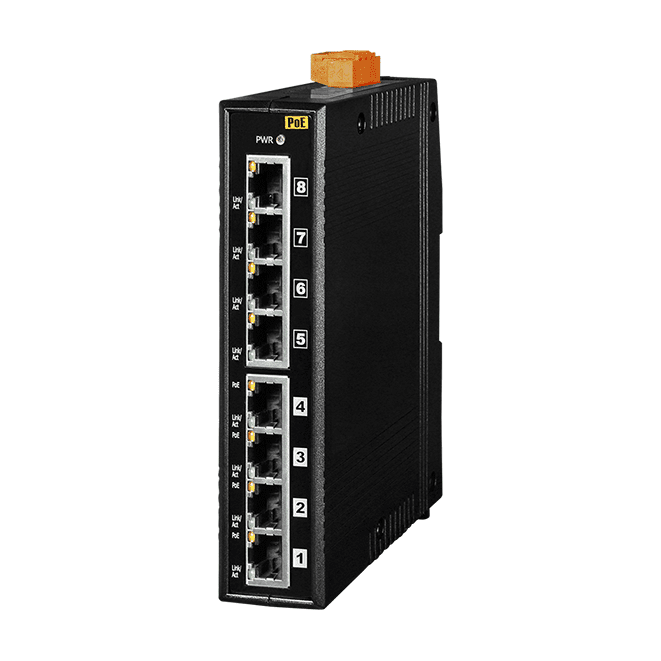

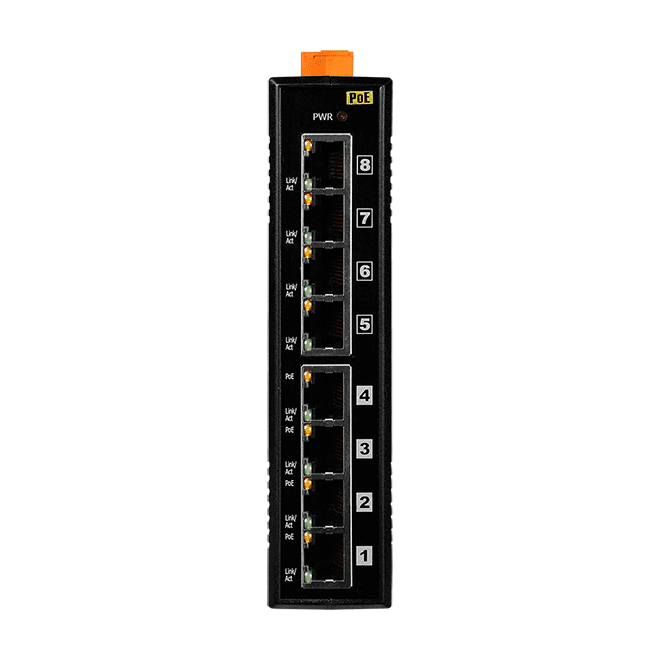

NS-208PSE-4 Unmanaged PoE Industrial Ethernet Switch, 8-port with 4 PSE Ports
Unmanaged 8-port industrial 10/100 Mbps Ethernet switch with four PSE ports supplying up to 15.4 W per port to IEEE 802.3af powered devices over the data cable.
- Eight RJ-45 10/100Base-TX ports, each with 10/100 Mbps auto-negotiation
- Four PSE ports delivering up to 15.4 W per channel, 100% IEEE 802.3af compliant
- Automatic detection of powered devices and automatic power management
- Over-temperature, over-current and over/under-voltage detection
- Store-and-forward, wire-speed switching with 1024-entry MAC table and 512 Kbit frame buffer
- IEEE 802.3x and back pressure flow control
€281.00 per piece
| 1-9 pcs | €281.00 | |
|---|---|---|
| 10-30 pcs | €267.00 | −5 % |
| 31+ pcs | €253.00 | −10 % |
Product information "NS-208PSE-4 Unmanaged PoE Industrial Ethernet Switch, 8-port with 4 PSE Ports"
The NS-208PSE-4 is an unmanaged industrial Ethernet switch with eight 10/100Base-TX RJ-45 ports, four of which act as Power Sourcing Equipment (PSE). It lets one cabinet supply both data and power to compatible endpoints, so separate power cabling to each device can be avoided.
Each PoE port delivers up to 15.4 W and detects connected powered devices automatically, managing power allocation as devices are connected or removed. The switch is 100% IEEE 802.3af compliant and monitors for over-temperature, over-current and over/under-voltage conditions to protect the installation.
Store-and-forward, wire-speed switching with a 1024-entry MAC table and 1500 Vrms isolation suits DIN-rail installations in plastic housings across a -40 ~ +75 °C operating range. The NS-208PSE-4 CR is the ordering code offered here.
Applications
- Centralised power supply to IEEE 802.3af powered devices over Ethernet cable
- Removing the need for additional power wiring to Ethernet-connected devices
- Industrial Ethernet networking in DIN-rail mounted control cabinets
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 8 |
| PoE: | 4 PSE ports, IEEE 802.3af |
| Isolation: | 1500 Vrms |

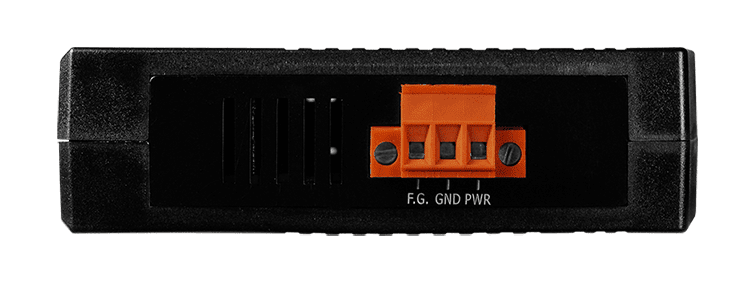

| Power input: | +46 ~ +55 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| LED Indicators | |
|---|---|
| Status | Power, Link/Act, Power Device is detected |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 watts per channel |
| PoE Operation | Automatic detection and power management |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6) |
| PoE Disconnect Mode | DC disconnect |
| PoE Voltage | +46 ~ +55 VDC depending on power input |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +46 ~ +55 VDC for PoE output |
| Consumption | 0.09 A @ 48 VDC without PD loading 1.45 A @ 48 VDC with PD full loading |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 x 157 x 113 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
