Linux PACs

ALX-9191 CR is a single-slot Linux PAC that runs Ubuntu 20.04 with Linux kernel 5.4 on an Intel Atom E3950 processor, with 8 GB DDR4 SDRAM and a 64 GB SSD. It offers hard real-time capability and a built-in real-time clock, so it suits control tasks that need deterministic timing alongside local display and operator input.The unit provides VGA and HDMI outputs, two 10/100/1000M Ethernet ports, four serial ports (RS-232/RS-485) with 3000 VDC isolation, and USB 2.0 and 3.0 ports. Local I/O is added through one e-Bus and one serial/parallel bus, supporting the I-9K, I-97K and e-9K series. Programs can be stored on a CFast card or USB mass storage device, and the LinPAC SDK allows I/O applications to be developed in GNU C.Hard real-time capability with a built-in real-time clockDual watchdog timer and redundant power input with a relay alarm outputApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and process control

The ALX-9391 is a Linux-based programmable automation controller that brings computing, I/O and operator interface into a single metal unit. It suits machine and panel builders who want HMI, data acquisition and control handled by one device, running Ubuntu 20.04 on a 64-bit Intel Atom E3950 processor with 8 GB DDR4 memory and a 64 GB SSD.Three expansion slots accept local I/O from the I-9K, I-97K and e-9K series. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. Application programs can be written in GNU C using the standard LinPAC SDK, and can be stored on a CFast card or USB mass storage device.Connectivity includes two RJ-45 Gigabit Ethernet ports, four serial ports (RS-232/RS-485, 3000 VDC isolated), VGA and HDMI display outputs and four USB ports. The unit has a redundant power input with a relay output for alarm, a built-in real-time clock and dual watchdog timers.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and panel controlLinux-based industrial control applications programmed in GNU C

ALX-9791 CR is a Linux-based programmable automation controller that brings computing, I/O and operator display into one metal housing. It suits projects where a local HMI, data acquisition and control need to run on the same device rather than across separate boxes.The unit runs Ubuntu 20.04 with Linux kernel 5.4 on an Intel Atom E3950 processor with 8 GB DDR4 SDRAM and a 64 GB SSD. Seven slots accept e-9K, I-9K and I-97K series I/O modules, and the LinPAC SDK supports developing I/O applications in GNU C. Programs can also be stored on a CFast card or USB mass storage device.Connectivity includes two RJ-45 10/100/1000 Mbps Ethernet ports, VGA and HDMI outputs, four serial ports with RS-232/RS-485 options, and USB 2.0 and 3.0 ports. The ordering description carries the RoHS designation.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O control with e-9K, I-9K and I-97K modules and Ethernet or RS-485 I/O expansions

LP-2241M is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 512 MB Flash. It suits engineers who need a compact controller that can run custom Linux software, handle several serial devices and connect to two Ethernet networks at once.Connectivity centres on two 10/100/1000M RJ-45 Ethernet ports and four serial ports. Two RS-485 ports are isolated to 2500 VDC, while one RS-232 port is designated as the console and another is non-isolated. Two USB 2.0 host ports and a VGA output (up to 1280 x 1024) are also provided. An XV-Board expansion bus allows I/O to be added to the unit.The controller includes a dual watchdog timer, a real-time clock, 64 KB of FRAM for non-volatile data and a 64-bit hardware serial number for software copy protection. A microSD socket is fitted with a 4 GB card and supports up to 32 GB microSDHC. The metal housing is rated for -25 ~ +75 °C operation and mounts on a DIN rail or wall.ApplicationsMulti-serial device integrationModbus communicationSNMP network monitoringEthernet-based control and data exchange

LP-2241MX-4GC CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor, running Linux kernel 3.2.14. It suits engineers who need a compact controller that combines local control with remote data transfer over cellular networks, with real-time capability for time-critical tasks.An integrated tri-band 4G module with a 4G modem supports WCDMA, TD-SCDMA, CDMA2000, FDD and TDD LTE, and GSM/GPRS connectivity. This allows live or packet data to be sent from remote instruments, meters or control systems. Two 10/100/1000M Ethernet ports, four serial ports (RS-232/485) and an XV-Board I/O expansion bus add connectivity and I/O flexibility.The unit provides 512 MB RAM and 512 MB Flash, a microSD socket, FRAM non-volatile memory, a real-time clock and dual watchdog timers. A metal case and DIN-rail or optional wall mounting suit installation in industrial cabinets. Web, SFTP and SSH services are supported, and a LinPAC SDK with a GCC-based toolchain is provided for application development.ApplicationsRemote data acquisition over 3G/4G cellular networksMulti-serial device communicationEthernet-based control and monitoringSNMP-managed network devicesMetering and remote instrument data collection

LP-2241MX-4GE CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 512 MB flash. It runs Linux kernel 3.2.14 and offers real-time capability for time-critical control tasks, with web, SFTP and SSH services built in for remote access and maintenance.Engineers choose this unit when a control site needs cellular connectivity. The integrated 4G module supports WCDMA, FDD LTE and GSM bands, and the GPRS and SMS functions allow field instruments, meters and controllers to send data back over the mobile network. Two RJ-45 Ethernet ports, four serial ports (RS-232/RS-485) and an XV-board expansion bus extend the unit for local I/O and device connections.The metal housing is designed for DIN-rail or optional wall mounting and operates from +12 VDC to +48 VDC across a -25 ~ +75 °C operating range. A 64-bit hardware serial number supports software copy protection, and dual watchdog timers and a real-time clock assist with dependable unattended operation.ApplicationsRemote data transfer from instruments and meters over 3G/4G cellular networksSMS and GPRS-connected monitoring and control applicationsMulti-serial device connection using RS-232 and RS-485Ethernet-based control and remote supervisionLinux-based control applications requiring time-critical operation

The LP-2841M CR is a Linux-based PAC built around a quad-core Cortex-A53 processor running at up to 1.6 GHz per core, with Linux Kernel 5.4.70 as its operating system. It suits engineers who need a general-purpose controller that can run custom Linux applications and handle several serial and network connections on one unit.Connectivity centres on two 10/100/1000M RJ-45 Ethernet ports and four serial ports: one RS-232 console port, one non-isolated RS-232 port and two isolated RS-485 ports rated at 2500 VDC. Two USB 2.0 host ports, a VGA output and an XV-board expansion bus add further options for local interfaces and I/O extension.Storage includes 8 GB eMMC and a microSD socket, supporting cards up to 32 GB microSDHC. The unit provides 64 KB of FRAM for non-volatile data, a real-time clock, dual watchdog timers and a 64-bit hardware serial number for software copy protection. The metal housing mounts on DIN-rail or, optionally, on a wall.ApplicationsMulti-serial device communication and gateway tasksNetworked control and monitoring with web, SFTP and SSH accessDevelopment of custom time-critical Linux applicationsModbus and SNMP-based system integration

LP-5231 CR is a LinPAC programmable automation controller built around a 1 GHz Cortex-A8 processor and Linux kernel 3.2.14. It suits engineers who need a Linux platform with real-time capability for time-critical control and data handling, supported by an SDK with a GCC-based toolchain and LinPAC libraries.The controller provides 512 MB DDR3 SDRAM, 512 MB flash and a microSD socket (4 GB card supplied, up to 32 GB microSDHC supported) for programs, images and data. A 64 KB FRAM provides non-volatile memory, and a real-time clock and dual watchdog timer support robust operation.Connectivity includes a 10/100/1000 Base-TX Ethernet port, four serial ports (RS-232 and RS-485, one RS-485 port isolated at 2500 VDC), a USB 2.0 host port and VGA output up to 1280 x 1024. The XV-Board expansion bus adds I/O, and the unit mounts on DIN-rail with a supply input of +12 VDC to +48 VDC.ApplicationsDistributed control with Linux-based application logicMulti-serial device communicationTime-critical and high-performance automation tasksRemote access and management via web, SFTP and SSH services

The LP-5231M CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor running Linux kernel 3.2.14. It suits engineers who need an embedded Linux controller with real-time capability, multiple serial interfaces and a gigabit-class Ethernet port in a single compact unit.Connectivity centres on a 10/100/1000 Mbit/s RJ-45 Ethernet port, four serial ports (RS-232 and RS-485, one RS-485 port isolated at 2500 VDC), and a USB 2.0 host port. An XV-Board connector allows I/O expansion, and a VGA output supports displays up to 1280 x 1024. Storage comprises 512 MB flash and a microSD socket, which takes a 4 GB card as supplied and supports microSDHC cards up to 32 GB.The controller includes 512 MB DDR3 SDRAM, 64 KB FRAM non-volatile memory, a real-time clock and a dual watchdog timer. A 64-bit hardware serial number supports software copy protection. Power is supplied at +12 VDC to +48 VDC, and the metal case is rated for operation from -25 to +75 °C. The unit mounts on DIN-rail or wall.ApplicationsMulti-serial field device integrationStandalone control applications on embedded LinuxLocal application, image and data storage using flash and microSD

LP-5231PM-4GC is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor and 512 MB DDR3 SDRAM. It suits engineers who need a compact controller that runs their own application software on Linux while also sending field data over a cellular link.The unit combines a 4G modem with four serial ports (RS-232 and RS-485, one of the RS-485 ports isolated at 2500 VDC), a single RJ-45 10/100/1000 Base-TX LAN port and a USB 2.0 host port. An optional XV-board can be fitted for additional I/O. The 4G module covers WCDMA, TD-SCDMA, CDMA2000, FDD LTE and TDD LTE bands, and the ordering code sold here carries the frequency band for China. The GPS/GNSS receiver reports NMEA 0183 data across 32 channels.Storage includes 512 MB flash and a microSD socket, with a 4 GB card supplied and support for microSDHC cards up to 32 GB. A 64-bit hardware serial number supports software copy protection, and dual watchdog timers and a real-time clock are included. Note that this variant supports China mobile networks only.ApplicationsRemote data transfer from instruments, meters and control systems over 3G/4G cellular networksSMS and GPRS/3G/4G connection applicationsMulti-serial communication and data collection at remote sitesLinux-based control applications requiring time-critical processing

The LP-5231PM-4GE CR is a Linux-based programmable automation controller that pairs a 1 GHz Cortex-A8 processor with an integrated 4G modem. It suits engineers who need to run custom control or data-logging software at a remote site and send the results over a cellular network.Connectivity centres on a single RJ-45 10/100/1000 Ethernet port, four RS-232/485 serial ports (one RS-485 port is isolated to 2500 VDC) and a USB 2.0 host port. The XV-Board expansion bus adds I/O, and GPS/GNSS reception with NMEA 0183 output is built in. Software development is supported by the LinPAC SDK, a GCC-based toolchain with LinPAC libraries.Cortex-A8 CPU at 1 GHz with 512 MB DDR3 SDRAM and 512 MB flashIndustrial tri-band 4G module for cellular data transfer from remote instruments and control systemsFour RS-232/485 serial ports, with one RS-485 port isolated to 2500 VDCXV-Board I/O expansion busEmbedded web, FTP, Telnet and SSH servers on a Linux kernel 3.2.14Dual watchdog timer, real-time clock and 64-bit hardware serial number for software copy protectionApplicationsRemote data acquisition over 3G/4G cellular networksTransfer of live or packet data from remote instruments, meters and control systemsSMS and GPRS/3G/4G connection applicationsMulti-serial device connectivityEthernet-networked control with embedded web and SSH access

The LP-8121 CR is a single-slot programmable automation controller built around a 1 GHz Cortex-A8 processor running Linux kernel 3.2.14. It suits engineers who want to run their own control software in a Linux environment rather than a proprietary runtime.The unit provides 512 MB DDR3 SDRAM, 512 MB flash and a microSD socket fitted with a 4 GB card, supporting microSDHC cards up to 32 GB. Connectivity includes two RJ-45 Ethernet ports (10/100/1000 Base-TX), an RS-232 console port, an isolated RS-485 port rated 3000 VDC, two USB 2.0 host ports and a VGA display output. The single slot accepts an I-8KW or I-87KW I/O module.Dual watchdog timers, a 64-bit hardware serial number for software copy protection and redundant power inputs with an alarm relay support dependable operation. Embedded web, FTP, Telnet and SSH servers simplify access, and the standard LinPAC SDK supports development in GNU C on Windows and Linux.ApplicationsEmbedded Linux control applicationsSerial device integration over RS-232 and RS-485Distributed I/O expansion with I-8KW and I-87KW modulesCAN bus connectivityMachine control and automation in a Linux environment

LP-8421 CR is a 4-slot programmable automation controller that runs Linux kernel 3.2.14 on a 1 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM. It suits engineers who want to develop control logic in a Linux environment, using the standard LinPAC SDK for Windows and Linux with GNU C, and who need to add parallel and serial I/O through the I-8KW and I-87KW series.The controller includes embedded web, FTP, Telnet and SSH servers, a 4 GB microSD card with support for up to 32 GB microSDHC, 512 MB flash and 512 KB MRAM for retained data. Two dual watchdog timers, a real-time clock and a 64-bit hardware serial number for software copy protection support reliable unattended operation.Communication options include two RJ-45 Ethernet ports, four COM ports (including an isolated RS-485 port rated at 3000 VDC), two USB 2.0 host ports and VGA output up to 1280 x 1024. Redundant power inputs with an alarm relay are provided, and the unit can be mounted on DIN-rail or wall. It is rated for -25 ~ +75 °C operation.Applications3G/4G cellular communicationBluetoothCANopenCAN busDeviceNetEthernet communicationModbusMulti-serial communicationSNMPWLANZigbee

The LP-8821 CR is an 8-slot Linux-based PAC from ICP DAS, built around a 1 GHz Cortex-A8 CPU and running Linux kernel 3.2.14. It suits engineers who need a Linux controller that can host up to eight I-8KW or I-87KW I/O modules alongside Ethernet, serial and CAN connectivity in a single DIN-rail or wall-mounted unit.Connectivity includes two RJ-45 10/100/1000 Base-TX Ethernet ports, four COM ports (RS-232, RS-485 and RS-232/485), two USB 2.0 host ports, a VGA display output and CAN. The built-in web, FTP, Telnet and SSH servers allow remote access and file handling. The 64-bit hardware serial number supports software copy protection.The unit has redundant power inputs with a relay output for alarm signalling, dual watchdog timers and a real-time clock. It is specified for an operating range of -25 ~ +75 °C and is listed as RoHS compliant. Application development uses the standard LinPAC SDK for Windows and Linux with GNU C.ApplicationsCAN bus networksCANopenEthernet networkingModbusMulti-serial device connectionSNMP

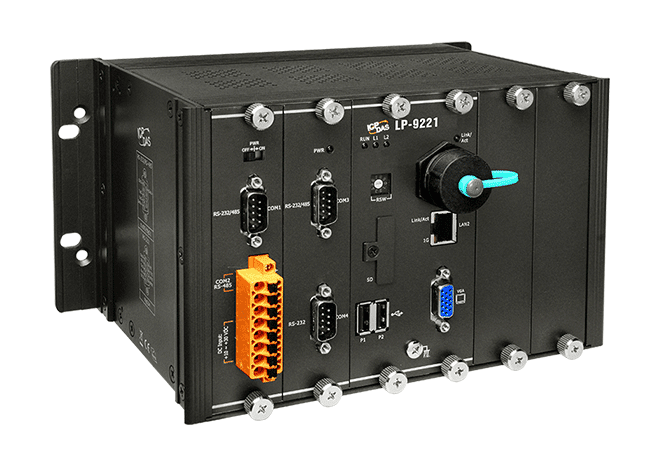

LP-9221 CR is a Linux-based programmable automation controller built around a 1.0 GHz Cortex-A8 CPU running Linux kernel 3.2.14. It suits engineers who need a standalone controller that runs their own GNU C applications while connecting to local I/O through two expansion slots.Two expansion slots accept high-performance I-9K (parallel-type) and I-97K (serial-type) I/O modules. The unit provides two 10/100/1000 Base-TX Ethernet ports, four serial ports configurable as RS-232 or RS-485, and two USB 2.0 host ports, with the serial ports isolated at 3000 VDC. Embedded web, FTP, Telnet and SSH servers are included.Reliability features include dual watchdog timers, redundant power inputs with a relay output for alarm signalling, and a 64-bit hardware serial number for software copy protection. The metal case is rated for -25 ~ +75 °C operation and can be mounted on a DIN rail or a wall.ApplicationsModbus communicationCANopen and CAN bus networksDeviceNet connectivityMulti-serial device integrationSNMP network monitoringWireless links via 3G/4G cellular, WLAN, Bluetooth and Zigbee

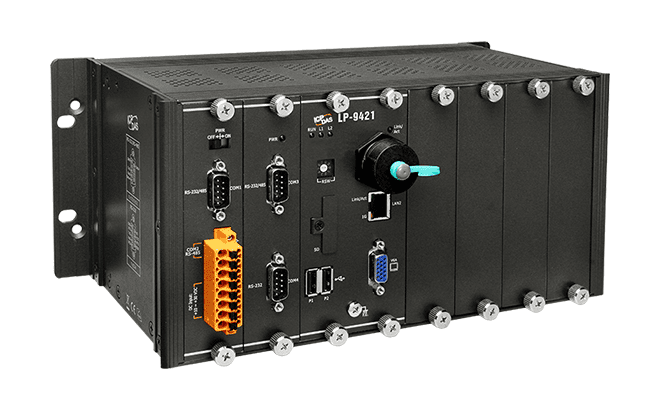

The LP-9421 CR is a Linux-based PAC (Programmable Automation Controller) that combines a 1.0 GHz Cortex-A8 processor with four expansion slots for I-9K (parallel-type) and I-97K (serial-type) I/O modules. It suits engineers who need a standalone controller with a full Linux environment, built-in network services and a wide range of serial and USB connectivity in one metal-cased unit.Connectivity includes two 10/100/1000 Base-TX Ethernet ports, four isolated serial ports (RS-232 and RS-485 options, one of which serves as the console), and two USB 2.0 host ports. Application programs can be stored on a microSD card or USB mass storage device. The LinPAC SDK, with a GCC-based toolchain, supports developing I/O applications in GNU C for I-7000, I-9000 and I-97K series modules.The unit includes redundant power inputs with an alarm relay, a dual watchdog timer, a real-time clock and a 64-bit hardware serial number for software copy protection. It mounts on DIN-rail or wall and operates from -25 ~ +75 °C.ApplicationsCAN bus and CANopen networksDeviceNet networksModbus-based systemsMulti-serial device communicationEthernet-based control and monitoringSNMP network management

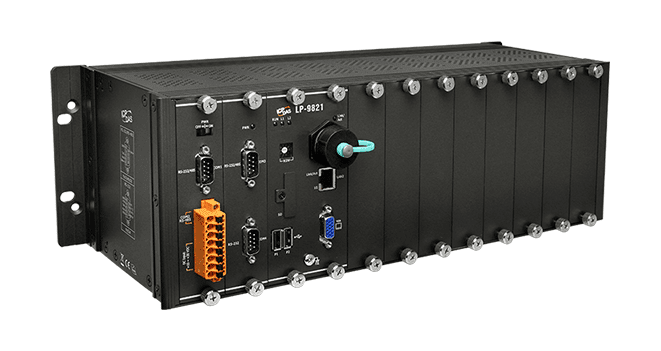

The LP-9821 CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor running Linux kernel 3.2.14. It accepts up to eight expansion modules from the I-9K (parallel-type) and I-97K (serial-type) series, making it suited to distributed I/O projects where the controller must sit alongside a broad mix of field signals.Connectivity is handled by two 10/100/1000M Ethernet ports, four isolated serial ports (RS-232/RS-485, one of them doubling as a console), two USB 2.0 host ports and VGA output. Redundant power inputs are fitted, with a relay providing an alarm contact. Applications can be stored on an SD card or USB mass storage device, and the embedded web, FTP, Telnet and SSH servers allow remote management.Development is supported by the LinPAC SDK, which provides a GCC-based toolchain and LinPAC libraries for writing I/O applications in GNU C. The LP-9821 CR is supplied in a metal case and is RoHS compliant.ApplicationsMulti-serial device communication over RS-232 and RS-485CAN bus networkingDistributed I/O expansion with I-9K and I-97K modulesEthernet-connected control and monitoring

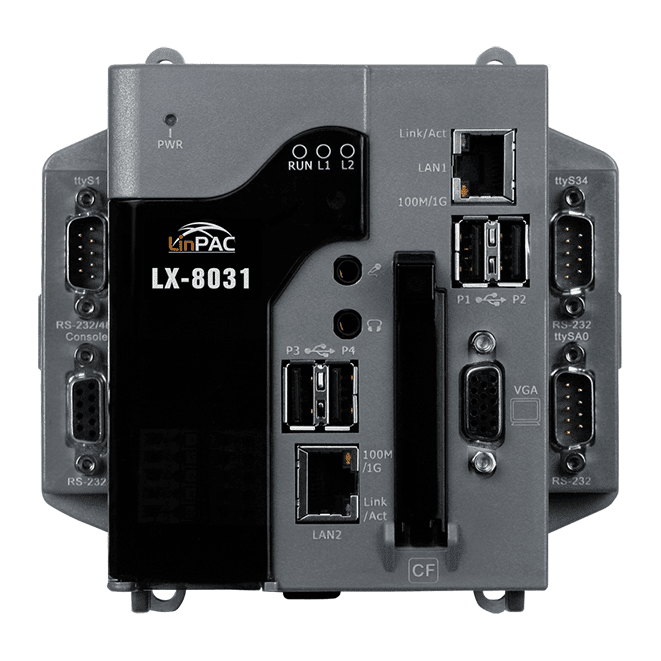

The LX-8031 CR is a 0-slot member of the LX-8000 Linux PAC series, combining a 1.0 GHz x86 dual-core processor, a VGA display output and a range of communication ports in a single DIN-rail or wall-mounted unit. It suits engineers who need an operator interface, data logging and control logic in one compact controller without local I/O modules.Software is built on Linux kernel 3.2, with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing applications in GNU C. Programs can be stored on a CF card or USB mass storage device.Connectivity includes two 10/100/1000 Base-TX Ethernet ports, one non-isolated RS-232 port, three isolated serial ports and four USB 2.0 host ports. Redundant power inputs with an alarm relay are provided, and the unit is rated from -25 ~ +75 °C.ApplicationsIntegrated HMI and operator interfaceData acquisition and controlMulti-serial device communicationEthernet networking and remote monitoring

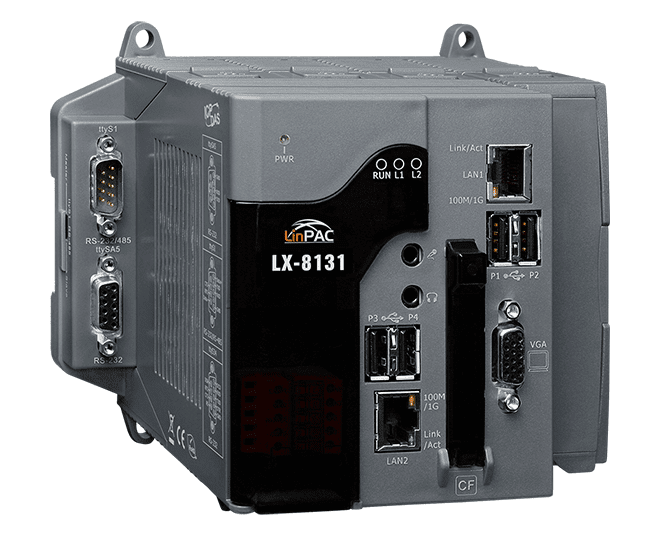

The LX-8131 CR is a 1-slot member of the LX-8000 Linux-based PAC series. It brings control logic, local I/O and an operator interface into a single DIN-rail or wall-mounted unit, which suits engineers who want HMI, data acquisition and control in one compact PAC.The controller runs Linux kernel 3.2 on a 1.0 GHz x86 dual-core CPU with 2 GB DDR3 SDRAM. It has one slot for I-8KW and I-87KW series I/O modules, and remote expansion is possible with Ethernet and RS-485 I/O modules. Storage includes a 32 GB mSATA SSD and a CF card slot, and the unit has four USB 2.0 host ports and a VGA display output.Built-in services include a web server, FTP and SFTP, Telnet and SSH. The LinPAC SDK, which uses a GCC-based toolchain, supports developing I/O applications in GNU C. The unit is rated for -25 ~ +75 °C operation and carries CE, UKCA, FCC, RoHS and WEEE certification.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal I/O control using I-8KW and I-87KW modulesRemote I/O expansion over Ethernet and RS-485

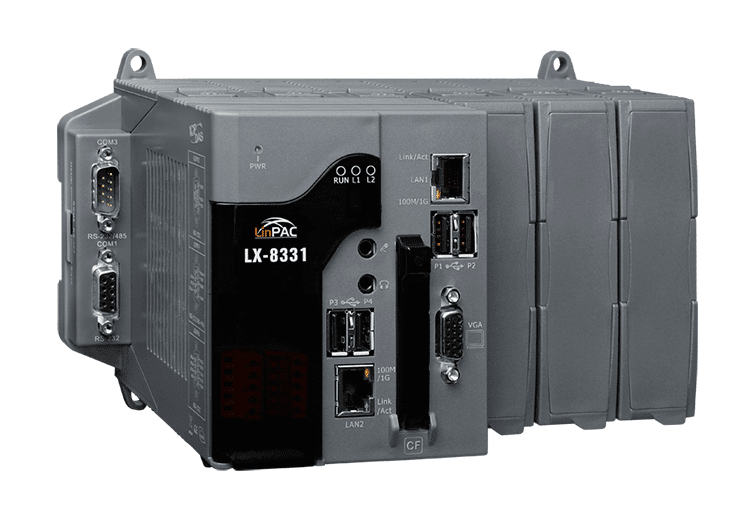

The LX-8331 CR brings computing, I/O and operator interface together in a single 3-slot Linux controller. It suits projects that need control, data acquisition and a local display handled by one PAC rather than a separate PC and I/O stack.Hardware centres on a 1.0 GHz x86 dual-core CPU with 2 GB DDR3 SDRAM, a 32 GB mSATA SSD and a CF card slot for program storage. Connectivity includes a VGA output, four USB 2.0 host ports, two 10/100/1000 Mbit Ethernet ports and isolated RS-232 and RS-485 interfaces. Three slots accept I-8KW and I-87KW series I/O modules, and remote expansion is possible over RS-485 and FRnet.The controller runs Linux kernel 3.2 with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing I/O applications in C. Dual watchdog timers, a 64-bit hardware serial number for software protection and redundant power inputs support reliable long-term operation.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal I/O expansion with I-8KW and I-87KW modulesRemote I/O expansion over Ethernet and RS-485 I/O modulesStandalone controller storing user programs on CF card or USB storage

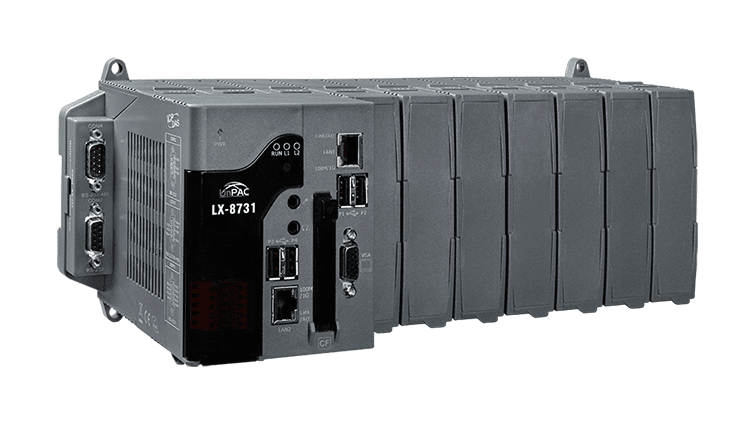

The LX-8731 CR is a Linux-based programmable automation controller that brings computing, I/O and an operator display into a single housing. Its 1.0 GHz x86 dual-core processor runs Linux kernel 3.2, so it suits engineers who want standard Linux tools and services alongside direct I/O control on one platform.Seven expansion slots accept I-8KW and I-87KW series I/O modules, and remote I/O can be added through Ethernet and RS-485 I/O modules. Serial connectivity includes isolated RS-232, RS-485 and RS-232/485 ports, with two 10/100/1000 Base-TX Ethernet ports for network integration. Programs can be stored on a CF card or USB mass storage device.The unit is designed for -25 ~ +75 °C operation and has a redundant power input with an alarm relay, dual watchdog timers and a 64-bit hardware serial number for software copy protection. Applications can be developed with the LinPAC SDK using GNU C.ApplicationsCombined HMI, data acquisition and control in a single PACLocal I/O expansion with I-8KW and I-87KW modulesRemote I/O expansion via Ethernet and RS-485 I/O modulesStandalone programs stored on CF card or USB storageCustom LinPAC I/O applications developed in GNU C

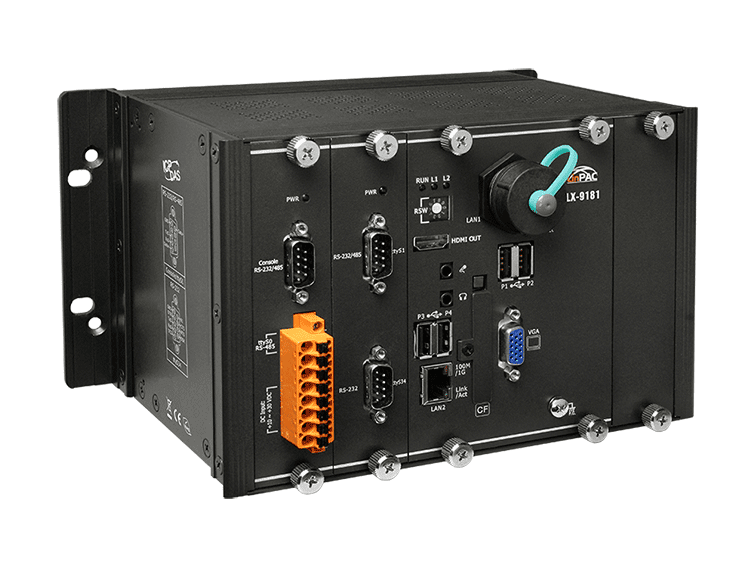

The LX-9181 CR is a 1-slot Linux-based PAC that brings controller logic, local I/O and an operator display into a single DIN-rail or wall-mounted unit. Its E3845 (1.91 GHz, quad core) processor and 4 GB DDR3 SDRAM suit engineers who need to run custom Linux applications alongside HMI and data acquisition tasks.Connectivity centres on two 10/100/1000 Base-TX Ethernet ports, four USB 2.0 host ports and a set of isolated serial interfaces: one RS-232, one RS-485, and two combined RS-232/485 ports, one of which is the console. Dual VGA and HDMI outputs support local display. A single slot accepts I-9K or I-97K series I/O modules, and remote expansion is possible with Ethernet and RS-485 I/O modules.The unit includes a dual watchdog timer, a real-time clock, MRAM and EEPROM non-volatile memory, and a 32 GB mSATA SSD with a CF card slot for user programs and data. Redundant power inputs with an alarm relay are fitted, and the LinPAC SDK with GCC-based toolchain supports application development in GNU C.ApplicationsCombined HMI, data acquisition and control in a single PACLocal expansion with I-9K and I-97K series I/O modulesRemote I/O expansion over Ethernet and RS-485Serial device communication over RS-232 and RS-485 ports

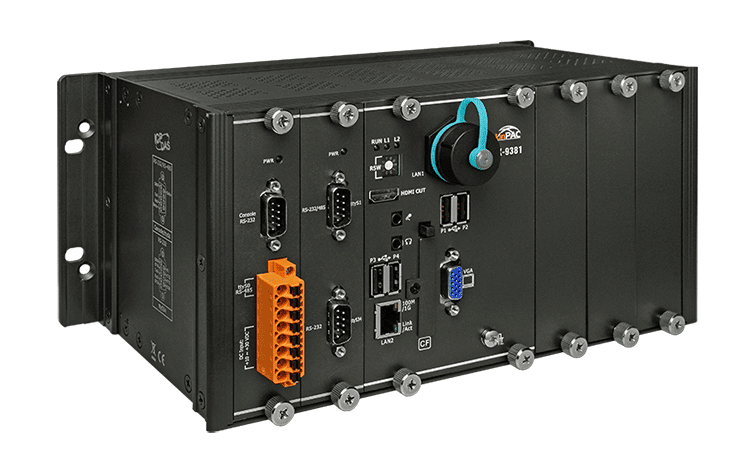

The LX-9381 CR combines computing, I/O and operator interface in one metal-cased unit. Its Intel E3845 quad-core processor, Linux kernel 4.14.12 and three I/O expansion slots make it suited to projects where HMI, data acquisition and control must run on the same controller.Three local slots accept ICP DAS I-9K and I-97K series I/O modules, and remote expansion is possible through Ethernet I/O and RS-485 I/O modules. Application programs can be stored on a CF card or USB mass storage device, and the LinPAC SDK with its GCC-based toolchain supports development of LinPAC I/O applications in GNU C.Built-in services include a web server, FTP and SFTP, Telnet and SSH, supporting remote configuration and maintenance. A 64-bit hardware serial number is available for software copy protection, and a dual watchdog timer and redundant power input add to system robustness.ApplicationsIntegrating HMI, data acquisition and control in a single PACLocal and remote I/O expansion for automation systemsSoftware-protected Linux-based LinPAC applications

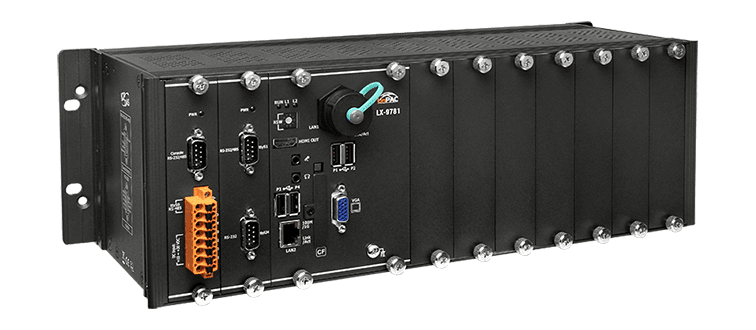

The LX-9781 CR combines computing, I/O and operator interface in one metal-cased unit. Its E3845 (1.91 GHz) CPU runs Linux kernel 4.14.12, so an engineer can host HMI, data acquisition and control logic in a single PAC rather than splitting them across separate devices.Seven local slots accept I-9K and I-97K series I/O modules. Remote expansion is possible through the Ethernet and RS-485 I/O modules listed in the ICP DAS range, and the unit offers VGA and HDMI dual display, USB host ports and isolated RS-232 and RS-485 serial ports.Built-in web, FTP, Telnet and SSH servers help with remote administration, and a LinPAC SDK supports application development in GNU C. Redundant power input with an alarm relay, dual watchdog timers and a 64-bit hardware serial number complete the feature set.ApplicationsHMI integration with local control and data loggingData acquisition and control with local or remote I/O expansionLinux-based automation projects developed with the LinPAC SDKIndustrial control panels mounted on DIN-rail or wall
