uPAC-7186/I-7188

Serial PAC with 80188-40 CPU, MiniOS7 and 256KB SRAM (Blue Cover).

Serial PAC with 80188-40 CPU, MiniOS7, 256KB SRAM and 7-Segment LED Display (Blue Cover).

The I-7188EA CR is a compact programmable automation controller that combines an Ethernet port, a serial RS-232/RS-485 pair and built-in digital I/O in one DIN-rail unit. It runs the built-in MiniOS7 operating system and is programmed in C, which suits engineers who want local control logic without a separate PLC.Built-in digital I/O comprises 6 digital inputs, which accept dry or wet contacts, and 7 open-collector outputs rated at 100 mA and up to +30 VDC. The Ethernet port is 10BASE-T, and the 512 KB Flash, 2 KB EEPROM and 512 KB SRAM provide storage for application code and data.Vendor Modbus libraries and the XServer tool kit are supplied to bridge serial devices onto Ethernet. The source names Indusoft, DasyLab and iFix among SCADA packages the unit can communicate with over the standard Modbus protocol. This Blue Cover ordering variant is RoHS compliant.ApplicationsIntegrating serial devices into Ethernet/Internet networksModbus communication with SCADA softwareLocal digital I/O control and monitoring in industrial automation

I-7188EAD CR is a compact programmable automation controller for bridging serial devices onto Ethernet. It combines an 80188-40 CPU running the built-in MiniOS7 with 6 digital inputs, 7 open-collector outputs, a 10BASE-T Ethernet port and both RS-232 and RS-485 serial interfaces in a DIN-rail housing.Engineers can develop custom logic in C using the supplied software development tool kits. Serial devices can be integrated into Ethernet and internet networks, and the controller can communicate with SCADA packages over the standard Modbus protocol, using the XServer and Modbus libraries provided.The blue cover version (CR suffix) is the RoHS-compliant variant of the I-7188EAD, with a 5-digit 7-segment LED display for local status indication and a built-in watchdog timer to support unattended operation.ApplicationsIntegrating serial RS-232/RS-485 devices into Ethernet and internet networksModbus-based communication with SCADA softwareLocal digital input monitoring and open-collector output switchingCustom control logic programmed in C on a compact controller

I-7188EX CR is a compact programmable automation controller built around an 80188-40 CPU and the MiniOS7 operating system. It combines a 10BASE-T Ethernet port with RS-232 and RS-485 serial interfaces, so it can bridge serial field devices onto an Ethernet network and act as a Modbus-based link to SCADA software.Application development uses the C language toolkit supplied with MiniOS7, including Modbus libraries. The unit provides 512 KB of flash, 512 KB of SRAM and 2 KB of EEPROM, a real-time clock, a watchdog timer and a 64-bit hardware serial number for device identification.Hardware can be extended through a single I/O expansion bus, which accepts one X-board. The source documentation references more than 50 compatible boards offering analogue, digital and serial functions. The blue-cover CR ordering code is the standard variant offered here.ApplicationsIntegrating serial devices into Ethernet and Internet networksModbus communication with SCADA systemsStand-alone programmable control with local I/O expansion

The I-7188EXD CR is a palm-size programmable automation controller for engineers who need Ethernet connectivity alongside serial communication. It runs the built-in MiniOS7 operating system and is programmed in C using the manufacturer's software development toolkit.Serial devices on the RS-232 or RS-485 ports can be brought onto Ethernet and the Internet, and the standard Modbus protocol allows communication with SCADA packages. The single I/O expansion bus accepts one X-board, so analogue, digital or serial functions can be added to suit the application.This ordering code is the blue-cover version, with a 5-digit 7-segment LED display, a system status LED, a 64-bit hardware serial number, a real-time clock, a watchdog timer and a DIN-rail mounting housing.ApplicationsIntegrating serial devices into Ethernet and Internet communicationModbus communication with SCADA softwareProgrammable control with expandable I/O via the X-board bus

The I-7188XAD CR is a compact serial PAC built around an 80188-40 CPU and the MiniOS7 operating system, programmed in C. It suits palm-size embedded controllers where a PC or PLC would otherwise be used, particularly in harsh environments that demand reliable operation.On board you get two RS-232 ports, one RS-485 port and one RS-232/RS-485 combo port, along with 2 dry contact digital inputs and 2 open-collector digital outputs rated at +30 VDC max. and 100 mA. An X-board I/O expansion bus lets you add further I/O to match the application.Storage includes 512 KB flash, 512 KB SRAM and 2 KB EEPROM, and the unit adds a 64-bit hardware serial number, a real-time clock, a watchdog timer and a 5-digit 7-segment LED display. It is a practical processor core for OEM products, with a DIN-rail mounting option and an operating range of -25 ~ +75 °C.ApplicationsEmbedded control in harsh environmentsReplacing PC or PLC devices in compact controller rolesProcessor core component for OEM productsPalm-size embedded systems requiring high reliability

The I-7188XB-512 is a palm-size serial programmable automation controller for embedded control in harsh industrial environments. It suits designs where a PC or PLC would be too large, too costly or too demanding, and it runs the built-in MiniOS7 real-time operating system with programs written in C.Built around an 80188 CPU running at 40 MHz, the controller provides 512 KB of flash and 512 KB of SRAM, plus 2 KB of EEPROM and 31 bytes of NVRAM for retained data. A real-time clock, a watchdog timer and a 64-bit hardware serial number support reliable, traceable operation. The I/O expansion bus accepts X-board modules for extending the I/O.This ordering code is the blue-cover variant (CR suffix). Its built-in I/O comprises one dry contact input and one open-collector output rated up to +30 VDC and 100 mA. Communication is handled by one RS-485 port and one RS-232/RS-485 port at up to 115200 bps. The unit is DIN-rail mounted, powered from +10 to 30 VDC and rated for -25 to +75 °C operation.ApplicationsReplacing PC or PLC devices in harsh industrial environmentsPalm-size embedded control systemsOEM products using the controller as a processor core component

The I-7188XBD-512 CR is a serial programmable automation controller for embedded control tasks where a PC or PLC would be too large, too costly or not robust enough. It runs the MiniOS7 operating system on an 80188-40 CPU and is programmed in C, which suits engineers who want to build firmware around a small, dedicated controller.On board you get 512 KB flash, 512 KB SRAM, 2 KB EEPROM and 31 bytes of NVRAM, plus one RS-485 port and one port selectable between RS-232 and RS-485 for serial communication at up to 115200 bps. A dry-contact digital input, an open-collector digital output rated at 100 mA, a five-digit 7-segment LED display and a programmable status LED provide local I/O and feedback. The X-board expansion bus allows additional I/O to be added.The CR ordering code is the blue-cover version. Built-in watchdog timer, real-time clock and 64-bit hardware serial number support reliable operation and unit identification, and the controller is rated for -25 ~ +75 °C operation on DIN-rail mounting.ApplicationsIndustrial control in harsh environmentsReplacement of PC or PLC devices in embedded systemsOEM products using the controller as a processor core component

I-7188XC-512 is a compact programmable automation controller for engineers who need a PC or PLC style controller in a small, DIN-rail mounted package for harsh industrial settings. It runs the MiniOS7 operating system and is programmed in C.Built-in digital I/O, comprising 2 dry contact inputs and 3 open-collector outputs, together with two serial ports and an I/O expansion bus, lets you tailor the controller to your application. A programmable system LED and a built-in watchdog timer support dependable operation. The blue cover identifies this ordering variant.Because the controller can be built into an OEM product as a processor core, it suits designs where time to market, development cost and technical risk need to be kept under control. Listed certifications are CE, UKCA, FCC, RoHS and WEEE.ApplicationsReplacing PC or PLC devices in harsh environmentsPalm-size embedded control systemsOEM processor core for integrated products

Ethernet PAC with 80188-20 CPU, MiniOS7, 512KB SRAM, RTC, 2 Serial Ports, 2 DI, 3 DO and 1 I/O Bus and 7-Segment LED Display (Gray Cover).

I-7188XCD-512 is a serial programmable automation controller built around an 80188-20 CPU running the MiniOS7 operating system. It suits engineers who need a compact, DIN-rail mounted controller that can take over tasks from a PC or PLC in demanding industrial environments, and it is programmed in C.On board you get 512 KB Flash, 128 KB SRAM and 2 KB EEPROM, together with one RS-485 port and one RS-232/RS-485 port running at up to 115200 bps. Two dry contact inputs and three open-collector outputs (+30 VDC max., 100 mA) handle simple switching tasks, while the X-board I/O expansion bus allows additional I/O to be added. A 5-digit 7-segment LED display, a programmable status LED and a watchdog timer support local indication and system reliability.This ordering code is the blue-cover version of the I-7188XCD-512 controller. It operates from +10 ~ 30 VDC and is rated for -25 ~ +75 °C, making it suitable for OEM integration and cabinet-based installations where a small, serial-focused controller is required.ApplicationsReplacing PC or PLC devices in harsh industrial environmentsEmbedded control in OEM equipmentSerial communication and local digital I/O in compact control panels

Ethernet PAC with 80188-20 CPU, MiniOS7, 512KB SRAM, RTC, 2 Serial Ports, 2 DI, 3 DO and 1 I/O Bus (Blue Cover).

The uPAC-7186EX-FD-G is a compact programmable automation controller that brings serial devices onto Ethernet. Its RS-232 and RS-485 ports, combined with a 10/100 Base-TX Ethernet interface, let engineers connect legacy serial equipment to a network and expose it to supervisory software.Application software is built in C using the MiniOS7 framework and the supplied development tool kits, including Modbus libraries. The controller offers 512 KB of Flash, 16 KB of EEPROM and 64 MB of NAND Flash for storage, along with a real-time clock and a hardware watchdog timer for unattended operation.The -G suffix identifies the grey cover version. An I/O expansion bus allows one X-board to be fitted for additional analogue, digital or serial functions, with more than 50 expansion boards available for this controller.ApplicationsIntegrating serial devices into Ethernet networksStandard Modbus communication with SCADA softwareDistributed control and data acquisition at DIN-rail mounted installations

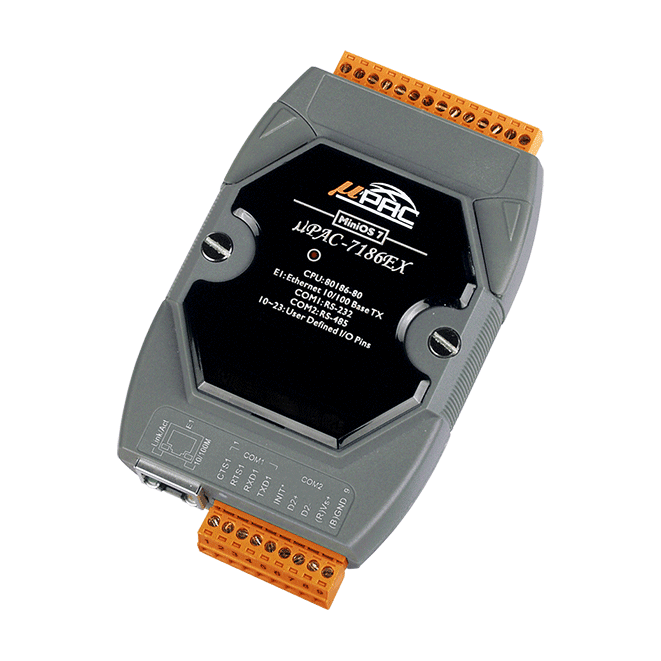

The uPAC-7186EX-G CR is a compact Ethernet PAC built around an 80186-80 CPU and the MiniOS7 real-time framework from ICP DAS. It suits engineers who need to bring standalone serial devices onto an Ethernet network without designing a custom gateway.Application code is written in C using the supplied software development tool kits, which include Modbus libraries. The controller exposes its data through the standard Modbus protocol, so SCADA packages that support Modbus can poll it directly. A single X-board can be added through the I/O expansion bus to extend the unit with analogue, digital or serial interfaces.This CR variant carries the gray cover. Its -25 ~ +75 °C operating range, DIN-rail mounting and 10 ~ 30 VDC supply make it practical for control cabinets. Refer to the specification table for memory sizes, serial baud rate and dimensions.ApplicationsIntegrating serial devices into Ethernet and Internet networksModbus communication with SCADA softwareDistributed control and data acquisition in control cabinets

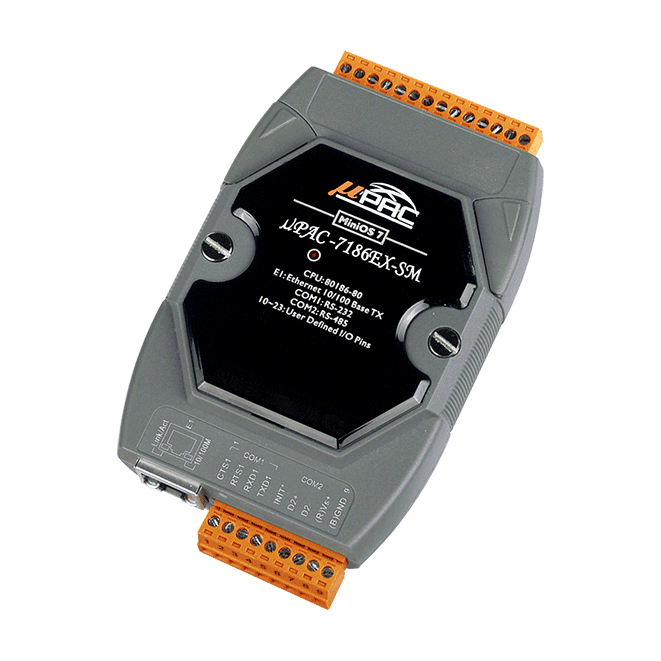

The uPAC-7186EX-SM-G is a palm-size programmable automation controller built around an 80186-80 CPU and the MiniOS7 real-time framework. It combines a 10/100 Base-TX Ethernet port with RS-232 and RS-485 serial ports, so it can act as a gateway between serial field devices and Ethernet or Internet-connected systems.Programming is done in C using the MiniOS7 software development tool kits, with Modbus libraries provided for communication. Data can be exposed to SCADA packages over standard Modbus, and an I/O expansion bus allows one X-board to add analogue, digital or serial I/O.This ordering code is the gray cover version of the uPAC-7186EX-SM. Choose it when you need the same controller hardware in a gray housing, with the RoHS-compliant build sold under this code.ApplicationsIntegrating serial devices into Ethernet and Internet communication networksModbus communication with SCADA softwareProgrammable local control with I/O expansion

uPAC-7186EXD-FD-G CR is a programmable automation controller built around an 80186-80 CPU and the MiniOS7 framework from ICP DAS. It bridges serial devices to Ethernet, letting engineers connect RS-232 and RS-485 equipment to a network with minimal development effort.The unit combines a 10/100 Base-TX Ethernet port with one RS-232 and one RS-485 port, and offers 512 KB of Flash, 16 KB of EEPROM and 64 MB of NAND Flash for program and data storage. Application code is written in C using the supplied development tool kits, and the standard Modbus protocol allows it to communicate with common SCADA packages.Hardware can be extended through the I/O expansion bus, which accepts a single X-board, selected from the more than 50 boards listed for this controller. A 5-digit 7-segment LED display, a watchdog timer and a 64-bit hardware serial number support local status indication and system reliability.ApplicationsConnecting serial devices to Ethernet and Internet networksModbus-based data exchange with SCADA systemsSerial-to-Ethernet control and data acquisition with hardware expansion via X-board

The uPAC-7186EXD-G CR is a palm-size programmable automation controller that brings serial devices onto Ethernet. Its built-in MiniOS7 framework and C language development tool kits let engineers add Ethernet and Internet communication to RS-232 or RS-485 equipment without building the networking layer themselves. This gray cover version carries the same controller hardware as the standard unit.Software support includes Modbus libraries, so connected devices can be exposed through the standard Modbus protocol to SCADA packages such as Indusoft, DasyLab, Citect and iFix. Storage comprises 512 KB of flash and 16 KB of EEPROM, and a 5-digit 7-segment LED display gives local status readout.An I/O expansion bus accepts one X-board for added analogue, digital or serial I/O. The unit is powered from +10 ~ 30 VDC, draws 2.5 W, and is designed for DIN-rail mounting over an operating range of -25 ~ +75 °C.ApplicationsConnecting serial RS-232/RS-485 devices to Ethernet networksModbus communication with SCADA and HMI softwareStandalone control and data handling in automation panelsHardware expansion through the I/O expansion bus

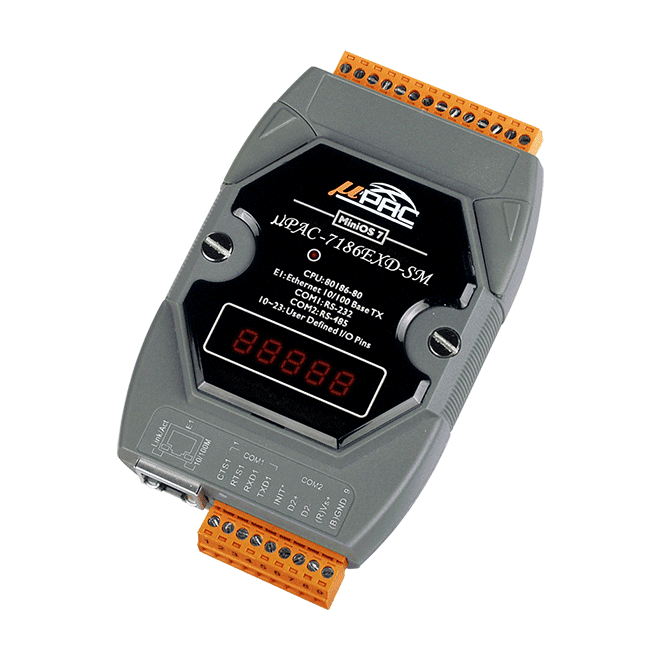

The uPAC-7186EXD-SM-G is a compact programmable automation controller for engineers who need to bring serial equipment onto Ethernet. It pairs an 80186-class CPU running at 80 MHz with the MiniOS7 framework, so application code can be written in C using ICP DAS development tools.Connectivity covers one 10/100 Base-TX Ethernet port and both RS-232 and RS-485 serial ports, with serial speeds up to 115200 bps. Standard Modbus libraries are provided, allowing the controller to be polled or read by SCADA packages such as Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect and iFix. An I/O expansion bus accepts one X-board, and more than 50 expansion boards are listed for this platform.This gray-cover variant is supplied with 512 KB flash, 16 KB EEPROM and 640 KB SRAM, plus a real-time clock, watchdog timer and 64-bit hardware serial number. It is rated for -25 to +75 °C operation and mounts on a DIN rail. Status is shown on a five-digit 7-segment LED display and system indicators.ApplicationsAdding Ethernet connectivity to existing serial devicesModbus-based data exchange with SCADA softwareDistributed local control and data acquisition on a DIN railExpanding I/O functions through a single expansion board

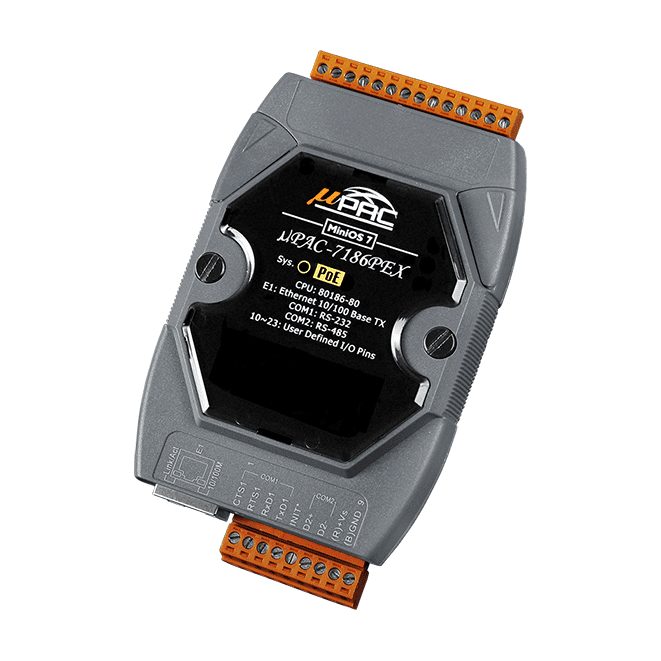

uPAC-7186PEX-G is a palm-size programmable automation controller built around an 80186-class CPU running at 80 MHz. It runs the MiniOS7 framework and can be programmed in C, making it suited to bringing serial devices onto Ethernet and Internet networks without a separate gateway.The unit provides one 10/100 Base-TX Ethernet port and one RS-232 and one RS-485 port, with serial rates up to 115200 bps. Power can be taken from the Ethernet cable under IEEE 802.3af Class 1 Power over Ethernet, using a standard Category 5 cable from a PoE switch, or supplied from a +12 to 48 VDC input. An I/O expansion bus accepts one X-board for adding analogue, digital or serial functions.This grey cover variant is intended for DIN-rail installation across an operating range of -25 to +75 °C. Built-in storage includes 512 KB flash, 512 KB SRAM and 16 KB EEPROM, and a watchdog timer and real-time clock are included.ApplicationsIntegrating serial devices into Ethernet and Internet communicationModbus communication with SCADA softwareDistributed automation and data acquisition with DIN-rail mounted control

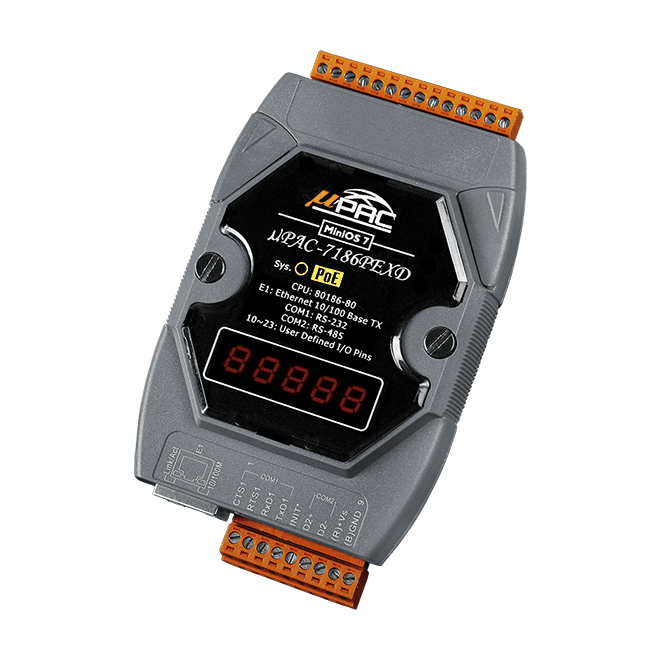

The uPAC-7186PEXD-G is a compact programmable automation controller for engineers who need to bring serial devices onto Ethernet without building a full PLC system. It pairs an 80186-compatible CPU running at 80 MHz with the built-in MiniOS7 framework, so application code written in C can run directly on the controller.Connectivity centres on one 10/100 Base-TX Ethernet port and two serial ports, RS-232 and RS-485. Two dry contact digital inputs and two open-collector digital outputs cover simple discrete signalling, and an I/O expansion bus interface allows one X-board to add further I/O functions. Power can be taken from a PoE source over a standard Category 5 cable, or from a +12 ~ 48 VDC supply.The unit includes a 5-digit 7-segment LED display, a system/PoE status LED, a real-time clock, a watchdog timer and a 64-bit hardware serial number. It is intended for DIN-rail mounting and operates from -25 ~ +75 °C.ApplicationsAdding Ethernet and Internet connectivity to serial devicesModbus communication with SCADA softwareDistributed local control with DIN-rail mounted I/O expansionRemote data collection in industrial environments with PoE power
