LX-8031 Linux PAC, 0-slot LX-8000 with x86 Dual-core CPU
Linux-based PAC with a 1.0 GHz x86 dual-core CPU, two Gigabit Ethernet ports and RS-232/RS-485 serial ports, with no local I/O expansion slots.
- x86 dual-core CPU at 1.0 GHz running Linux kernel 3.2
- Two 10/100/1000 Base-TX Ethernet ports
- Five serial ports: RS-232, RS-485 and RS-232/485, with isolated options rated 3000 VDC
- VGA output with programmable LEDs and rotary switch on the HMI
- Redundant power inputs with one power relay (1 A @ 24 VDC) for alarm
- 2 GB DDR3 SDRAM, 32 GB SSD on mSATA and CF card slot
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Már nem érhető el
Termékinformációk "LX-8031 Linux PAC, 0-slot LX-8000 with x86 Dual-core CPU"

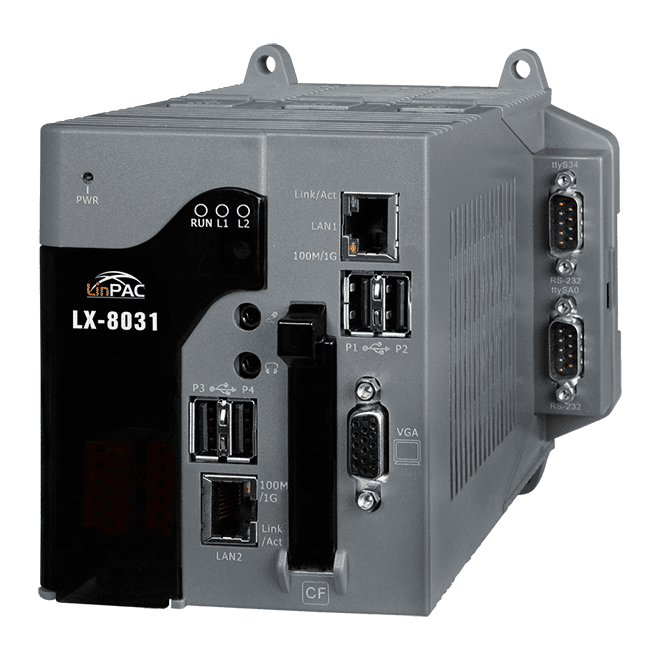

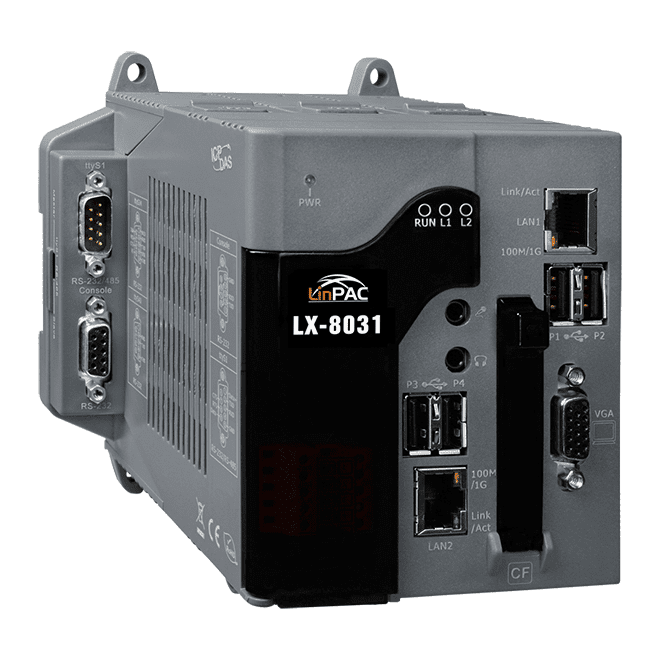

The LX-8031 CR is a 0-slot member of the LX-8000 Linux PAC series, combining a 1.0 GHz x86 dual-core processor, a VGA display output and a range of communication ports in a single DIN-rail or wall-mounted unit. It suits engineers who need an operator interface, data logging and control logic in one compact controller without local I/O modules.
Software is built on Linux kernel 3.2, with built-in web, FTP, Telnet and SSH services. The LinPAC SDK provides a GCC-based toolchain and libraries for developing applications in GNU C. Programs can be stored on a CF card or USB mass storage device.
Connectivity includes two 10/100/1000 Base-TX Ethernet ports, one non-isolated RS-232 port, three isolated serial ports and four USB 2.0 host ports. Redundant power inputs with an alarm relay are provided, and the unit is rated from -25 ~ +75 °C.
Applications
- Integrated HMI and operator interface
- Data acquisition and control
- Multi-serial device communication
- Ethernet networking and remote monitoring
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 3000 VDC (serial) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | Linux kernel 3.2 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | x86 dual-core (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | • Flash: mSATA slot with one 32 GB SSD • CF card slot |
| Non-Volatile Memory | • MRAM 512 KB • EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | 1280 × 1024 to 1920 × 1080 for 16:9 display 640 × 480 to 1024 × 768 for 4:3 display |
| LED Indicators | |
| Status | 1 x Power 1 x Run (Programmable) 2 x Programmable |
| I/O Expansion | |
| Slots | 0 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | No |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-In and Earphone-Out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Non-isolated) 1 x RS-232 (Console, 3000 VDC, Isolated) 1 x RS-232 (3000 VDC, Isolated) 1 x RS-485 (3000 VDC, Isolated) 1 x RS-232/485 (3000 VDC, Isolated) |
| USB | |
| Ports | 4 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +10 VDC ~ +30 VDC (1 kV Isolated) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 12 W (0.5 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 137 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
