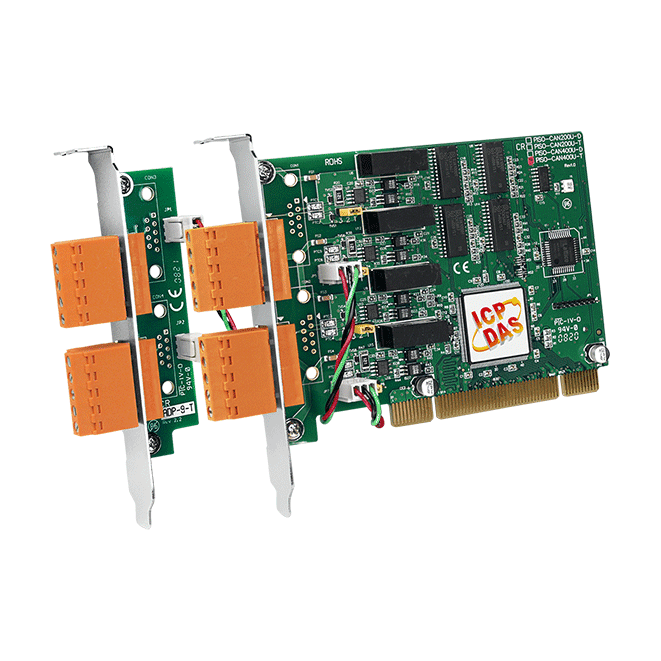

PISO-CAN400U-T 4-Port Isolated CAN 2.0 Universal PCI Card
Four-port isolated CAN 2.0A/2.0B universal PCI card with 2500 Vrms photo-couple isolation and programmable rates up to 1 Mbps, for 3.3 V and 5 V PCI slots.
- Four independent CAN 2.0A/2.0B ports, each with a 5-pin screw terminal connector
- On-board optical isolation with 2500 Vrms photo-couple isolation on the CAN bus
- Programmable transfer rate from 10 kbps to 1 Mbps
- Jumper-selectable 120 Ω terminal resistor for each port
- NXP SJA1000T controller with direct memory mapping
- Universal PCI card for 3.3 V and 5 V slots, 33 MHz 32-bit PCI bus, plug and play
€558.00 per piece
| 1-9 pcs | €558.00 | |
|---|---|---|
| 10-30 pcs | €530.00 | −5 % |
| 31+ pcs | €502.00 | −10 % |
Product information "PISO-CAN400U-T 4-Port Isolated CAN 2.0 Universal PCI Card"
PISO-CAN400U-T is a four-port CAN bus interface card for PCs that need several independent CAN networks on one host. Each port supports CAN 2.0A and 2.0B and runs at a programmable rate up to 1 Mbps, so one card can serve multiple buses with different timing requirements.
Each CAN port is optically isolated, with 2500 Vrms photo-couple isolation on the bus and 3000 VDC DC-to-DC isolation, which helps protect the host PC from faults on the field side. A jumper selects the 120 Ω terminal resistor independently for each port, and the card has been verified to drive 100 CAN nodes simultaneously.
The card is built around an NXP SJA1000T CAN controller with a 16 MHz clock and 82C250/251 transceivers, with direct memory mapping to the controllers. It is a universal PCI card that works in both 3.3 V and 5 V PCI slots, and it is plug and play. Drivers are provided for Windows and Linux, along with support for LabVIEW, DASYLab and InduSoft, plus SDKs for several development environments.
Applications
- Logistics management systems
- Control and monitoring across various industries
| Product type: | CAN interface card |
|---|---|
| Interface: | PCI |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 4 |
| Isolation: | 2500 Vrms (photo-couple) |
| Operating temperature: | 0 ~ +60 °C |
Specifications
| Software | |
|---|---|
| Driver | Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 5.4.0, LabView, DASYLab, InduSoft |
| SDK | VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C#.Net, VB.Net |
| PC Bus | |
| Type | Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play |
| CAN | |
| Controller | NXP SJA1000T with 16 MHz clock |
| Ports | 4 |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Power | |
| Consumption | 300 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 126 x 85 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
