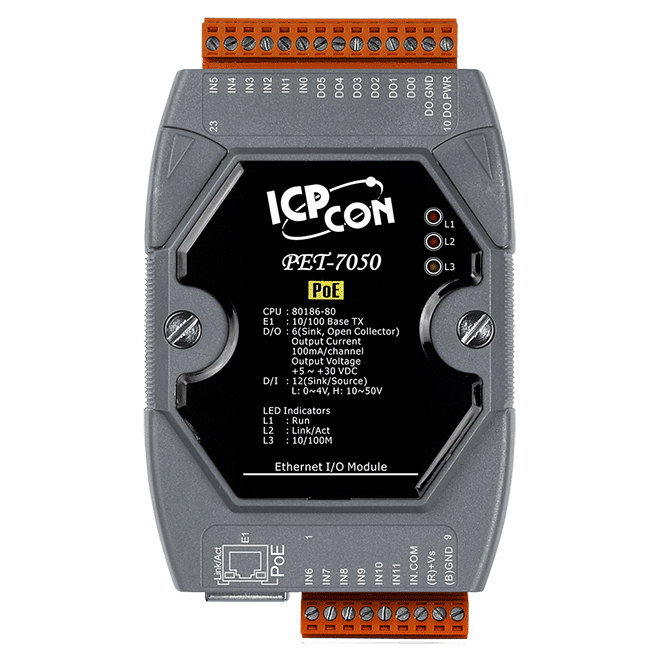

PET-7050 PoE Ethernet I/O Module, 12-ch DI and 6-ch DO

ET-7050 CR is an Ethernet I/O module from the ET-7000 series that combines 12 digital input channels with 6 digital output channels in a single DIN-rail unit. Each digital input can be used as a 32-bit counter, so the module suits pulse counting and status monitoring tasks alongside on/off control.The module supports Modbus TCP and Modbus UDP over a single 10/100 Base-TX RJ-45 port, allowing it to be integrated with HMI, SCADA, PLC and other industrial control software. A built-in web server and web HMI provide browser-based monitoring and control, and a dual watchdog with programmable module and communication timers supports fault handling.Its digital outputs are isolated open-collector sink types, and the module offers 2-way isolation rated at 1500 VDC for Ethernet and 2500 VDC for I/O. Certifications listed for the product include CE, UKCA, FCC, RoHS and WEEE.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

The ET-7250A is an Ethernet I/O module from the ET-7000/ET-7200 series that brings 12 digital inputs and 6 digital outputs onto a Modbus TCP/UDP network. Its built-in web server and Web HMI allow the I/O to be monitored and controlled from a browser, and the module can be read or driven by HMI, SCADA and PLC software over Ethernet.Each digital input accepts either dry or wet contact signals and can be configured as a 32-bit counter, with a maximum count of 4,294,967,295 and a frequency of 100 Hz. The six outputs are isolated open-collector, sink-type channels rated for 500 mA per channel, with programmable power-on and safe values.Two RJ-45 switch ports with LAN bypass allow the module to be daisy-chained along the Ethernet line without an external switch. Isolation is rated at 1500 VDC on Ethernet and 2500 VDC on I/O. The unit is powered from +12 ~ +48 VDC and is designed for DIN-rail mounting with an operating range of -25 ~ +75 °C.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote DiagnosisTesting Equipment

The PET-7250A is a networked I/O module from the ET-7000/ET-7200 range, designed to be controlled remotely over Ethernet using Modbus TCP or Modbus UDP. It suits engineers integrating field signals into HMI, SCADA, PLC or other industrial control software, with a built-in web server and web HMI for direct monitoring and control.Each of the 12 digital inputs accepts either dry or wet contact and can be configured as a 32-bit counter. The 6 isolated open-collector outputs are sink-type, rated at 500 mA per channel. Power can come from IEEE 802.3af Class 1 PoE or from a +12 ~ +48 VDC terminal block.Two built-in 10/100 Base-TX switch ports with LAN bypass allow daisy-chaining without an external switch. Ordering code PET-7250A CR is supplied as the PoE I/O Module with 2-port Ethernet Switch, 12-ch DI, 6-ch DO (RoHS) listed in the shop.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment

PET-7051 CR is a PoE-powered Ethernet I/O module that monitors 16 wet contact digital inputs. Each input can also be configured as a 32-bit counter, which suits pulse counting and event logging on machines and building services.The module supports both Modbus TCP and Modbus UDP, and includes a built-in web server with web HMI for configuration and status viewing. Its I/O is isolated at 2500 VDC, and the inputs tolerate up to 70 VDC overvoltage. Channels are not isolated from each other, so the module suits applications where the input circuits share a common reference.Communication security features include ID, password and IP filter access control, plus a dual watchdog and programmable communication watchdog. The module is designed for DIN-rail mounting and operates from -25 ~ +75 °C.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosisTesting equipment
