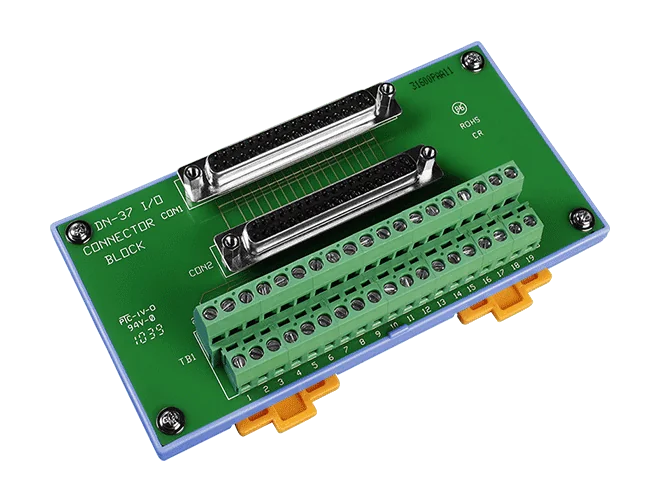

DN-37/N Female DB37 to Screw Terminal Board, 5.08 mm Pitch
Female DB37 to dual 19-pin screw terminal breakout board at 5.08 mm pitch for DAQ wiring, supplied with a CA-3710 DB37 male-to-male cable.
- Two 37-pin D-sub female connectors, one of which is provided for expansion
- Two 19-pin screw terminal blocks at 5.08 mm pitch for field wiring
- Rated 1 A maximum current and 50 V DC maximum
- Dielectric withstanding voltage of 250 VAC for 1 minute
- Includes CA-3710 DB37 male-to-male cable, 45º, 1 m
- Board size 144 mm x 72 mm, operating range 0 ~ 60°C
€76.00 per piece
| 1-9 pcs | €76.00 | |
|---|---|---|
| 10-30 pcs | €73.00 | −4 % |
| 31+ pcs | €69.00 | −9 % |
Product information "DN-37/N Female DB37 to Screw Terminal Board, 5.08 mm Pitch"
DN-37/N CR breaks out two 37-pin D-sub connectors onto 19-pin screw terminal blocks at 5.08 mm pitch, giving engineers a practical way to wire field signals to a DAQ daughter board without building a custom harness. The board carries two DB37 female connectors, so one can be used for expansion while the other serves the primary connection.
Electrical ratings listed for the DN-37 series are a current rating of 1 A maximum, a DC rating of 50 V maximum and a dielectric withstanding voltage of 250 VAC for one minute. The board measures 144 mm x 72 mm and is rated for an operating temperature of 0 ~ 60°C, with storage from -20 ~ 70°C and 5% ~ 90% RH non-condensing humidity.
This code is supplied with a CA-3710 cable (DB37 Male to Male, 45º, 1M) so the board can be connected to a compatible DAQ module straight out of the box. Note that the DIN-rail mounting noted for the DN-37 series is not part of the DN-37/N CR description, so check the mechanical details before specifying it for a rail-mounted cabinet.
Applications
- Wiring field signals to DB37-based DAQ daughter boards
- Interconnecting data acquisition hardware with screw terminal connections
| Product type: | DAQ daughter board |
|---|---|
| Interface: | DB37 (D-sub 37-pin) |
| Ports: | 2 |
| Operating temperature: | 0 ~ 60 °C |
Specifications
| Mechanical | |
|---|---|
| Dimensions (mm) | 144 mm x 72 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
