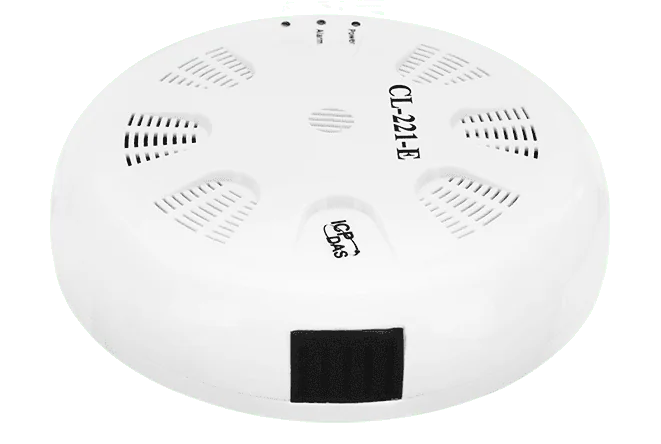

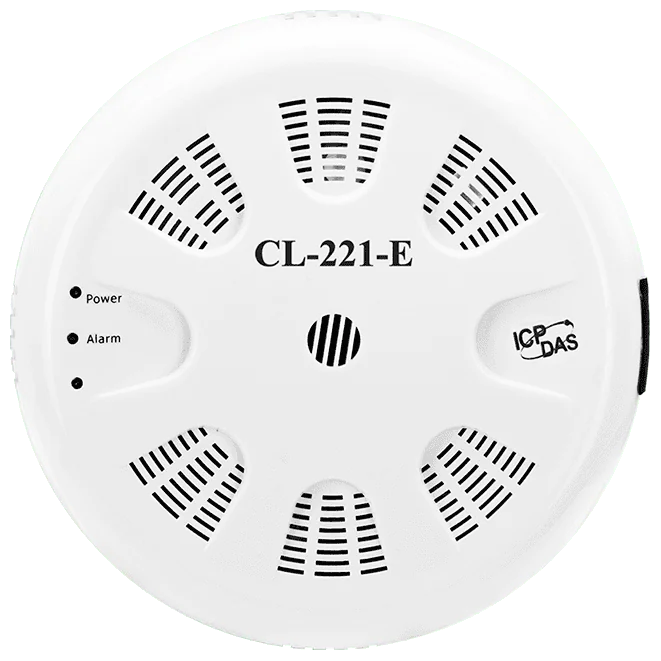

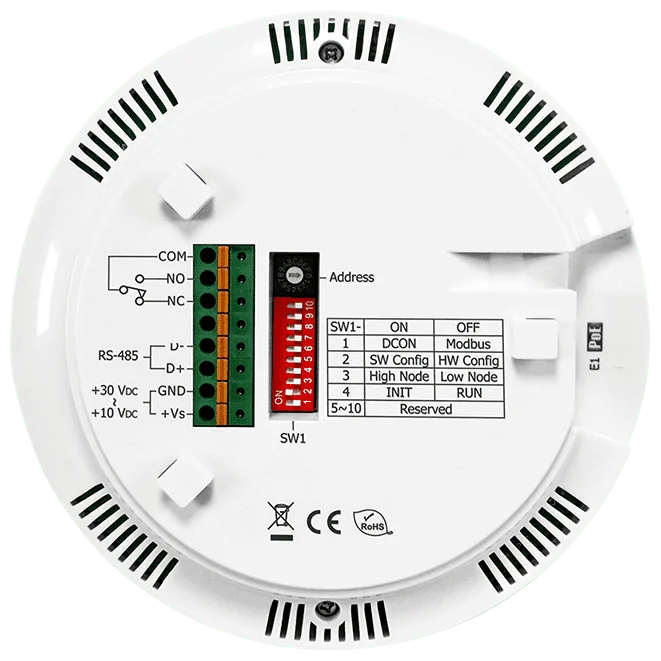

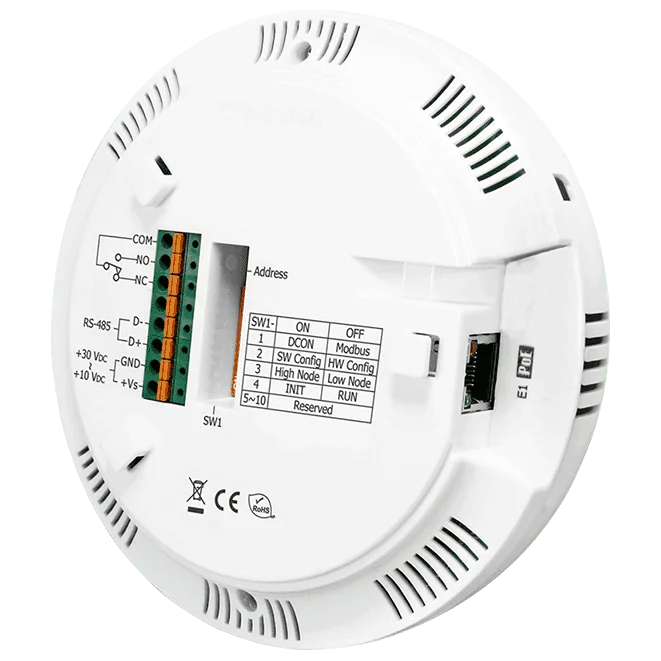

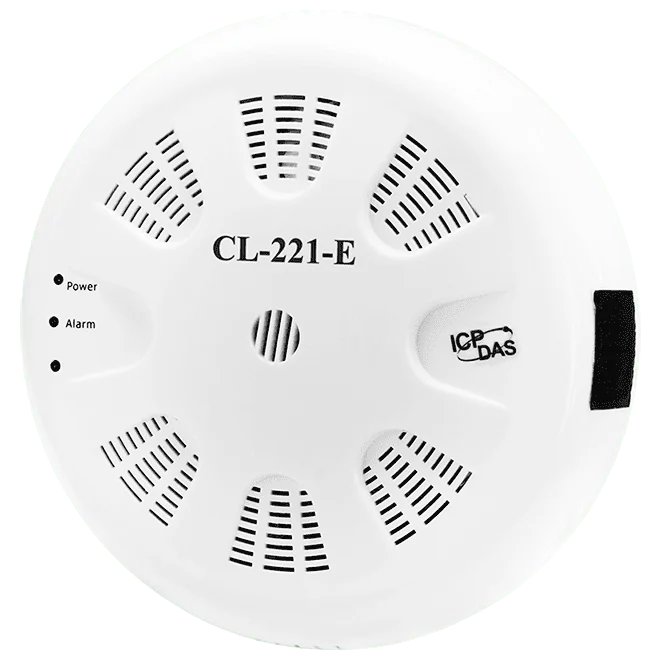

CL-221-E Air Quality Data Logger Module, PM/CO/Temperature/Humidity
RS-485 and Ethernet/PoE data logger module that records PM1/PM2.5/PM10, CO, temperature, humidity and dew point, storing up to 450,000 time-stamped records.
- Records PM1/PM2.5/PM10, CO, temperature, humidity and dew point
- Stores up to 450,000 time-stamped records for download
- Supports DCON, Modbus RTU, Modbus TCP and MQTT
- RS-485 and Ethernet interfaces with PoE, or +12 ~ +48 VDC terminal power
- Relay output (1 x Form A, SPST) for alarm or IAQ device control
- Web-based configuration; software utility, iOS and Android apps included
€548.00 per piece
| 1-9 pcs | €548.00 | |
|---|---|---|
| 10-30 pcs | €520.00 | −5 % |
| 31+ pcs | €493.00 | −10 % |
Product information "CL-221-E Air Quality Data Logger Module, PM/CO/Temperature/Humidity"
The CL-221-E is a data logger module for monitoring indoor air quality and climate. It measures PM1, PM2.5 and PM10 particulates, carbon monoxide, temperature and relative humidity, calculates the dew point, and stamps every record with date and time for later download.
Readings can be polled over RS-485 or Ethernet, with PoE available, using DCON, Modbus RTU, Modbus TCP or MQTT. That makes it straightforward to feed an existing HMI, SCADA or distributed control system, or to publish data to an IoT platform. A relay output can drive an alarm or an indoor air quality (IAQ) device when set limits are reached.
Configuration is done through a web-based interface, and a software utility plus iOS and Android apps are included for setup and monitoring. The module is intended for ceiling or wall mounting in dry indoor locations, with an operating range of 0 ~ 50°C.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations and pharmacies
- Building and energy management
- Warehouse management
- Museums, archives and galleries
- Indoor or underground parking lot air quality monitoring
| Product type: | Data logger module |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 1 x RS-485, 1 x Ethernet |
| PoE: | Yes |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ 50 °C |
| Mounting: | Ceiling/Wall |
Specifications
| System | |
|---|---|
| Alarm | PM1/PM2.5/PM10/CO/RH/Temperature |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Life Time | 10 years |
| Humidity Measurement | |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| Life Time | 10 years |
| Dew Point | |
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
| Range | 0 to 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 5 minutes |
| Life Time | 5 years |
| PM1/PM2.5/PM10 Measurement | |
| Range | 0 to 1,000μg/m3 ( Laser Type) |
| Resolution | 1μg/m3 |
| Accuracy | ± 10% of FSR. |
| Response Time | 1 seconds |
| Warm-up Time | 20 seconds |
| Life Time | 5 years, Customer has to replace the filter patch. |
| Particle | |
| Sizes | 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm |
| Relay Output | |
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet |
| Protocol | DCON and Modbus/RTU (RS-485) Modbus TCP and MQTT (Ethernet) |
| Power | |
| Consumption | Non-PoE: 2.5 W (Max.) PoE: 2.7 W (Max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
