I-7188EXD Ethernet PAC with MiniOS7, 80188-40 CPU and I/O Expansion Bus
Palm-size Ethernet programmable automation controller with MiniOS7, a 40 MHz 80188-40 CPU, RS-232 and RS-485 ports and an I/O expansion bus. Blue cover variant.
- Built-in MiniOS7 with C-language software development toolkit
- 80188-40 CPU at 40 MHz with 512 KB Flash, 512 KB SRAM and 2 KB EEPROM
- 10BASE-T NE2000-compatible Ethernet via RJ-45
- One RS-232 and one RS-485 serial port, up to 115200 bps
- I/O expansion bus supporting one X-board
- 5-digit 7-segment LED display and system status LED
295,00 EUR per piece
| 1–9 pcs | 295,00 EUR | |
|---|---|---|
| 10–30 pcs | 286,00 EUR | −3 % |
| 31+ pcs | 280,00 EUR | −5 % |
Termékinformációk "I-7188EXD Ethernet PAC with MiniOS7, 80188-40 CPU and I/O Expansion Bus"
The I-7188EXD CR is a palm-size programmable automation controller for engineers who need Ethernet connectivity alongside serial communication. It runs the built-in MiniOS7 operating system and is programmed in C using the manufacturer's software development toolkit.
Serial devices on the RS-232 or RS-485 ports can be brought onto Ethernet and the Internet, and the standard Modbus protocol allows communication with SCADA packages. The single I/O expansion bus accepts one X-board, so analogue, digital or serial functions can be added to suit the application.

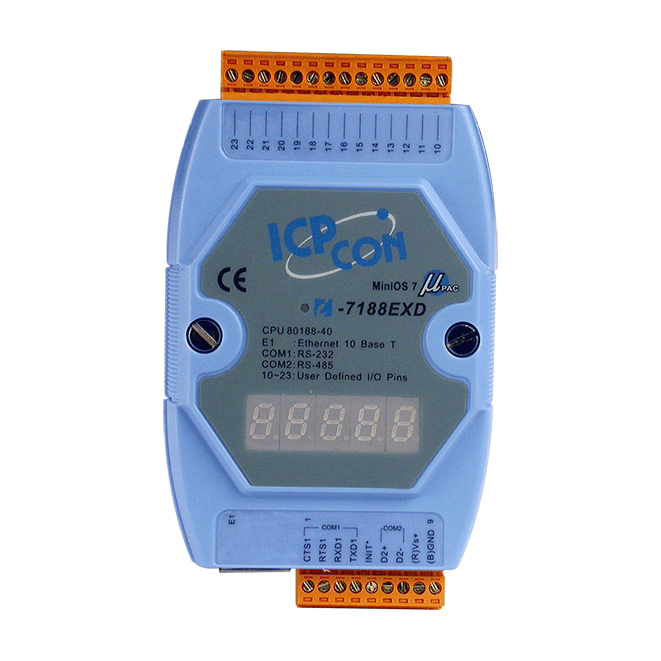

This ordering code is the blue-cover version, with a 5-digit 7-segment LED display, a system status LED, a 64-bit hardware serial number, a real-time clock, a watchdog timer and a DIN-rail mounting housing.
Applications
- Integrating serial devices into Ethernet and Internet communication
- Modbus communication with SCADA software
- Programmable control with expandable I/O via the X-board bus
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Ports: | RJ-45, RS-232, RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Palm-size |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| I/O Expansion | |
| I/O Type | X-board |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
