tPET-P2C2 PoE Ethernet I/O Module, 2-ch DI / 2-ch DO Sink
Compact PoE Ethernet I/O module with 2 wet-contact digital inputs and 2 open-collector outputs, supporting Modbus TCP/UDP and MQTT, for DIN-rail installation.
- Dual power inputs: PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC terminal block
- 2 wet-contact digital inputs with latched DI, 32-bit counters and frequency measurement (3.5 kHz without filter)
- 2 open-collector digital outputs (sink, NPN) rated 100 mA per channel, with power-on and safe values
- Modbus TCP, Modbus UDP and MQTT protocol support
- I/O pair connection (push and pull) between modules over Ethernet
- Dual watchdog: CPU watchdog and host watchdog
106,00 € per piece
| 1–9 pcs | 106,00 € | |
|---|---|---|
| 10–30 pcs | 102,00 € | −4 % |
| 31+ pcs | 100,00 € | −6 % |
Toote teave "tPET-P2C2 PoE Ethernet I/O Module, 2-ch DI / 2-ch DO Sink"

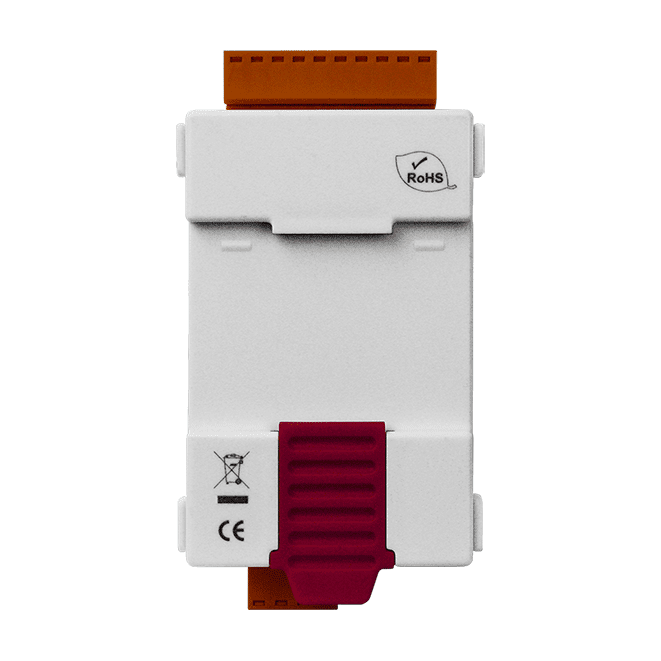

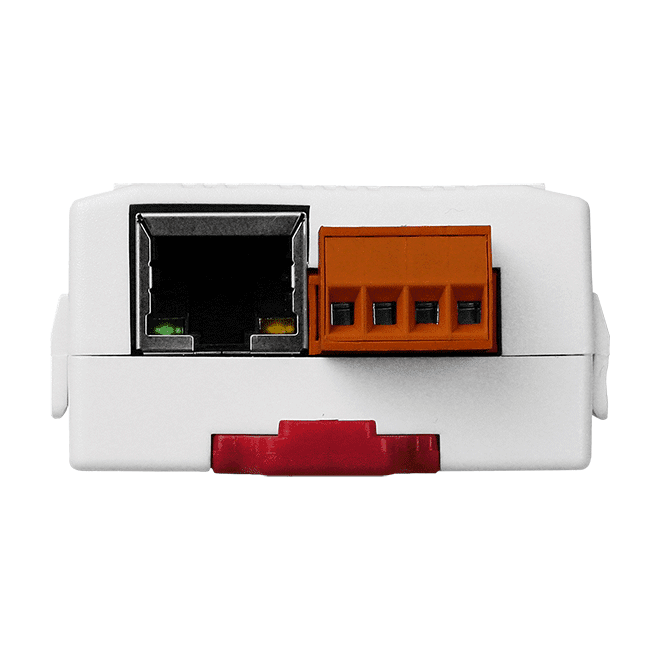

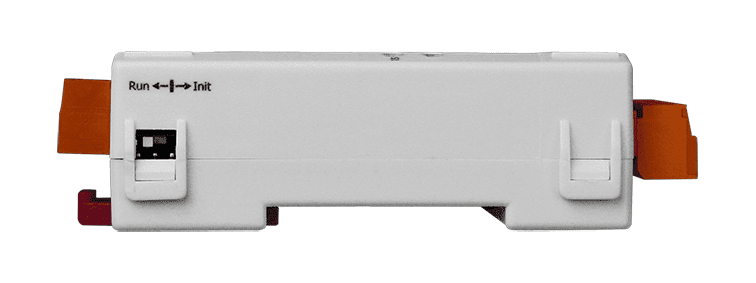

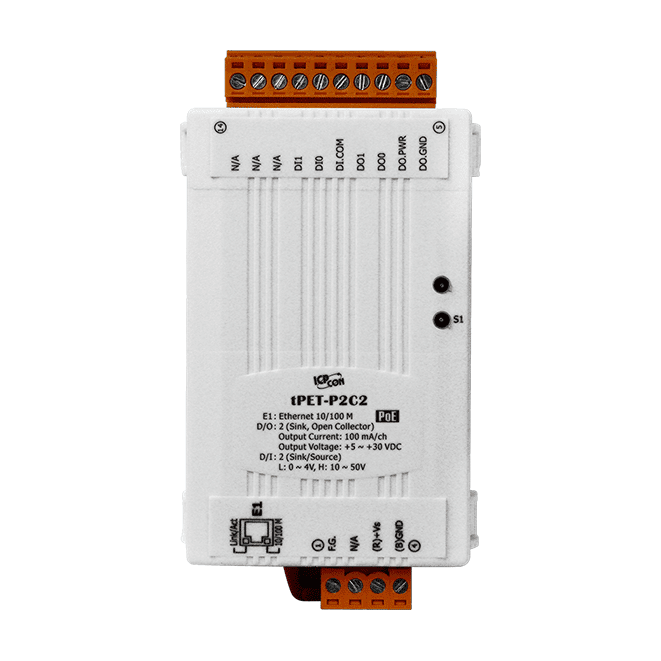

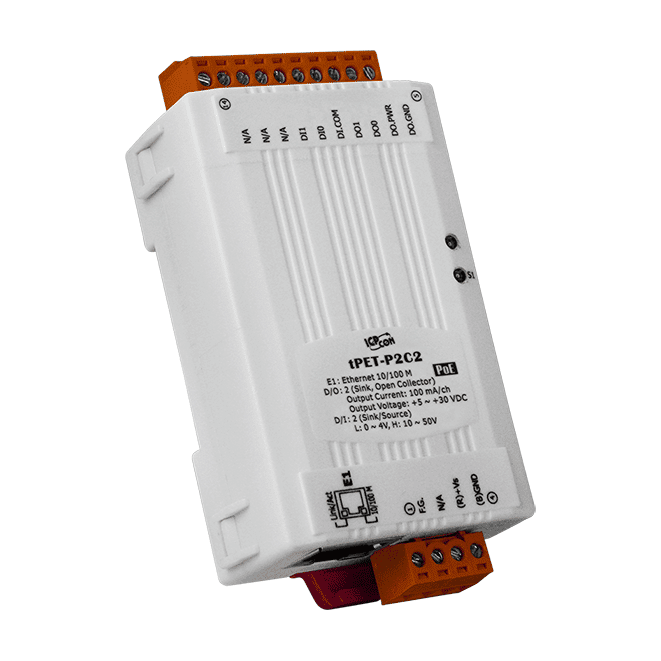

tPET-P2C2 CR is a tiny Ethernet I/O module that monitors two digital inputs and switches two open-collector outputs over a 10/100 Mbit/s network. Its Modbus TCP and Modbus UDP support allows straightforward integration with HMI, SCADA, PLC and other software systems, while MQTT is available for messaging-based architectures.
The module is powered either from a PoE switch under IEEE 802.3af (Class 1) or from a +12 to +48 VDC terminal block supply, so it can run on a standard Cat 5 cable where a PoE switch is present and fall back to a DC adapter where it is not. Two removable terminal blocks simplify wiring, and the small 52 x 95 x 27 mm housing suits DIN-rail installation in tight control cabinets.
Digital inputs offer latched DI, 32-bit counters and frequency measurement, and an I/O pair connection can be configured to push or pull status between modules. A CPU watchdog and a host watchdog protect against firmware faults and loss of the controlling host, with a predefined safe value for the outputs. Configuration is handled through the built-in web server.
Applications
- Factory automation
- Building automation
- Home automation
- Remote maintenance
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP, MQTT |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Ports: | 1 x RJ-45 |
| PoE: | Yes |
| Isolation: | 3750 Vrms |
| Power input: | PoE (IEEE 802.3af, Class 1) or +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
| Status | Run, Ethernet, PoE |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 to +50 VDC |
| OFF Voltage Level | +4 VDC (max.) |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 3.5 kHz (without filter) |
| Min. Pulse Width | 0.15 ms |
| Isolation | 3750 Vrms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +30 VDC |
| Load Current | 100 mA/channel |
| Overvoltage Protection | +60 VDC |
| Isolation | 3750 Vrms |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, and MQTT |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.0 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 52 x 95 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
