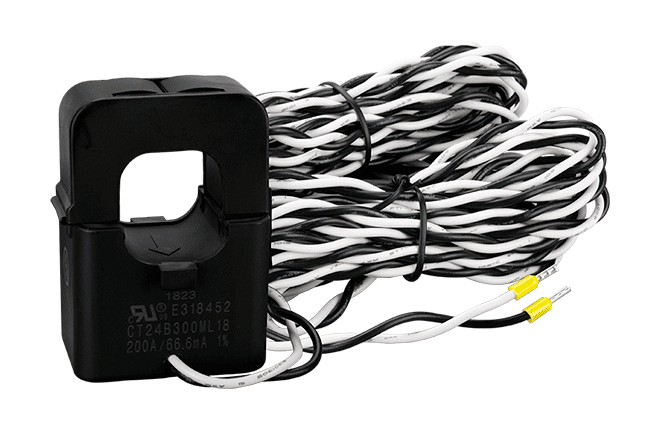

The CA-SCT24I-200A-L080 is a single-channel split-core current transformer rated at 200A, with a Φ24mm aperture. Its split-core construction lets it be fitted around an existing conductor, which suits retrofit metering work where the circuit cannot easily be disconnected.Supplied with an 8 m lead, this CT is intended for use with the iWSN and iXN series. The maximum input voltage is 500VAC at 50/60Hz. Accuracy is rated at 1% for the CT alone, and at ±3% or ±0.3A when used with the iWSN-1110X, iWSN-1131P, iWSN-750P and iWSN-757P.Choose this variant when you need a 200A-rated CT with a Φ24mm aperture and an 8 m lead for iWSN or iXN metering installations.ApplicationsEnergy managementPower meteringCurrent monitoring on iWSN and iXN series installations

The DGW-521 CR is a DIN-rail gateway that lets a host PC, PAC or TouchPAD control DALI lighting devices over serial or USB. It accepts Modbus RTU and DCON from RS-232, RS-485 or USB and translates them to DALI, so existing serial-based control software can address a DALI lighting network without a separate DALI controller.A built-in DALI power supply (16 VDC ±5%, maximum 250 mA) can be switched on or off, which suits installations where the DALI bus is already powered elsewhere. The ID code can be set over the RS-485 interface, which simplifies commissioning. DALI isolation is rated at 1500 VDC.The gateway is intended for DALI lighting systems covering small areas. DALI signal cables must not exceed 300 m. The unit carries CE, UKCA, FCC, RoHS and WEEE marks. The USB driver is listed for Windows XP and Windows 7 only.ApplicationsLighting control for small DALI installationsHost PC, PAC or TouchPAD access to DALI devicesSerial-to-DALI integration in building automation

DN-831I-100V-200A is a DIN-rail signal conditioner that brings one high-voltage and one high-current measurement point down to levels that standard analog input modules can read. The voltage channel attenuates ±100 V to ±10 V, and the current channel uses a clip-on transformer rated for ±200 A, also scaled to ±10 V.Each channel is galvanically isolated, with 3000 VDC between modules and 3000 VDC channel to channel, which helps keep noise from the high-voltage side out of the measurement chain. The high input impedance and linear attenuation ratio make the output straightforward to scale in software. The clip-on current transformer has a Φ21 mm aperture and a 1.5 m lead.The unit is powered from 10 to 30 VDC, draws 1.8 W, and is housed in plastic for DIN-rail mounting. It is specified for operation from -25 to +75 °C and carries CE, UKCA, FCC, RoHS and WEEE marks.ApplicationsHigh-current measurement using analog input modulesHigh-voltage signal monitoring with analog input modules

The DN-843I-CT-1 CR is a 3-channel solid core current transformer module for measuring AC and DC currents up to ±1 A. It scales each input to a linear ±1.6 Vpp analog output, so the signal can be read by standard analog input modules such as the I-7017 and I-87017 without needing dedicated high-current hardware.The "I" version is designed to keep input and output signals electrically separated. It provides 3000 VDC intra-module isolation and 3000 Vrms channel-to-channel isolation, which helps reduce noise coupling from the current inputs into the measurement circuit and between channels.The module mounts on a DIN rail, runs from a +10 VDC to +24 VDC supply drawing 1.2 W, and is specified for operation from -25 to +75 °C. Its solid core has an inside diameter of 20.4 x 10.4 mm, and the plastic housing measures 148 x 83 x 39 mm (W x L x D).ApplicationsHigh-current measurement using I-7017 and I-87017 analog input modulesElectrical current monitoring in industrial automation panels
