NSM-208GP Unmanaged 8-Port GbE PoE Switch, 30 W per Port
Unmanaged 8-port Gigabit Ethernet PoE (PSE) switch with redundant +24 to +53 VDC input and up to 30 W per port to IEEE 802.3at.
- 8 x RJ-45 10/100/1000 Base-T ports with auto-negotiation, flow control and auto MDI/MDI-X
- IEEE 802.3at PoE with up to 30 W per port, 100% compliant with the standard
- Redundant +24 to +53 VDC dual power inputs with reverse polarity protection
- Boost power design allows PoE use without a 48 V power supply
- Independent PoE status LED on each port for quick fault identification
- Store and forward processing, 4 K MAC table, 1.5 Mbit frame buffer, 9 K jumbo frames
€579.00 per piece
| 1-9 pcs | €579.00 | |
|---|---|---|
| 10-30 pcs | €550.00 | −5 % |
| 31+ pcs | €521.00 | −10 % |
Product information "NSM-208GP Unmanaged 8-Port GbE PoE Switch, 30 W per Port"

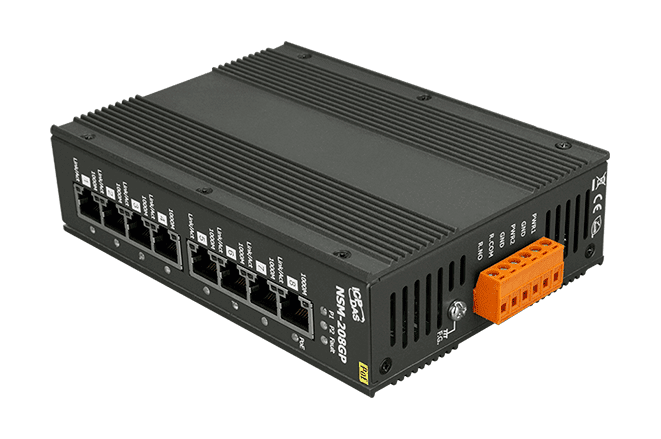

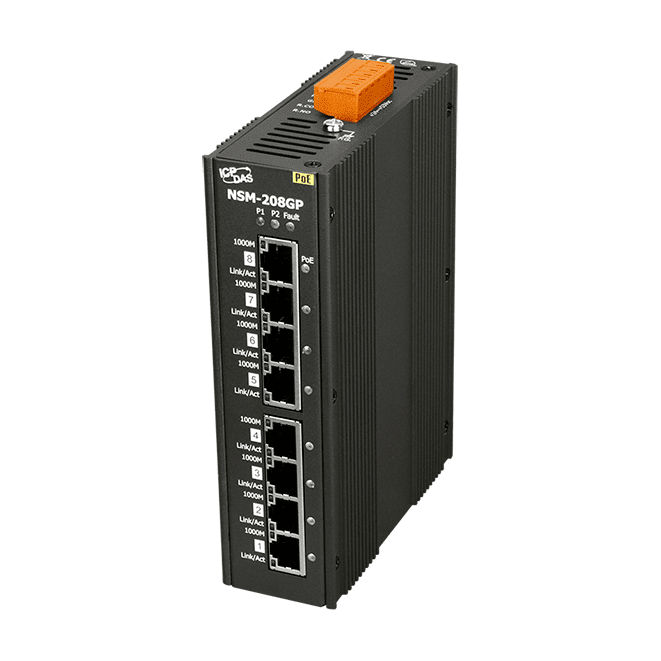

The NSM-208GP is an unmanaged eight-port Gigabit Ethernet switch that also acts as a PoE power sourcing equipment (PSE). Each RJ-45 port supplies up to 30 W to a powered device under IEEE 802.3at, so one switch can feed several remote devices without a separate injector on every port.

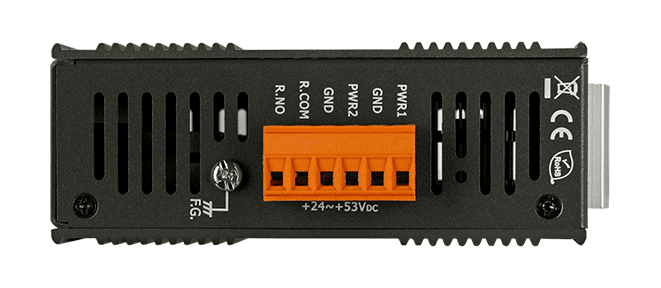

Power comes from a redundant dual input accepting +24 to +53 VDC, with reverse polarity protection. The PoE stage is boosted internally, so PoE applications can run from a 24 VDC supply rather than a 48 V supply.

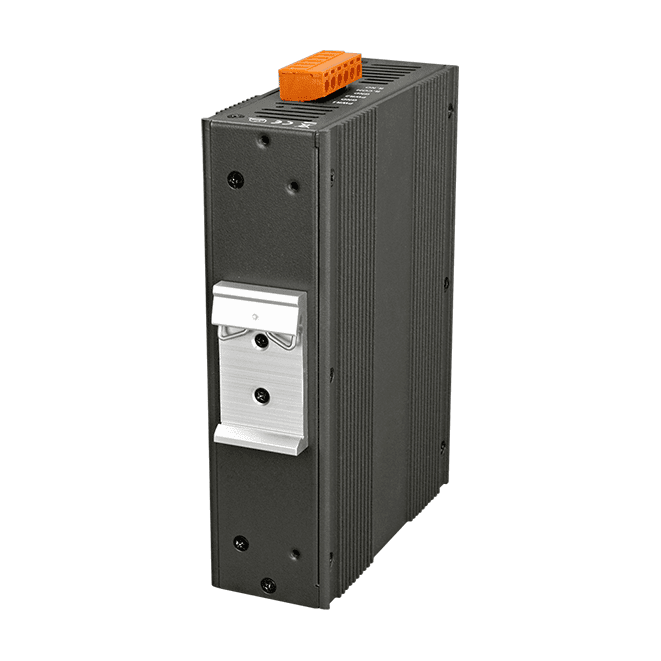

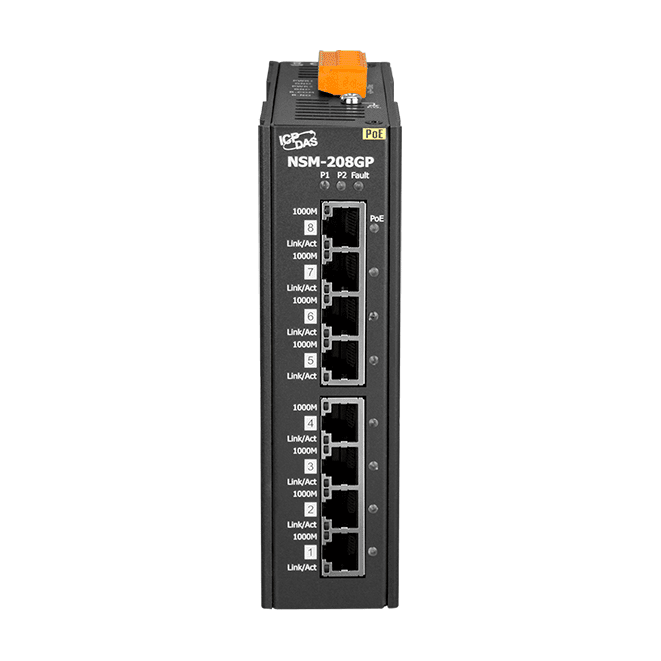

The switch uses store and forward processing, with a 4 K MAC table, 1.5 Mbit frame buffer and jumbo frame support up to 9 K. An independent PoE status LED on each port helps engineers spot faults quickly, and a relay alarm output is provided. The metal casing mounts on DIN-rail or, optionally, on a wall, and the unit is rated for -25 °C to +75 °C.
Applications
- Powering PoE devices from a 24 VDC supply without a separate 48 V supply
- Industrial Ethernet network infrastructure
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Protocol: | IEEE 802.3at PoE |
| Relay outputs: | 1 A @ 30 VDC |
| Ports: | 8 |
| PoE: | 30 W per port |
| Isolation: | 1500 Vrms |
| Power input: | +24 ~ +53 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ± 1 kV |
| ESD (IEC 61000-4-2) | ± 4 kV Contact |
| LED Indicators | |
| Status | P1, P2, Fault, Link/Act, 1000M, PoE |
| Ethernet | |
| Ports | 8 x RJ-45, 10/100/1000 Base-T |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for flow control IEEE 802.3af/at for PoE |
| Processing Type | Store & forward |
| MAC Table | 4 K |
| Frame Buffer Memory | 1.5 Mbit |
| Jumbo Frames | 9 K |
| Isolation | 1500 Vrms 1 minute |
| PoE Technology | |
| PoE Compliance | 100% IEEE 802.3at compliant |
| PoE Power | Up to 30 watts per port |
| PoE Pin Assignments | V+ (Pin 1, 2), V- (Pin 3, 6), Alternative A |
| PoE Voltage | +52 VDC |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +24~53 VDC Redundant dual Input |
| Redundant Power Inputs | Yes |
| Consumption | 0.20 A @ 24 VDC without PD loading |
| Alarm Output | Yes, Relay 1 A @ 30 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 42 x 164 x120 mm |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Environment | |
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
