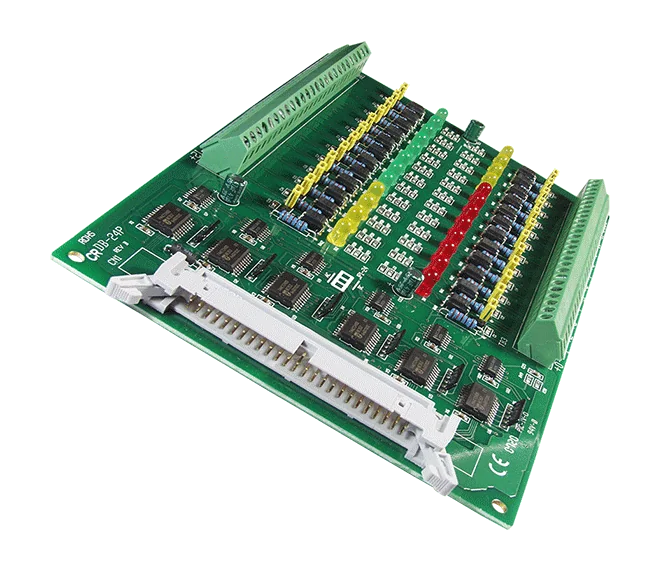

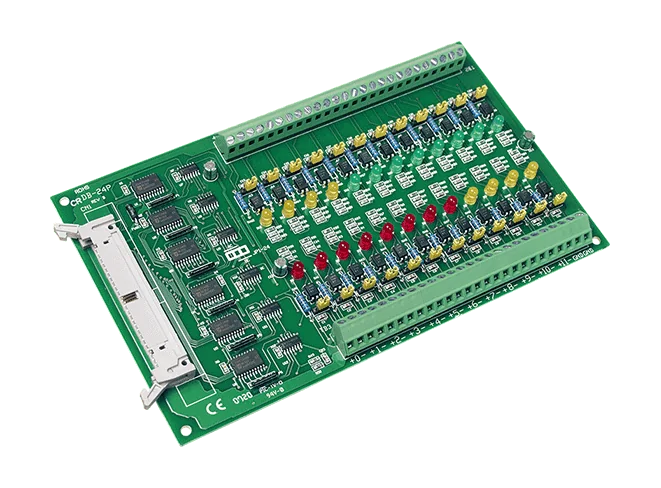

DB-24P/DIN 24-ch Optically Isolated Digital Input Daughter Board

The DB-24P CR is a 24-channel optically isolated digital input daughter board designed to plug into OPTO-22 compatible digital input cards such as the DIO24, DIO48 and DIO144. Each input uses a bi-directional opto-coupler with a current-sensing resistor, so field signals are electrically separated from the host computer. This separation helps protect the computer against large common-mode voltages, ground loops and voltage spikes common in industrial environments.For DC signals, the board accepts levels from TTL up to 24 V, with an ON voltage level of 2.8 V to 24 V (max) and an OFF voltage level of 1 V (max). For AC signals, the AC filter jumper must be shorted. The input then registers a constant logic high when the AC frequency is 1 kHz or above and the voltage is at least 4 Vrms. Response speed is 20us without filter and 2.2ms with filter.The board draws +5 V at 290 mA and measures 213 mm x 132 mm. It operates from 0 to 60°C and is supplied with a CA-5015 flat cable (50-pin, 1.5 M) for connection.ApplicationsOn/off controlEnergy managementTest automationProcess control

The DB-24PD CR adds 24 optically isolated digital input channels to OPTO-22 compatible digital input cards, including the DIO24, DIO48 and DIO144. Each channel uses a bi-directional opto-coupler with a current-sensing resistor, which shields the host computer from large common-mode voltages, ground loops and voltage spikes common in industrial plants.The wet-contact inputs register a logic high from 2.8 V up to 24 V and a logic low at 1 V or below, so they suit TTL-level and higher DC signals. For AC signals, the board registers a constant logic high when the input frequency is 1 kHz or above and the voltage is at least 4 Vrms. The AC filter jumper must be shorted when AC inputs are used. Response is 20 µs without the filter and 2.2 ms with it.The order includes a CA-3710 DB37 male-to-male cable (45°, 1 m) for connection to the compatible card. Typical uses include on/off control, energy management, test automation and process control.ApplicationsOn/off controlEnergy managementTest automationProcess control

The DB-24PD/DIN CR is a 24-channel optically isolated digital input daughter board that plugs into OPTO-22 compatible digital I/O cards such as the DIO24, DIO48 and DIO144. Each input uses a bi-directional opto-coupler with a current-sensing resistor, which helps separate the host computer from large common-mode voltages, ground loops and voltage spikes common in industrial environments.The board accepts wet-contact DC signals from TTL levels up to 24 V and can also sense a wide range of AC signals. With the AC filter jumper shorted, an AC input is registered as a constant logic high when its frequency is 1 kHz or above and its voltage is at least 4 Vrms. Response time is 20us without the filter and 2.2 ms with it. This DIN-rail variant is supplied with a CA-3710 DB37 male-to-male cable, 45º, 1 m.Optically isolated inputs, 24 channelsDirect connection to DIO24, DIO48 and DIO144 OPTO-22 compatible digital input cardsDC input from TTL levels up to 24 V, with ON level 2.8 V to 24 V and OFF level 1 V maximumAC input with selectable filter, 1 kHz and 4 Vrms thresholdInput buffer with voltage comparatorsDIN-rail mounting, 213 mm x 132 mm boardApplicationsOn/off controlEnergy managementTest automationProcess control

The DB-24POR is a daughter board that provides 24 Form A PhotoMOS relay channels for switching loads from a data acquisition system. Each channel is optically isolated, with a rated isolation of 5,000Vdc, which helps keep control-side circuitry separated from the switched side.Field connections are made through screw terminals, and an LED on each channel shows the relay state, which simplifies commissioning and fault finding. The board offers an OPTO-22 compatible connector alongside a 37-pin D-sub and a 20-pin connector, giving several ways to integrate it with a host system.The ordering information for the CR variant includes a CA-5015 flat cable (50-pin, 1.5 m). The board suits on/off switching tasks in energy management, process control and test automation.ApplicationsOn/off controlEnergy managementTest automationProcess control
