iSN-813-MTCP IR Temperature Sensor, Modbus TCP, 4800-Pixel Thermal Imaging
Non-contact infrared temperature sensing module with 4,800 sensing points (80 x 60), Modbus TCP, MQTT and RESTful support, and PoE power for monitoring and threshold detection.
- Non-contact temperature measurement from -20°C to 300°C with 0.1°C resolution
- 4,800 sensing points (80 x 60) for detailed thermal distribution data
- Modbus TCP server with MQTT and RESTful client support
- Web-based configuration and monitoring interface
- Temperature threshold detection function
- PoE (IEEE 802.3af, Class 1) or +10 to +30 VDC power input
€537.00 per piece
| 1–9 pcs | €537.00 | |
|---|---|---|
| 10–30 pcs | €521.00 | −3 % |
| 31+ pcs | €510.00 | −5 % |
Product information "iSN-813-MTCP IR Temperature Sensor, Modbus TCP, 4800-Pixel Thermal Imaging"

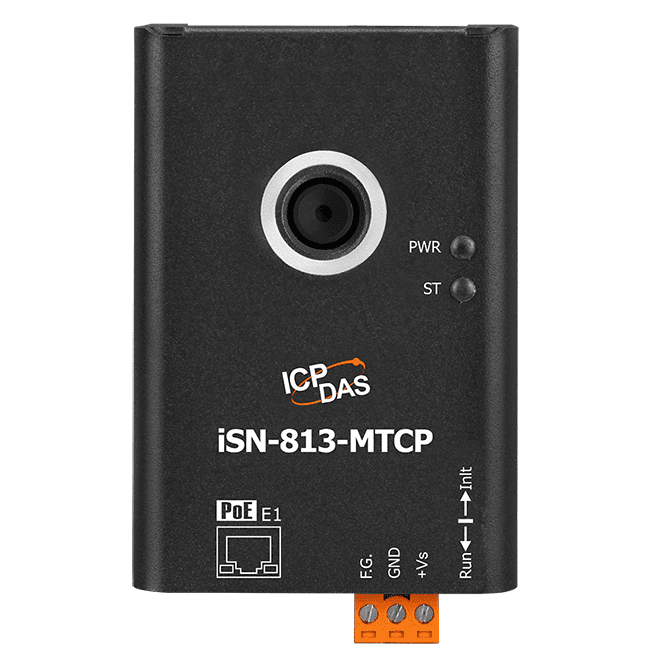

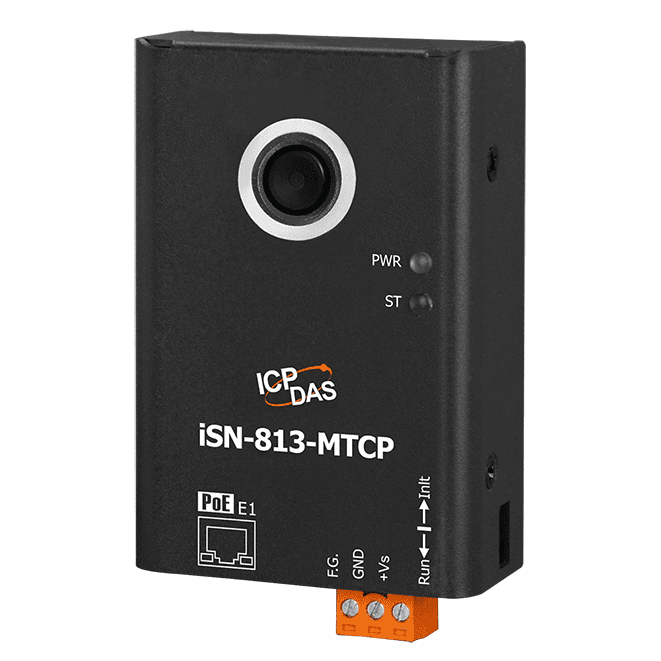

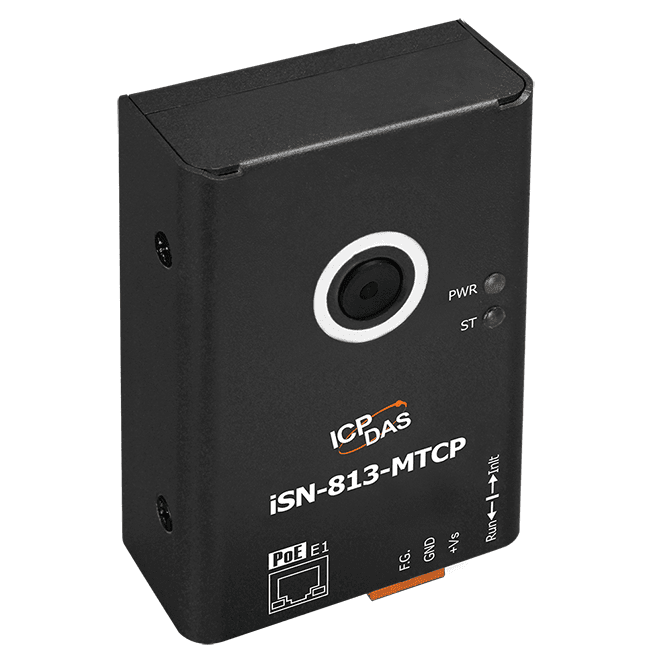

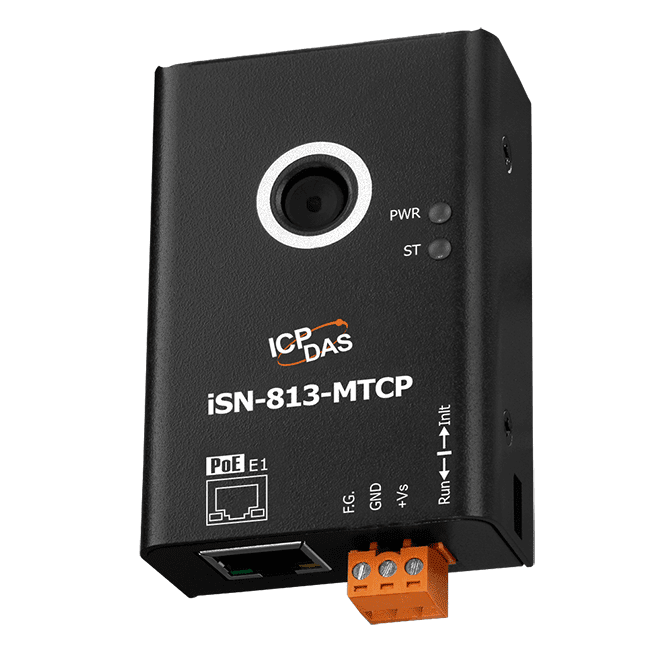

iSN-813-MTCP is a non-contact infrared temperature module with a 4,800-point sensing array (80 x 60). The dense sensing grid keeps readings accurate at a distance of up to 6 m, and the thermal image shows object edges, shapes and temperature distribution, which helps staff find abnormal hot spots quickly.
The module measures from -20°C to 300°C with 0.1°C resolution and an accuracy of ±5°C max. It communicates as a Modbus TCP server and as an MQTT and RESTful client, and it includes a temperature threshold detection function. Configuration and monitoring are handled through a web-based interface.
Power can come from PoE (IEEE 802.3af, Class 1) or from a +10 to +30 VDC supply. The housing mounts on DIN-rail, with magnetic and universal-joint mounting available as options. Typical uses include machinery overheating checks, surface temperature distribution mapping, moving-object temperature measurement and pipeline leak detection in petrochemical plants.
Applications
- Machinery overheating monitoring
- Measuring the temperature of moving objects
- Measuring temperature distribution on object surfaces
- Pipeline leak detection in petrochemical and chemical plants
- Non-contact body temperature monitoring in hospital wards
- Monitoring in hazardous environments
| Product type: | IR Temperature Sensor |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Ports: | 1 |
| PoE: | Yes |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -10 ~ +70 °C |
| Mounting: | DIN-rail |
Specifications
| LED Indicators | |
|---|---|
| Status | 1xPWR 1xST |
| Temperature Measurement | |
| Range | -20°C~300°C |
| Resolution | 0.1°C |
| Accuracy | ±5°C Max. |
| IR Sensor Pixel | 4800 (80 x 60) |
| IR Sensor FOV | X:90° /D : S1 =1 : 2 Y:67° /D : S2 =1 : 1.32 |
| Distance | ≦6m |
| Ethernet | |

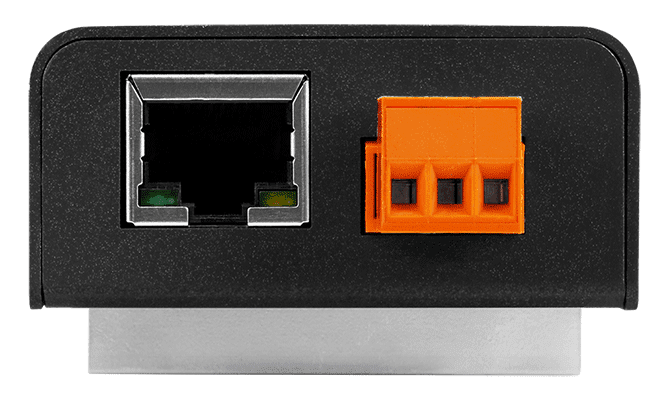

| Ports | 1 x RJ-45, 10/100Base-T(X) |
| PoE | Yes |
| Protocol | Modbus TCP server/MQTT client/RESTful client |
| Power | |
| Input Range | +10~+30 VDC |
| Consumption | 1W |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Mechanical | |
| Dimensions (mm) | 86mmx52mmx33mm(HxWxD) |

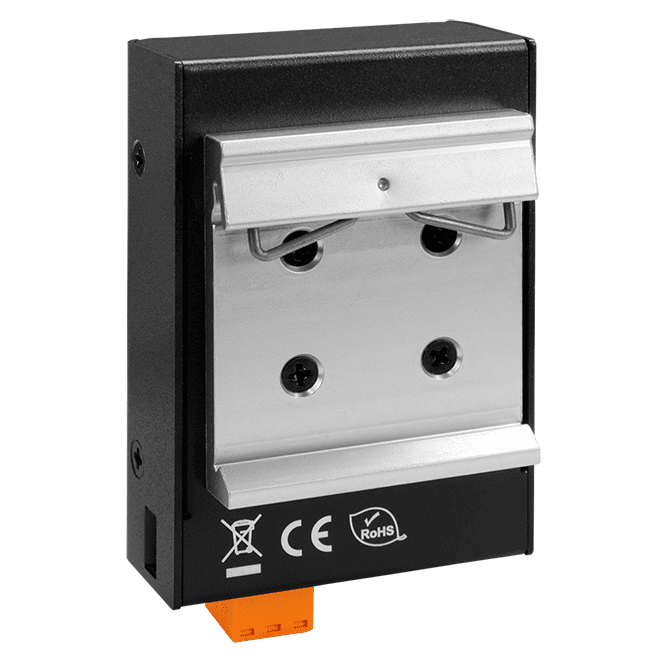

| Installation | Din-rail or magnetic(Optional), universal joint(Optional) |
| Environment | |
| Operating Temperature | -10°C~70°C |
| Storage Temperature | -20°C~80°C |
| Humidity | 10% ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
