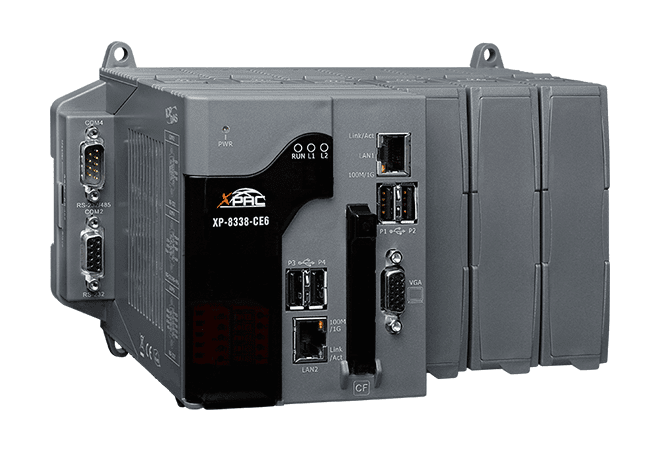

XP-8338-CE6 Win-GRAF PAC, 3-Slot x86 Dual-Core Controller with WinCE 6.0
3-slot Win-GRAF PAC on Windows CE 6.0 with a 1.0 GHz dual-core x86 CPU, embedded IEC 61131-3 soft PLC and Modbus TCP/RTU support for expandable I/O control.
- x86 dual-core CPU at 1.0 GHz running Windows CE 6.0
- Embedded Win-GRAF SoftLogic programmable to IEC 61131-3
- Three I/O expansion slots for I-8K parallel or I-87K serial modules
- Modbus RTU/TCP master and slave, Modbus ASCII master and OPC UA server
- 2 x RJ-45 10/100/1000 Base-TX Ethernet, 4 x USB 2.0, VGA output
- 3 x RS-232, 1 x RS-485 (3000 VDC isolated) and 1 x RS-232/RS-485 serial ports
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Már nem érhető el
Termékinformációk "XP-8338-CE6 Win-GRAF PAC, 3-Slot x86 Dual-Core Controller with WinCE 6.0"
The XP-8338-CE6 CR is a Win-GRAF programmable automation controller that runs Windows CE 6.0 on a 1.0 GHz dual-core x86 CPU. Its embedded Win-GRAF SoftLogic environment is programmed to IEC 61131-3, so control logic can be developed in a familiar standard while the controller provides hard real-time capability and a PC-like display and operating environment.
This 3-slot variant accepts up to three expansion modules, either high-profile I-8K parallel I/O or I-87K serial I/O modules. The VGA output, 4 x USB 2.0 ports, two 10/100/1000 Base-TX Ethernet ports and a mix of RS-232 and RS-485 serial ports allow it to connect local displays, field devices and supervisory systems. Choose the XP-8338-CE6 when you need more I/O capacity than the 0- or 1-slot models but do not need the 7-slot XP-8738-CE6.
Communication options include Modbus RTU/TCP (master and slave), Modbus ASCII master and an OPC UA server. The controller supports redundant power inputs and a Dual-PAC redundant system configuration, and includes eLogger HMI functionality for local operator screens.
Applications
- Logic control applications using IEC 61131-3 programming
- Local HMI and data management applications
- Redundant PAC system configurations
- Integration of I-8K and I-87K I/O modules
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Protocol: | Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 2 Ethernet |
| Isolation: | 1 kV power, 3000 VDC RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifications
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit | |
| CPU | x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480, 800 × 480, 800 × 600, 1024 × 768 |
| LED Indicators | |
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
| Slots | XP-8038-CE6: 0 XP-8138-CE6: 1 XP-8338-CE6: 3 XP-8738-CE6: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | Yes, only XP-8038-CE6 has no such switch |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 3 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-8038-CE6: 12.0W XP-8138-CE6: 16.6W XP-8338-CE6: 16.8W XP-8738-CE6: 18.0W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | XP-8038-CE6: 137 x 132 x 125 (W x L x H) XP-8138-CE6: 169 x 132 x 125 (W x L x H) XP-8338-CE6: 231 x 132 x 125 (W x L x H) XP-8738-CE6: 355 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
