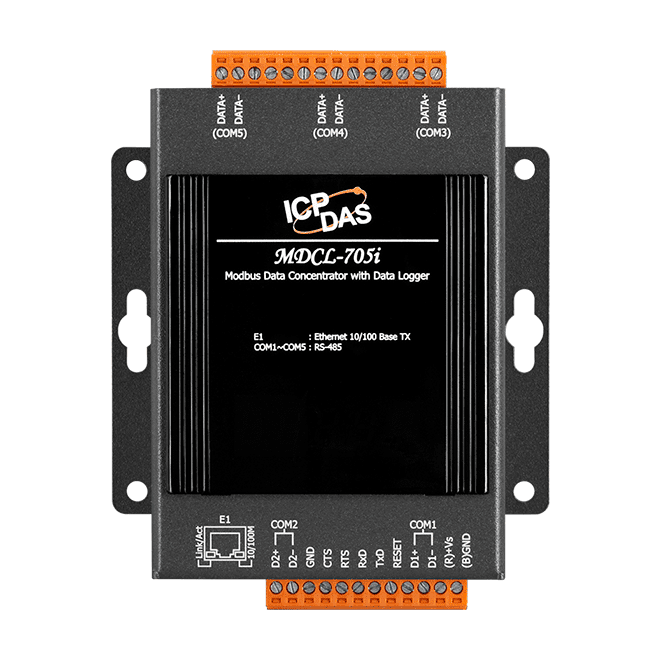

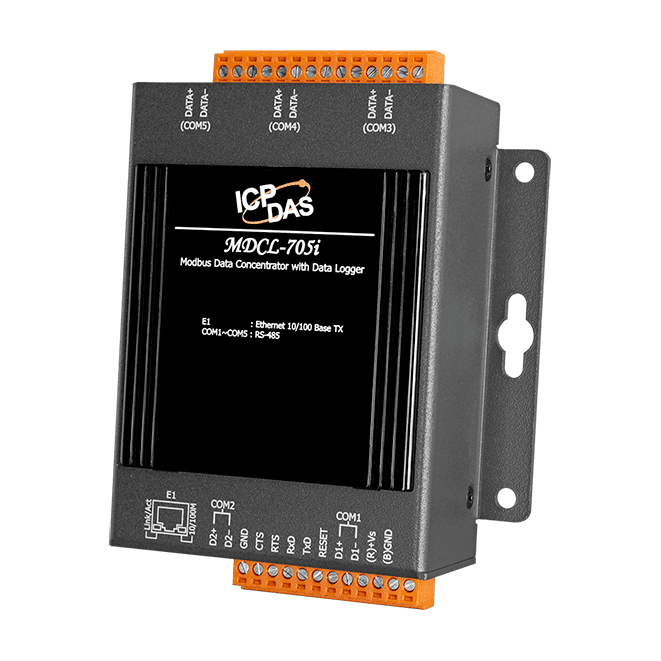

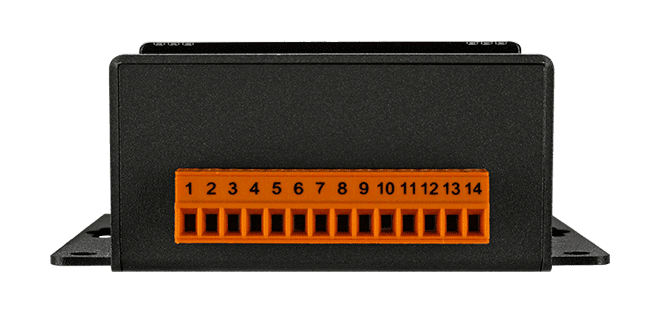

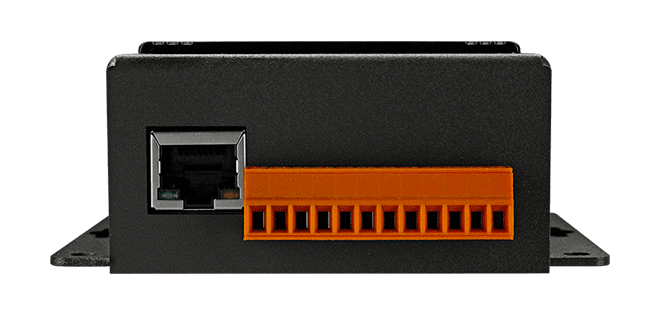

MDCL-705i Modbus Data Concentrator with Ethernet, RS-485 and Data Logger
Modbus data concentrator that polls multiple RS-485 Modbus devices, logs their data to a 32 GB microSD card and serves it over Modbus TCP on Ethernet.
- Modbus master and slave operation over 2 non-isolated and 3 isolated 2-wire RS-485 ports
- Up to 8 simultaneous Modbus TCP connections on 10/100 Base-TX Ethernet
- Up to 250 polling definitions loaded from a CSV file via the web interface
- Stand-alone data logging to a 32 GB microSD card in CSV format
- Ratio conversion of raw Modbus register values into engineering units
- 2500 VDC isolation protection on the isolated RS-485 ports
491,00 EUR per piece
| 1–9 pcs | 491,00 EUR | |
|---|---|---|
| 10–30 pcs | 476,00 EUR | −3 % |
| 31+ pcs | 466,00 EUR | −5 % |
Termékinformációk "MDCL-705i Modbus Data Concentrator with Ethernet, RS-485 and Data Logger"
MDCL-705i collects data from several Modbus slave devices over its RS-485 ports and makes it available on Ethernet, so a SCADA, HMI or PLC can read many devices in a single poll. Polling definitions are written as Modbus RTU commands in a CSV file and imported through the built-in web interface, with up to 250 definitions across all RS-485 ports.
Polled values are held in shared memory tables for coils, discrete inputs, input registers and holding registers, with up to 9600 registers per table. Up to 8 Modbus TCP clients can read this data at the same time, and ratio conversion turns raw register values into engineering units.
The stand-alone data logger records user-selected Modbus registers periodically, with up to 120 parameters per record. Records are saved as CSV files to the included 32 GB microSD card and can be downloaded through the web interface for analysis in Microsoft Excel or a plain text editor.
Applications
- IIoT data acquisition from meters, sensors and other serial devices
- Connecting conventional Modbus RTU equipment to SCADA, HMI and PLC systems
- Local data logging of Modbus register values for later analysis
| Product type: | Modbus data concentrator |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Ports: | 1 Ethernet, 5 RS-485 |
| Isolation: | 2500 VDC (RS-485 ports) |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Data Logger | |
|---|---|
| Data Type | Boolean, 16-bit Integer, 32-bit Integer and 32-bit Floating |
| Max. Recording Period per File | 1 hr, 2 hr, 6 hr, 12 hr, 24 hr |
| File Manager Interface | Built-in web server |
| Storage Media | 32 GB microSD card |
| File Format | CSV |
| Time Interval | 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min, 1 hr, 6 hr |
| Max. Records | 120 parameters per record |
| Display | |
| Type | 5-Digit 7 Segment LED Display (display system information) |
| LED Indicators | |
| Status | 1 x System, to (display heartbeat) |
| Ethernet | |
| Ports | 10/100 Base-TX, Auto MDI/MDIX |
| Protocol | Modbus/TCP slave, HTTP |
| Socket Connections | 8 Modbus/TCP |
| COM Ports | |
| Ports | 2 x 2-wire RS-485 (non-isolated) 3 x 2-wire RS-485 (2.5 kV isolation protection) |
| Baud Rate | 1200, 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200 bps |
| Data Format | N81, E81, O81 |
| Protocol | Modbus RTU Master/Modbus RTU Slave |
| Polling Definition | 250 definitions for all RS-485 ports |
| Shared Memory | 9600 registers for each of AI, AO, DI and DO data |
| Max. Connection | 32 slaves for each RS-485 port |
| Power | |
| Input Range | +10 ~ +48 VDC |
| Consumption | 2 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 97 x 120 x 42 (W x L x H) |

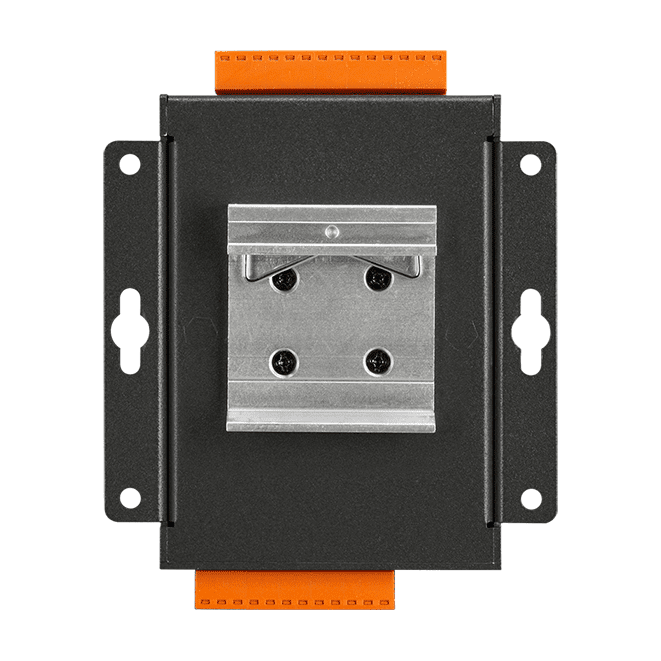

| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
