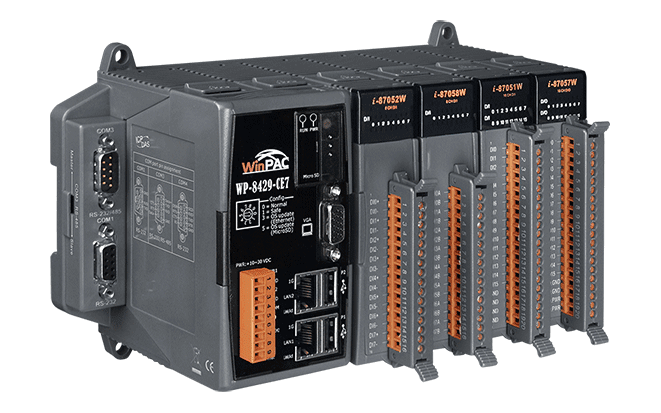

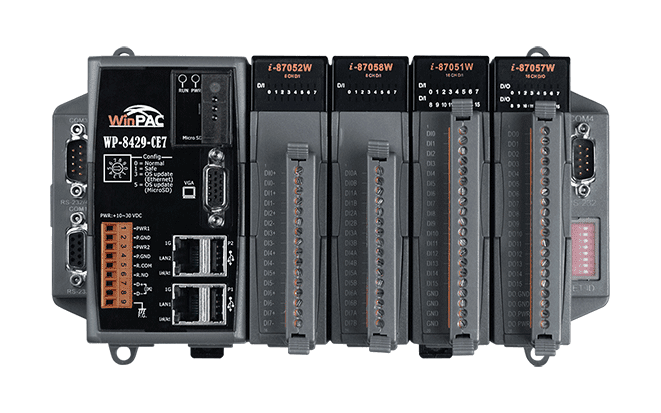

WP-8429-CE7-1500 InduSoft WinPAC Controller, 4-Slot, Windows CE 7.0
Windows CE 7.0 WinPAC controller with a 1500-tag InduSoft runtime pre-installed, a 1.0 GHz Cortex-A8 CPU and four I/O expansion slots for I-8K and I-87K modules.
- Cortex-A8 1.0 GHz CPU running Windows CE 7.0 Professional
- InduSoft runtime with 1500 tags pre-installed for HMI and SCADA work
- 512 MB DDR3 SDRAM, 256 MB Flash and a microSD slot supporting up to 32 GB
- Four expansion slots for I-8K (parallel-type) and I-87K (serial-type) I/O modules
- Two 10/100/1000Base-TX Ethernet ports, VGA display output and two USB ports
- Two RS-232 ports, one RS-232/485 port and one isolated RS-485 port (3000 VDC)
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Ya no está disponible
Información sobre el producto "WP-8429-CE7-1500 InduSoft WinPAC Controller, 4-Slot, Windows CE 7.0"
The WP-8429-CE7-1500 is a Windows CE 7.0 WinPAC controller built for engineers who want visualisation and supervisory control on the same hardware as their I/O. The InduSoft runtime, licensed for 1500 tags, is pre-installed, so the unit can run HMI and SCADA applications developed with the InduSoft toolset without a separate runtime installation.
Processing is handled by a Cortex-A8 CPU at 1.0 GHz with 512 MB DDR3 SDRAM and 256 MB Flash. Four expansion slots accept I-8K (parallel-type) and I-87K (serial-type) I/O modules, allowing the controller to be configured for the signal mix of a specific panel or machine. Two 10/100/1000Base-TX Ethernet ports, VGA output, two USB ports and a set of RS-232 and RS-485 serial ports give several routes for communication and local display.
The controller accepts a DC supply from +10 VDC to +30 VDC, with redundant power inputs and an alarm relay rated at 1 A @ 24 VDC. It is specified for an operating temperature of -25 ~ +75 °C and can be mounted on a DIN rail or on a wall, which suits control cabinets with limited space.
Applications
- HMI (Human Machine Interface) applications
- SCADA (Supervisory Control and Data Acquisition) systems
- Machine and panel control with expandable remote I/O
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB, VGA |
| Ports: | 2 Ethernet, 4 serial, 2 USB |
| Isolation: | 3000 VDC (RS-485 port) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifications
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8 (1.0 GHz) |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | DDR3 SDRAM: 512 MB |
| Storage | Flash: 256 MB; microSD slot with one microSD card (support up to 32 GB) |
| Non-Volatile Memory | MRAM: 128 KB; EEPROM: 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Signal | VGA: 800 x 600, 1024 x 768 |
| LED Indicators | |
| Status | 1 x Programmable |
| I/O Expansion | |
| Slots | 4 |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| DIP Switch | Yes (8 bits) |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000Base-TX |
| COM Ports | |
| Ports | 2 x RS-232, Non-isolated; 1 x RS-232/485, Non-isolated; 1 x RS-485 (3000VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 9.1 W (0.38 A @ 24 VDC) |
| Mechanical | |
| Dimensions (mm) | 231 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
