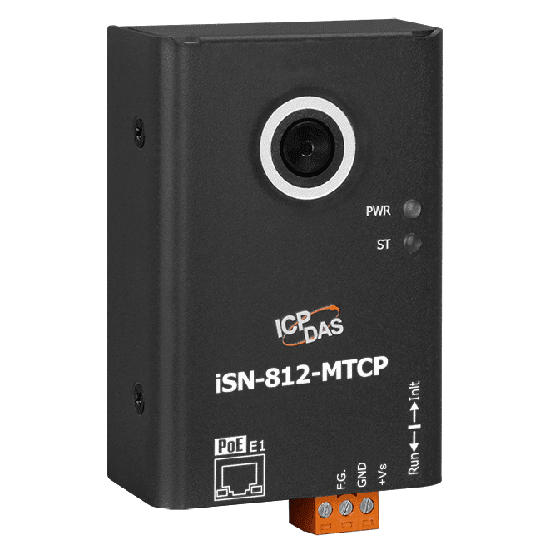

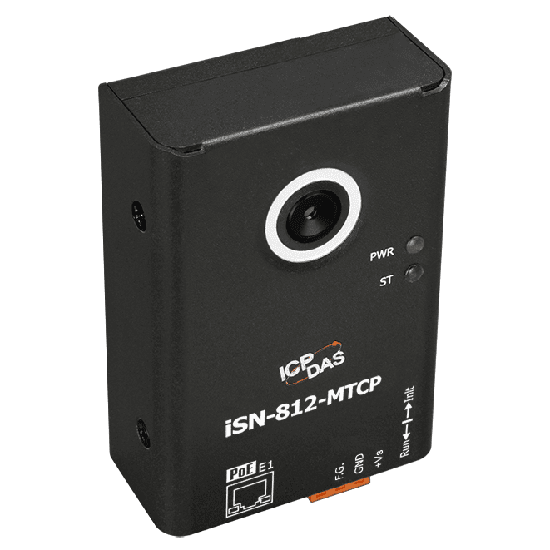

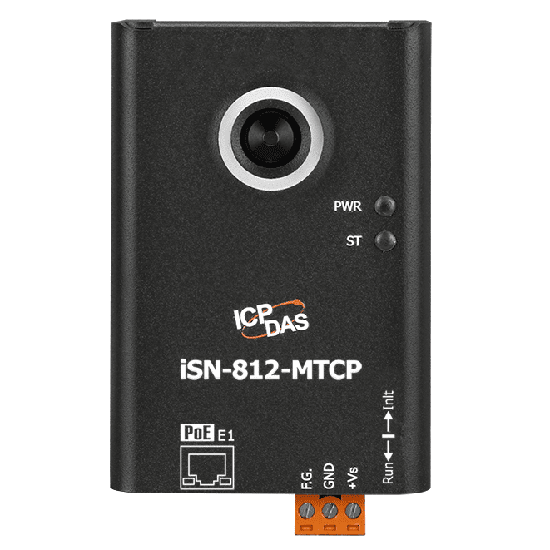

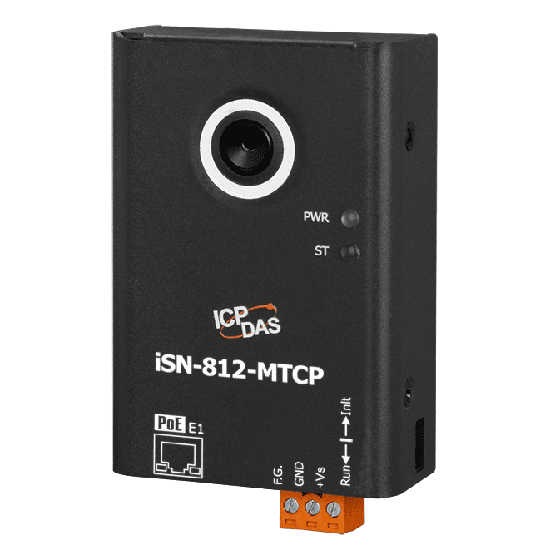

iSN-812-MTCP IR Temperature Sensor Module, Modbus TCP, 768 Pixels (32x24)
Non-contact IR temperature sensing module with a 768-pixel (32x24) sensor, Modbus TCP, RESTful and MQTT support, and PoE powering for industrial monitoring.
- Non-contact IR temperature measurement with a 768-pixel (32x24) sensor, range -40°C to 300°C, resolution 0.1°C
- Modbus TCP server, plus RESTful client and MQTT client for data delivery to databases, SCADA and IoT platforms
- Temperature threshold detection function for alarm and early-warning use
- Web-based configuration and monitoring, including HeatMap thermal display and trend charts
- Single 10/100Base-T(X) RJ-45 port with PoE powering (IEEE 802.3af, Class 1)
- Accuracy ±5°C max. and sensing distance up to 2 m
520,00 € per piece
| 1–9 pcs | 520,00 € | |
|---|---|---|
| 10–30 pcs | 504,00 € | −3 % |
| 31+ pcs | 494,00 € | −5 % |
Informace o výrobku "iSN-812-MTCP IR Temperature Sensor Module, Modbus TCP, 768 Pixels (32x24)"
The iSN-812-MTCP measures surface temperature without contact, using a 768-pixel (32x24) infrared sensor with a range of -40°C to 300°C and a resolution of 0.1°C. It connects to SCADA systems over Modbus TCP, where it acts as a Modbus TCP server, and can also push data to a remote database via RESTful or publish to an MQTT broker as a client.
Built-in temperature threshold detection and a web-based interface with a real-time HeatMap view and trend charts make it practical for spotting abnormal heat early. Logged historical data can support anomaly analysis and predictive maintenance planning.
The unit is powered through Ethernet via PoE (IEEE 802.3af, Class 1) or from a +30 VDC supply, and mounts on DIN-rail or, optionally, by magnet or universal joint. The ordering code iSN-812-MTCP CR is listed with the same specification as the base model, with RoHS compliance noted in the product description.
Applications
- Temperature monitoring of equipment in industrial environments
- Measuring the temperature of moving objects
- Mapping temperature distribution across the surface of an object
- Equipment anomaly detection and predictive maintenance
- Use in hazardous environments, as stated by the manufacturer
| Product type: | IR temperature sensing module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, MQTT, RESTful |
| Ports: | 1 |
| PoE: | Yes |
| Power input: | +30 VDC |
| Operating temperature: | -10 ~ +70 °C |
| Mounting: | DIN-rail, magnetic (optional) |
Specifications
| LED Indicators | |
|---|---|
| Status | 1xPWR; 1xST |
| Temperature Measurement | |
| Range | -40°C ~ 300°C |
| Resolution | 0.1°C |
| Accuracy | ±5°C Max. |
| IR Sensor Pixel | 768(32x24) |
| IR Sensor FOV | X: 110° / D : S =1 : 2.86 Y: 75° / D : S =1 : 1.53 |
| Distance | ≦2m |
| Ethernet | |

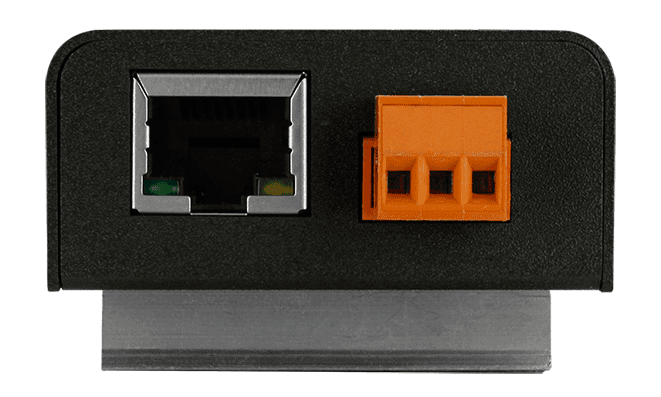

| Ports | 1 x RJ-45, 10/100Base-T(X) |
| PoE | Yes |
| Protocol | Modbus TCP server/MQTT client/RESTful client |
| Power | |
| Input Range | +30 VDC |
| Consumption | 1.5W |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Mechanical | |
| Dimensions (mm) | 52 x 86 x 34 (W x H x D) |

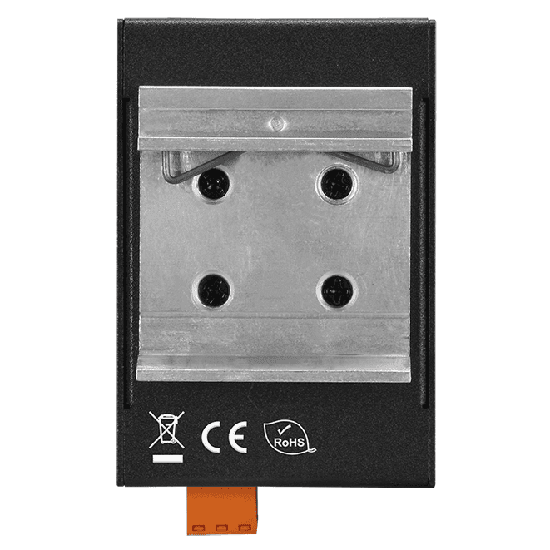

| Installation | Din-rail or magnetic(Optional), universal joint(Optional) |
| Environment | |
| Operating Temperature | -10°C~70°C |
| Storage Temperature | -20°C~80°C |
| Humidity | 10% ~ 95% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
