I-7188XCD-512 Serial PAC, MiniOS7 Controller, 2 DI, 3 DO and I/O Expansion Bus
Serial PAC with 80188-20 CPU and MiniOS7 for compact embedded control, offering RS-232/RS-485 serial ports, 2 dry contact inputs, 3 open-collector outputs and an X-board I/O expansion bus.
- 80188-20 CPU (20 MHz or compatible) running the MiniOS7 operating system
- Programmable in C language with MiniOS7 software development tool kits
- 512 KB Flash, 128 KB SRAM and 2 KB EEPROM storage
- 1 x RS-485 and 1 x RS-232/RS-485 serial ports, up to 115200 bps
- 2 dry contact digital inputs and 3 open-collector digital outputs
- X-board I/O expansion bus interface
244,00 € per piece
| 1–9 pcs | 244,00 € | |
|---|---|---|
| 10–30 pcs | 236,00 € | −3 % |
| 31+ pcs | 231,00 € | −5 % |
Informace o výrobku "I-7188XCD-512 Serial PAC, MiniOS7 Controller, 2 DI, 3 DO and I/O Expansion Bus"

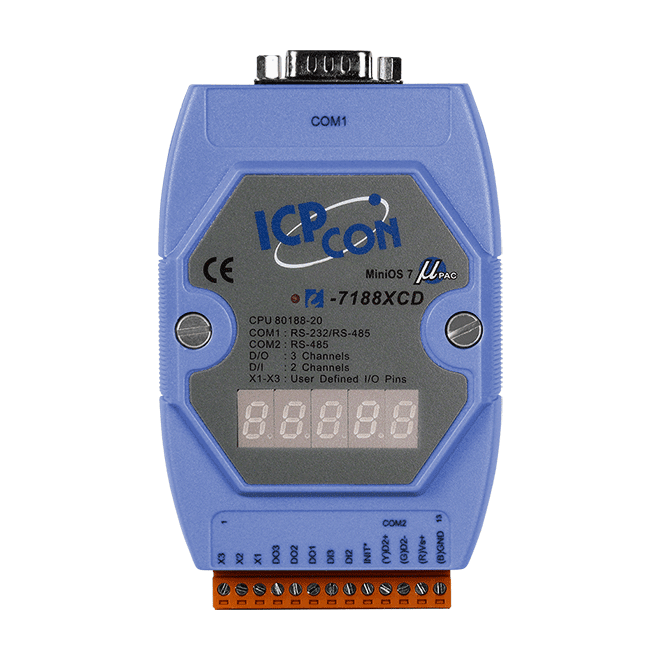

I-7188XCD-512 is a serial programmable automation controller built around an 80188-20 CPU running the MiniOS7 operating system. It suits engineers who need a compact, DIN-rail mounted controller that can take over tasks from a PC or PLC in demanding industrial environments, and it is programmed in C.
On board you get 512 KB Flash, 128 KB SRAM and 2 KB EEPROM, together with one RS-485 port and one RS-232/RS-485 port running at up to 115200 bps. Two dry contact inputs and three open-collector outputs (+30 VDC max., 100 mA) handle simple switching tasks, while the X-board I/O expansion bus allows additional I/O to be added. A 5-digit 7-segment LED display, a programmable status LED and a watchdog timer support local indication and system reliability.

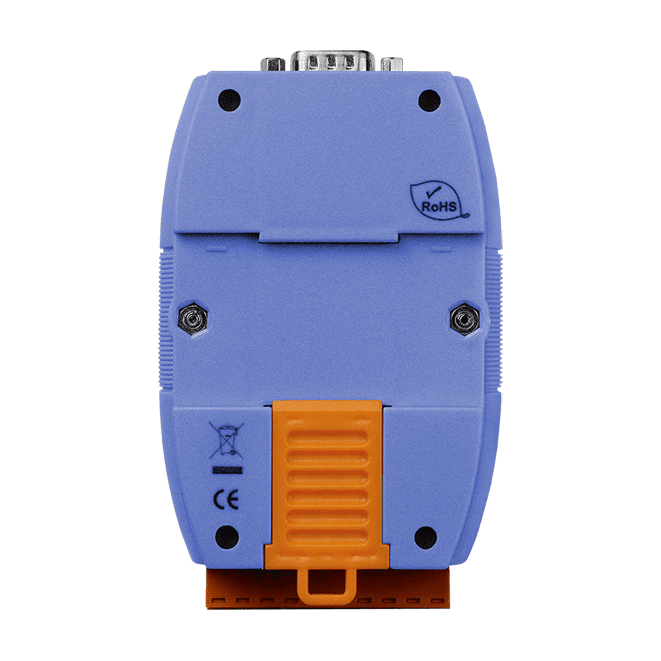

This ordering code is the blue-cover version of the I-7188XCD-512 controller. It operates from +10 ~ 30 VDC and is rated for -25 ~ +75 °C, making it suitable for OEM integration and cabinet-based installations where a small, serial-focused controller is required.
Applications
- Replacing PC or PLC devices in harsh industrial environments
- Embedded control in OEM equipment
- Serial communication and local digital I/O in compact control panels
| Product type: | PAC |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 2 |
| Digital outputs: | 3 |
| Ports: | 2 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 20 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 128 KB |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 2 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 3 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
