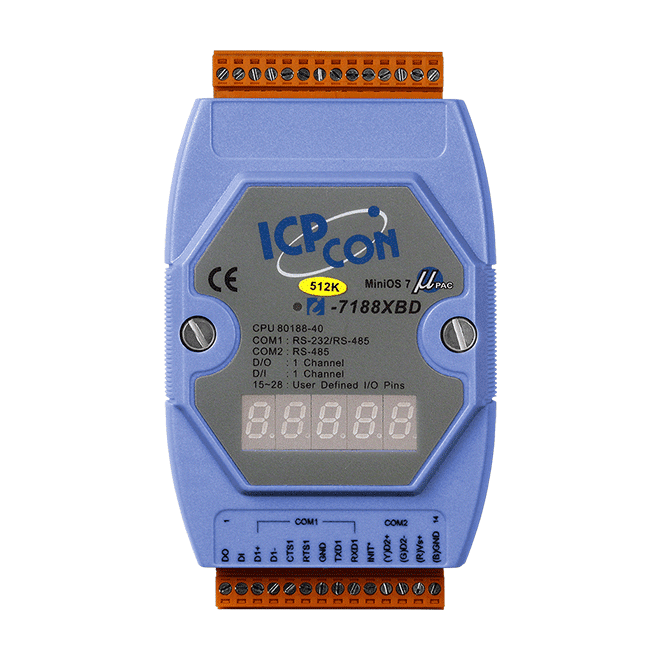

I-7188XBD-512 Serial PAC, MiniOS7, 80188-40 CPU, 2 Serial Ports, 1 DI/1 DO
Compact serial PAC built around an 80188-40 CPU running MiniOS7, with 512 KB flash, two serial ports, a dry-contact input, an open-collector output and an X-board I/O expansion bus.
- 80188-40 CPU with MiniOS7 operating system and C language development
- 512 KB flash, 512 KB SRAM, 2 KB EEPROM and 31 bytes NVRAM
- One RS-485 port and one RS-232/RS-485 port, up to 115200 bps
- One dry-contact digital input and one open-collector digital output (100 mA)
- X-board I/O expansion bus interface
- 5-digit 7-segment LED display and programmable status LED
271,00 € per piece
| 1–9 pcs | 271,00 € | |
|---|---|---|
| 10–30 pcs | 263,00 € | −3 % |
| 31+ pcs | 257,00 € | −5 % |
Informace o výrobku "I-7188XBD-512 Serial PAC, MiniOS7, 80188-40 CPU, 2 Serial Ports, 1 DI/1 DO"
The I-7188XBD-512 CR is a serial programmable automation controller for embedded control tasks where a PC or PLC would be too large, too costly or not robust enough. It runs the MiniOS7 operating system on an 80188-40 CPU and is programmed in C, which suits engineers who want to build firmware around a small, dedicated controller.
On board you get 512 KB flash, 512 KB SRAM, 2 KB EEPROM and 31 bytes of NVRAM, plus one RS-485 port and one port selectable between RS-232 and RS-485 for serial communication at up to 115200 bps. A dry-contact digital input, an open-collector digital output rated at 100 mA, a five-digit 7-segment LED display and a programmable status LED provide local I/O and feedback. The X-board expansion bus allows additional I/O to be added.
The CR ordering code is the blue-cover version. Built-in watchdog timer, real-time clock and 64-bit hardware serial number support reliable operation and unit identification, and the controller is rated for -25 ~ +75 °C operation on DIN-rail mounting.
Applications
- Industrial control in harsh environments
- Replacement of PC or PLC devices in embedded systems
- OEM products using the controller as a processor core component
| Product type: | PAC |
|---|---|
| Interface: | RS-232, RS-485 |
| Digital inputs: | 1 |
| Digital outputs: | 1 |
| Ports: | 2 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 1 |
| Type | Dry Contact |
| ON Voltage Level | Close to GND |
| OFF Voltage Level | Open |
| Digital Output | |
| Channels | 1 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| I/O Expansion | |
| I/O Type | X-board |
| COM Ports | |
| Ports | 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
