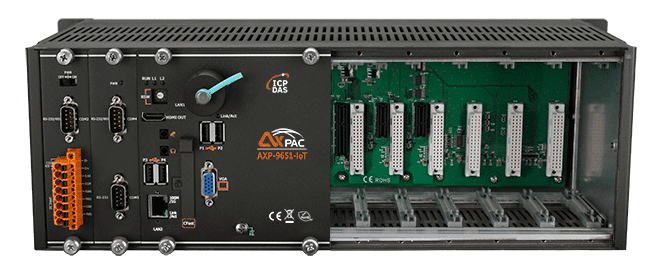

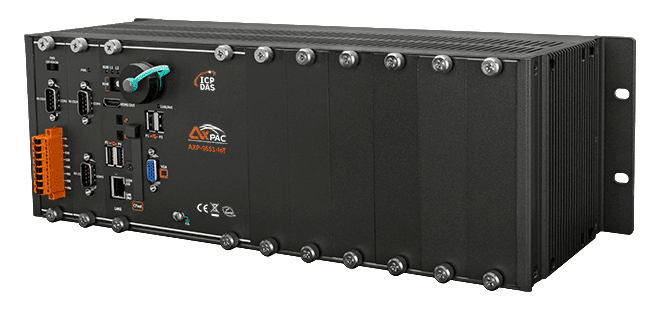

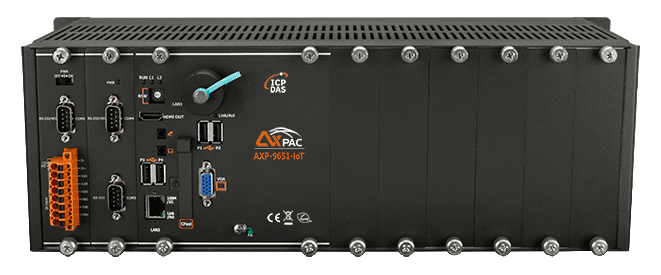

AXP-9651-IoT Windows 10 IoT PAC, 6-slot, Intel Core i5-8365UE
The AXP-9651-IoT combines Windows 10 IoT computing, six I/O expansion slots and an operator interface in one DIN-rail PAC for HMI, data acquisition and control.
- Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Core i5-8365UE (1.6 ~ 4.1 GHz, 4C8T)
- 16 GB DDR4 SDRAM and 128 GB SATA III SSD, plus a CFast card slot
- Six I/O expansion slots for I-9K, I-97K and e-9K series modules
- Two 10/100/1000M Ethernet ports
- 1x VGA and 1x HDMI display output
- Redundant power input with alarm relay (1 A @ 24 VDC)
This item is quoted per order. Send us your quantity and we reply with price and delivery time.
Request a quote
Již není k dispozici
Informace o výrobku "AXP-9651-IoT Windows 10 IoT PAC, 6-slot, Intel Core i5-8365UE"
AXP-9651-IoT is a Windows-based PAC that brings controller, I/O and operator interface into a single metal unit. It suits projects where HMI, data acquisition and control need to share one device in the same enclosure.
The unit is built around an Intel Core i5-8365UE processor with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD. It runs Windows 10 IoT Enterprise LTSC (64-bit) and can host Universal Windows apps and traditional Windows applications side by side. Six slots accept I-9K, I-97K and e-9K series I/O modules locally, while remote expansion is possible with Ethernet and RS-485 I/O modules.
Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display outputs, two USB 2.0 and two USB 3.0 ports, and a set of isolated serial ports covering RS-232, RS-485 and combined RS-232/RS-485. The CR ordering code corresponds to the RoHS-listed configuration of this model.
Applications
- GigE Vision camera systems
- USB Vision camera systems
- High-speed data acquisition
- Vibration monitoring
- Multi-serial port communication
- InduSoft HMI projects
- LabVIEW applications
- CAN bus
- Motion control
- Wireless connectivity
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232, RS-485, USB, VGA |
| Ports: | 2 |
| Isolation: | 2 kV (power), 3000 VDC (serial) |
| Power input: | +19 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifications
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise LTSC (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Intel® Core™ Whiskey Lake U i5-8365UE Processor (1.6 ~ 4.1 GHz, 4C8T) |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 16 GB DDR4 SDRAM (SODIMM slots with a 16 GB DDR4 x 1) |
| Storage | 1 x 128 GB SSD (SATAIII) 1 x CFast card slot |
| Non-Volatile Memory | 128 KB MRAM 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | 1xVGA, 1xHDMI |
| Resolution | VGA 1920 x 1200 @ 60Hz HDMI 4096 x 2160 @ 30P |
| LED Indicators | |
| Status | 1 x System 2 x Power 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K, e-9K series |
| Slots | 6 x serial/parallel bus 2 x e-Bus x1 1 x e-Bus x4 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Power Switch | Yes |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Intel® I219LM) 1 x RJ-45, 10/100/1000 Base-TX (Intel® I211LM) |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated) 1 x RS-485 (3000 VDC Isolated) 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 2 x USB 2.0 2 x USB 3.0 |
| Power | |
| Capacity | 80 W supply to CPU and backplane, 40 W supply to I/O expansion slots and USB ports, 120 W in total |
| Input Range | +19 ~ 30 VDC (2 kV Isolated ) |
| Redundant Power Inputs | Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Consumption | 32.6 W (Typical) 73 W (CPU Full Load) |
| Mechanical | |
| Dimensions (mm) | 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Cooling Type | CPU Heat Sink and 180,000 hour long-life fan with Smart Fan function |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
