VPD-170-IRT IR Temperature Data Concentrator with Touch Screen
Touch-screen data concentrator for iSN-81x infrared temperature modules, offering Modbus TCP over Ethernet, two RS-232/RS-485 ports and nine relay alarm outputs.
- 7-inch 800 x 480 colour TFT touch screen for local configuration and live temperature and thermal image viewing
- Up to 8 Modbus TCP client connections over one RJ-45 10/100 Base-TX Ethernet port
- Two RS-232 or RS-485 COM ports with Modbus RTU and 2500 VDC isolation
- Nine Form A signal relay outputs for temperature threshold alarms
- Temperature threshold setting function built into the touch screen interface
- PoE (IEEE 802.3af, Class 1) or +12 ~ 48 VDC terminal block power input
€588.00 per piece
| 1–9 pcs | €588.00 | |
|---|---|---|
| 10–30 pcs | €570.00 | −3 % |
| 31+ pcs | €558.00 | −5 % |
Product information "VPD-170-IRT IR Temperature Data Concentrator with Touch Screen"
VPD-170-IRT CR is a touch-screen data concentrator for iSN-81x infrared temperature sensing modules. It lets a remote monitoring host read temperature data from several iSN-81x modules through a single Ethernet connection, supporting up to 8 Modbus TCP client connections.

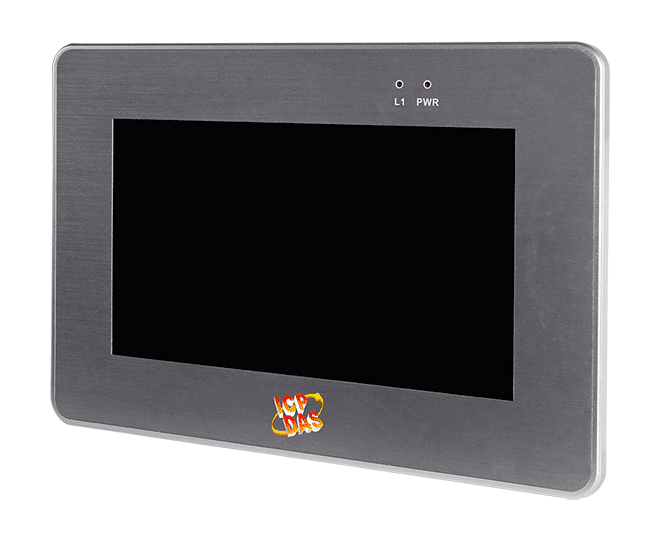

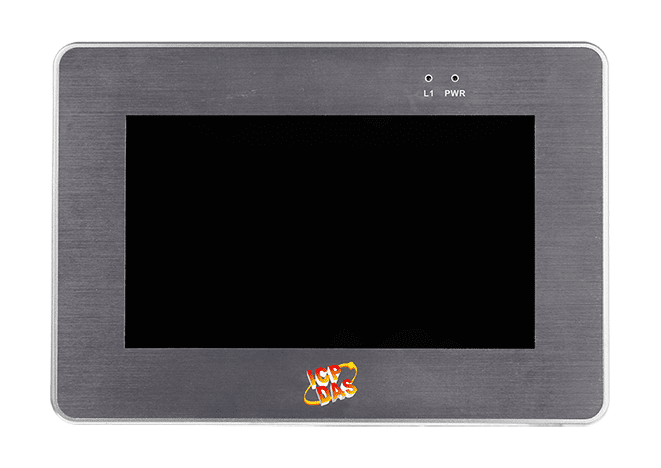

The 7-inch colour touch screen provides local access to the configuration of both the iSN-81x modules and the concentrator itself. Engineers can view measured temperatures and thermal images at the device, and set temperature thresholds that drive nine Form A signal relay outputs for alarm purposes.
Suited to control cabinets and machine rooms where inspection points are numerous, the unit supports centralised temperature monitoring with Modbus TCP and Modbus RTU on its serial ports. It is powered either by PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block, and the price list entry for this code notes that the XV-board is included.
Applications
- Control panel and cabinet temperature monitoring
- Machine room operating environment management
- Centralised remote temperature monitoring systems
| Product type: | Data concentrator |
|---|---|
| Interface: | Ethernet, RS-232/RS-485 |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | 9 |
| Ports: | 3 |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | PoE or +12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Wall |
| Housing: | IP65 front panel |
Specifications
| Main Unit | |
|---|---|
| CPU | 32-bit RISC CPU |
| Storage | 64 MB SDRAM/64 MB Flash |
| Real Time Clock | Yes |
| Display | |
| Type | LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3 |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Touch Panel | Yes |
| LED Indicators | |
| Status | 2 LED |
| Relay Output | |
| Channels | 9 |
| Type | Signal Relay (Form A) |
| Contact Material | Silver Nickel, Gold-covered |
| Contact Rating | 2 A @ 30 VDC<br>0.24 A @ 220 VDC<br>0.25 A @ 250 VAC |
| Operate Time | 3 ms (typical) |
| Release Time | 4 ms (typical) |
| Electrical Endurance | 2 x 10^5 ops. |
| Mechanical Endurance | 10^8 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes |
| Rubber Keypad | No |
| Reset Button | Yes |

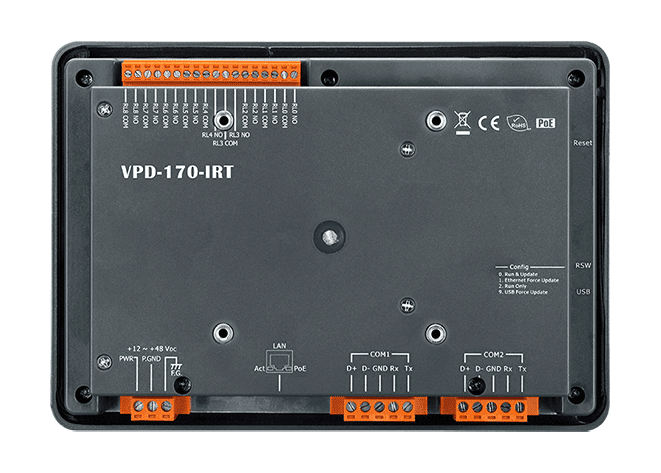

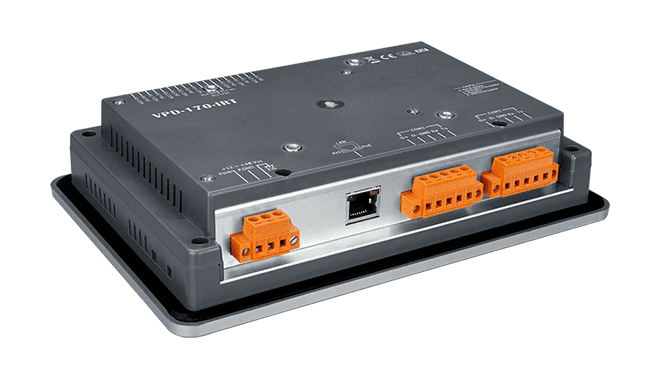

| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX |
| Protocol | Modbus TCP |
| COM Ports | |
| Ports | 2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated |
| Protocol | Modbus RTU |
| USB | |
| Specification | USB 1.1 Client (Firmware updates only) |
| Connector | Mini-B |
| Power | |
| Consumption | 3.6 W |
| Powered from PoE | IEEE 802.3af, Class1 (48 V) |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 217 mm x 153 mm x 33 mm |
| Installation | Wall Mounting |
| Ingress Protection Rating | Front Panel: NEMA 4 /IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
