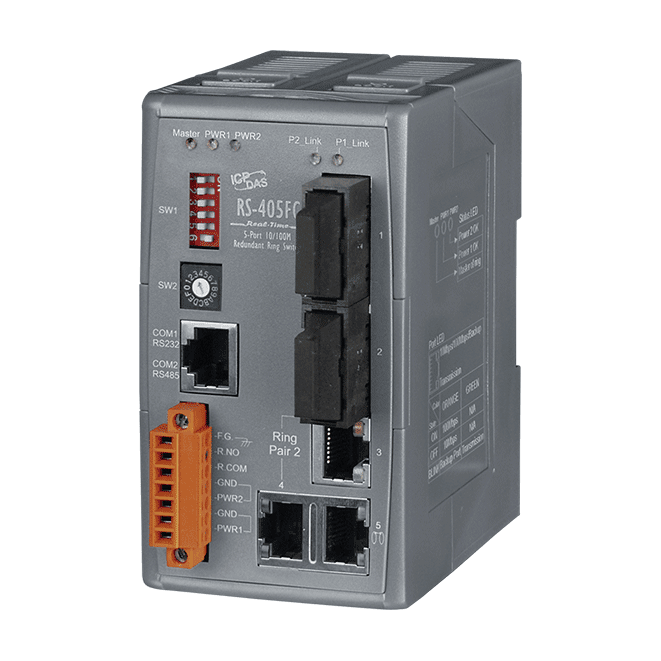

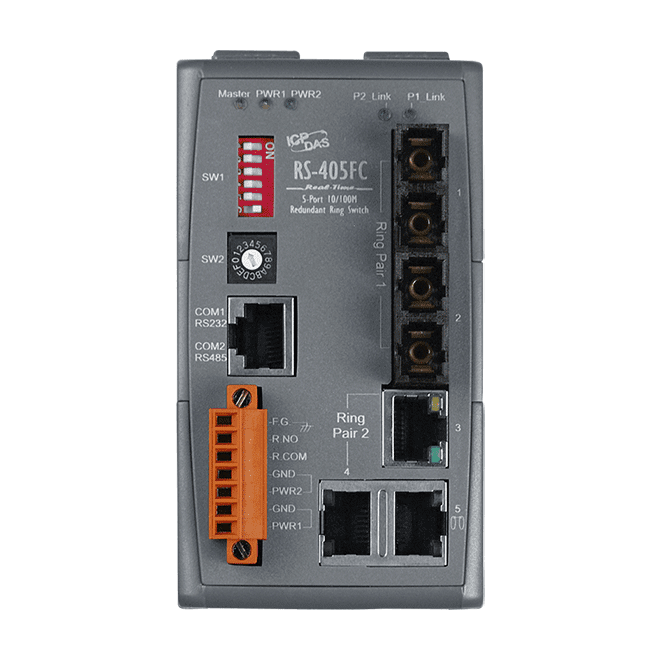

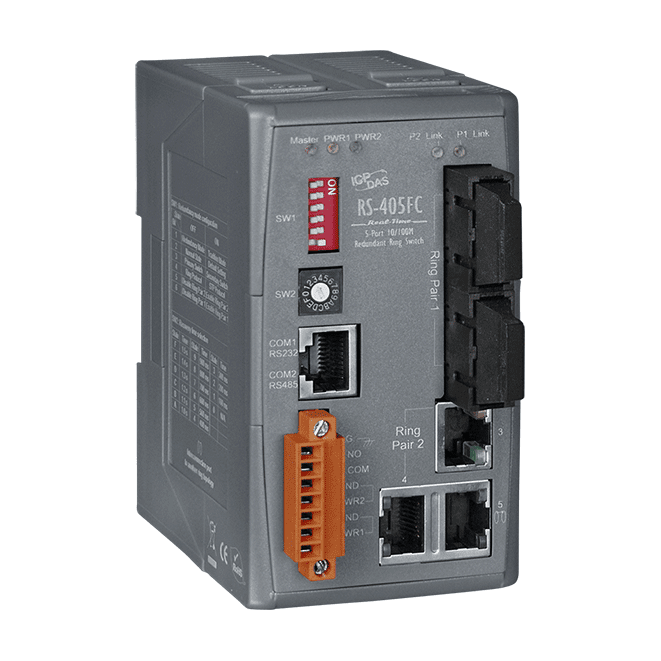

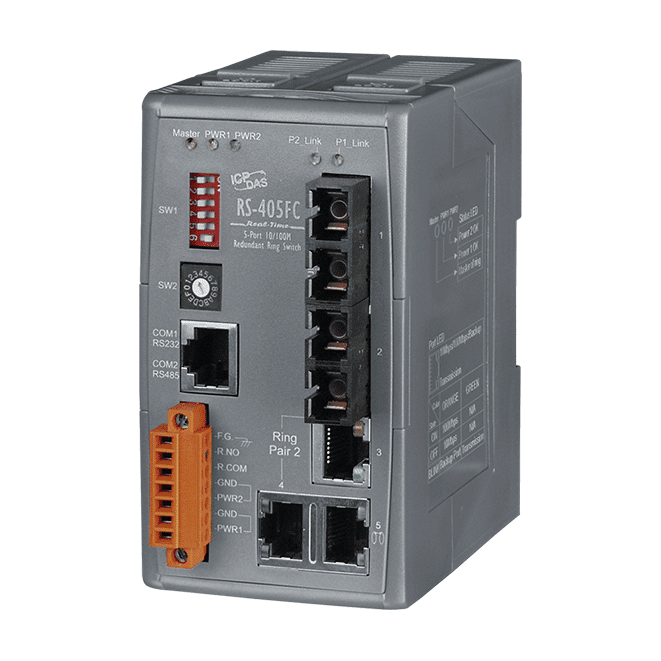

RS-405FC Redundant Ring Switch, 3x RJ-45 + 2x Multi-mode SC Fibre
5-port real-time redundant ring switch with three RJ-45 copper ports and two multi-mode SC fibre ports, recovering from a copper link failure in approximately 20 ms.
- Three shielded RJ-45 10/100Base-TX copper ports and two 100Base-FX multi-mode fibre ports with SC connectors
- Built-in Cyber-Ring redundancy, with STP also supported, and copper link recovery in approximately 20 ms
- Redundant DC power inputs, +10 VDC to +30 VDC, with reverse polarity protection and relay alarm output
- Store-and-forward switching with 3.2 Gbps memory bandwidth, 512 Kbit frame buffer and 1024 MAC addresses
- Automatic MDI/MDI-X crossover and 10/100 Mbps auto-negotiation on every port
- Modbus/RTU and Modbus/TCP remote monitoring, with Modbus OPC Server support
€441.00 per piece
| 1–9 pcs | €441.00 | |
|---|---|---|
| 10–30 pcs | €428.00 | −3 % |
| 31+ pcs | €419.00 | −5 % |
Product information "RS-405FC Redundant Ring Switch, 3x RJ-45 + 2x Multi-mode SC Fibre"
The RS-405FC CR is a 5-port Industrial Ethernet switch for building redundant ring networks in industrial control and automation. It combines three shielded RJ-45 10/100Base-TX copper ports with two 100Base-FX multi-mode fibre ports fitted with SC connectors, so a ring can mix copper and fibre runs in a single device.
Redundancy is built in through the Cyber-Ring technique, with STP also available as a redundancy strategy. Typical recovery from a copper link failure is approximately 20 ms. The switch needs no software configuration: redundancy mode and maximum recovery time are set with DIP switches on the unit.
Two DC inputs accept +10 VDC to +30 VDC and can be connected to live sources at the same time, so one source can back up the other. A relay output signals a power failure or a dual-power or network link fault. The unit is designed for DIN-rail mounting and is rated for operation from 0 °C to +70 °C.
Applications
- Industrial control and automation networks
- Redundant Ethernet ring topologies combining copper and multi-mode fibre links
- Remote monitoring of ring status over Modbus
| Product type: | Redundant ring switch |
|---|---|
| Interface: | RJ-45, SC fibre |
| Protocol: | Modbus RTU, Modbus TCP |
| Relay outputs: | 1 |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | 0 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| LED Indicators | |
|---|---|
| Status | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) |
| Ethernet | |
| Ports | 3 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Protocol | Modbus/RTU, Modbus/TCP |
| Redundant Strategy | STP, Ring (ICP DAS) |
| Isolation | 1500 Vrms 1 minute |
| DIP Switch | Yes, 1x Redundancy mode confi guration 1x Max. Recovery time selection |
| Fiber | |
| Ports | 2-port 100 Base-FX SC connector |
| Mode | Multi Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 gm |
| Distance | 2 km, (62.5/125 gm recommended) for full duplex |
| Wavelength | 1300 or 1310 nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm Max. |
| RX Overload | -8 dBm Max. |
| Budget | 12 dBm |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 0.4 A @ 24 VDC |
| Alarm Output | Yes,Relay 2 A @ 30 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 64 x 118 x 101 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Ingress Protection Rating | IP30 |
| Environment | |
| Operating Temperature | 0 °C ~ + 70 °C |
| Storage Temperature | -20 °C ~ + 85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
