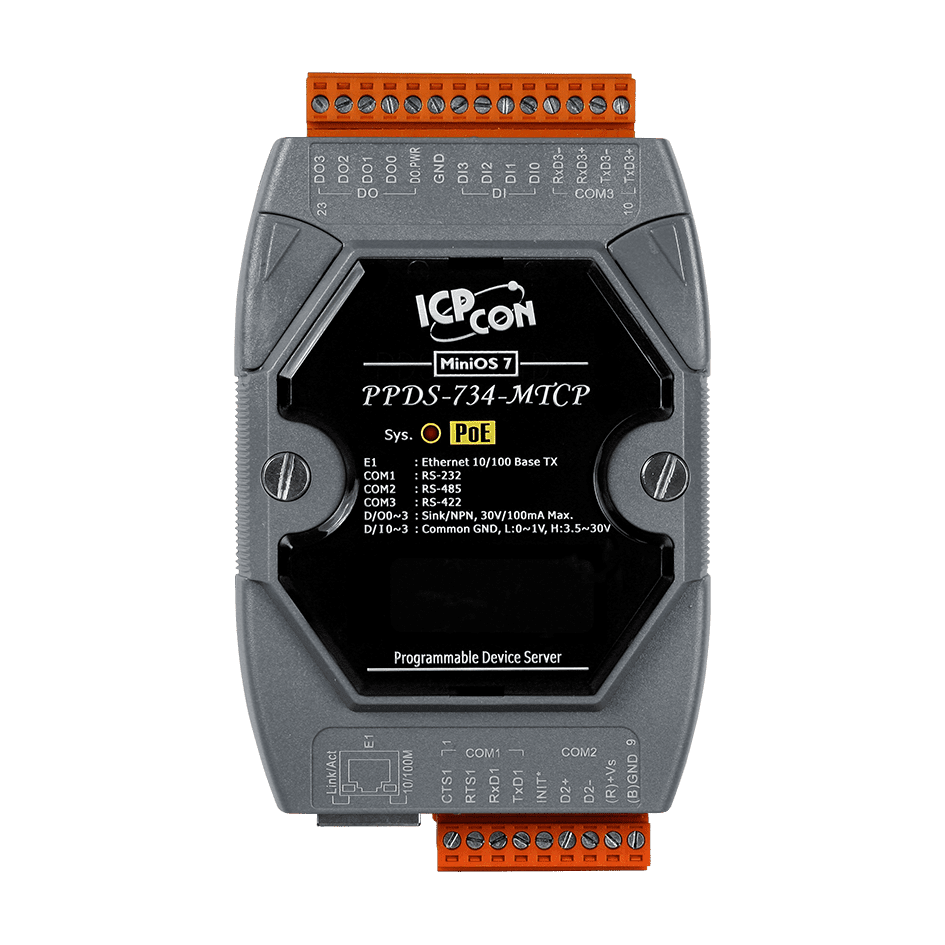

PPDS-734-MTCP Serial-to-Ethernet Device Server, PoE, Modbus TCP Gateway
Programmable serial-to-Ethernet device server with one RS-232, one RS-485 and one RS-422/485 port, 4 DI, 4 DO, PoE and a Modbus TCP to RTU/ASCII gateway.
- One RS-232, one RS-485 and one RS-422/485 port for connecting serial devices to Ethernet
- Virtual COM driver extends serial ports to Windows applications (32/64-bit Windows 7 SP1/10/2012/2016)
- Modbus TCP to RTU/ASCII gateway for SCADA and HMI communications
- 4 digital inputs with latched and counter functions; 4 open-collector NPN outputs, 30 VDC, 100 mA max.
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power
- Watchdog timer and ±4 kV ESD protection on the serial port circuit
€315.00 per piece
| 1–9 pcs | €315.00 | |
|---|---|---|
| 10–30 pcs | €306.00 | −3 % |
| 31+ pcs | €299.00 | −5 % |
Product information "PPDS-734-MTCP Serial-to-Ethernet Device Server, PoE, Modbus TCP Gateway"
The PPDS-734-MTCP CR links RS-232, RS-485 and RS-422/485 serial equipment to an Ethernet network. Its programmable firmware runs on the built-in MiniOS7, which boots in about one second, so engineers can build custom Ethernet applications on the device. The Modbus TCP to RTU/ASCII gateway function lets Modbus TCP SCADA and HMI systems communicate with attached serial devices.
Power can be supplied over Ethernet using IEEE 802.3af Class 1 PoE on a standard Category 5 cable, or from a +12 to 48 VDC source on the removable terminal block. The four digital inputs support latched and counter functions, and the four open-collector NPN outputs are rated at 30 VDC and 100 mA max.
A VxComm driver allows Windows 7 SP1, 10, 2012 and 2016 applications, in 32-bit or 64-bit editions, to use the device's serial ports as virtual COM ports. The plastic housing mounts on DIN-rail or wall and is rated for -25 ~ +75 °C operation. A CA-0910 cable is included with this ordering code.
Applications
- Factory Automation
- Building Automation
- Home Automation
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | Ethernet, RS-232, RS-422/485, RS-485 |
| Protocol: | Modbus TCP |
| Digital inputs: | 4 |
| Digital outputs: | 4 |
| Ports: | 3 serial, 1 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Power input: | +12 ~ 48 VDC, PoE |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Plastic |
Specifications
| CPU Module | |
|---|---|
| CPU | 80186-80 MHz or compatible |
| EEPROM | 16 KB; Data retention: 40 years; 1,000,000 erase/write cycles. |
| Flash | 512 KB ; Erase unit is one sector (64 KB) ; 100,000 erase/write cycles |
| SRAM | 512 KB |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x Power/PoE |
| Digital Input | |
| Channels | 4 |
| Type | Dry Contact |
| Sink/Source (NPN/PNP) | Source, Common Ground |
| ON Voltage Level | +3.5 ~ +30 V |
| OFF Voltage Level | +1 V max. |
| Digital Output | |
| Channels | 4 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | 30 VDC, max. |
| Load Current | 100 mA, max. |
| Ethernet | |
| Ports | 10/100 Base-TX, RJ-45 port (Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Ports | |
| Ports | 1 x 5-wire RS-232 1 x RS-485 1 x RS-485/RS-422 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 10 KΩ |
| Parity | None, Even, Odd, Mark, Space None parity is required when using 8 data bits and 2 stop bits on COM1/COM2. |
| Data Bit | 7, 8: for COM1 and COM2 5, 6, 7, 8: for COM3 |
| Stop Bit | 1, 2: for COM1 ~ COM3 |
| Node Address | 254 (max.) |
| Power | |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 mm x 35 mm x 123 mm (W x L x H) |
| Installation | DIN-Rail or Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90% RH, non-condensing |
Specifications as published by the manufacturer. Subject to change.
