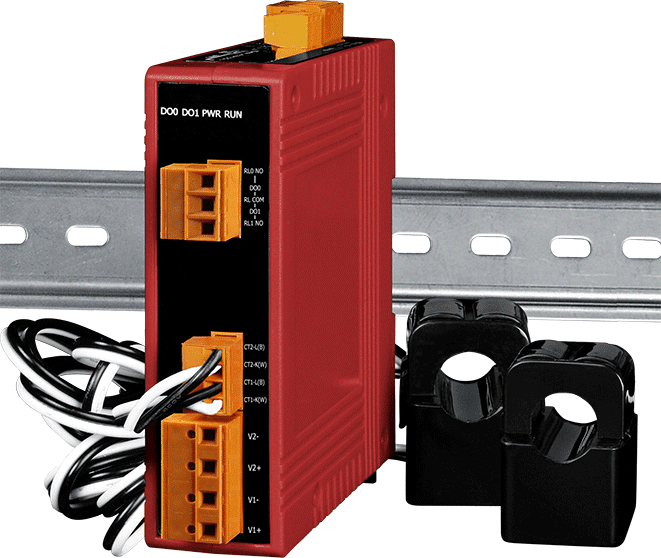

PM-3112-240P Single-Phase Power Meter, 2 Loops, Modbus RTU, 200 A CT
Single-phase, two-loop power meter with Modbus RTU over RS-485, supplied with two 200 A clip-on CTs (24 mm inside diameter, 4 m leads) for energy monitoring.
- True RMS measurement of voltage, current, active, apparent and reactive power, energy and power factor
- Two independent single-phase loops for 1P2W energy analysis
- Current measurement up to 200 A (0.15 ~ 200 A) with two clip-on CTs (24 mm inside diameter, 4 m leads) included
- Voltage input range 10 ~ 300 VAC
- Active power accuracy better than 0.5% (PF=1)

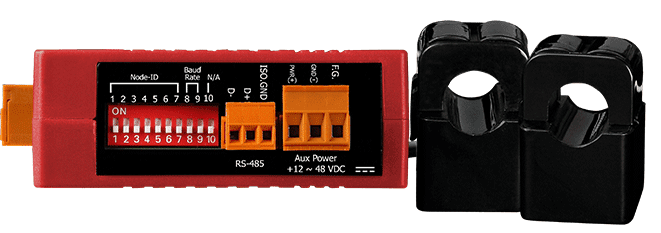

- RS-485 port with Modbus RTU, 9600 to 115200 baud, DIP switch selectable, 3000 VDC isolation
€295.00 per piece
| 1–9 pcs | €295.00 | |
|---|---|---|
| 10–30 pcs | €286.00 | −3 % |
| 31+ pcs | €280.00 | −5 % |
Product information "PM-3112-240P Single-Phase Power Meter, 2 Loops, Modbus RTU, 200 A CT"

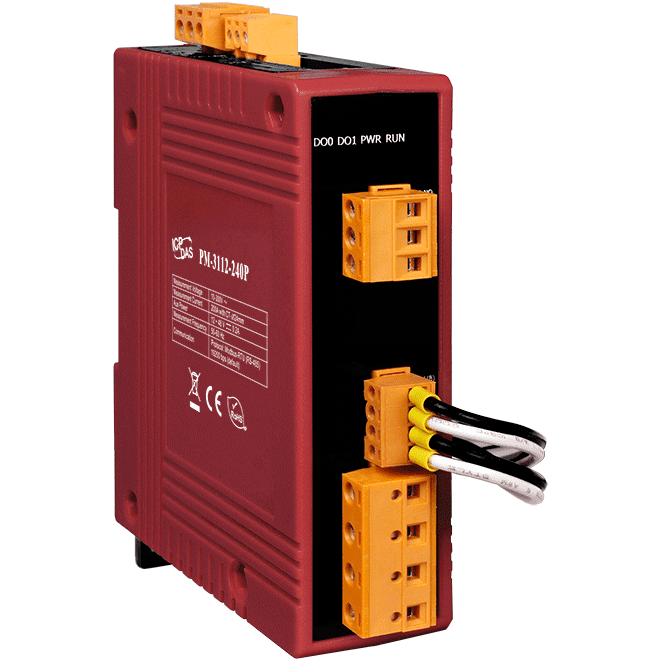

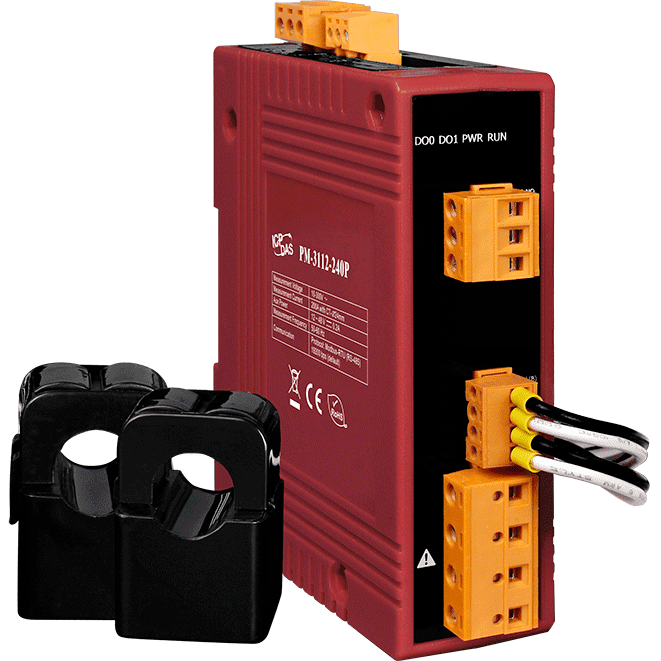

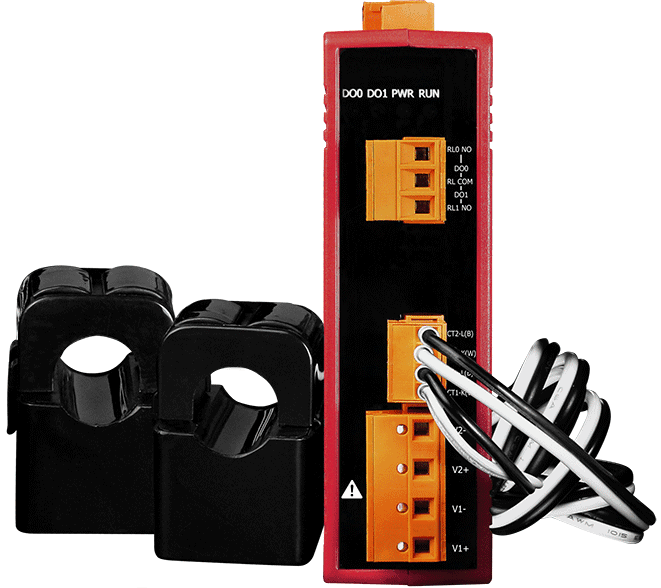

The PM-3112-240P CR is a single-phase power meter that measures two independent loops with true RMS values. It reports voltage, current, active, apparent and reactive power and energy, power factor and frequency, updated every second over RS-485 using Modbus RTU. Two clip-on 200 A current transformers are included, so the meter can be fitted to live conductors without disconnecting the circuit.
This variant suits engineers who need accurate energy readings on 1P2W circuits up to 200 A. Its 10 ~ 300 VAC input range and 0.5% active power accuracy at unity power factor make it suitable for monitoring both low-voltage and higher-voltage secondary-side equipment. The two Form A power relay outputs can drive sirens or lights for alarm signalling.
The meter is housed in a plastic DIN-rail enclosure and runs from a +12 ~ 48 VDC supply. Its RS-485 port is isolated at 3000 VDC and offers selectable baud rates and data formats. Typical applications include generator monitoring, switchgear distribution systems and energy management.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Relay outputs: | 2 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| AC Power Measurement | |
|---|---|
| Wiring | 1P2W-1CT |
| Loops | 1-phase: 2 |
| Input Voltage | 10 ~ 300 V |
| Input Current | PM-3112-100: CTØ10 mm (0.05 A ~ 60 A) PM-3112-100P: CTØ10 mm (0.05 A ~ 60 A) PM-3112-160: CTØ16 mm (0.1 A ~ 100 A) PM-3112-160P: CTØ16 mm (0.1 A ~ 100 A) PM-3112-240: CTØ24 mm (0.15 A ~ 200 A) PM-3112-240P: CTØ24 mm (0.15 A ~ 200 A) |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
| Channels | 2 |
| Type | Power Relay |
| Contact Rating | Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600, 19200 (default), 38400, 115200; DIP Switch Selectable |
| Data Format | N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
