PM-3112-100 Single-Phase Power Meter, Modbus RTU, 2 Loops, 60 A CT
Single-phase, two-loop power meter with Modbus RTU and a 60 A clip-on CT (10 mm aperture) for real-time energy monitoring on circuits up to 300 VAC.
- True RMS measurement of voltage, current, active, apparent and reactive power, energy, power factor and frequency
- Two independent single-phase loops with separate reference voltages
- Two 60 A clip-on CTs (10 mm aperture, 1.8 m leads) for easy installation on existing conductors
- Accuracy better than 0.5% for active power at PF=1
- Input voltage range 10 to 300 VAC; supply from +12 to 48 VDC
- 1 x RS-485 port with Modbus RTU; baud rate and data format selectable
€184.00 per piece
| 1–9 pcs | €184.00 | |
|---|---|---|
| 10–30 pcs | €179.00 | −3 % |
| 31+ pcs | €175.00 | −5 % |
Product information "PM-3112-100 Single-Phase Power Meter, Modbus RTU, 2 Loops, 60 A CT"

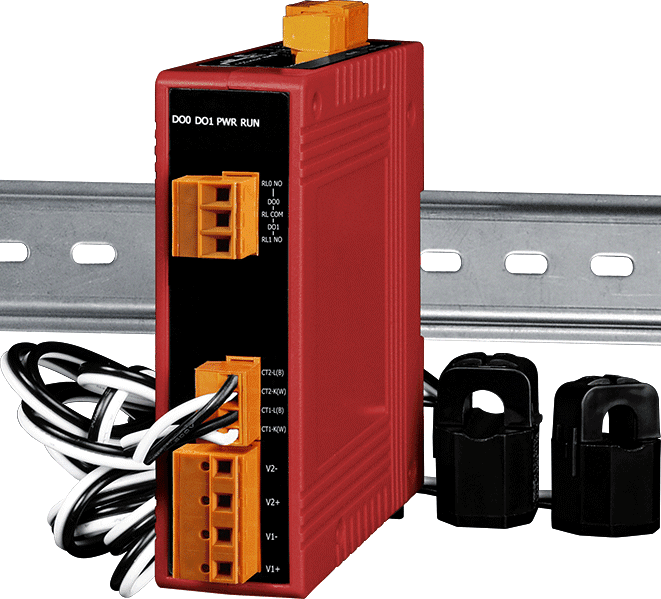

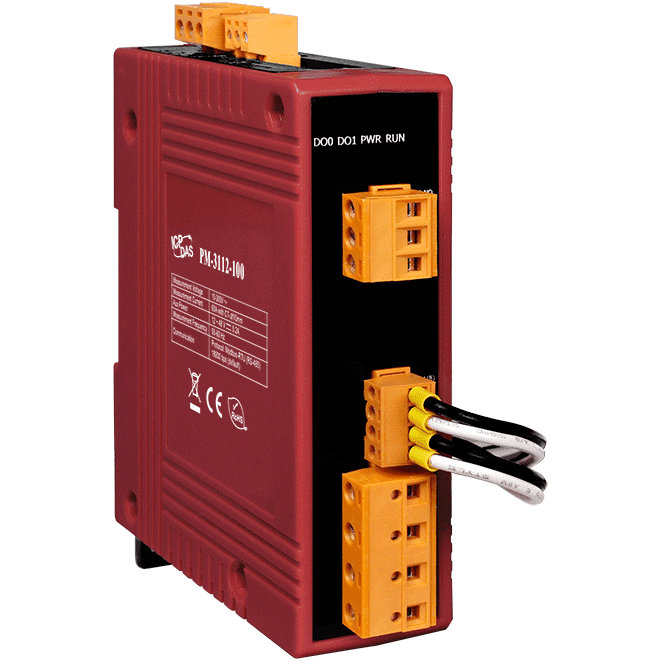

PM-3112-100 CR is a compact single-phase power meter that measures true RMS voltage, current and power on two independent loops. It suits engineers who need real-time electrical usage data from a monitored circuit without rewiring it, as the clip-on CT fits around the conductor.

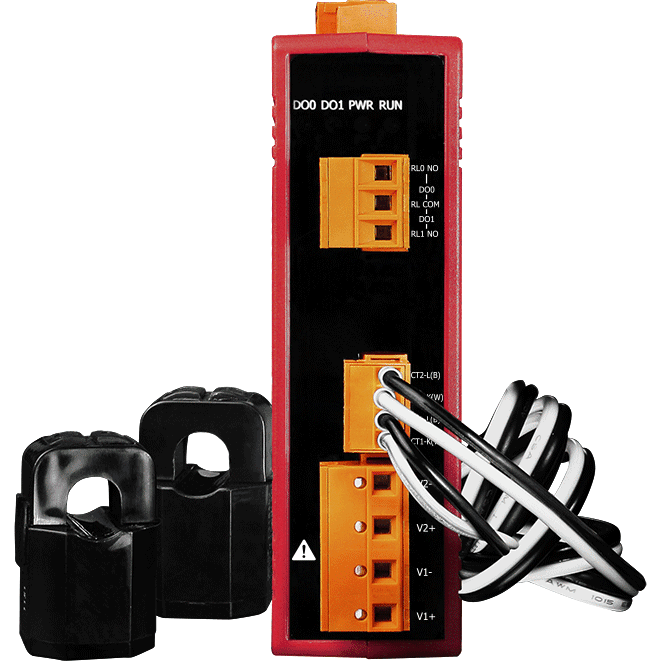

This ordering code includes two 60 A clip-on CTs with a 10 mm inside diameter and 1.8 m wire leads, matching the 1P2W, single-CT loop configuration. Current range is 0.05 A to 60 A per CT, and the input voltage range is 10 to 300 VAC, so the meter can be applied on both low-voltage and higher-voltage secondary circuits.
Readings are published over a single RS-485 port using Modbus RTU, with selectable baud rates and data formats. Two Form A power relay outputs can drive sirens or lights for alarm signalling, and the DIN-rail housing supports panel installation.
Applications
- Generator monitoring
- Switchgear distribution systems
- Energy management
| Product type: | Power meter |
|---|---|
| Interface: | RS-485 |
| Protocol: | Modbus RTU |
| Relay outputs: | 2 |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -20 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifications
| AC Power Measurement | |
|---|---|
| Wiring | 1P2W-1CT |
| Loops | 1-phase: 2 |
| Input Voltage | 10 ~ 300 V |
| Input Current | PM-3112-100: CTØ10 mm (0.05 A ~ 60 A) PM-3112-100P: CTØ10 mm (0.05 A ~ 60 A) PM-3112-160: CTØ16 mm (0.1 A ~ 100 A) PM-3112-160P: CTØ16 mm (0.1 A ~ 100 A) PM-3112-240: CTØ24 mm (0.15 A ~ 200 A) PM-3112-240P: CTØ24 mm (0.15 A ~ 200 A) |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
| Channels | 2 |
| Type | Power Relay |
| Contact Rating | Form A: 5 A @ 250 VAC 5 A @ 30 VDC |
| COM Ports | |
| Ports | 1 x RS-485 |

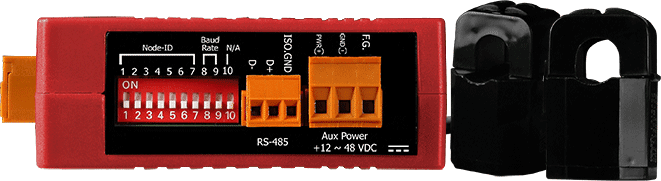

| Baud Rate | 9600, 19200 (default), 38400, 115200; DIP Switch Selectable |
| Data Format | N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 |
| Protocol | Modbus RTU |
| Isolation | 3000 VDC |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 2W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifications as published by the manufacturer. Subject to change.
